Tollaston Machinery · Authorized dealer
Authorized Hydravex dealer in Canada and the US
Hydravex waterjet cutting, demonstrated at our Tech Centre and supported coast to coast.
2
Models we supply
1994
In business since
Vaughan, ON
Parts and service
Hydravex builds waterjet cutting, and Tollaston is an authorized dealer across Canada and the US. The line is American-engineered and suits fabricators and stone shops cutting materials a laser or plasma table can't touch cleanly. We carry the HX-2040 and the HX5-3060 5-Axis, all sharing the Hydravex FlowLogic control. Every purchase includes a real test on your own material or parts at our Vaughan Tech Centre, applications engineering from your first quote through your first production run, Hydravex parts stocked in our Vaughan warehouse, and factory-trained service technicians across Canada and the US.
The lineup
Hydravex machines we carry
Grouped by what they do. Every one of these is quoted, installed, and serviced by our own team.
Waterjet Cutting
See all Waterjet Cutting at Tollaston
Waterjet cutting system

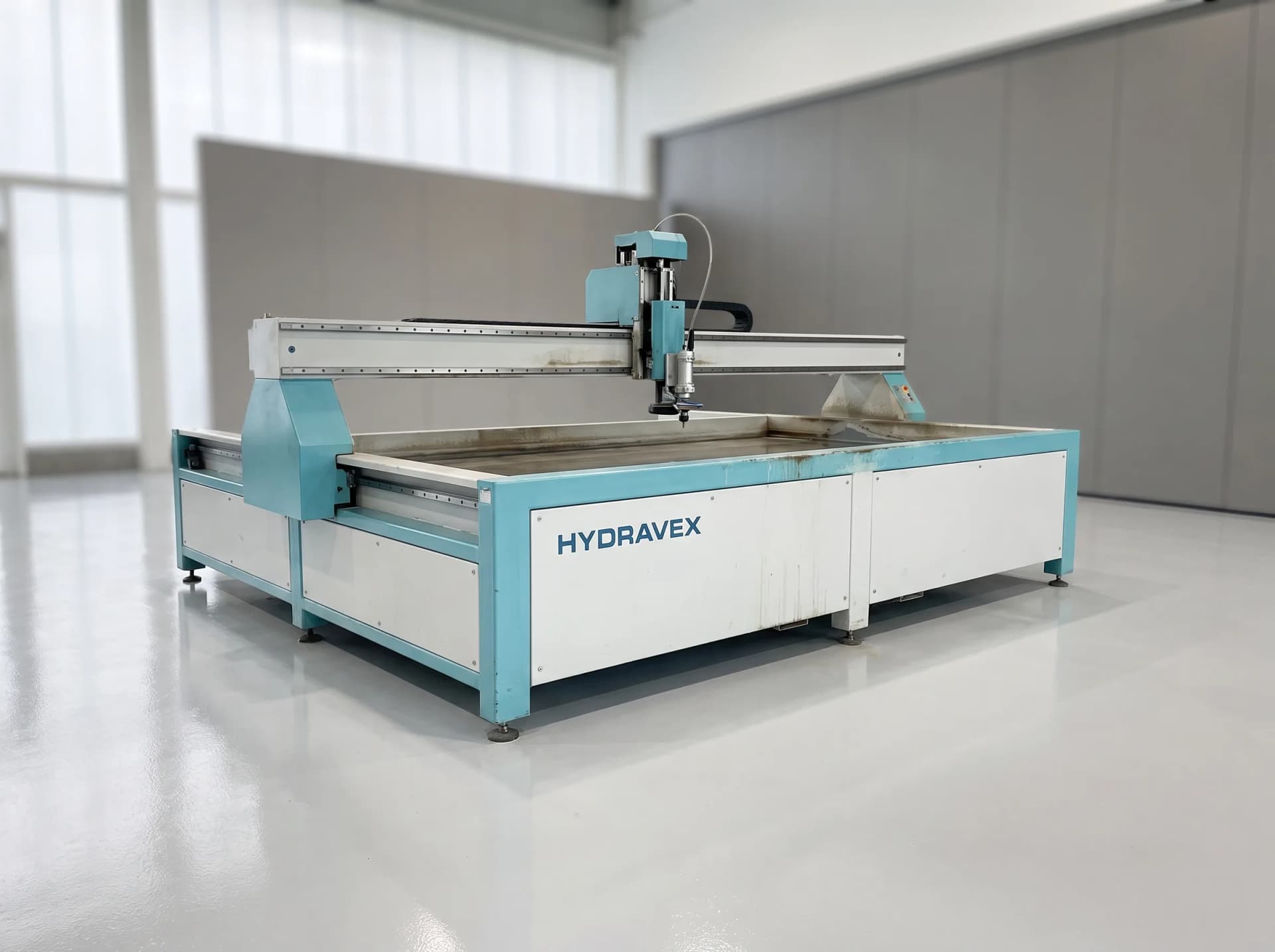

HX-2040
The HX-2040 is Hydravex's straight-head waterjet, built for shops that need clean, cold-cut edges on metal, stone, glass, rubber and composites without the cost of a 5-axis head. A 60,000 psi direct-drive intensifier pump feeds a single vertical cutting head over a 2000 x 4000 mm (6.5' x 13') tank bed, cutting material up to 100 mm (4") thick with no heat-affected zone. The Hydravex FlowLogic control drives nesting and pierce sequencing, and an automatic abrasive metering system keeps garnet consumption consistent from part to part. Tollaston runs a test cut on your own material, sets up the abrasive and water supply, and trains your team on programming.
- Cutting envelope
- 2000 x 4000 mm (6.5' x 13')
- Pump pressure
- 60,000 psi (4,100 bar) direct-drive intensifier pump
- Cutting head
- Single vertical head, fixed orientation
- Positioning accuracy
- ±0.1 mm (0.004")
5-axis waterjet cutting system
HX5-3060 5-Axis
The HX5-3060 5-Axis adds an articulating wrist to Hydravex's waterjet platform, so the cutting head tilts through the kerf and cancels the natural taper a straight jet leaves on thicker material — square edges on parts that would otherwise need a secondary finishing pass. A 90,000 psi direct-drive intensifier pump feeds a single head over a 3000 x 6000 mm (10' x 20') tank bed, cutting metal, stone, glass, tile and composites with the same setup. Because it cuts stone as cleanly as metal, Tollaston also lists this machine under Stone CNC Centres for stone fabricators. The Hydravex FlowLogic control manages taper compensation automatically from the part's material and thickness. Tollaston runs a test cut on your own material, sets up abrasive supply, and trains your programmers.
- Cutting envelope
- 3000 x 6000 mm (10' x 20')
- Pump pressure
- 90,000 psi (6,200 bar) direct-drive intensifier pump
- Cutting head axes
- 5-axis with articulating wrist, ±60° taper compensation
- Max Z-axis travel
- 300 mm (11.8")
Why us
Why buy Hydravex from Tollaston Machinery
Proven at the Tech Centre
Every Hydravex quote comes with a real test on your own material or parts at our Vaughan Tech Centre, not a catalogue cycle time.
Applications engineering included
Our applications engineers build your process, program your first parts and train your team on every Hydravex machine we sell.
Parts stocked in Vaughan
Common Hydravex spindle, tooling and electrical components are on our own shelves, not on a boat from overseas.
Coast-to-coast service
Factory-trained technicians cover installation, preventive maintenance and emergency calls on Hydravex equipment across Canada and the US.
FAQ
Hydravex at Tollaston Machinery: common questions
Answers to common questions about our hydravex products.
Yes. We are an authorized Hydravex dealer across Canada and the US. We quote the machines, install and commission them, train your team, and service them afterward with our own factory-trained technicians.
We carry the HX-2040 and the HX5-3060 5-Axis. The current lineup and specifications are listed on this page.
Yes. We service Hydravex equipment whether or not we supplied it. Send us the model and we will tell you what our technicians can cover and what parts we have on the shelf.
We hold common Hydravex spare parts and consumables in our Vaughan warehouse. Anything not on the shelf, we order directly and give you a lead time before you commit.
Request a quote from this page or call your local branch. We'll ask about your parts, material and volume before quoting, so the machine matches the work rather than the other way around.
Not sure which Hydravex machine fits?
Ask our assistant about material, thickness, and volume. It knows the lineup and what we stock.
