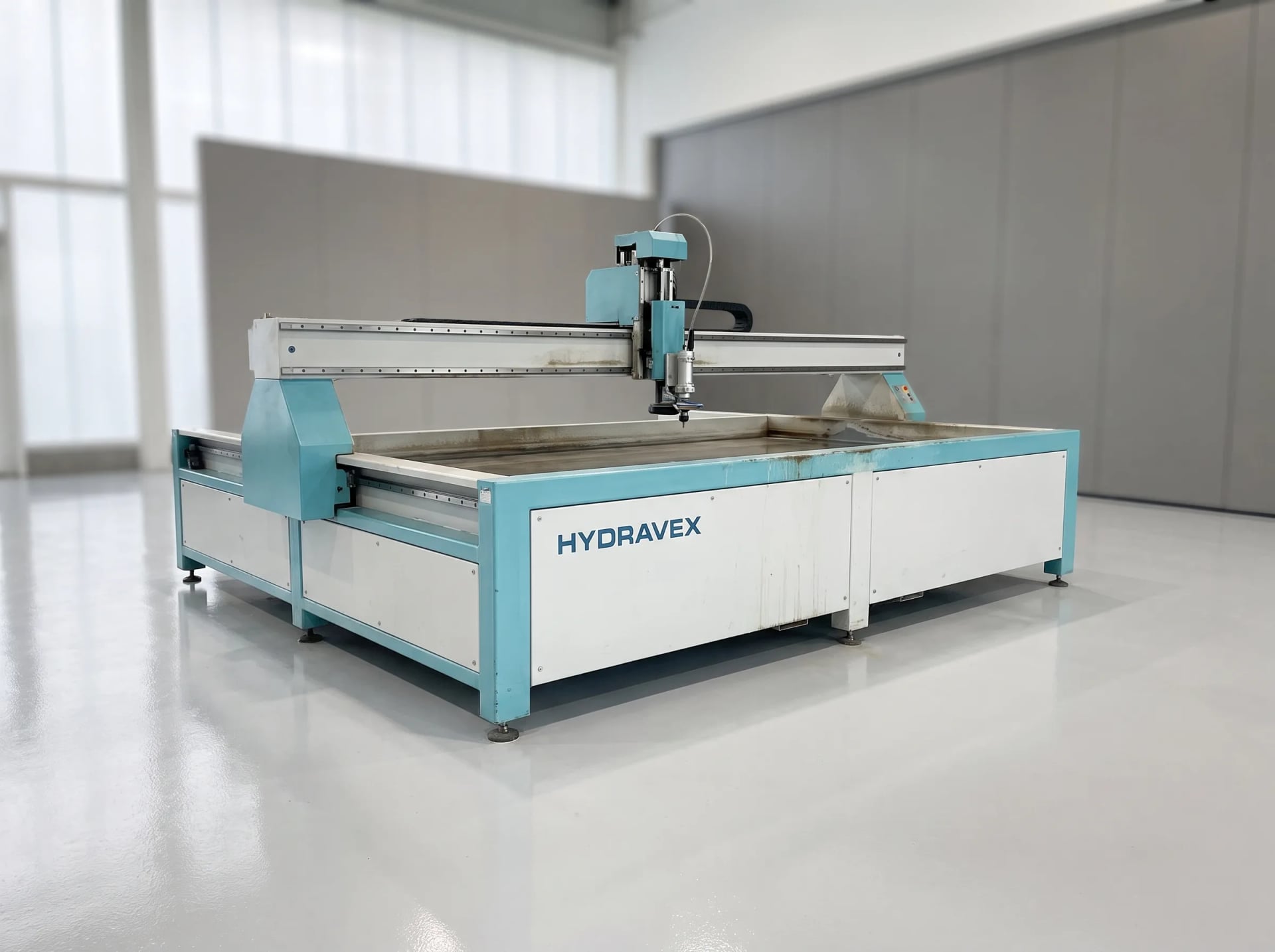

Waterjet Cutting
HX-2040
by Hydravex
Straight-head waterjet cutting system for metal, stone, glass and composites up to 4 m long.
2000 x 4000 mm (6.5' x 13')
Cutting envelope
60,000 psi (4,100 bar) direct-drive intensifier pump
Pump pressure
Single vertical head, fixed orientation
Cutting head
Not sure if the HX-2040 is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Job shops adding cold-cut capability
- Shops cutting a mix of metal, rubber and composites
- Fabricators without a need for bevel or taper-free edges
Cutting envelope
2000 x 4000 mm (6.5' x 13')
Pump pressure
60,000 psi (4,100 bar) direct-drive intensifier pump
Cutting head
Single vertical head, fixed orientation
Positioning accuracy
±0.1 mm (0.004")
Key Features
HX-2040 Features
Standard features that set this machine apart in demanding manufacturing environments.
Ease of Operation
- Hydravex FlowLogic control with nesting and pierce sequencing
- Automatic abrasive metering
- Remote diagnostics and cut-recipe updates
Built-In Extras
- Slatted stainless tank bed
- No heat-affected zone on any material
- Direct-drive intensifier pump for stable pressure
Full Specifications
Hydravex HX-2040 Technical Details
Complete specifications, standard features, and optional upgrades.
- Cutting envelope
- 2000 x 4000 mm (6.5' x 13')
- Pump pressure
- 60,000 psi (4,100 bar) direct-drive intensifier pump
- Cutting head
- Single vertical head, fixed orientation
- Positioning accuracy
- ±0.1 mm (0.004")
- Max cut thickness, mild steel
- 100 mm (4")
- Max cut thickness, stone/granite
- 60 mm (2.4")
- Max positioning speed
- 20 m/min (787 in/min)
- Abrasive feed rate
- 0.2 - 0.4 kg/min, garnet #80
- Control
- Hydravex FlowLogic control, 18" touchscreen
- Tank bed
- Slatted stainless tank
- Power requirement
- 600V/3-phase, 60A service
- Footprint
- 7 x 5 m (23' x 16')
| Cutting envelope | 2000 x 4000 mm (6.5' x 13') |
| Pump pressure | 60,000 psi (4,100 bar) direct-drive intensifier pump |
| Cutting head | Single vertical head, fixed orientation |
| Positioning accuracy | ±0.1 mm (0.004") |
| Max cut thickness, mild steel | 100 mm (4") |
| Max cut thickness, stone/granite | 60 mm (2.4") |
| Max positioning speed | 20 m/min (787 in/min) |
| Abrasive feed rate | 0.2 - 0.4 kg/min, garnet #80 |
| Control | Hydravex FlowLogic control, 18" touchscreen |
| Tank bed | Slatted stainless tank |
| Power requirement | 600V/3-phase, 60A service |
| Footprint | 7 x 5 m (23' x 16') |
- Hydravex FlowLogic control with nesting and pierce sequencing
- Direct-drive intensifier pump for stable pressure
- Automatic abrasive metering
- Slatted stainless tank bed
- No heat-affected zone on any material
- Remote diagnostics and cut-recipe updates
- Automatic garnet recycling system
- Rotary axis for round parts and pipe
- Remote monitoring package
- Extended tank bed length
- General metal fabrication parts
- Gasket and rubber component cutting
- Signage and architectural inlay work
- Prototype and short-run cutting across materials
FAQ
HX-2040 Questions
Answers to common questions about the HX-2040.
Typically 10-12 weeks from order; we confirm the exact date at order.
A 600V/3-phase, 60A service and a steady water supply sized during the site survey.
Yes — lease and term financing structured around your monthly cutting volume.
Base machine, tank bed, Hydravex FlowLogic control, rigging and installation, and operator training.
