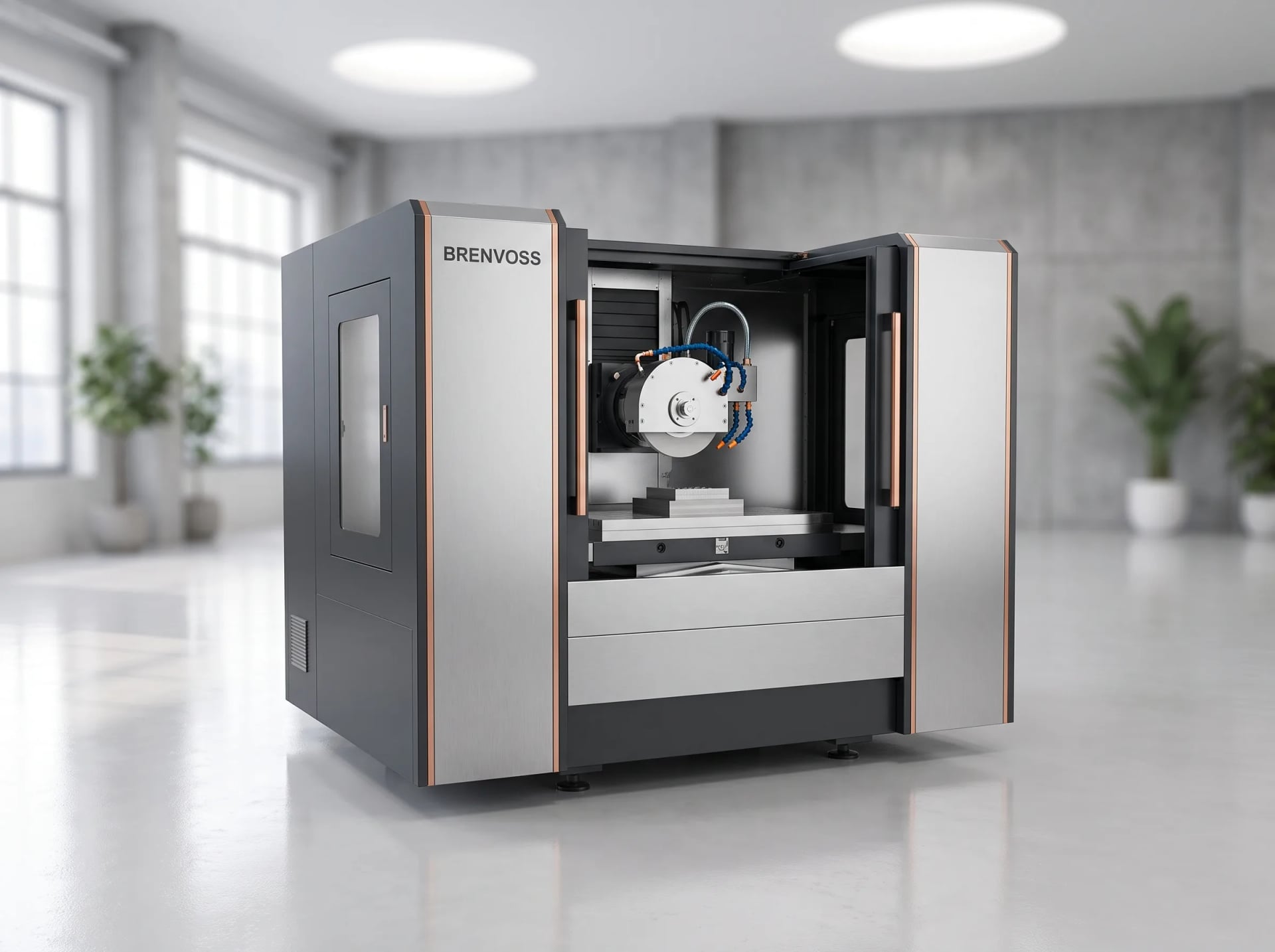

CNC Grinding
BG-S650
by Brenvoss

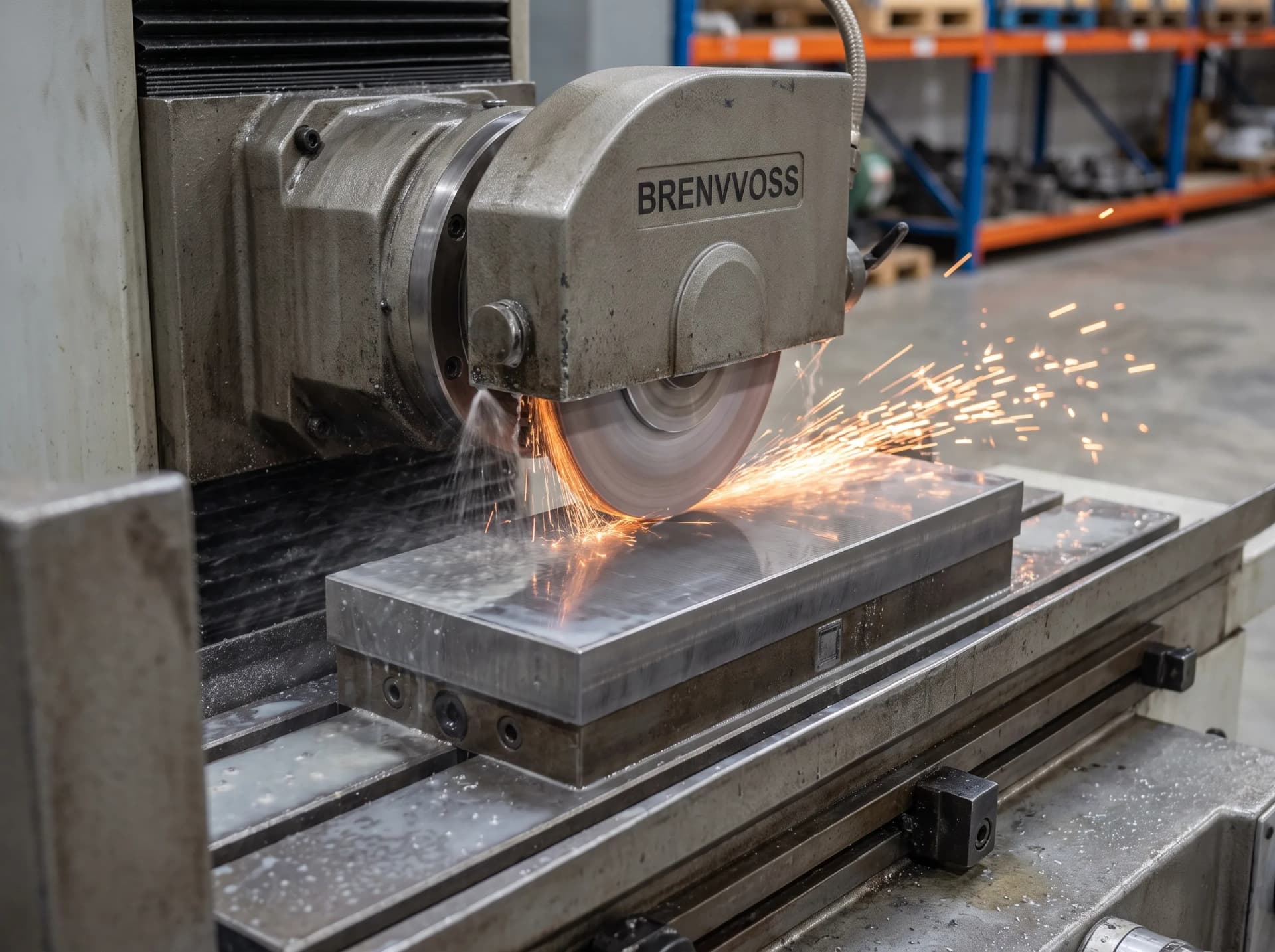

Surface and profile grinder holding sub-micron flatness on hardened tool steel components.
650 x 300 mm (25.6 x 11.8 in)
Table size
650 x 300 x 500 mm (25.6 x 11.8 x 19.7 in)
X / Y / Z travel
350 x 50 x 127 mm (13.8 x 2.0 x 5.0 in)
Grinding wheel size
Not sure if the BG-S650 is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Tooling departments finishing parts after heat treatment or EDM
- Precision flatness and parallelism work
- Profiled forms on punches and die components
- Shops needing sub-micron finish-grade accuracy
Table size
650 x 300 mm (25.6 x 11.8 in)
X / Y / Z travel
650 x 300 x 500 mm (25.6 x 11.8 x 19.7 in)
Grinding wheel size
350 x 50 x 127 mm (13.8 x 2.0 x 5.0 in)
Wheel spindle speed
1,800 - 3,600 rpm
Key Features
BG-S650 Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance
- ±0.002 mm positioning accuracy for finish-grade flatness
- Brenvoss Vantis G control shared logic with Brenvoss 5-axis line
Ease of Operation
- Programmable profile and surface grinding cycles
- Automatic wheel dressing cycle
- In-process gauging interface for automatic size control
Built-In Extras
- Coolant filtration system for consistent finish quality
- Magnetic chuck standard for ferrous workholding
Full Specifications
Brenvoss BG-S650 Technical Details
Complete specifications, standard features, and optional upgrades.
- Table size
- 650 x 300 mm (25.6 x 11.8 in)
- X / Y / Z travel
- 650 x 300 x 500 mm (25.6 x 11.8 x 19.7 in)
- Grinding wheel size
- 350 x 50 x 127 mm (13.8 x 2.0 x 5.0 in)
- Wheel spindle speed
- 1,800 - 3,600 rpm
- Wheel spindle power
- 7.5 kW (10 hp)
- Max table load
- 500 kg (1,102 lb)
- Positioning accuracy
- ±0.002 mm (0.00008 in)
- Repeatability
- ±0.001 mm (0.00004 in)
- Control
- Brenvoss Vantis G control
| Table size | 650 x 300 mm (25.6 x 11.8 in) |
| X / Y / Z travel | 650 x 300 x 500 mm (25.6 x 11.8 x 19.7 in) |
| Grinding wheel size | 350 x 50 x 127 mm (13.8 x 2.0 x 5.0 in) |
| Wheel spindle speed | 1,800 - 3,600 rpm |
| Wheel spindle power | 7.5 kW (10 hp) |
| Max table load | 500 kg (1,102 lb) |
| Positioning accuracy | ±0.002 mm (0.00008 in) |
| Repeatability | ±0.001 mm (0.00004 in) |
| Control | Brenvoss Vantis G control |
- Programmable profile and surface grinding cycles
- ±0.002 mm positioning accuracy for finish-grade flatness
- Automatic wheel dressing cycle
- Brenvoss Vantis G control shared logic with Brenvoss 5-axis line
- Magnetic chuck standard for ferrous workholding
- Coolant filtration system for consistent finish quality
- In-process gauging interface for automatic size control
- Automatic wheel balancing system
- Rotary magnetic chuck for round and irregular parts
- In-process gauging package with automatic compensation
- Extended Y-travel for wider profile work
- Post-heat-treatment finish grinding on tool steel
- Precision plate and parallel-block finishing
- Punch and die-component profile grinding
- Fixture and gauge-block finish work
FAQ
BG-S650 Questions
Answers to common questions about the BG-S650.
The BG-S650 positions to ±0.002 mm, and with correctly dressed wheels and stable process parameters, shops routinely hold flatness and parallelism well within a few microns on hardened tool steel.
Yes, an automatic wheel dressing cycle is standard, so wheel geometry stays consistent through a production run without manual dressing between parts.
A magnetic chuck is standard for ferrous parts; a rotary magnetic chuck is available as an option for round or irregular workpieces.
Typically 10-12 weeks build-to-order; we confirm your exact date once your configuration is finalized at quote stage.
