CNC Foam Cutting

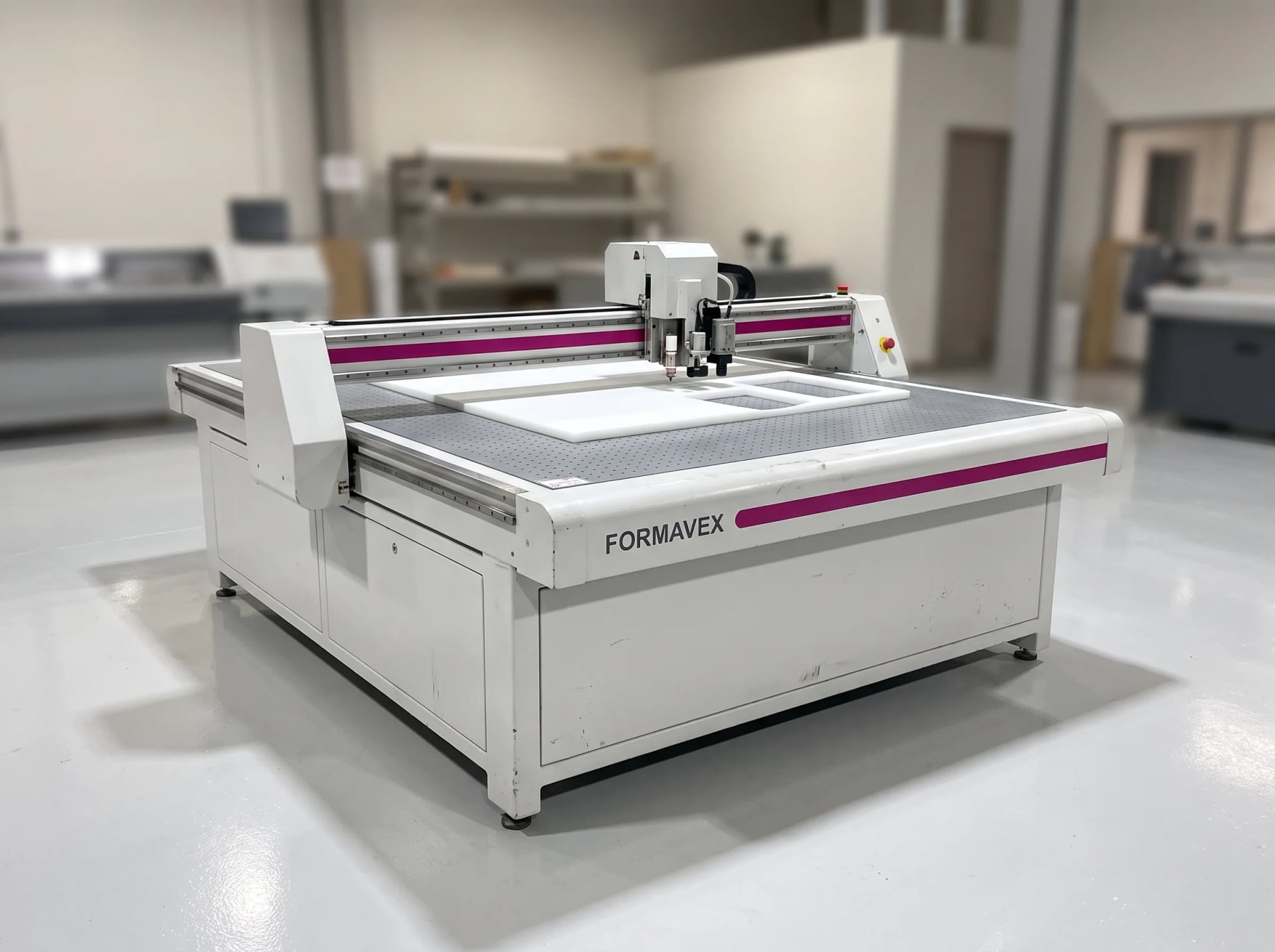

Digital Foam & Gasket Cutter
by Formavex
Mid-size digital cutting table for foam, gasket, packaging and signage short-run production.
1600 x 3000 mm (63" x 118")
Bed size
Automatic multi-tool head, 4 stations
Tool head
Oscillating knife, tangential knife, router bit, creasing wheel
Tool types
Not sure if the Digital Foam & Gasket Cutter is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Shops cutting foam gaskets and packaging on one table
- Sign and display shops adding digital cutting
- Businesses replacing physical dies on short runs
Bed size
1600 x 3000 mm (63" x 118")
Tool head
Automatic multi-tool head, 4 stations
Tool types
Oscillating knife, tangential knife, router bit, creasing wheel
Max cut thickness, knife tools
40 mm (1.6") foam / corrugated
Key Features
Digital Foam & Gasket Cutter Features
Standard features that set this machine apart in demanding manufacturing environments.
Ease of Operation
- Automatic 4-station multi-tool head
- Formavex EdgeLogic control with direct DXF/PDF/AI import
- Automatic tool-depth calibration between changeovers
- Nesting software for material-efficient layouts
Safety & Reliability
- Zoned vacuum hold-down
- Camera-assisted registration for pre-printed material
Full Specifications
Formavex FK-1630 Digital Technical Details
Complete specifications, standard features, and optional upgrades.
- Bed size
- 1600 x 3000 mm (63" x 118")
- Tool head
- Automatic multi-tool head, 4 stations
- Tool types
- Oscillating knife, tangential knife, router bit, creasing wheel
- Max cut thickness, knife tools
- 40 mm (1.6") foam / corrugated
- Max cut thickness, router bit
- 20 mm (0.8") composites and rigid board
- Max positioning speed
- 70 m/min (2,756 in/min)
- Positioning accuracy
- ±0.1 mm (0.004")
- Bed type
- Zoned vacuum hold-down table
- Control
- Formavex EdgeLogic control, 18" touchscreen
- File compatibility
- DXF, PDF, AI direct import
- Power requirement
- 208-240V, single-phase, 30A service
- Footprint
- 4.2 x 4 m (14' x 13')
| Bed size | 1600 x 3000 mm (63" x 118") |
| Tool head | Automatic multi-tool head, 4 stations |
| Tool types | Oscillating knife, tangential knife, router bit, creasing wheel |
| Max cut thickness, knife tools | 40 mm (1.6") foam / corrugated |
| Max cut thickness, router bit | 20 mm (0.8") composites and rigid board |
| Max positioning speed | 70 m/min (2,756 in/min) |
| Positioning accuracy | ±0.1 mm (0.004") |
| Bed type | Zoned vacuum hold-down table |
| Control | Formavex EdgeLogic control, 18" touchscreen |
| File compatibility | DXF, PDF, AI direct import |
| Power requirement | 208-240V, single-phase, 30A service |
| Footprint | 4.2 x 4 m (14' x 13') |
- Automatic 4-station multi-tool head
- Formavex EdgeLogic control with direct DXF/PDF/AI import
- Zoned vacuum hold-down
- Automatic tool-depth calibration between changeovers
- Camera-assisted registration for pre-printed material
- Nesting software for material-efficient layouts
- Roll-feed material handling for continuous stock
- Conveyor unload table
- Extended vacuum zone package
- Foam gasket and protective-insert cutting
- Packaging prototypes and short-run production
- Composite panel trimming
- Signage and display cutting
FAQ
Digital Foam & Gasket Cutter Questions
Answers to common questions about the Digital Foam & Gasket Cutter.
Typically 8-10 weeks from order; we confirm the exact date at order.
A 208-240V, single-phase, 30A service, plus compressed air for the vacuum bed's blower.
Yes — lease and term financing structured around your monthly volume.
Base machine, multi-tool head, Formavex EdgeLogic control, rigging and installation, and operator training.
