Tollaston Machinery · Authorized dealer
Authorized Formavex dealer in Canada and the US
Formavex CO2 lasers, digital knife cutting tables and CNC foam cutters, demonstrated at our Tech Centre and supported coast to coast.
5
Models we supply
1994
In business since
Vaughan, ON
Parts and service
Formavex builds CO2 lasers, digital knife cutting tables and CNC foam cutters, and Tollaston is an authorized dealer across Canada and the US. The line is European-engineered and suits sign shops, packaging houses and composite and foam fabricators. We carry the FC-1390 CO2 and FC-2030 laser systems, the FK-1630 Digital and FK-3220 XL cutting tables, and the FW-4 HotWire foam cutter, all sharing the Formavex EdgeLogic control. Every purchase includes a real test on your own material or parts at our Vaughan Tech Centre, applications engineering from your first quote through your first production run, Formavex parts stocked in our Vaughan warehouse, and factory-trained service technicians across Canada and the US.
The lineup
Formavex machines we carry
Grouped by what they do. Every one of these is quoted, installed, and serviced by our own team.
CO2 Laser Cutting & Engraving
See all CO2 Laser Cutting & Engraving at Tollaston
CO2 laser cutting and engraving system

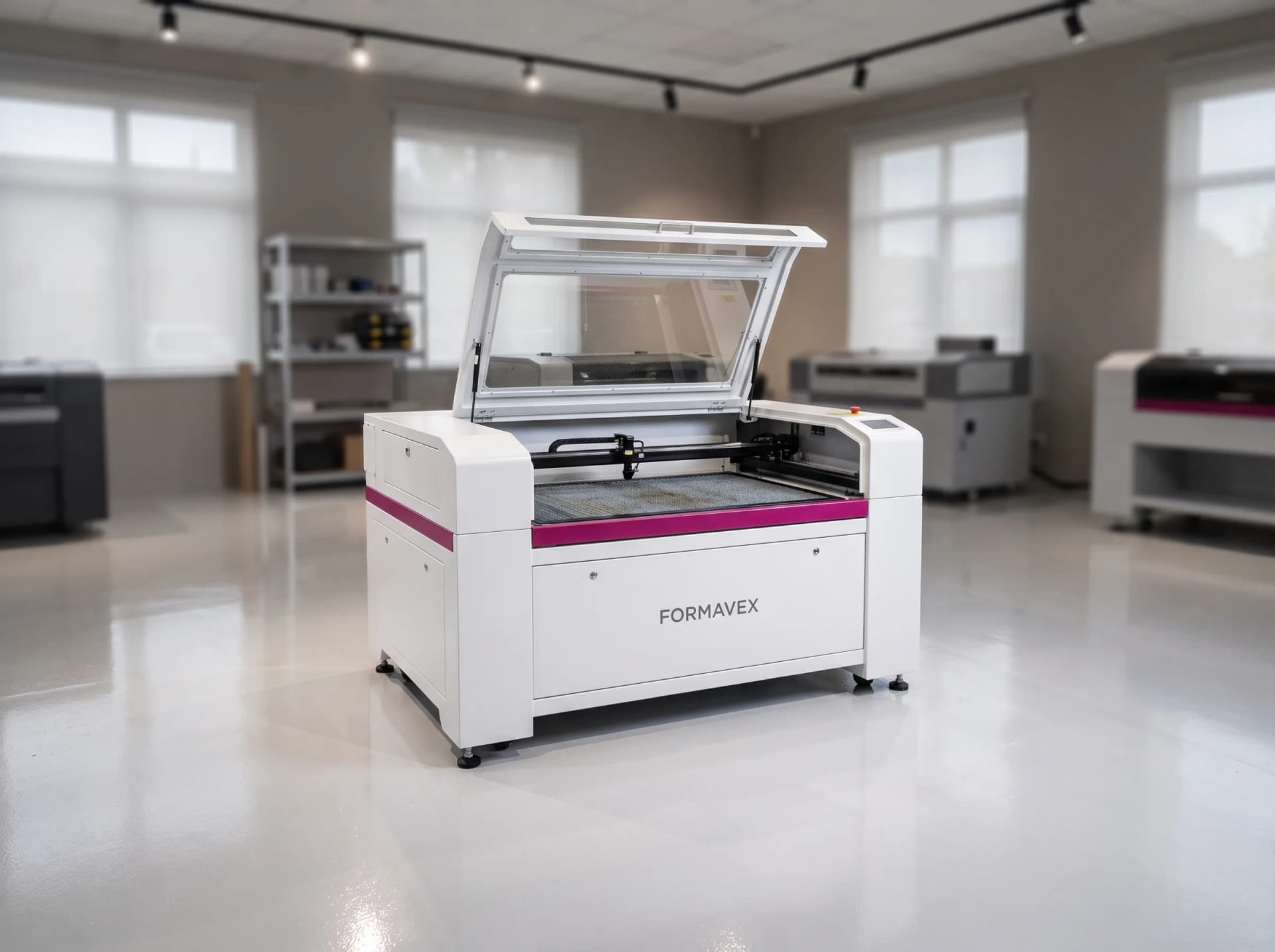

FC-1390 CO2
The FC-1390 CO2 is Formavex's entry laser for shops cutting and engraving acrylic, wood, fabric, leather and cardboard without the footprint or cost of a production platform. A 1300 x 900 mm (51" x 35") honeycomb bed and 130W in-house sealed CO2 laser tube handle the great majority of sign, award and packaging-prototype work. The Formavex EdgeLogic control's material library sets speed and power automatically for common stock, so new operators are cutting clean parts on day one. Tollaston sets up ventilation, runs a test job on your own material, and trains your team on the software.
- Bed size
- 1300 x 900 mm (51" x 35")
- Laser power
- 130 W in-house sealed CO2 laser tube
- Max cut thickness, acrylic
- 15 mm (0.6")
- Max cut thickness, plywood/MDF
- 10 mm (0.4")
CO2 laser cutting and engraving system

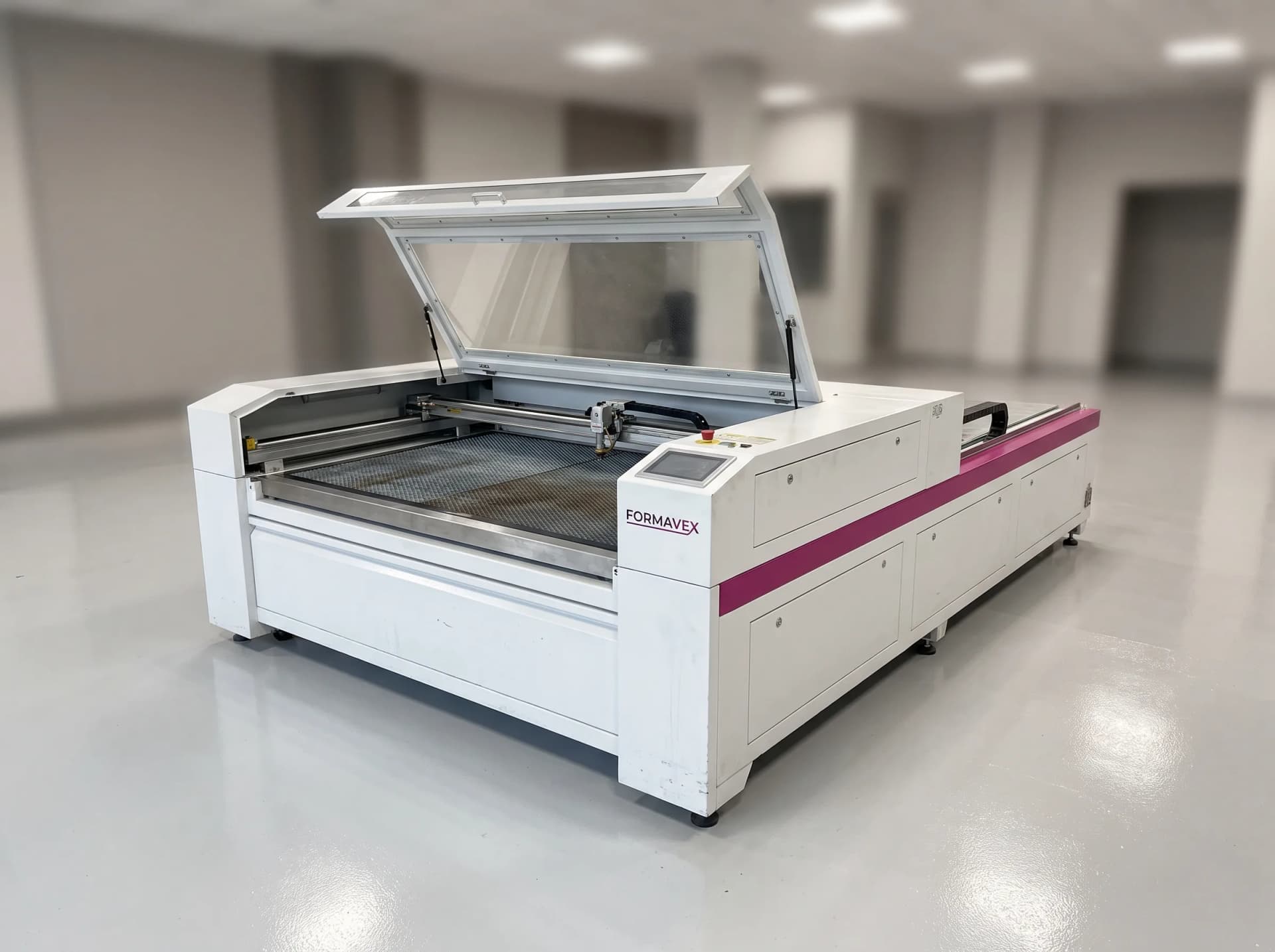

FC-2030
The FC-2030 steps up Formavex's CO2 platform to a 2000 x 3000 mm (79" x 118") bed and a 300W in-house sealed CO2 laser tube, sized for shops cutting and engraving non-metal materials in volume — acrylic, MDF, plywood, foam board, fabric, leather and cardboard. A honeycomb vacuum bed holds thin stock flat across the full width, and the Formavex EdgeLogic control runs cut and engrave passes in one job file so a sign panel comes off the bed cut, engraved and ready to finish. Dual-zone exhaust keeps fume extraction efficient even at full bed length. Tollaston sets up ventilation, runs a test job on your own material, and trains your team on the software.
- Bed size
- 2000 x 3000 mm (79" x 118")
- Laser power
- 300 W in-house sealed CO2 laser tube
- Max cut thickness, acrylic
- 25 mm (1")
- Max cut thickness, plywood/MDF
- 18 mm (0.7")
Digital Cutting Tables
See all Digital Cutting Tables at Tollaston
Digital cutting table

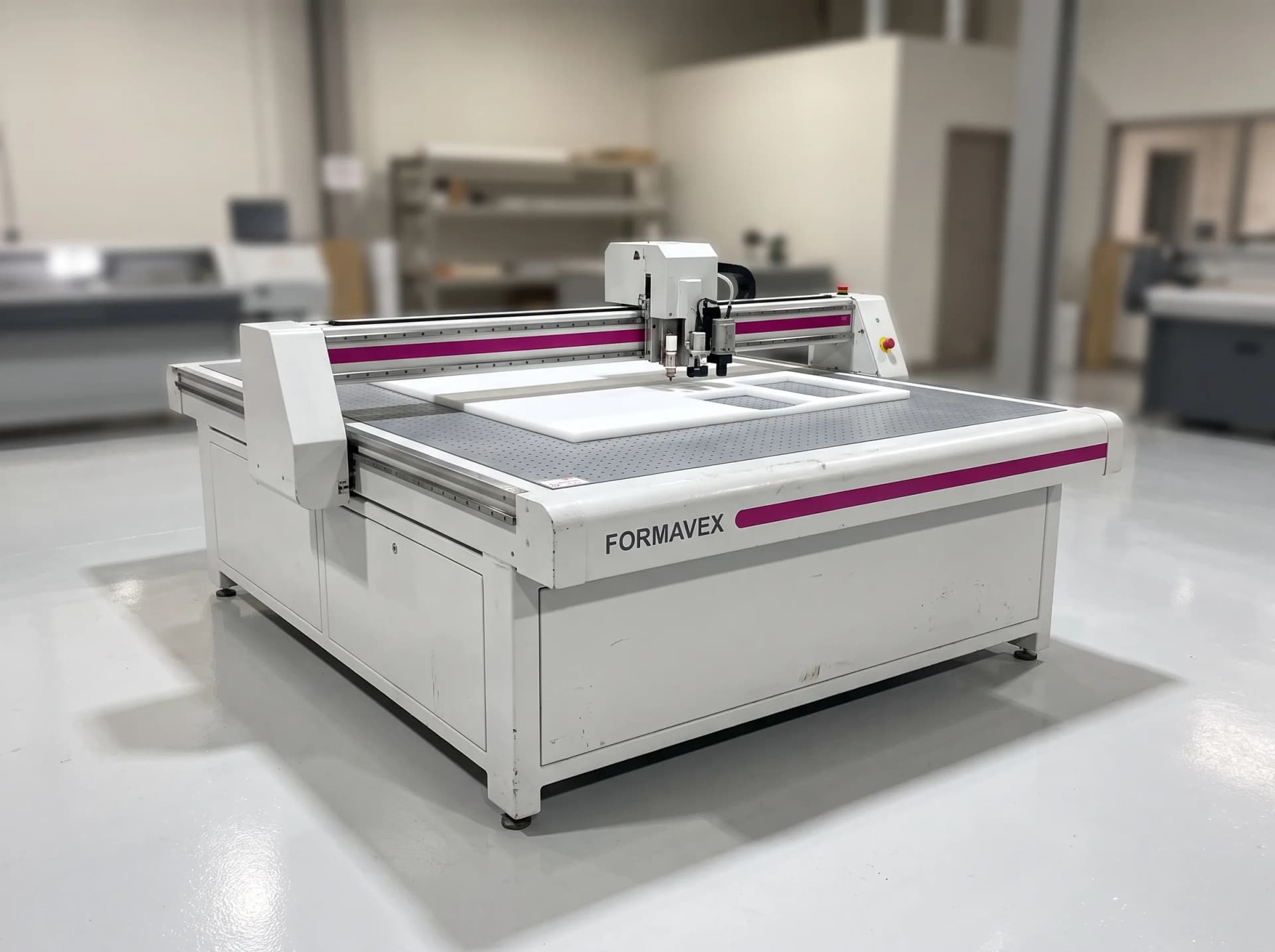

FK-1630 Digital
The FK-1630 Digital brings die-free digital cutting to shops that don't need the FK-3220 XL's full sheet capacity. A 1600 x 3000 mm (63" x 118") vacuum bed and an automatic tool head switch between oscillating knife, tangential knife, router bit and creasing wheel within a single job, covering foam gaskets, packaging prototypes, composites and rigid signage from one machine. Because it cuts foam gaskets and inserts as cleanly as packaging board, Tollaston also lists this machine under CNC Foam Cutting. The Formavex EdgeLogic control imports cut files directly from design software. Tollaston runs a test job on your own material and trains your team on file setup.
- Bed size
- 1600 x 3000 mm (63" x 118")
- Tool head
- Automatic multi-tool head, 4 stations
- Tool types
- Oscillating knife, tangential knife, router bit, creasing wheel
- Max cut thickness, knife tools
- 40 mm (1.6") foam / corrugated
Digital cutting table

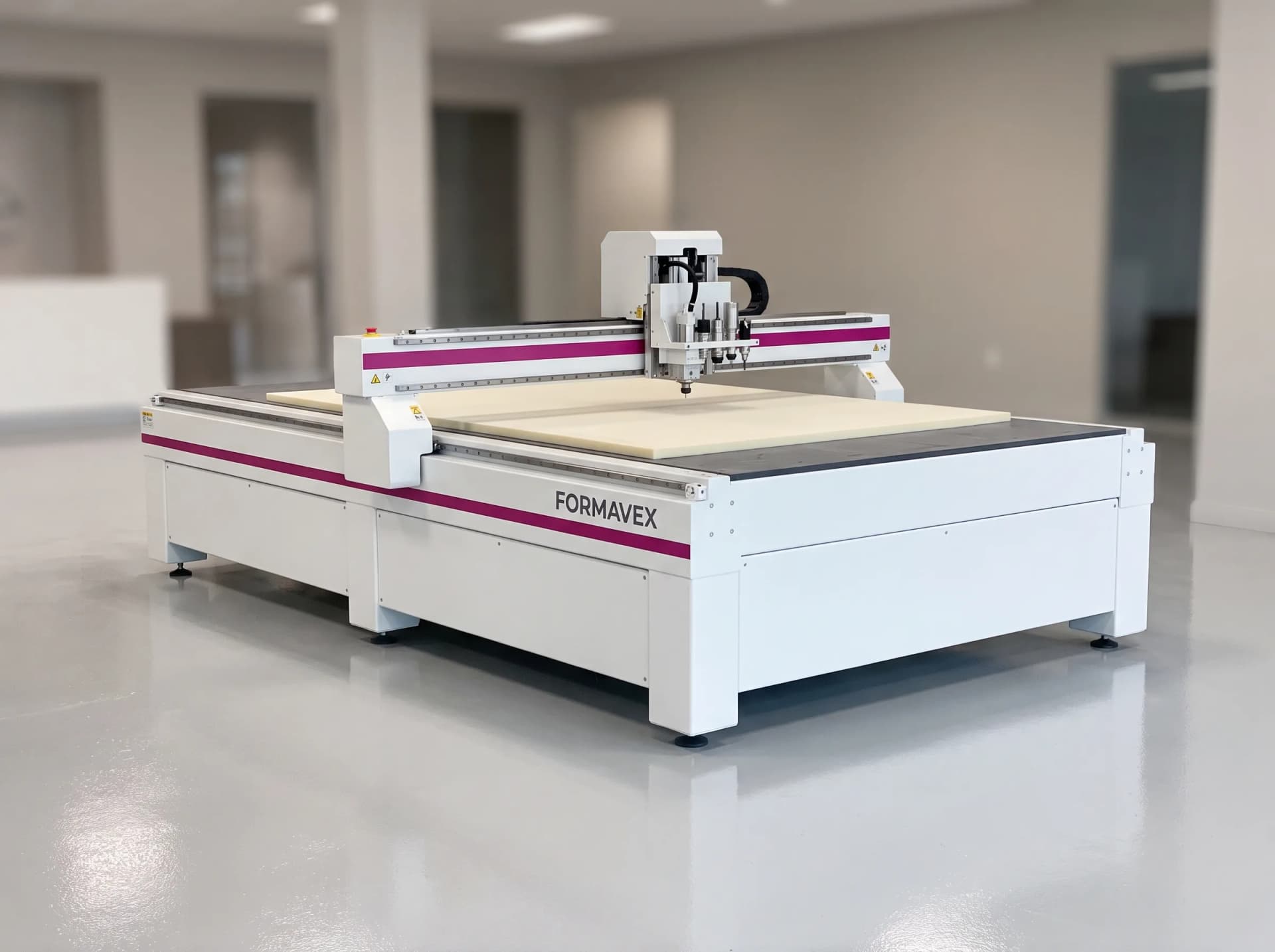

FK-3220 XL
The FK-3220 XL brings Formavex's digital knife-cutting platform to a 3200 x 2000 mm (126" x 79") vacuum bed for shops running full sheets of packaging board, foam, gasket material, composites and rigid signage. A multi-tool head switches automatically between oscillating knife, tangential knife, router bit and creasing wheel within a single job, so a die-cut box or gasket sheet comes off the table cut, creased and ready to fold. The Formavex EdgeLogic control reads standard cut files directly from design software, cutting the step of building physical dies out of short-run packaging work entirely. Tollaston runs a test job on your own material and trains your team on file setup and tool changeover.
- Bed size
- 3200 x 2000 mm (126" x 79")
- Tool head
- Automatic multi-tool head, 4 stations
- Tool types
- Oscillating knife, tangential knife, router bit, creasing wheel
- Max cut thickness, knife tools
- 50 mm (2") foam / corrugated
CNC Foam Cutting
See all CNC Foam Cutting at Tollaston
CNC hot-wire foam cutter

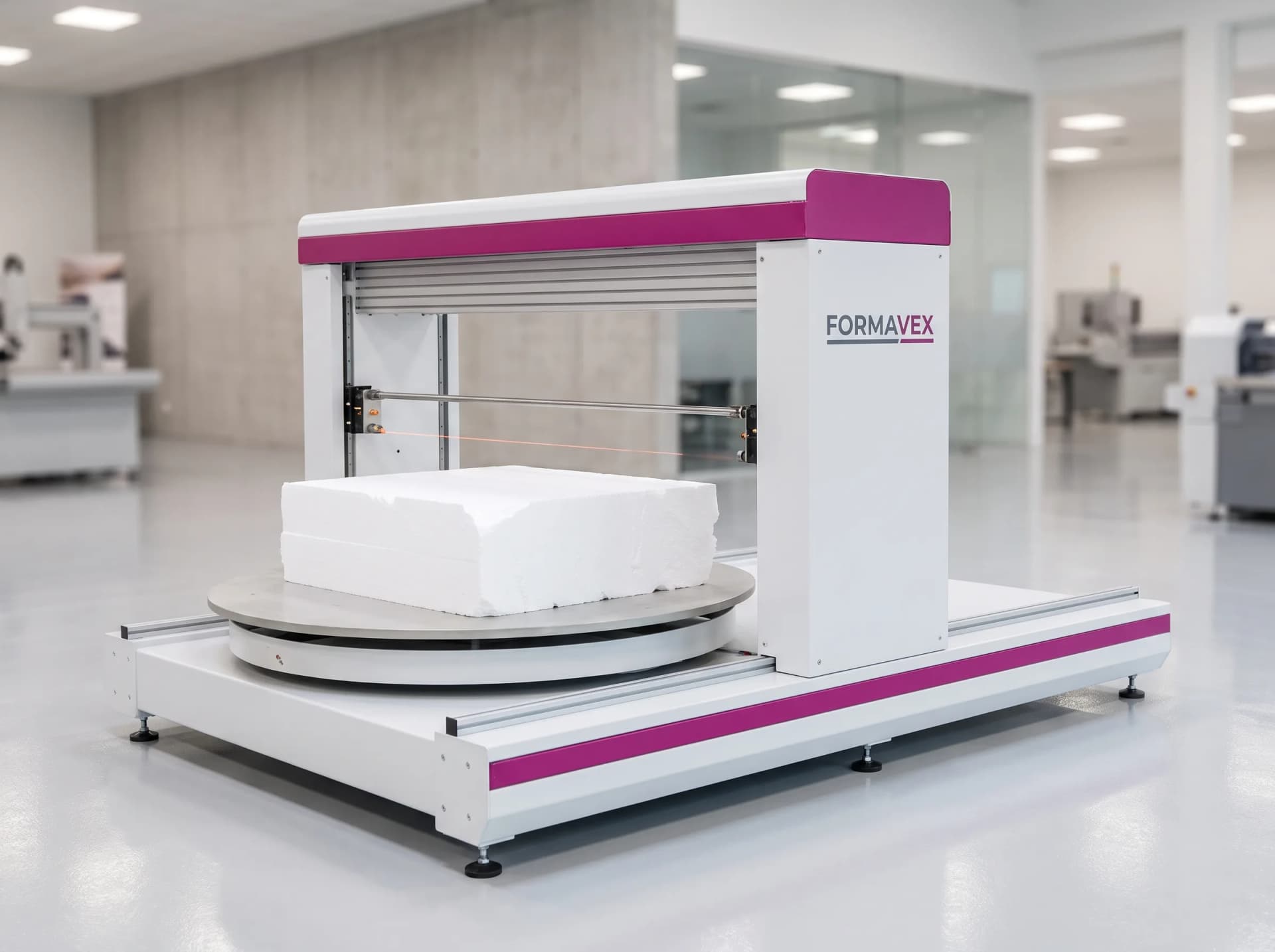

FW-4 HotWire
The FW-4 HotWire cuts EPS, XPS and polyurethane foam with a resistance-heated wire instead of a blade, leaving a clean, melted edge with no crumbling or dust. A 4-axis frame — X, Y, plus two independently driven towers — cuts straight profiles, tapers and compound curves across a 2000 x 1000 x 800 mm (79" x 39" x 31") envelope, while an optional rotary turntable adds true 3D profiles like columns and architectural mouldings. The Formavex EdgeLogic control imports DXF and STL files directly, and wire temperature and feed speed are tuned per foam density from a stored material library. Tollaston runs a test cut on your own foam stock and trains your team on wire replacement and material presets.
- Cutting envelope
- 2000 x 1000 x 800 mm (79" x 39" x 31")
- Axes
- 4-axis: X, Y, independent left/right towers
- Wire type
- Resistance-heated nichrome cutting wire
- Wire temperature range
- 200 - 500°C (392 - 932°F), material-based presets
Why us
Why buy Formavex from Tollaston Machinery
Proven at the Tech Centre
Every Formavex quote comes with a real test on your own material or parts at our Vaughan Tech Centre, not a catalogue cycle time.
Applications engineering included
Our applications engineers build your process, program your first parts and train your team on every Formavex machine we sell.
Parts stocked in Vaughan
Common Formavex spindle, tooling and electrical components are on our own shelves, not on a boat from overseas.
Coast-to-coast service
Factory-trained technicians cover installation, preventive maintenance and emergency calls on Formavex equipment across Canada and the US.
FAQ
Formavex at Tollaston Machinery: common questions
Answers to common questions about our formavex products.
Yes. We are an authorized Formavex dealer across Canada and the US. We quote the machines, install and commission them, train your team, and service them afterward with our own factory-trained technicians.
We carry the FC-1390 CO2 and FC-2030 laser systems, the FK-1630 Digital and FK-3220 XL cutting tables, and the FW-4 HotWire foam cutter. The current lineup and specifications are listed on this page.
Yes. We service Formavex equipment whether or not we supplied it. Send us the model and we will tell you what our technicians can cover and what parts we have on the shelf.
We hold common Formavex spare parts and consumables in our Vaughan warehouse. Anything not on the shelf, we order directly and give you a lead time before you commit.
Request a quote from this page or call your local branch. We'll ask about your parts, material and volume before quoting, so the machine matches the work rather than the other way around.
Not sure which Formavex machine fits?
Ask our assistant about material, thickness, and volume. It knows the lineup and what we stock.
