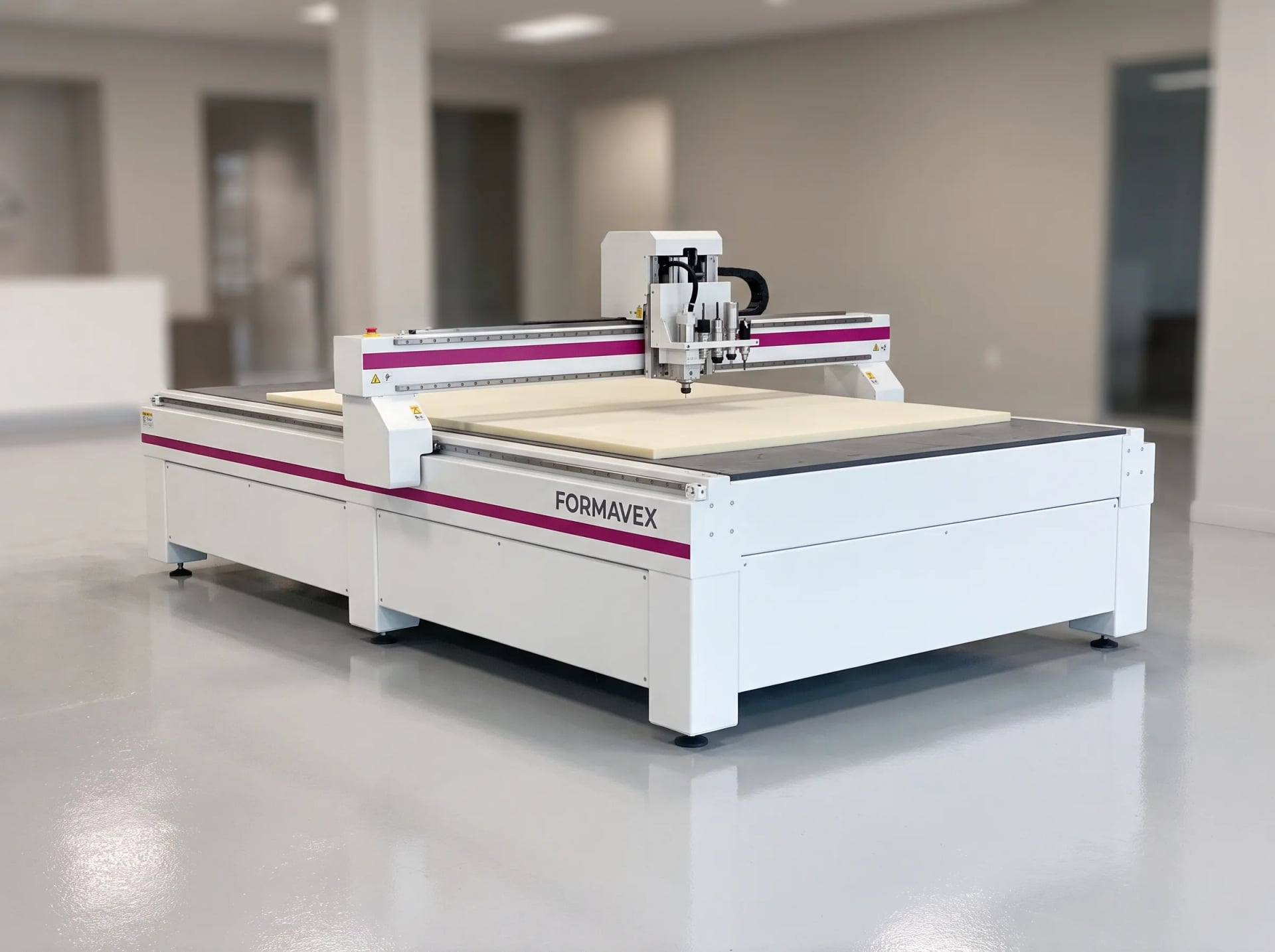

Digital Cutting Tables
FK-3220 XL
by Formavex
Large-format digital cutting table for packaging, composites and signage production runs.
3200 x 2000 mm (126" x 79")
Bed size
Automatic multi-tool head, 4 stations
Tool head
Oscillating knife, tangential knife, router bit, creasing wheel
Tool types
Not sure if the FK-3220 XL is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Packaging shops replacing physical dies with digital cutting
- Sign and display fabricators running rigid substrates
- Composite and gasket manufacturers
Bed size
3200 x 2000 mm (126" x 79")
Tool head
Automatic multi-tool head, 4 stations
Tool types
Oscillating knife, tangential knife, router bit, creasing wheel
Max cut thickness, knife tools
50 mm (2") foam / corrugated
Key Features
FK-3220 XL Features
Standard features that set this machine apart in demanding manufacturing environments.
Ease of Operation
- Automatic 4-station multi-tool head
- Formavex EdgeLogic control with direct DXF/PDF/AI import
- Automatic tool-depth calibration between changeovers
- Nesting software for material-efficient layouts
- Remote diagnostics and job-file updates
Safety & Reliability
- Zoned vacuum hold-down for mixed-size sheets
- Camera-assisted registration for pre-printed material
Full Specifications
Formavex FK-3220 XL Technical Details
Complete specifications, standard features, and optional upgrades.
- Bed size
- 3200 x 2000 mm (126" x 79")
- Tool head
- Automatic multi-tool head, 4 stations
- Tool types
- Oscillating knife, tangential knife, router bit, creasing wheel
- Max cut thickness, knife tools
- 50 mm (2") foam / corrugated
- Max cut thickness, router bit
- 25 mm (1") composites and rigid board
- Max positioning speed
- 80 m/min (3,150 in/min)
- Positioning accuracy
- ±0.1 mm (0.004")
- Bed type
- Zoned vacuum hold-down table
- Control
- Formavex EdgeLogic control, 21" touchscreen
- File compatibility
- DXF, PDF, AI direct import
- Power requirement
- 208-240V, 3-phase, 40A service
- Footprint
- 5.5 x 4 m (18' x 13')
| Bed size | 3200 x 2000 mm (126" x 79") |
| Tool head | Automatic multi-tool head, 4 stations |
| Tool types | Oscillating knife, tangential knife, router bit, creasing wheel |
| Max cut thickness, knife tools | 50 mm (2") foam / corrugated |
| Max cut thickness, router bit | 25 mm (1") composites and rigid board |
| Max positioning speed | 80 m/min (3,150 in/min) |
| Positioning accuracy | ±0.1 mm (0.004") |
| Bed type | Zoned vacuum hold-down table |
| Control | Formavex EdgeLogic control, 21" touchscreen |
| File compatibility | DXF, PDF, AI direct import |
| Power requirement | 208-240V, 3-phase, 40A service |
| Footprint | 5.5 x 4 m (18' x 13') |
- Automatic 4-station multi-tool head
- Formavex EdgeLogic control with direct DXF/PDF/AI import
- Zoned vacuum hold-down for mixed-size sheets
- Automatic tool-depth calibration between changeovers
- Camera-assisted registration for pre-printed material
- Nesting software for material-efficient layouts
- Remote diagnostics and job-file updates
- Roll-feed material handling for continuous stock
- Second tool head for parallel small-job cutting
- Conveyor unload table
- Extended vacuum zone package for oversized sheets
- Packaging and point-of-purchase die-cut prototypes and production
- Gasket and foam-insert cutting
- Composite panel trimming
- Rigid signage and display cutting
FAQ
FK-3220 XL Questions
Answers to common questions about the FK-3220 XL.
Typically 10-12 weeks from order; we confirm the exact date at order.
A 208-240V, 3-phase, 40A service, plus compressed air for the vacuum bed's blower.
Yes — on-site training covers job setup, tool changeover, nesting and material presets.
Base machine, multi-tool head, Formavex EdgeLogic control, rigging and installation, and operator training.
