CO2 Laser Cutting & Engraving

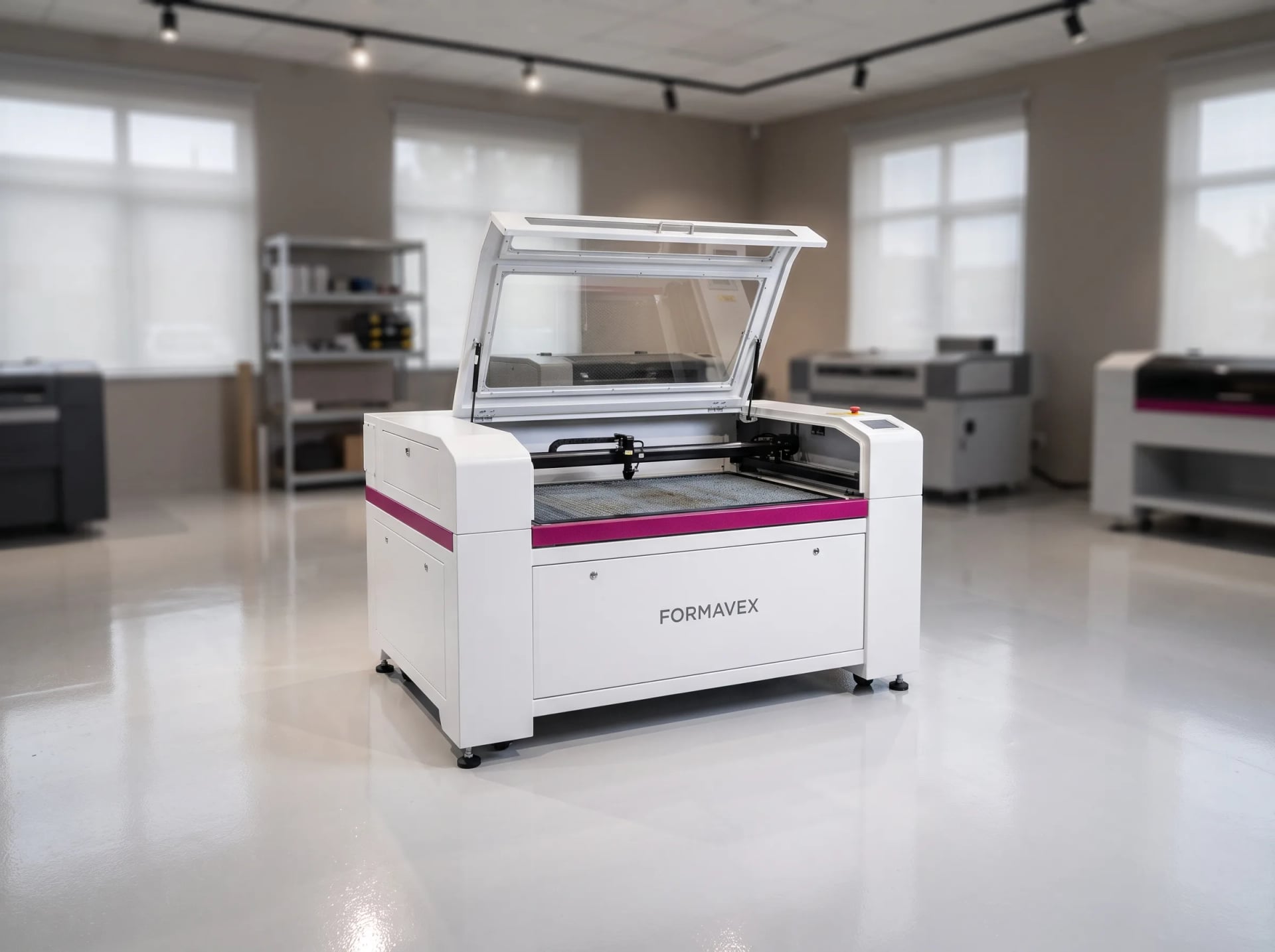

FC-1390 CO2
by Formavex
Compact 130W CO2 laser for sign, award and packaging shops cutting and engraving non-metals.
1300 x 900 mm (51" x 35")
Bed size
130 W in-house sealed CO2 laser tube
Laser power
15 mm (0.6")
Max cut thickness, acrylic
Not sure if the FC-1390 CO2 is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Small sign and award shops
- Businesses just starting laser cutting and engraving
- Shops with limited floor space
Bed size
1300 x 900 mm (51" x 35")
Laser power
130 W in-house sealed CO2 laser tube
Max cut thickness, acrylic
15 mm (0.6")
Max cut thickness, plywood/MDF
10 mm (0.4")
Key Features
FC-1390 CO2 Features
Standard features that set this machine apart in demanding manufacturing environments.
Ease of Operation
- Formavex EdgeLogic control with material preset library
- Auto-focus laser head
- Red-dot pointer for job alignment
Built-In Extras
- Compact footprint for small shops
- Job-time estimation before running the file
- Honeycomb vacuum bed
Full Specifications
Formavex FC-1390 CO2 Technical Details
Complete specifications, standard features, and optional upgrades.
- Bed size
- 1300 x 900 mm (51" x 35")
- Laser power
- 130 W in-house sealed CO2 laser tube
- Max cut thickness, acrylic
- 15 mm (0.6")
- Max cut thickness, plywood/MDF
- 10 mm (0.4")
- Engraving resolution
- Up to 1000 DPI
- Max positioning speed
- 50 m/min (1,969 in/min)
- Positioning accuracy
- ±0.05 mm (0.002")
- Bed type
- Honeycomb vacuum bed
- Control
- Formavex EdgeLogic control, 15" touchscreen
- Exhaust requirement
- Single-zone extraction, minimum 600 CFM
- Power requirement
- 120V or 208-240V, single-phase, 20A service
- Footprint
- 2.4 x 1.8 m (8' x 6')
| Bed size | 1300 x 900 mm (51" x 35") |
| Laser power | 130 W in-house sealed CO2 laser tube |
| Max cut thickness, acrylic | 15 mm (0.6") |
| Max cut thickness, plywood/MDF | 10 mm (0.4") |
| Engraving resolution | Up to 1000 DPI |
| Max positioning speed | 50 m/min (1,969 in/min) |
| Positioning accuracy | ±0.05 mm (0.002") |
| Bed type | Honeycomb vacuum bed |
| Control | Formavex EdgeLogic control, 15" touchscreen |
| Exhaust requirement | Single-zone extraction, minimum 600 CFM |
| Power requirement | 120V or 208-240V, single-phase, 20A service |
| Footprint | 2.4 x 1.8 m (8' x 6') |
- Formavex EdgeLogic control with material preset library
- Honeycomb vacuum bed
- Auto-focus laser head
- Red-dot pointer for job alignment
- Compact footprint for small shops
- Job-time estimation before running the file
- Rotary attachment for cylindrical engraving
- Camera-assisted registration for pre-printed material
- Extended warranty package on the laser tube
- Awards, plaques and personalized gifts
- Small sign and display components
- Packaging prototypes
- Craft and hobby-scale production
FAQ
FC-1390 CO2 Questions
Answers to common questions about the FC-1390 CO2.
Typically 4-6 weeks from order; we confirm the exact date at order.
A 120V or 208-240V single-phase, 20A service, and single-zone exhaust ducting rated at least 600 CFM.
Yes — lease and term financing structured around your monthly volume.
Base machine, Formavex EdgeLogic control, exhaust connection kit, rigging and installation, and operator training.
