Panel Saws

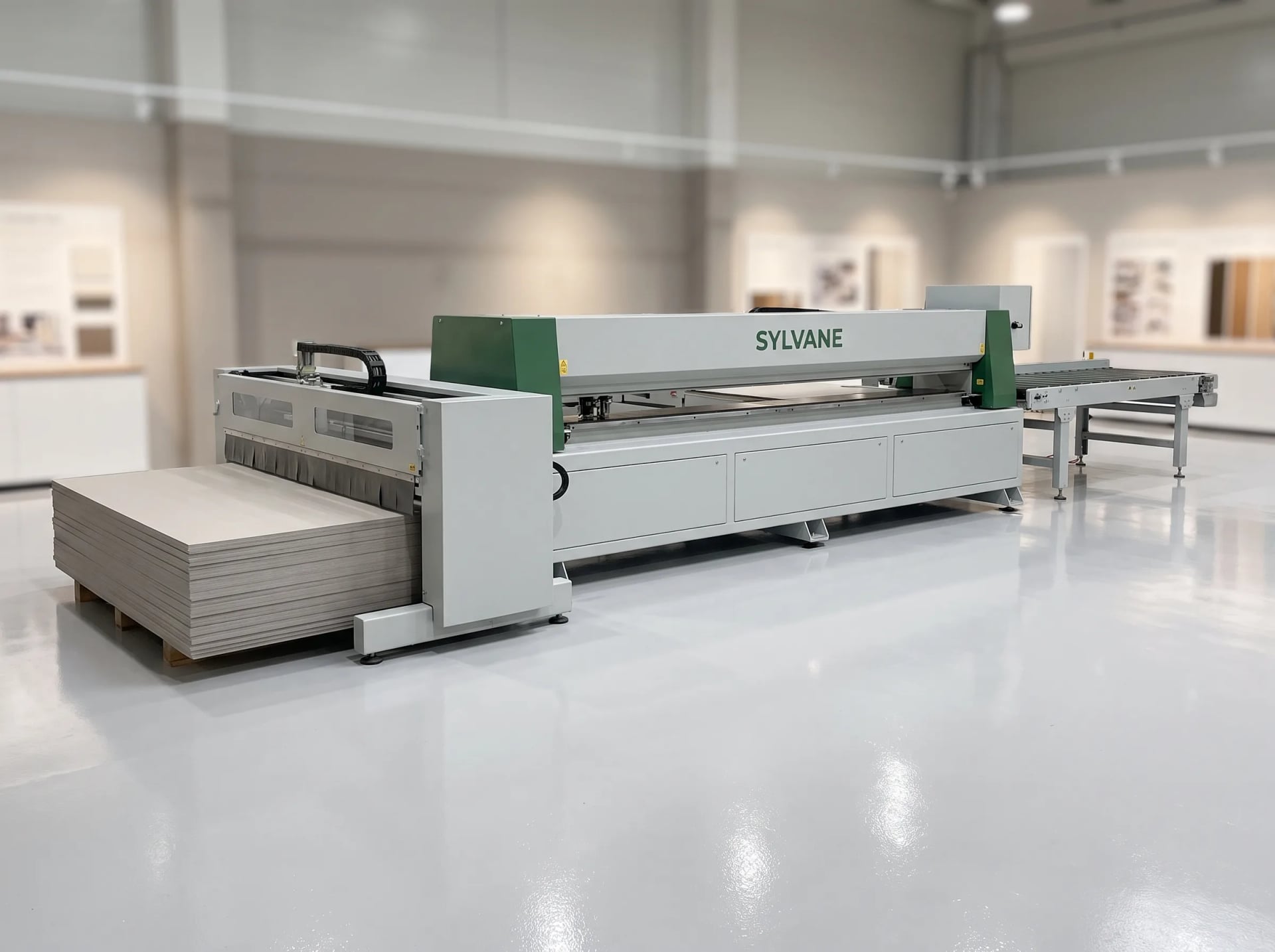

SB-3800 Beam
by Sylvane
CNC beam saw with automatic pusher and cut-list optimization for high-volume, unattended sheet cutting.
3800 mm (12'6")
Cutting length
100 mm (3.9") single pass, 120 mm with scoring
Cutting height
Main 400 mm (16"), scoring 180 mm (7")
Blade diameter
Not sure if the SB-3800 Beam is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Production shops running large cut lists daily
- Shops replacing a manual saw with lights-out capability
- Shops feeding a nested router downstream
Cutting length
3800 mm (12'6")
Cutting height
100 mm (3.9") single pass, 120 mm with scoring
Blade diameter
Main 400 mm (16"), scoring 180 mm (7")
Main motor
11 kW (15 HP)
Key Features
SB-3800 Beam Features
Standard features that set this machine apart in demanding manufacturing environments.
Ease of Operation
- Automatic programmable pusher, full-length stroke
- Sylvane Grain control with cut-list optimization
- Automatic pneumatic lift-and-turn table
- Off-cut removal conveyor
- Remote program upload from office nesting software
Built-In Extras
- Label printer for part identification
- Scoring blade for a chip-free bottom face
Full Specifications
Sylvane SB-3800 Beam Technical Details
Complete specifications, standard features, and optional upgrades.
- Cutting length
- 3800 mm (12'6")
- Cutting height
- 100 mm (3.9") single pass, 120 mm with scoring
- Blade diameter
- Main 400 mm (16"), scoring 180 mm (7")
- Main motor
- 11 kW (15 HP)
- Feed speed
- 0 - 100 m/min, programmable
- Positioning accuracy
- ±0.1 mm (0.004")
- Pusher stroke
- Full 3800 mm program length
- Cut optimization
- Automatic cutting-list optimization software
- Lift and turn
- Automatic pneumatic lift-and-turn table
- Control
- Sylvane Grain control, 21" touchscreen
- Power requirement
- 400V/3-phase, 63A
- Footprint
- 8.5 x 5.2 m (28' x 17')
| Cutting length | 3800 mm (12'6") |
| Cutting height | 100 mm (3.9") single pass, 120 mm with scoring |
| Blade diameter | Main 400 mm (16"), scoring 180 mm (7") |
| Main motor | 11 kW (15 HP) |
| Feed speed | 0 - 100 m/min, programmable |
| Positioning accuracy | ±0.1 mm (0.004") |
| Pusher stroke | Full 3800 mm program length |
| Cut optimization | Automatic cutting-list optimization software |
| Lift and turn | Automatic pneumatic lift-and-turn table |
| Control | Sylvane Grain control, 21" touchscreen |
| Power requirement | 400V/3-phase, 63A |
| Footprint | 8.5 x 5.2 m (28' x 17') |
- Automatic programmable pusher, full-length stroke
- Sylvane Grain control with cut-list optimization
- Scoring blade for a chip-free bottom face
- Automatic pneumatic lift-and-turn table
- Off-cut removal conveyor
- Label printer for part identification
- Remote program upload from office nesting software
- Automatic stack-height sensing
- Angular cutting unit for trapezoidal parts
- Second offloading conveyor
- High-volume sheet breakdown for cabinet production
- Panel processing for laminate and melamine manufacturers
- Store-fixture component sizing
- Feeding a nested router with pre-sized blanks
FAQ
SB-3800 Beam Questions
Answers to common questions about the SB-3800 Beam.
Yes — programs upload directly from standard nesting/optimization software, so a cutting list becomes a running program without re-entering dimensions on the shop floor.
It depends on your part mix, but shops typically see a meaningful reduction in offcut versus manual sequencing — our applications engineers can estimate savings from your actual cutting lists before you buy.
A 400V/3-phase, 63A service.
The beam saw, scoring blade, lift-and-turn table, Sylvane Grain control, rigging and installation, and operator training.
