Tollaston Machinery · Authorized dealer
Authorized Clarivue dealer in Canada and the US
Clarivue glass cutting tables, demonstrated at our Tech Centre and supported coast to coast.
2
Models we supply
1994
In business since
Vaughan, ON
Parts and service
Clarivue builds glass cutting tables, and Tollaston is an authorized dealer across Canada and the US. The line is American-engineered and suits glass fabricators processing everyday float glass through laminated safety glass. We carry the CV-3721 and the CV-LAM 3300, all sharing the Clarivue PaneLogic control. Every purchase includes a real test on your own material or parts at our Vaughan Tech Centre, applications engineering from your first quote through your first production run, Clarivue parts stocked in our Vaughan warehouse, and factory-trained service technicians across Canada and the US.
The lineup
Clarivue machines we carry
Grouped by what they do. Every one of these is quoted, installed, and serviced by our own team.
Glass Cutting Tables
See all Glass Cutting Tables at Tollaston

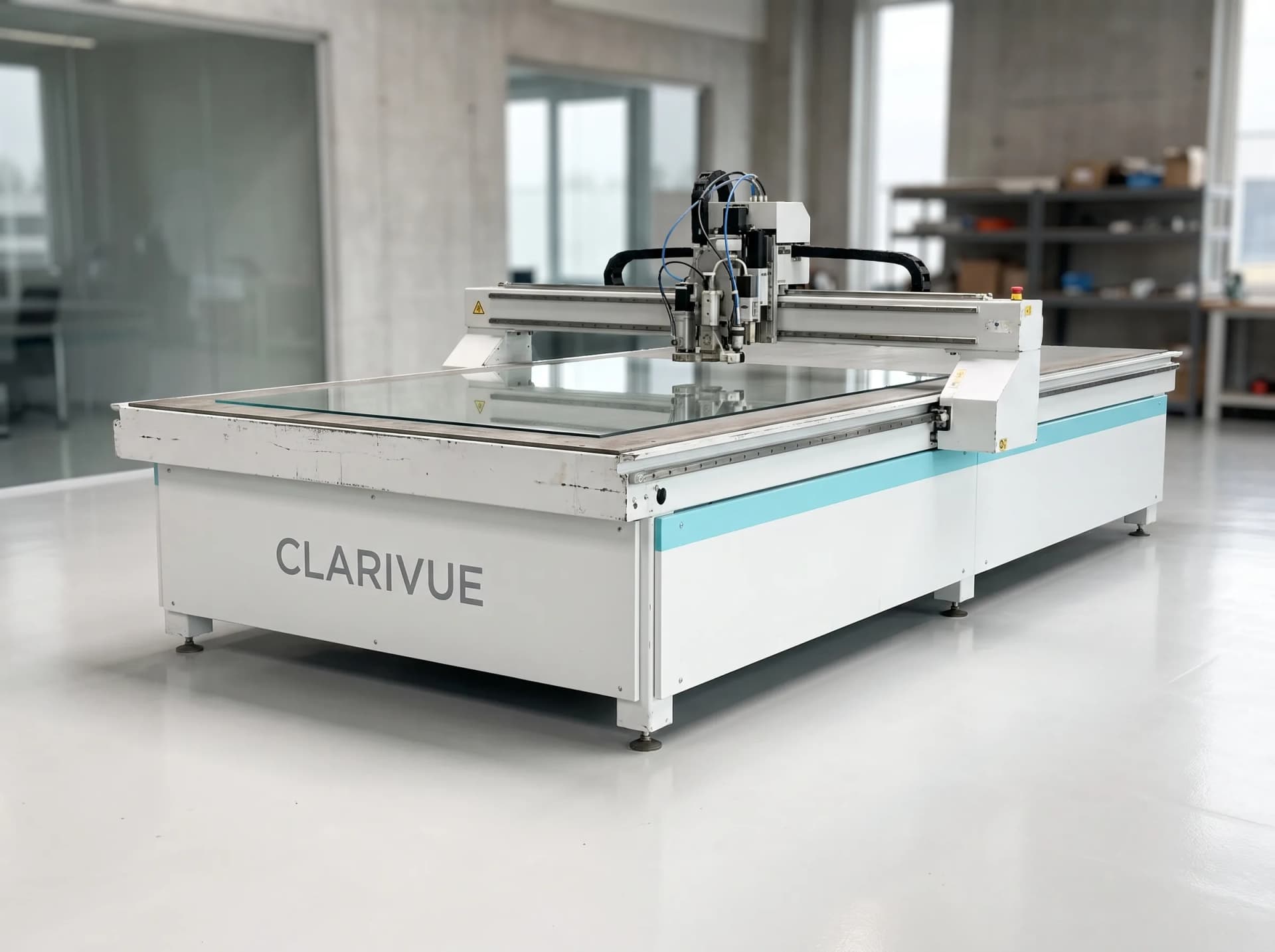

Float glass cutting table
CV-3721
The CV-3721 is Clarivue's float-glass cutting table, built to break down full-size stock sheets into ordered cut lists quickly and accurately. A 3700 x 2500 mm (146" x 98") air-float bed lets a single operator slide large, heavy sheets with minimal effort, while an overhead scoring gantry with a carbide wheel scores glass from 2 mm to 19 mm (0.08" to 0.75") thick. The Clarivue PaneLogic control optimizes cut sequences against your order list to minimize offcut waste. Tollaston runs a test cut on your own glass stock, sets up the air-float bed's compressed-air supply, and trains your team on cut-list programming.
- Bed size
- 3700 x 2500 mm (146" x 98")
- Glass thickness range
- 2 - 19 mm (0.08" - 0.75")
- Scoring wheel
- Carbide scoring wheel, motorized depth control
- Positioning accuracy
- ±0.2 mm (0.008")

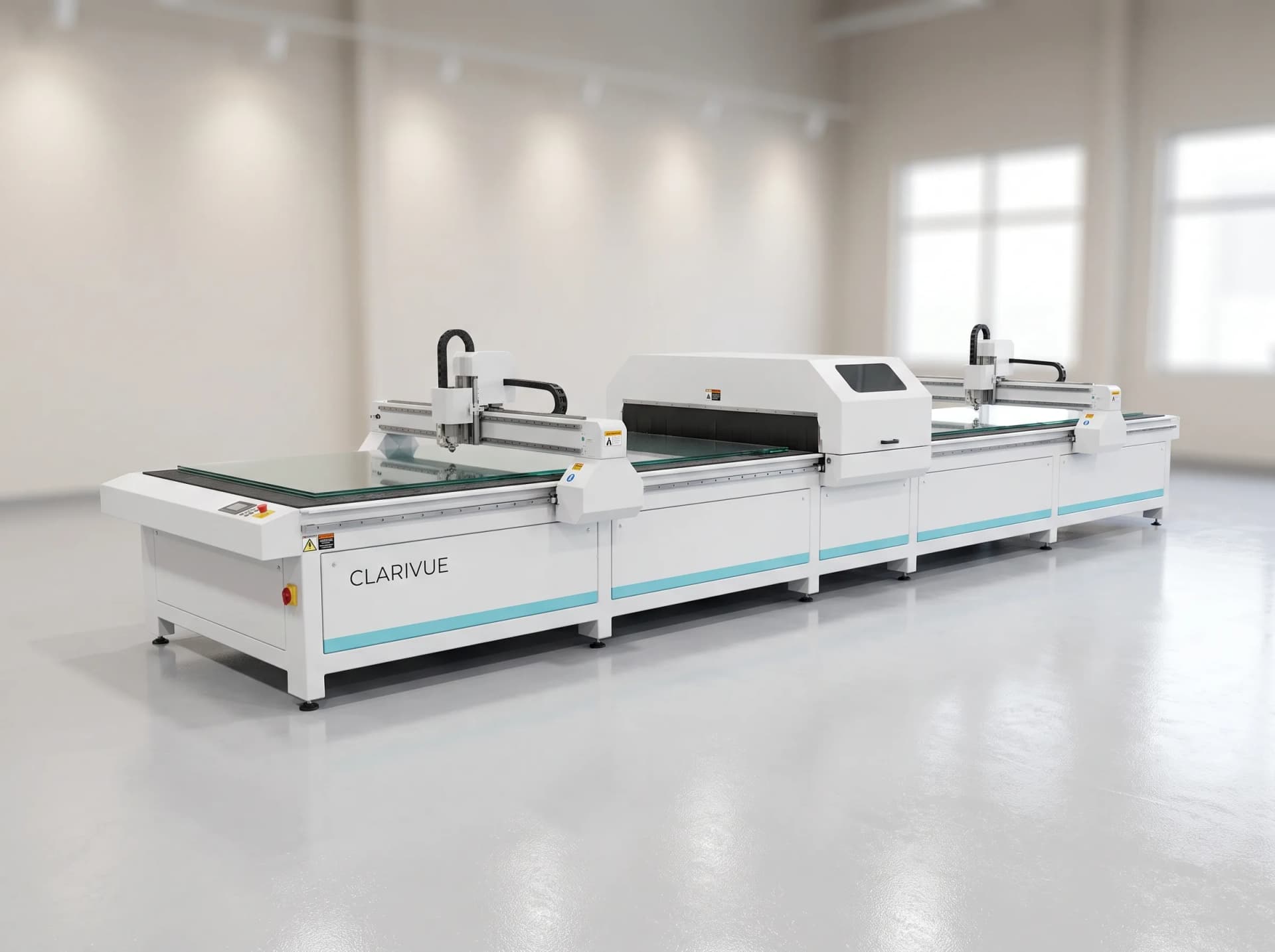

Laminated glass cutting line
CV-LAM 3300
The CV-LAM 3300 automates the extra steps laminated glass needs beyond a single scoring pass. Two in-line scoring stations score both glass plies on a 3300 mm (130") air-float bed, then a heated separation station softens the PVB interlayer so the sheet snaps cleanly along the score without cracking into the body of the glass. It handles laminated stock from 6.4 mm (0.25") to 25 mm (1") total thickness, covering standard safety laminate through heavy structural and acoustic glass. The Clarivue PaneLogic control sequences scoring, heating and separation automatically once a cut list is loaded. Tollaston runs a test cut on your own laminate stock and trains your team on the workflow.
- Bed length
- 3300 mm (130")
- Bed width
- 2100 mm (83")
- Laminated glass thickness range
- 6.4 - 25 mm (0.25" - 1")
- Scoring stations
- 2, in-line (top and bottom ply)
Why us
Why buy Clarivue from Tollaston Machinery
Proven at the Tech Centre
Every Clarivue quote comes with a real test on your own material or parts at our Vaughan Tech Centre, not a catalogue cycle time.
Applications engineering included
Our applications engineers build your process, program your first parts and train your team on every Clarivue machine we sell.
Parts stocked in Vaughan
Common Clarivue spindle, tooling and electrical components are on our own shelves, not on a boat from overseas.
Coast-to-coast service
Factory-trained technicians cover installation, preventive maintenance and emergency calls on Clarivue equipment across Canada and the US.
FAQ
Clarivue at Tollaston Machinery: common questions
Answers to common questions about our clarivue products.
Yes. We are an authorized Clarivue dealer across Canada and the US. We quote the machines, install and commission them, train your team, and service them afterward with our own factory-trained technicians.
We carry the CV-3721 and the CV-LAM 3300. The current lineup and specifications are listed on this page.
Yes. We service Clarivue equipment whether or not we supplied it. Send us the model and we will tell you what our technicians can cover and what parts we have on the shelf.
We hold common Clarivue spare parts and consumables in our Vaughan warehouse. Anything not on the shelf, we order directly and give you a lead time before you commit.
Request a quote from this page or call your local branch. We'll ask about your parts, material and volume before quoting, so the machine matches the work rather than the other way around.
Not sure which Clarivue machine fits?
Ask our assistant about material, thickness, and volume. It knows the lineup and what we stock.
