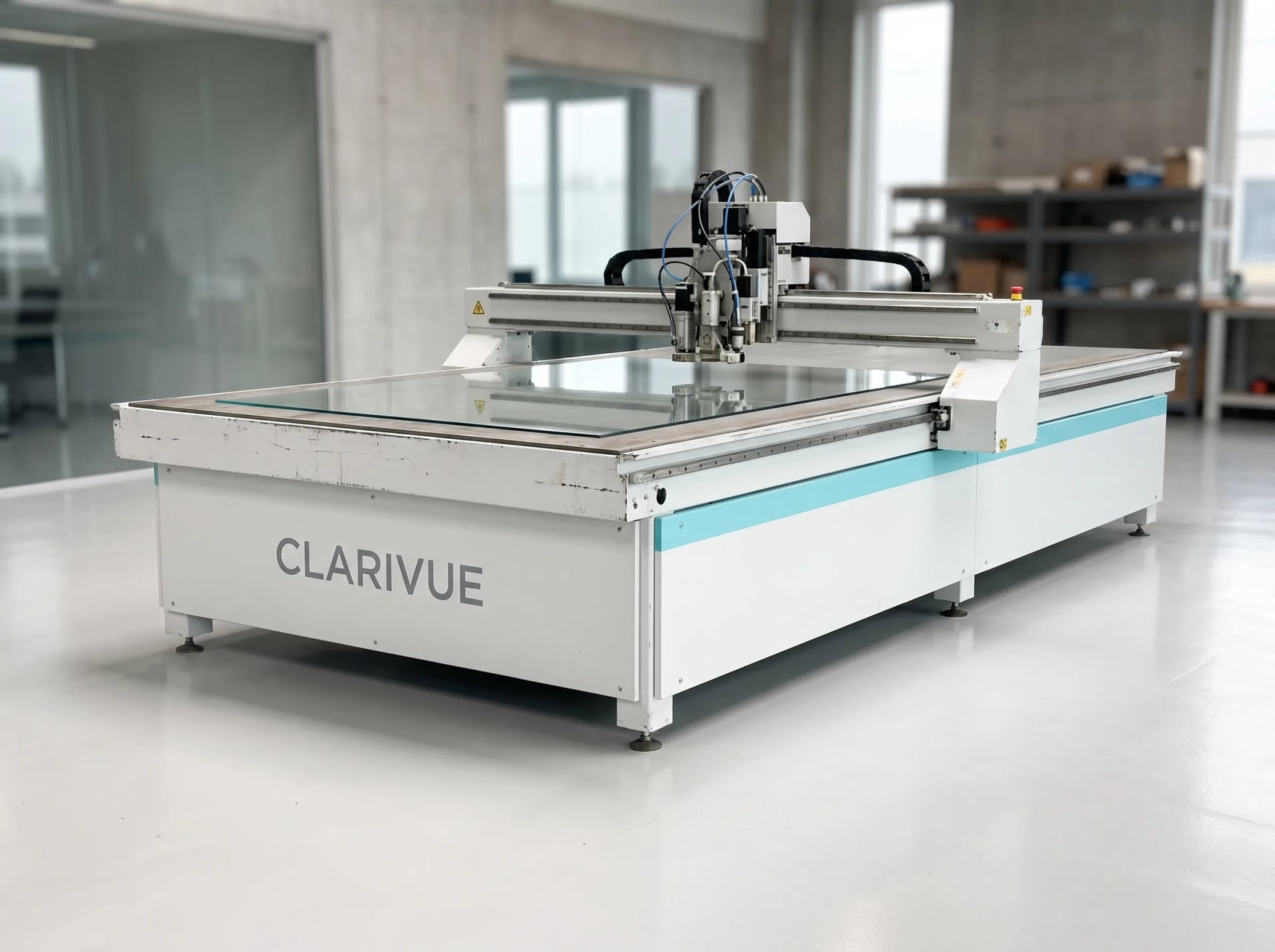

Glass Cutting Tables
CV-3721
by Clarivue
Automated float-glass cutting table with an air-float bed for fast, accurate sheet breakdown.
3700 x 2500 mm (146" x 98")
Bed size
2 - 19 mm (0.08" - 0.75")
Glass thickness range
Carbide scoring wheel, motorized depth control
Scoring wheel
Not sure if the CV-3721 is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Glass shops breaking down full stock sheets daily
- Insulated glass unit manufacturers
- Shops standardizing on one cutting table for float glass
Bed size
3700 x 2500 mm (146" x 98")
Glass thickness range
2 - 19 mm (0.08" - 0.75")
Scoring wheel
Carbide scoring wheel, motorized depth control
Positioning accuracy
±0.2 mm (0.008")
Key Features
CV-3721 Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance
- Overhead scoring gantry with motorized depth control
- Automatic scoring-speed adjustment by thickness
Ease of Operation
- Air-float bed for single-operator handling of large sheets
- Clarivue PaneLogic control with cut-list optimization
- Offcut-minimizing nesting algorithm
Built-In Extras
- Breakout assist bar with guide fence
Full Specifications
Clarivue CV-3721 Technical Details
Complete specifications, standard features, and optional upgrades.
- Bed size
- 3700 x 2500 mm (146" x 98")
- Glass thickness range
- 2 - 19 mm (0.08" - 0.75")
- Scoring wheel
- Carbide scoring wheel, motorized depth control
- Positioning accuracy
- ±0.2 mm (0.008")
- Max sheet weight
- 400 kg (880 lb)
- Bed type
- Air-float bed with felt rollers
- Cut-optimization
- Automatic nesting against order cut lists
- Control
- Clarivue PaneLogic control, 18" touchscreen
- Breakout assist
- Manual breakout bar with guide fence
- Power requirement
- 208-240V, single-phase, 30A service
- Footprint
- 6 x 4 m (20' x 13')
| Bed size | 3700 x 2500 mm (146" x 98") |
| Glass thickness range | 2 - 19 mm (0.08" - 0.75") |
| Scoring wheel | Carbide scoring wheel, motorized depth control |
| Positioning accuracy | ±0.2 mm (0.008") |
| Max sheet weight | 400 kg (880 lb) |
| Bed type | Air-float bed with felt rollers |
| Cut-optimization | Automatic nesting against order cut lists |
| Control | Clarivue PaneLogic control, 18" touchscreen |
| Breakout assist | Manual breakout bar with guide fence |
| Power requirement | 208-240V, single-phase, 30A service |
| Footprint | 6 x 4 m (20' x 13') |
- Air-float bed for single-operator handling of large sheets
- Overhead scoring gantry with motorized depth control
- Clarivue PaneLogic control with cut-list optimization
- Automatic scoring-speed adjustment by thickness
- Breakout assist bar with guide fence
- Offcut-minimizing nesting algorithm
- Automatic edge-deletion station
- Conveyor infeed/outfeed extension
- Digital cut-list import from CAD/order systems
- Low-E glass handling package
- Standard float glass sheet breakdown
- Insulated glass unit component cutting
- Retail and residential glazing fabrication
- General glass shop production cutting
FAQ
CV-3721 Questions
Answers to common questions about the CV-3721.
Typically 8-10 weeks from order; we confirm the exact date at order.
A 208-240V, single-phase, 30A service, plus compressed air for the air-float bed.
Yes — lease and term financing structured around your monthly volume.
Base machine, Clarivue PaneLogic control, rigging and installation, and operator training.
