Glass Cutting Tables

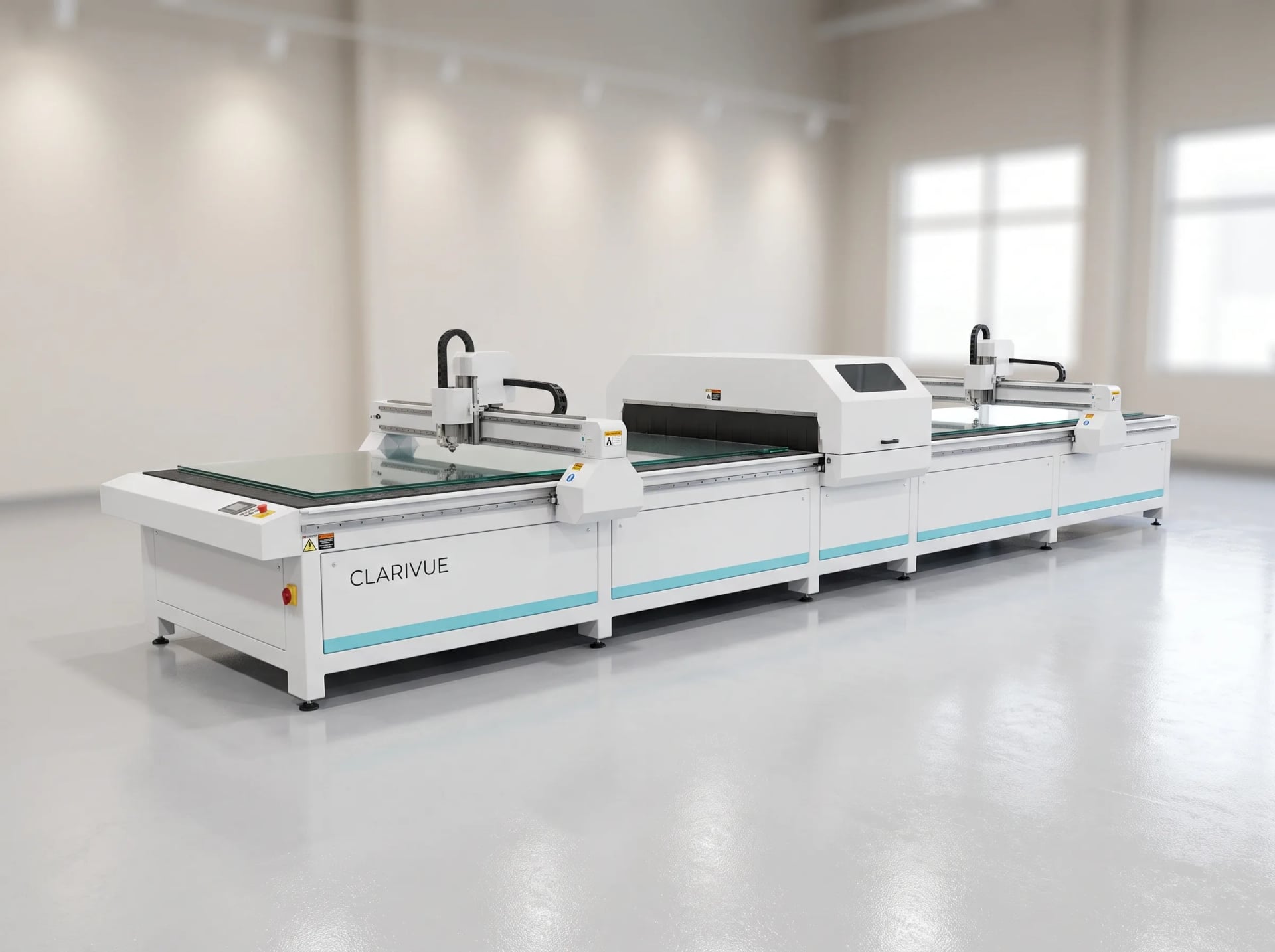

CV-LAM 3300
by Clarivue
In-line laminated glass cutting system with automatic scoring, heating and interlayer separation.
3300 mm (130")
Bed length
2100 mm (83")
Bed width
6.4 - 25 mm (0.25" - 1")
Laminated glass thickness range
Not sure if the CV-LAM 3300 is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Glass fabricators specializing in laminated product
- Architectural glazing shops
- Shops adding laminated capability to existing float-glass cutting
Bed length
3300 mm (130")
Bed width
2100 mm (83")
Laminated glass thickness range
6.4 - 25 mm (0.25" - 1")
Scoring stations
2, in-line (top and bottom ply)
Key Features
CV-LAM 3300 Features
Standard features that set this machine apart in demanding manufacturing environments.
Ease of Operation
- Clarivue PaneLogic control with automatic cut-list sequencing
- Automatic scoring-depth calibration by thickness
Built-In Extras
- Two in-line scoring stations for top and bottom ply
- Heated interlayer separation station
- Breakout assist bar at the separation station
- Air-float bed with felt rollers to protect glass surface
Full Specifications
Clarivue CV-LAM 3300 Technical Details
Complete specifications, standard features, and optional upgrades.
- Bed length
- 3300 mm (130")
- Bed width
- 2100 mm (83")
- Laminated glass thickness range
- 6.4 - 25 mm (0.25" - 1")
- Scoring stations
- 2, in-line (top and bottom ply)
- Separation method
- Heated interlayer softening station

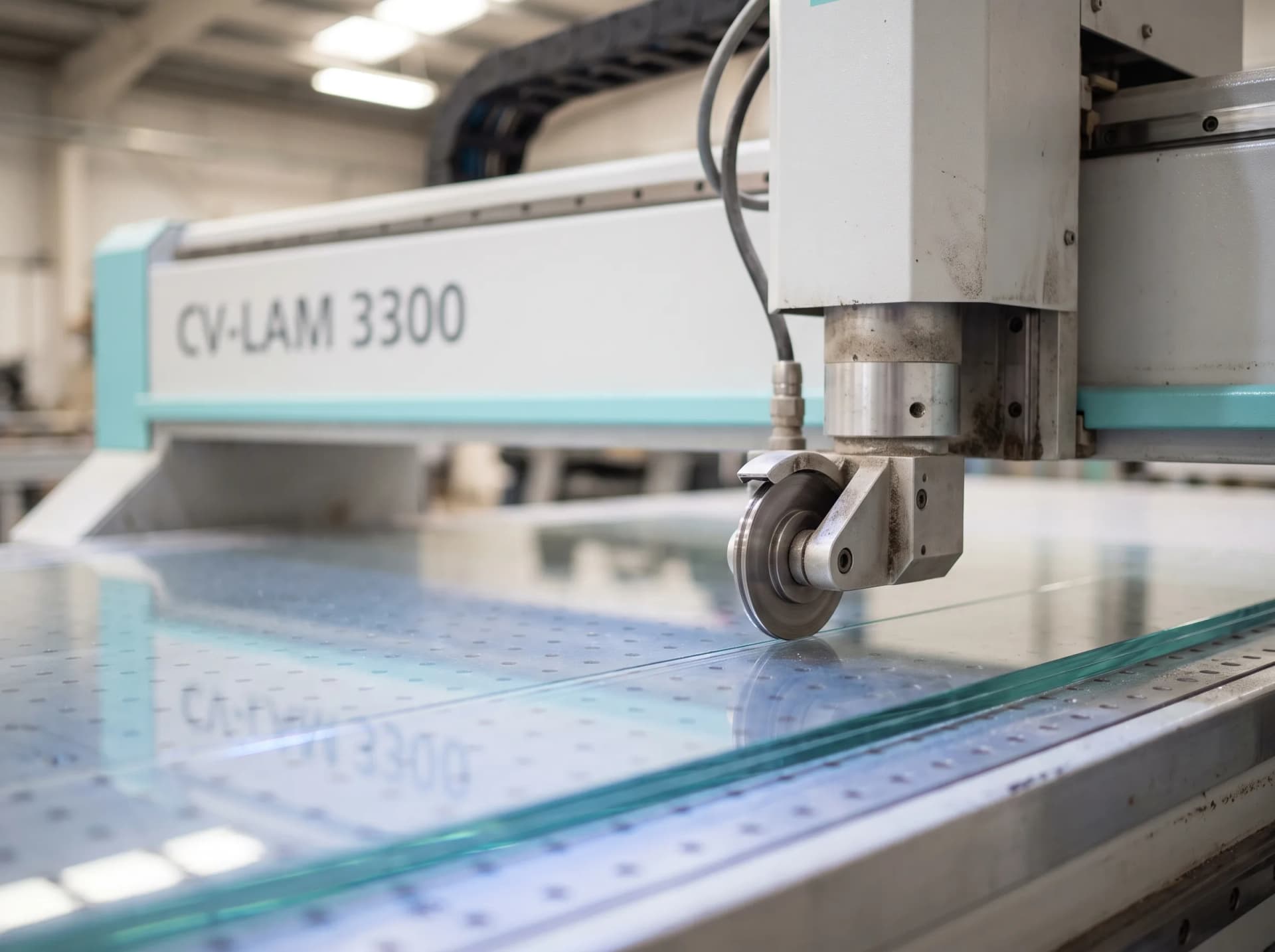

- Scoring wheel
- Carbide scoring wheel, motorized depth control
- Positioning accuracy
- ±0.3 mm (0.012")
- Max sheet size
- 3300 x 2100 mm (130" x 83")
- Bed type
- Air-float bed with felt rollers
- Control
- Clarivue PaneLogic control, 21" touchscreen
- Power requirement
- 208-240V, 3-phase, 40A service
- Footprint
- 7.5 x 3.5 m (25' x 11.5')
| Bed length | 3300 mm (130") |
| Bed width | 2100 mm (83") |
| Laminated glass thickness range | 6.4 - 25 mm (0.25" - 1") |
| Scoring stations | 2, in-line (top and bottom ply) |
| Separation method | Heated interlayer softening station |
| Scoring wheel | Carbide scoring wheel, motorized depth control |
| Positioning accuracy | ±0.3 mm (0.012") |
| Max sheet size | 3300 x 2100 mm (130" x 83") |
| Bed type | Air-float bed with felt rollers |
| Control | Clarivue PaneLogic control, 21" touchscreen |
| Power requirement | 208-240V, 3-phase, 40A service |
| Footprint | 7.5 x 3.5 m (25' x 11.5') |
- Two in-line scoring stations for top and bottom ply
- Heated interlayer separation station
- Clarivue PaneLogic control with automatic cut-list sequencing
- Air-float bed with felt rollers to protect glass surface
- Automatic scoring-depth calibration by thickness
- Breakout assist bar at the separation station
- Automatic edge-deletion station for insulated units
- Conveyor infeed/outfeed extension
- Second separation station for higher throughput
- Digital cut-list import from CAD/order systems
- Safety and security laminated glass fabrication
- Structural and balustrade glass cutting
- Acoustic laminated glass for architectural glazing
- Custom laminated glass for renovation and retrofit
FAQ
CV-LAM 3300 Questions
Answers to common questions about the CV-LAM 3300.
Typically 12-14 weeks from order given the two-station line; we confirm the exact date at order.
A 208-240V, 3-phase, 40A service, plus compressed air for the air-float bed and separation station.
Yes — on-site training covers scoring setup, interlayer heating parameters and breakout technique, plus a test cut on your own laminate stock.
Base line, both scoring stations, separation station, Clarivue PaneLogic control, rigging and installation, and operator training.
