Tollaston Machinery · Authorized dealer
Authorized Robovanta dealer in Canada and the US
Robovanta robotic machine-tending and robotic welding cells, demonstrated at our Tech Centre and supported coast to coast.
4
Models we supply
1994
In business since
Vaughan, ON
Parts and service
Robovanta builds robotic machine-tending and robotic welding cells, and Tollaston is an authorized dealer across Canada and the US. The line is Japanese-engineered and suits shops automating machine loading or welding without adding headcount. We carry the RV-Tend 12 and RV-Tend 20 tending cells, and the RV-Weld 1400 and RV-Weld Duo welding cells, all sharing the Robovanta ArcCore controller (MotionCell on the welding cells). Every purchase includes a real test on your own material or parts at our Vaughan Tech Centre, applications engineering from your first quote through your first production run, Robovanta parts stocked in our Vaughan warehouse, and factory-trained service technicians across Canada and the US.
The lineup
Robovanta machines we carry
Grouped by what they do. Every one of these is quoted, installed, and serviced by our own team.
Robotic Welding
See all Robotic Welding at Tollaston
Single-robot welding cell

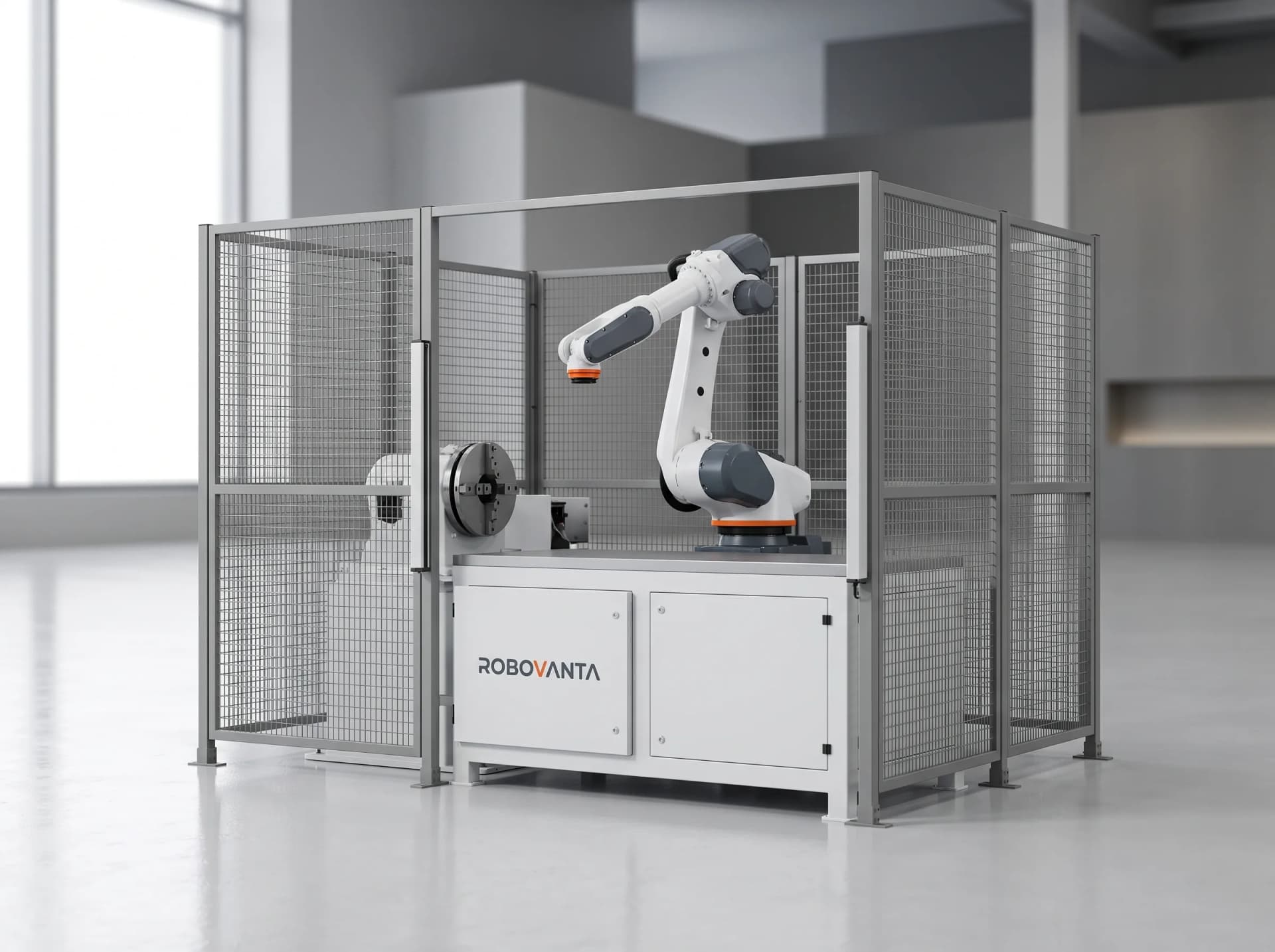

RV-Weld 1400
The RV-Weld 1400 is Robovanta's entry welding cell, built for shops taking their first step into automated welding without committing to a multi-station system. A single 20 kg-payload, 1400 mm (55") reach robot arm welds MIG or TIG around a single-station rotary positioner rated to 300 kg (660 lb), with through-arc seam tracking to handle normal fit-up variation. The Robovanta MotionCell control's offline simulation lets your team build and check programs before the first live weld. Tollaston programs your first parts, proves weld quality on your own fixtures, and trains your welders on operation and torch-consumable service.
- Robot arms
- 1
- Payload
- 20 kg (44 lb)
- Reach
- 1400 mm (55")
- Repeatability
- ±0.05 mm (0.002")
Dual-robot welding cell

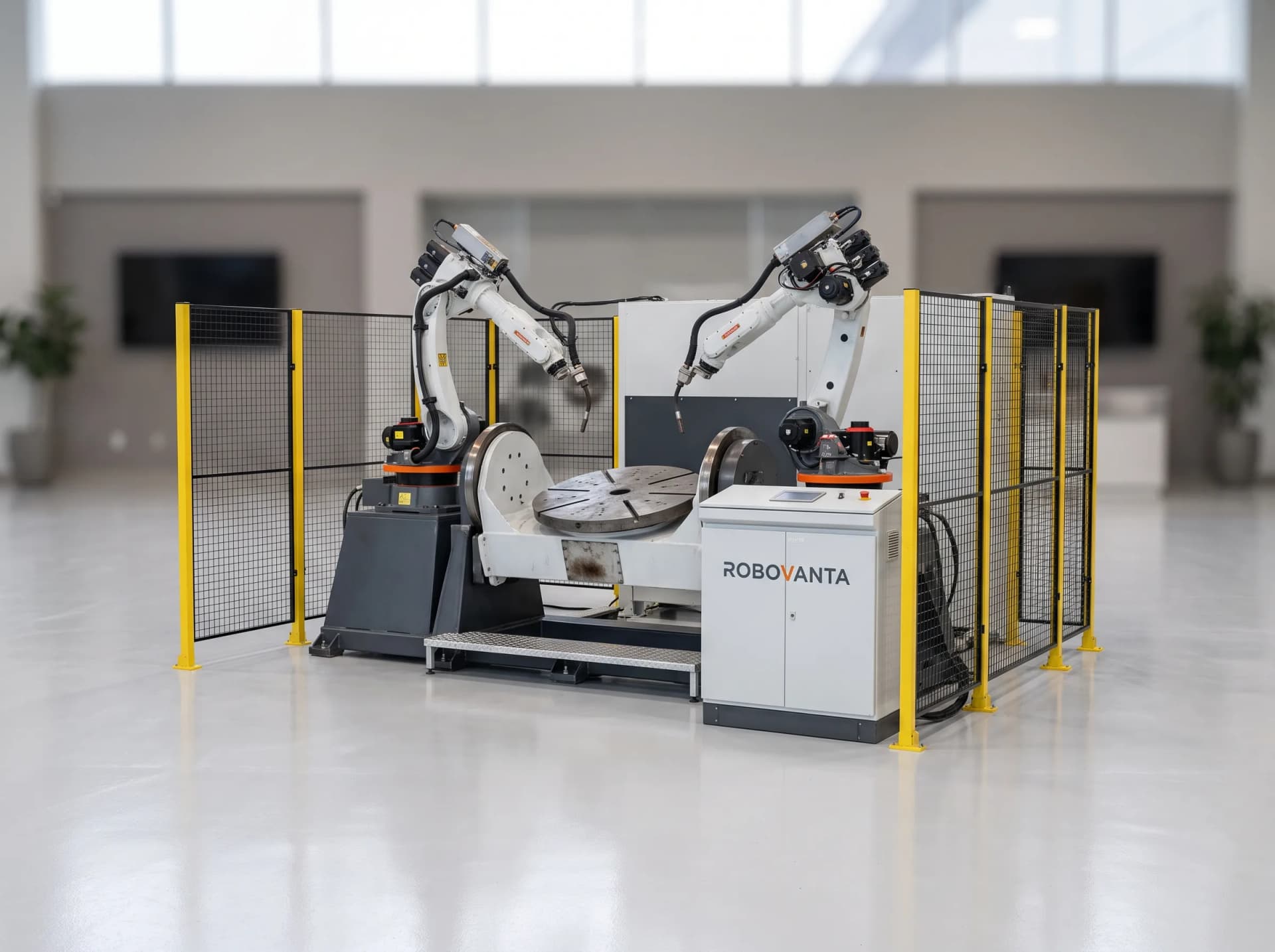

RV-Weld Duo
The RV-Weld Duo puts two robot arms around a shared 2-station rotary positioner, so one station welds while the other loads — the cell never sits idle waiting on an operator. Each arm carries a 20 kg payload with a 2000 mm (79") reach and runs MIG or TIG processes, switchable by program, with seam-tracking sensors that adjust the torch path to part-to-part variation in fit-up. The Robovanta MotionCell control synchronizes both arms and the positioner so programs written for one station run identically on the other. Tollaston programs your first parts, proves weld quality on your own fixtures, and trains your welders on program editing and torch-consumable service.
- Robot arms
- 2, independently programmable
- Payload per arm
- 20 kg (44 lb)
- Reach per arm
- 2000 mm (79")
- Repeatability
- ±0.05 mm (0.002")
Robotic Machine Tending
See all Robotic Machine Tending at Tollaston
robotic machine-tending cell

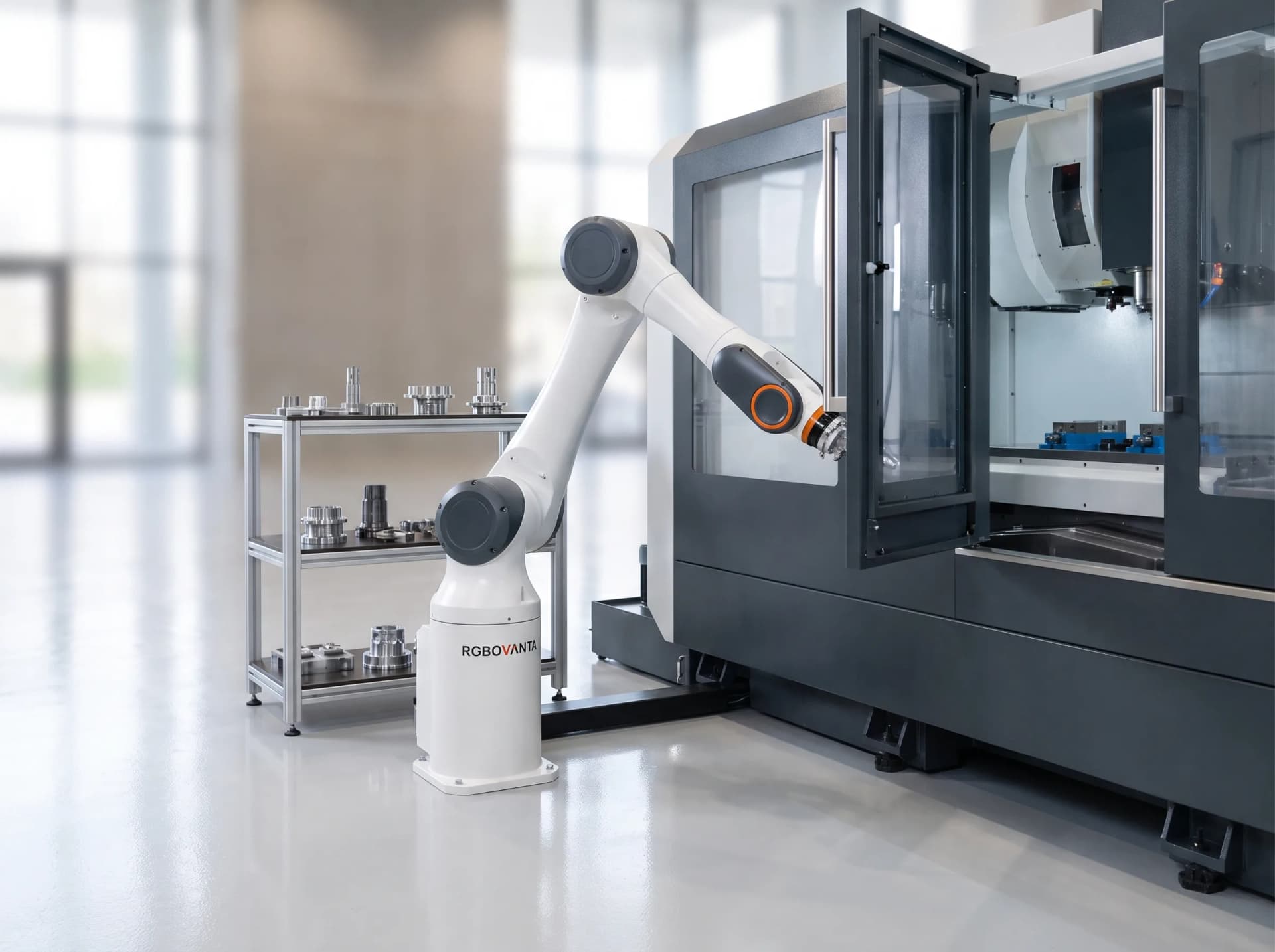

RV-Tend 12
The RV-Tend 12 is Robovanta's entry machine-tending cell, built to load and unload parts on an existing CNC mill, lathe or grinder so it keeps running through breaks, shift changes and overnight. A 12 kg payload and 1,650 mm reach cover the majority of small-to-mid part tending jobs, with a dual-shelf storage tower holding up to 48 parts between operator visits. The cell talks to any CNC control through a universal machine-tool interface, so it drops in next to a Kaizora VMC just as readily as an existing machine already on your floor. Tollaston typically pairs the RV-Tend 12 with a customer's first automation project — a single repeat job that currently ties up an operator for a full shift is usually the fastest payback.
- Robot payload
- 12 kg (26.5 lb)
- Reach
- 1,650 mm (65.0 in)
- Repeatability
- ±0.02 mm (0.0008 in)
- Robot axes
- 6
robotic machine-tending cell

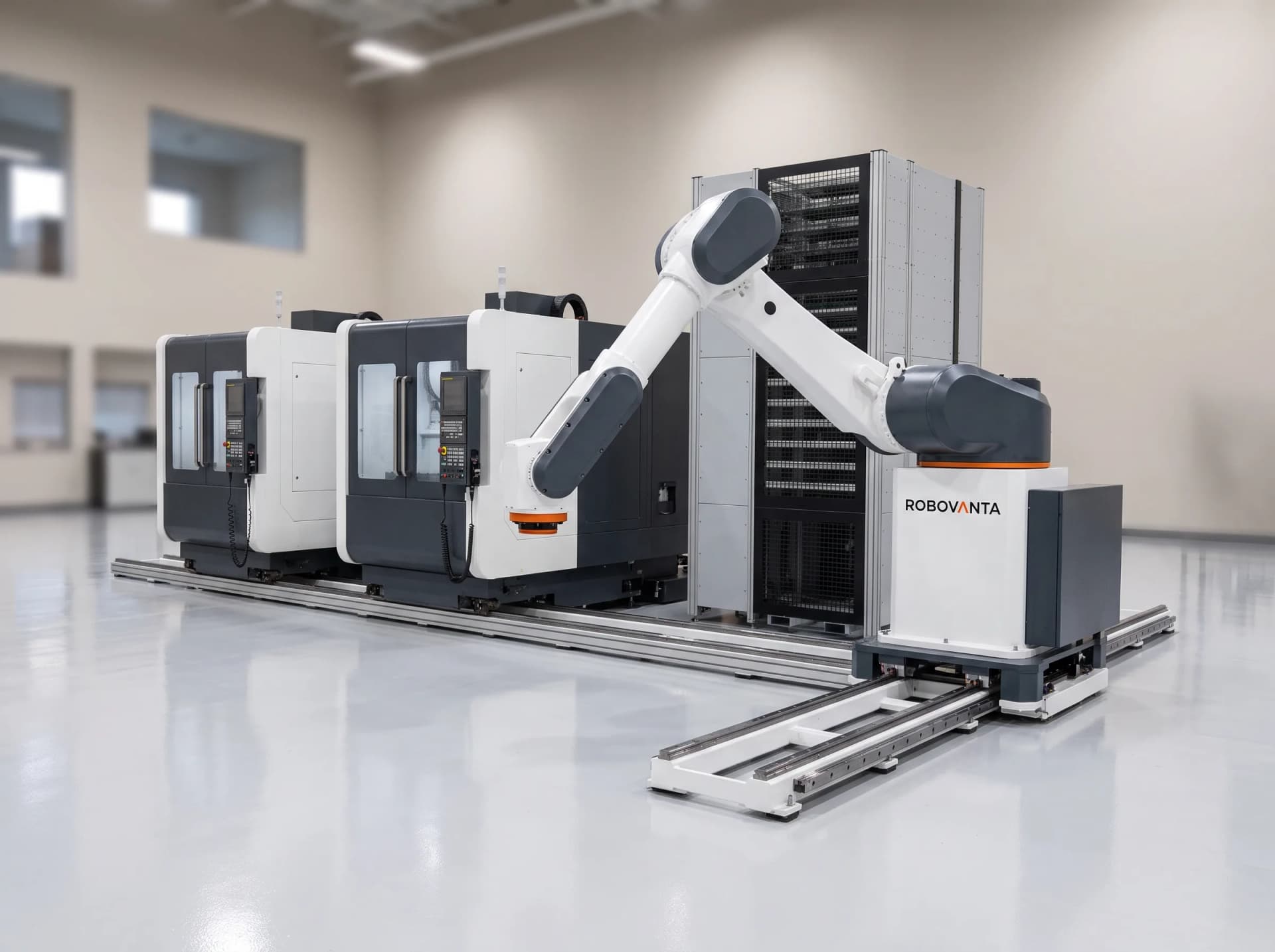

RV-Tend 20
The RV-Tend 20 scales Robovanta's tending platform up to a 20 kg payload and 2,000 mm reach for heavier castings, larger fixtures and multi-part pallets that outgrow the RV-Tend 12. An optional 7th-axis rail lets a single robot service two or three machines in a row instead of sitting dedicated to one, which is where the real automation payback shows up for shops running several similar machines. A modular storage tower holds up to 96 parts, and a tool-changer-equipped gripper handles multiple part geometries in the same cell. Tollaston is the flagship automation recommendation for customers with a Kaizora HMC or KM-2600 mill-turn cell already running production, where the RV-Tend 20's payload and reach match the larger parts those machines handle.
- Robot payload
- 20 kg (44 lb)
- Reach
- 2,000 mm (78.7 in)
- Repeatability
- ±0.03 mm (0.0012 in)
- Robot axes
- 6, plus optional 7th-axis rail
Why us
Why buy Robovanta from Tollaston Machinery
Proven at the Tech Centre
Every Robovanta quote comes with a real test on your own material or parts at our Vaughan Tech Centre, not a catalogue cycle time.
Applications engineering included
Our applications engineers build your process, program your first parts and train your team on every Robovanta machine we sell.
Parts stocked in Vaughan
Common Robovanta spindle, tooling and electrical components are on our own shelves, not on a boat from overseas.
Coast-to-coast service
Factory-trained technicians cover installation, preventive maintenance and emergency calls on Robovanta equipment across Canada and the US.
FAQ
Robovanta at Tollaston Machinery: common questions
Answers to common questions about our robovanta products.
Yes. We are an authorized Robovanta dealer across Canada and the US. We quote the machines, install and commission them, train your team, and service them afterward with our own factory-trained technicians.
We carry the RV-Tend 12 and RV-Tend 20 tending cells, and the RV-Weld 1400 and RV-Weld Duo welding cells. The current lineup and specifications are listed on this page.
Yes. We service Robovanta equipment whether or not we supplied it. Send us the model and we will tell you what our technicians can cover and what parts we have on the shelf.
We hold common Robovanta spare parts and consumables in our Vaughan warehouse. Anything not on the shelf, we order directly and give you a lead time before you commit.
Request a quote from this page or call your local branch. We'll ask about your parts, material and volume before quoting, so the machine matches the work rather than the other way around.
