Robotic Welding
RV-Weld Duo
by Robovanta

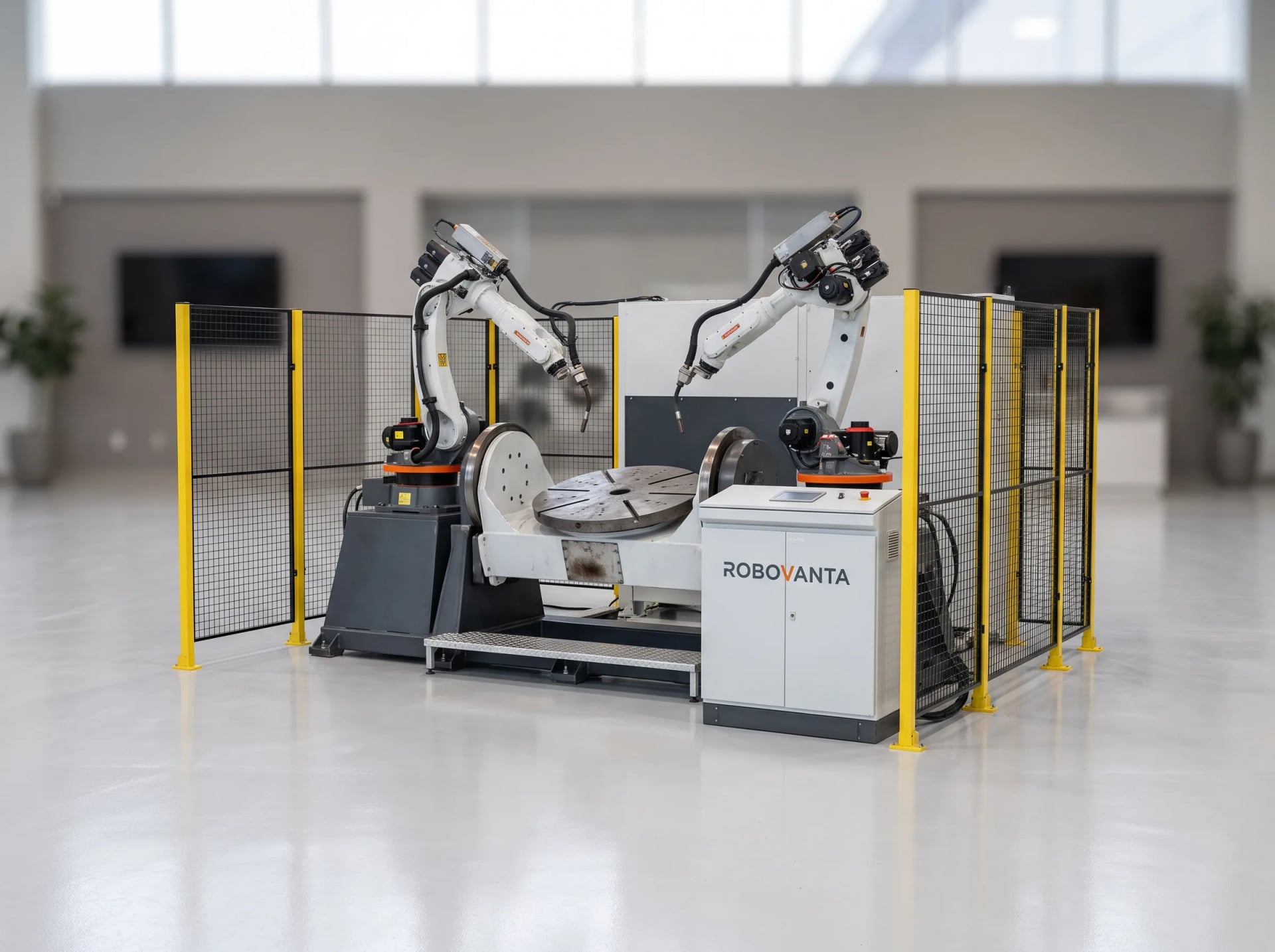

Two-robot welding cell with a shared positioner for continuous production welding.
2, independently programmable
Robot arms
20 kg (44 lb)
Payload per arm
2000 mm (79")
Reach per arm
Not sure if the RV-Weld Duo is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Shops running steady volumes of repeat weld parts
- Fabricators short on skilled welders
- Two-shift operations wanting continuous cell uptime
Robot arms
2, independently programmable
Payload per arm
20 kg (44 lb)
Reach per arm
2000 mm (79")
Repeatability
±0.05 mm (0.002")
Key Features
RV-Weld Duo Features
Standard features that set this machine apart in demanding manufacturing environments.
Ease of Operation
- Dual robot arms on a shared 2-station rotary positioner
- Offline program simulation before first weld
- Automatic torch-cleaning station
- Remote diagnostics and program backup
Cutting Capability
- Through-arc seam tracking for fit-up variation
- Torch-switchable MIG/TIG processes
Built-In Extras
- Robovanta MotionCell control with synchronized dual-arm programs
- Interlocked safety fencing with light curtains
Full Specifications
Robovanta RV-Weld Duo Technical Details
Complete specifications, standard features, and optional upgrades.
- Robot arms
- 2, independently programmable
- Payload per arm
- 20 kg (44 lb)
- Reach per arm
- 2000 mm (79")
- Repeatability
- ±0.05 mm (0.002")
- Positioner
- 2-station rotary, 500 kg (1,100 lb) capacity per station
- Welding processes
- MIG, TIG (torch-switchable by program)
- Seam tracking
- Through-arc seam tracking, standard
- Axes per arm
- 6-axis articulated
- Control
- Robovanta MotionCell control
- Cell footprint
- 6.5 x 5.5 m (21' x 18') including safety fencing
- Safety system
- Perimeter light curtains and interlocked fencing
- Power requirement
- 600V/3-phase, 60A service
| Robot arms | 2, independently programmable |
| Payload per arm | 20 kg (44 lb) |
| Reach per arm | 2000 mm (79") |
| Repeatability | ±0.05 mm (0.002") |
| Positioner | 2-station rotary, 500 kg (1,100 lb) capacity per station |
| Welding processes | MIG, TIG (torch-switchable by program) |
| Seam tracking | Through-arc seam tracking, standard |
| Axes per arm | 6-axis articulated |
| Control | Robovanta MotionCell control |
| Cell footprint | 6.5 x 5.5 m (21' x 18') including safety fencing |
| Safety system | Perimeter light curtains and interlocked fencing |
| Power requirement | 600V/3-phase, 60A service |
- Dual robot arms on a shared 2-station rotary positioner
- Through-arc seam tracking for fit-up variation
- Robovanta MotionCell control with synchronized dual-arm programs
- Torch-switchable MIG/TIG processes
- Interlocked safety fencing with light curtains
- Offline program simulation before first weld
- Automatic torch-cleaning station
- Remote diagnostics and program backup
- Laser vision seam-finding package
- Third and fourth positioner stations
- TIG cold-wire feed package
- Weld-data logging and traceability software
- Fume extraction arm at each welding station
- Structural bracket and frame welding
- Agricultural and off-highway component welding
- Sheet metal enclosure and chassis welding
- Repeat-part production welding
FAQ
RV-Weld Duo Questions
Answers to common questions about the RV-Weld Duo.
Typically 12-16 weeks from order, including positioner tooling built to your parts; we confirm the exact date at order.
A 600V/3-phase, 60A service, plus shielding gas (typically 75/25 argon-CO2 for MIG or pure argon for TIG) sized to your welding volume.
Yes — we program your first part families, prove weld quality on your own fixtures, and train your team on program editing, fixturing and torch-consumable service.
Both robot arms, the 2-station positioner, safety fencing, Robovanta MotionCell control, rigging and installation, and operator/programmer training.
