Robotic Welding

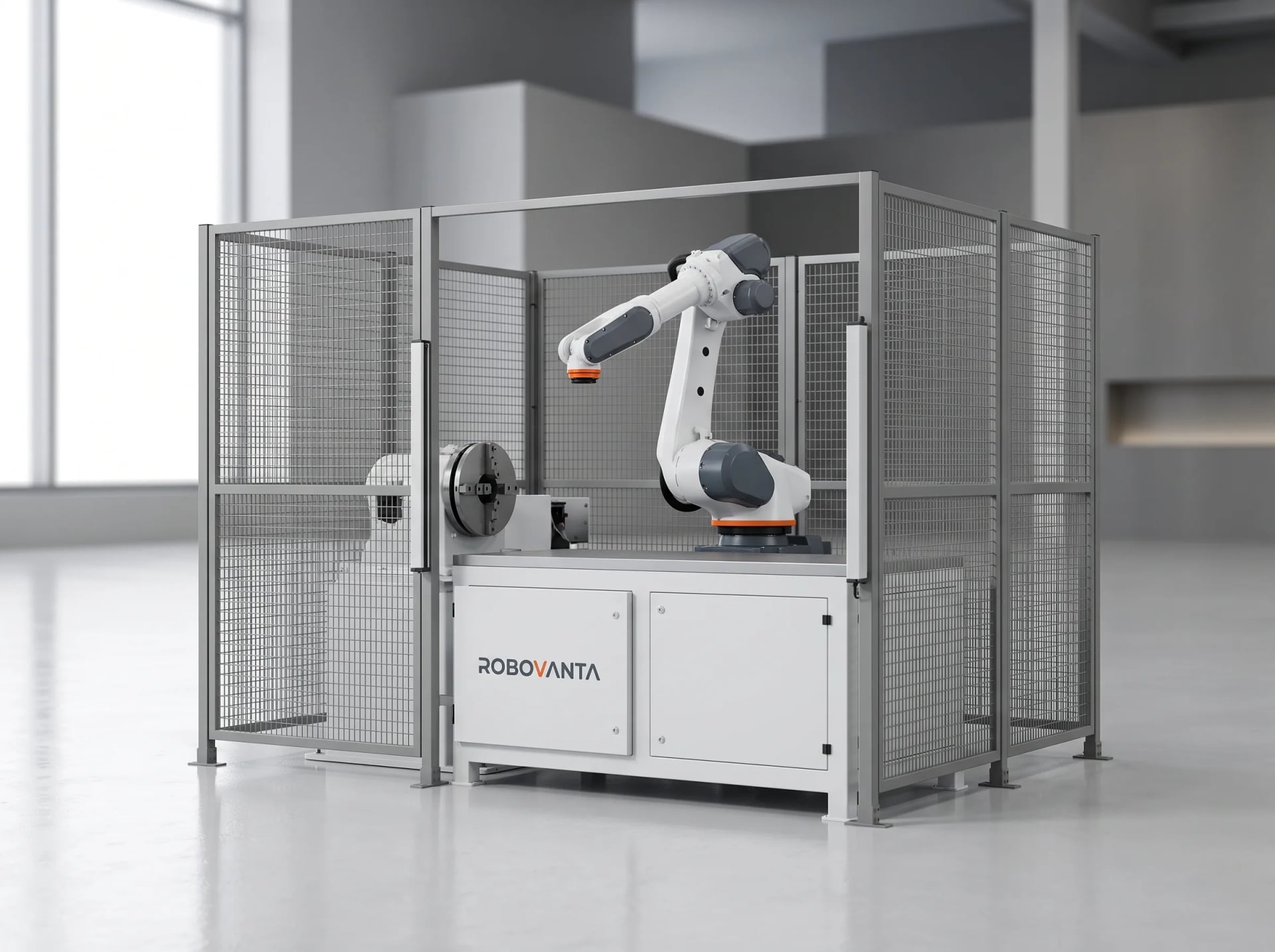

RV-Weld 1400
by Robovanta
Single-robot welding cell with a rotary positioner — a shop's first step into automated welding.
1
Robot arms
20 kg (44 lb)
Payload
1400 mm (55")
Reach
Not sure if the RV-Weld 1400 is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Shops automating welding for the first time
- Fabricators with a steady but lower-volume weld job book
- Shops short on skilled welders
Robot arms
1
Payload
20 kg (44 lb)
Reach
1400 mm (55")
Repeatability
±0.05 mm (0.002")
Key Features
RV-Weld 1400 Features
Standard features that set this machine apart in demanding manufacturing environments.
Ease of Operation
- Single robot arm with rotary positioner
- Automatic torch-cleaning station
- Remote diagnostics and program backup
Cutting Capability
- Through-arc seam tracking for fit-up variation
- Torch-switchable MIG/TIG processes
Built-In Extras
- Robovanta MotionCell control with offline program simulation
- Interlocked safety fencing with light curtains
Full Specifications
Robovanta RV-Weld 1400 Technical Details
Complete specifications, standard features, and optional upgrades.
- Robot arms
- 1
- Payload
- 20 kg (44 lb)
- Reach
- 1400 mm (55")
- Repeatability
- ±0.05 mm (0.002")
- Positioner
- 1-station rotary, 300 kg (660 lb) capacity
- Welding processes
- MIG, TIG (torch-switchable by program)
- Seam tracking
- Through-arc seam tracking, standard
- Axes
- 6-axis articulated
- Control
- Robovanta MotionCell control
- Cell footprint
- 4.5 x 4 m (15' x 13') including safety fencing
- Safety system
- Perimeter light curtains and interlocked fencing
- Power requirement
- 600V/3-phase, 40A service
| Robot arms | 1 |
| Payload | 20 kg (44 lb) |
| Reach | 1400 mm (55") |
| Repeatability | ±0.05 mm (0.002") |
| Positioner | 1-station rotary, 300 kg (660 lb) capacity |
| Welding processes | MIG, TIG (torch-switchable by program) |
| Seam tracking | Through-arc seam tracking, standard |
| Axes | 6-axis articulated |
| Control | Robovanta MotionCell control |
| Cell footprint | 4.5 x 4 m (15' x 13') including safety fencing |
| Safety system | Perimeter light curtains and interlocked fencing |
| Power requirement | 600V/3-phase, 40A service |
- Single robot arm with rotary positioner
- Through-arc seam tracking for fit-up variation
- Robovanta MotionCell control with offline program simulation
- Torch-switchable MIG/TIG processes
- Interlocked safety fencing with light curtains
- Automatic torch-cleaning station
- Remote diagnostics and program backup
- Laser vision seam-finding package
- Second positioner station
- TIG cold-wire feed package
- Fume extraction arm at the welding station
- Bracket and small-frame welding
- Sheet metal enclosure welding
- Repeat-part production welding
- Prototype-to-production weld programs
FAQ
RV-Weld 1400 Questions
Answers to common questions about the RV-Weld 1400.
Typically 10-12 weeks from order, including positioner tooling; we confirm the exact date at order.
A 600V/3-phase, 40A service, plus shielding gas sized to your welding volume.
Yes — lease and term financing structured around your monthly production volume.
The robot arm, positioner, safety fencing, Robovanta MotionCell control, rigging and installation, and operator/programmer training.
