Horizontal Machining Centres

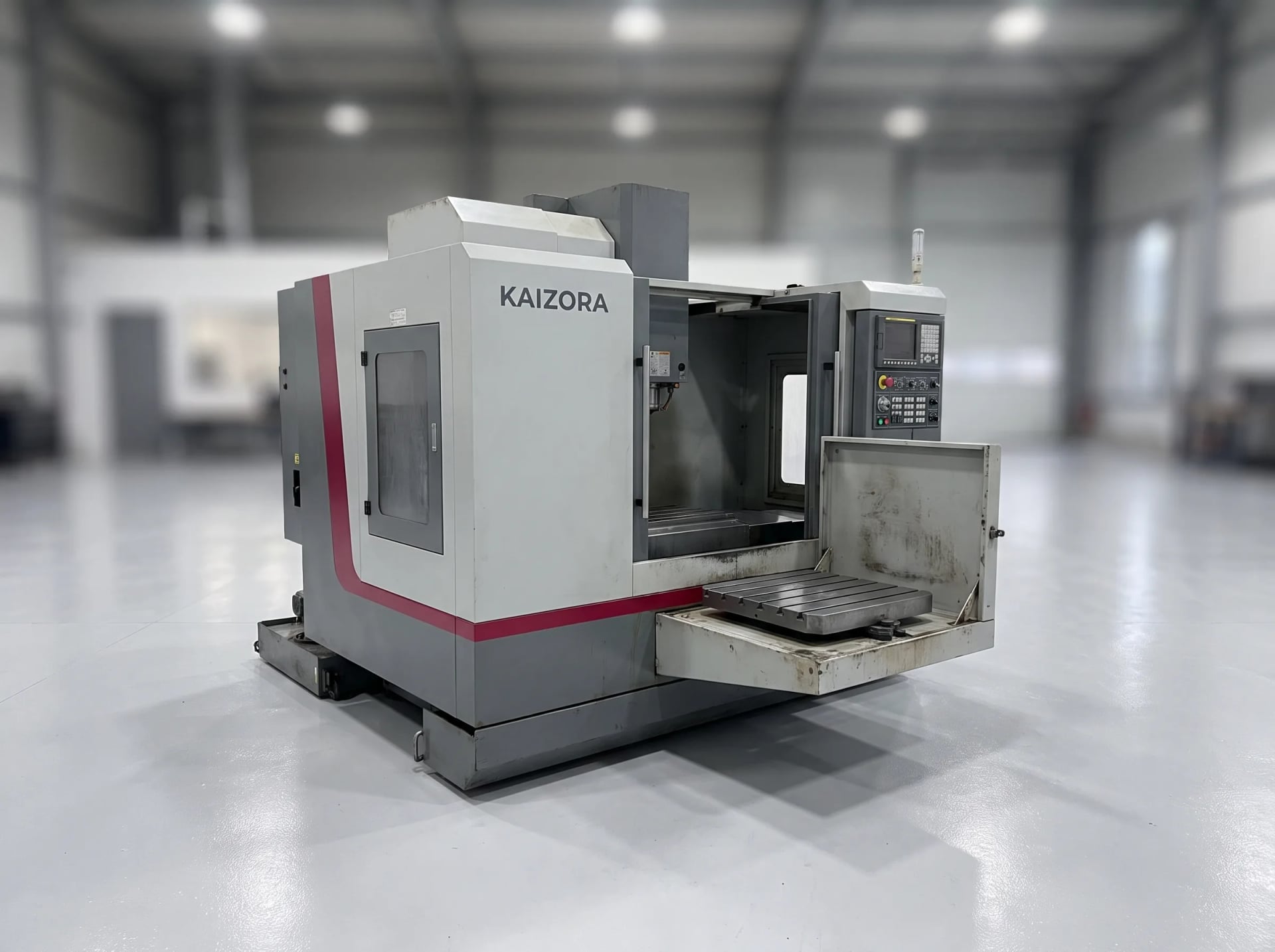

KH-500
by Kaizora
500 mm-pallet HMC with a 2-station changer for lights-out, multi-face production.
500 x 500 mm (19.7 x 19.7 in)
Pallet size
730 x 730 x 730 mm (28.7 x 28.7 x 28.7 in)
X / Y / Z travel
500 kg (1,102 lb)
Max table load
Not sure if the KH-500 is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Shops moving from vertical machining into true lights-out production
- Multi-face parts that currently need several manual re-fixtures
- Operations running unattended overnight or weekend cycles
- Contract manufacturers with recurring pallet-based part families
Pallet size
500 x 500 mm (19.7 x 19.7 in)
X / Y / Z travel
730 x 730 x 730 mm (28.7 x 28.7 x 28.7 in)
Max table load
500 kg (1,102 lb)
Spindle taper
BT40 (#40)
Key Features
KH-500 Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance
- 18.5 kW BT40 spindle rated for continuous multi-shift use
- ±3 arc-sec 4th-axis rotary index accuracy
Ease of Operation
- 500 x 500 mm pallet with 2-station automatic changer standard
- Kaizora Nexa 5 control with pallet-cycle scheduling software
- Integrated chip conveyor and coolant filtration
- Remote production monitoring standard
Built-In Extras
- 40-station matrix tool magazine
- Fully enclosed splash guarding with high-pressure wash-down option
Full Specifications
Kaizora KH-500 Technical Details
Complete specifications, standard features, and optional upgrades.
- Pallet size
- 500 x 500 mm (19.7 x 19.7 in)
- X / Y / Z travel
- 730 x 730 x 730 mm (28.7 x 28.7 x 28.7 in)
- Max table load
- 500 kg (1,102 lb)
- Spindle taper
- BT40 (#40)
- Spindle speed
- 10,000 rpm
- Spindle motor power
- 18.5 kW (25 hp) continuous
- Spindle torque
- 130 Nm (96 lb-ft)
- Rapid traverse (X/Y/Z)
- 48 m/min (1,890 ipm)
- Tool capacity
- 40 stations, matrix magazine
- Pallet changer
- 2-station automatic, standard
- 4th-axis index accuracy
- ±3 arc-sec
- Positioning accuracy
- ±0.006 mm (0.00024 in)
- Repeatability
- ±0.004 mm (0.00016 in)
- Control
- Kaizora Nexa 5 control
| Pallet size | 500 x 500 mm (19.7 x 19.7 in) |
| X / Y / Z travel | 730 x 730 x 730 mm (28.7 x 28.7 x 28.7 in) |
| Max table load | 500 kg (1,102 lb) |
| Spindle taper | BT40 (#40) |
| Spindle speed | 10,000 rpm |
| Spindle motor power | 18.5 kW (25 hp) continuous |
| Spindle torque | 130 Nm (96 lb-ft) |
| Rapid traverse (X/Y/Z) | 48 m/min (1,890 ipm) |
| Tool capacity | 40 stations, matrix magazine |
| Pallet changer | 2-station automatic, standard |
| 4th-axis index accuracy | ±3 arc-sec |
| Positioning accuracy | ±0.006 mm (0.00024 in) |
| Repeatability | ±0.004 mm (0.00016 in) |
| Control | Kaizora Nexa 5 control |
- 500 x 500 mm pallet with 2-station automatic changer standard
- 18.5 kW BT40 spindle rated for continuous multi-shift use
- 40-station matrix tool magazine
- ±3 arc-sec 4th-axis rotary index accuracy
- Kaizora Nexa 5 control with pallet-cycle scheduling software
- Fully enclosed splash guarding with high-pressure wash-down option
- Integrated chip conveyor and coolant filtration
- Remote production monitoring standard
- 6-station pallet pool upgrade
- High-pressure through-spindle coolant, 20 bar
- Automatic tool and pallet-offset probing
- Wash-down package for coolant/chip cross-contamination control
- Multi-face production parts requiring several setups
- Lights-out and unattended overnight production runs
- Aluminum and steel automotive and industrial components
- High-mix, medium-volume contract manufacturing
FAQ
KH-500 Questions
Answers to common questions about the KH-500.

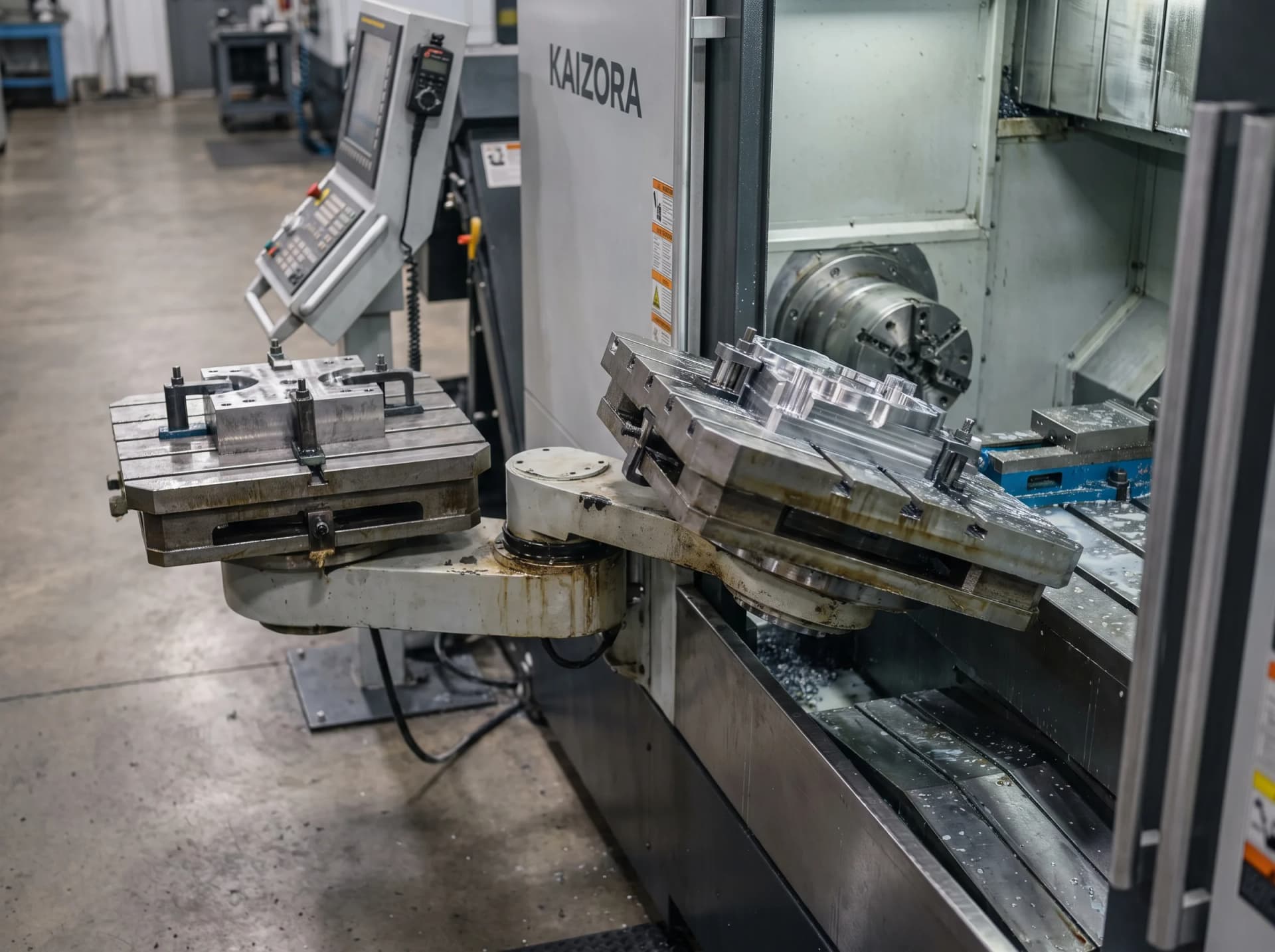

One pallet loads or unloads while the other machines, so the spindle rarely sits idle waiting on an operator — most shops recover several hours of spindle time per shift once they're running two pallets in rotation.
Typically 10-14 weeks build-to-order; we confirm your exact ship date once your configuration and options are finalized at quote stage.
Yes — our applications engineers develop and prove out your first pallet-changing program in the Vaughan Tech Centre before delivery, so you're running production on day one, not day thirty.
460V three-phase is standard, roughly 35 kVA depending on options; our install team confirms exact requirements from the machine's nameplate before your site visit.
