Horizontal Machining Centres

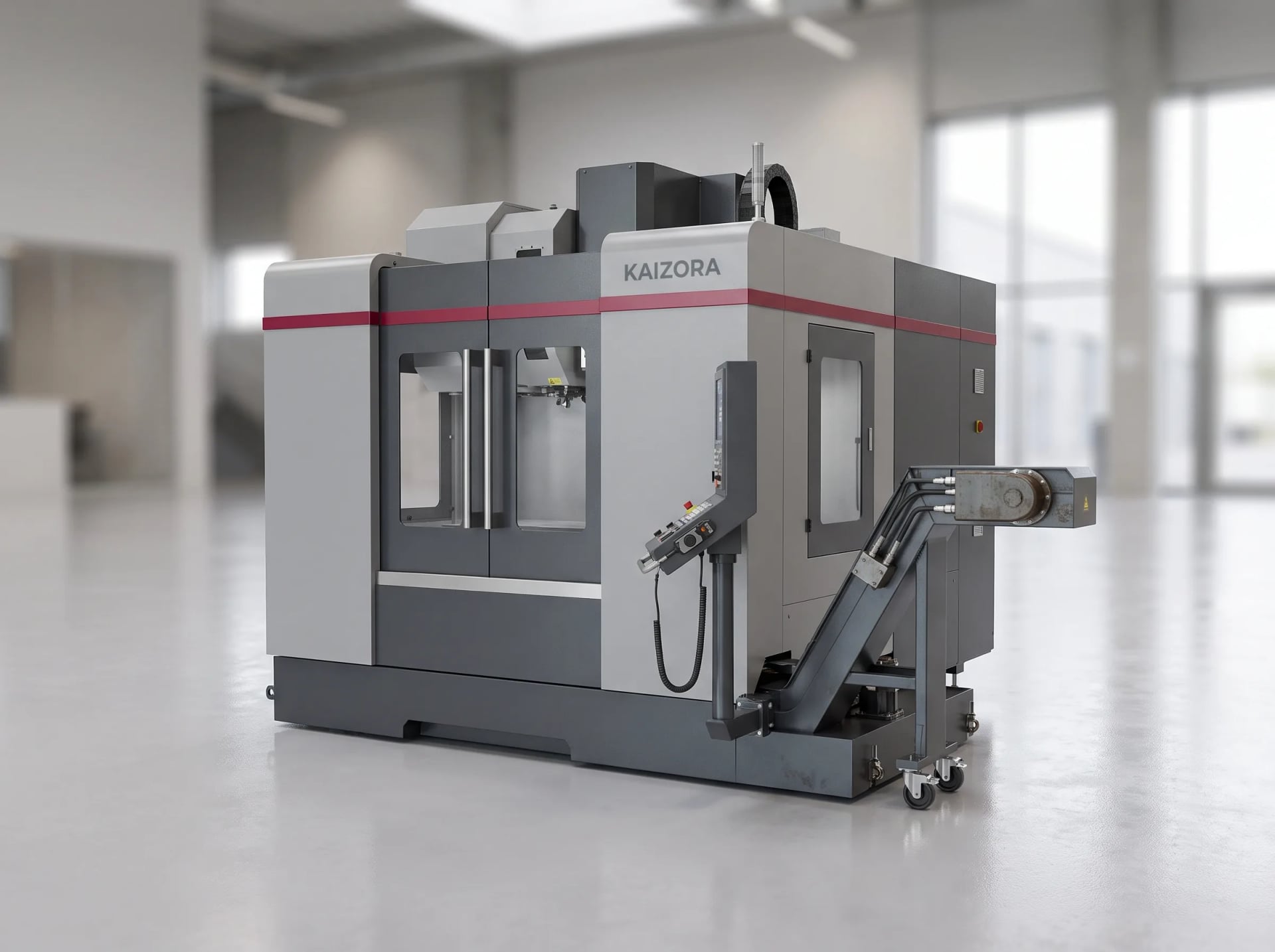

KH-630
by Kaizora
630 mm-pallet BT50 HMC for heavier parts and higher-volume multi-face production.
630 x 630 mm (24.8 x 24.8 in)
Pallet size
900 x 900 x 900 mm (35.4 x 35.4 x 35.4 in)
X / Y / Z travel
1,000 kg (2,205 lb)
Max table load
Not sure if the KH-630 is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Shops that have outgrown a 500 mm pallet HMC
- Heavier castings and forgings needing BT50 torque
- Higher-volume multi-face production programs
- Operations planning extended unattended, multi-pallet runs
Pallet size
630 x 630 mm (24.8 x 24.8 in)
X / Y / Z travel
900 x 900 x 900 mm (35.4 x 35.4 x 35.4 in)
Max table load
1,000 kg (2,205 lb)
Spindle taper
BT50 (#50)
Key Features
KH-630 Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance
- 26 kW BT50 spindle for heavy multi-face roughing
- Thermal growth compensation on spindle and column
Ease of Operation
- 630 x 630 mm pallet, 1,000 kg load rating
- 2-station automatic pallet changer, 6-station pool optional
- Kaizora Nexa 5 control with pallet-cycle scheduling software
- Integrated chip conveyor and high-volume coolant filtration
Built-In Extras
- 60-station chain-type tool magazine
- Reinforced box-way construction for continuous heavy-duty use
Full Specifications
Kaizora KH-630 Technical Details
Complete specifications, standard features, and optional upgrades.
- Pallet size
- 630 x 630 mm (24.8 x 24.8 in)
- X / Y / Z travel
- 900 x 900 x 900 mm (35.4 x 35.4 x 35.4 in)
- Max table load
- 1,000 kg (2,205 lb)
- Spindle taper
- BT50 (#50)
- Spindle speed
- 8,000 rpm
- Spindle motor power
- 26 kW (35 hp) continuous
- Spindle torque
- 340 Nm (250 lb-ft)
- Rapid traverse (X/Y/Z)
- 42 m/min (1,654 ipm)
- Tool capacity
- 60 stations, chain-type magazine
- Tool-to-tool change time
- 2.8 sec
- Pallet changer
- 2-station standard, 6-station optional
- Positioning accuracy
- ±0.007 mm (0.00028 in)
- Repeatability
- ±0.005 mm (0.0002 in)
- Control
- Kaizora Nexa 5 control
| Pallet size | 630 x 630 mm (24.8 x 24.8 in) |
| X / Y / Z travel | 900 x 900 x 900 mm (35.4 x 35.4 x 35.4 in) |
| Max table load | 1,000 kg (2,205 lb) |
| Spindle taper | BT50 (#50) |
| Spindle speed | 8,000 rpm |
| Spindle motor power | 26 kW (35 hp) continuous |
| Spindle torque | 340 Nm (250 lb-ft) |
| Rapid traverse (X/Y/Z) | 42 m/min (1,654 ipm) |
| Tool capacity | 60 stations, chain-type magazine |
| Tool-to-tool change time | 2.8 sec |
| Pallet changer | 2-station standard, 6-station optional |
| Positioning accuracy | ±0.007 mm (0.00028 in) |
| Repeatability | ±0.005 mm (0.0002 in) |
| Control | Kaizora Nexa 5 control |
- 26 kW BT50 spindle for heavy multi-face roughing
- 630 x 630 mm pallet, 1,000 kg load rating
- 60-station chain-type tool magazine
- 2-station automatic pallet changer, 6-station pool optional
- Kaizora Nexa 5 control with pallet-cycle scheduling software
- Reinforced box-way construction for continuous heavy-duty use
- Thermal growth compensation on spindle and column
- Integrated chip conveyor and high-volume coolant filtration
- 6-station pallet pool for extended unattended running
- High-pressure through-spindle coolant, 70 bar
- Automatic tool and pallet-offset probing
- In-process gauging package
- Heavier multi-face castings and forgings
- Higher-volume automotive and heavy-equipment components
- Steel and cast-iron production machining
- Contract manufacturers scaling past a 500 mm pallet
FAQ
KH-630 Questions
Answers to common questions about the KH-630.
The KH-630 has a larger pallet, a BT50 spindle with roughly double the torque, and a bigger tool magazine — it's the right step up once your parts or your volume outgrow the KH-500's 500 mm pallet.
Yes, the pallet pool is a factory-fitted option we can quote at time of purchase or add later; retrofitting after delivery requires a service visit to integrate the pool with your existing controls.
A standard reinforced shop floor handles the machine's weight; our team reviews your dock access and floor plan during the site survey and coordinates rigging as part of delivery.
Yes — on-site training covers pallet loading, offset setting and changeover procedure, and our Vaughan Tech Centre runs refresher sessions for new operators throughout the year.
