Tollaston Machinery · Authorized dealer
Authorized Arcvanta dealer in Canada and the US
Arcvanta plasma and oxyfuel cutting tables, demonstrated at our Tech Centre and supported coast to coast.
2
Models we supply
1994
In business since
Vaughan, ON
Parts and service
Arcvanta builds plasma and oxyfuel cutting tables, and Tollaston is an authorized dealer across Canada and the US. The line is American-engineered and suits structural steel, heavy transportation and pressure-vessel fabricators. We carry the AV-2560 Bevel and the AVX-3080 Dual, all sharing the Arcvanta Pathfinder control. Every purchase includes a real test on your own material or parts at our Vaughan Tech Centre, applications engineering from your first quote through your first production run, Arcvanta parts stocked in our Vaughan warehouse, and factory-trained service technicians across Canada and the US.
The lineup
Arcvanta machines we carry
Grouped by what they do. Every one of these is quoted, installed, and serviced by our own team.
Plasma & Oxyfuel Cutting
See all Plasma & Oxyfuel Cutting at Tollaston
Plasma cutting table

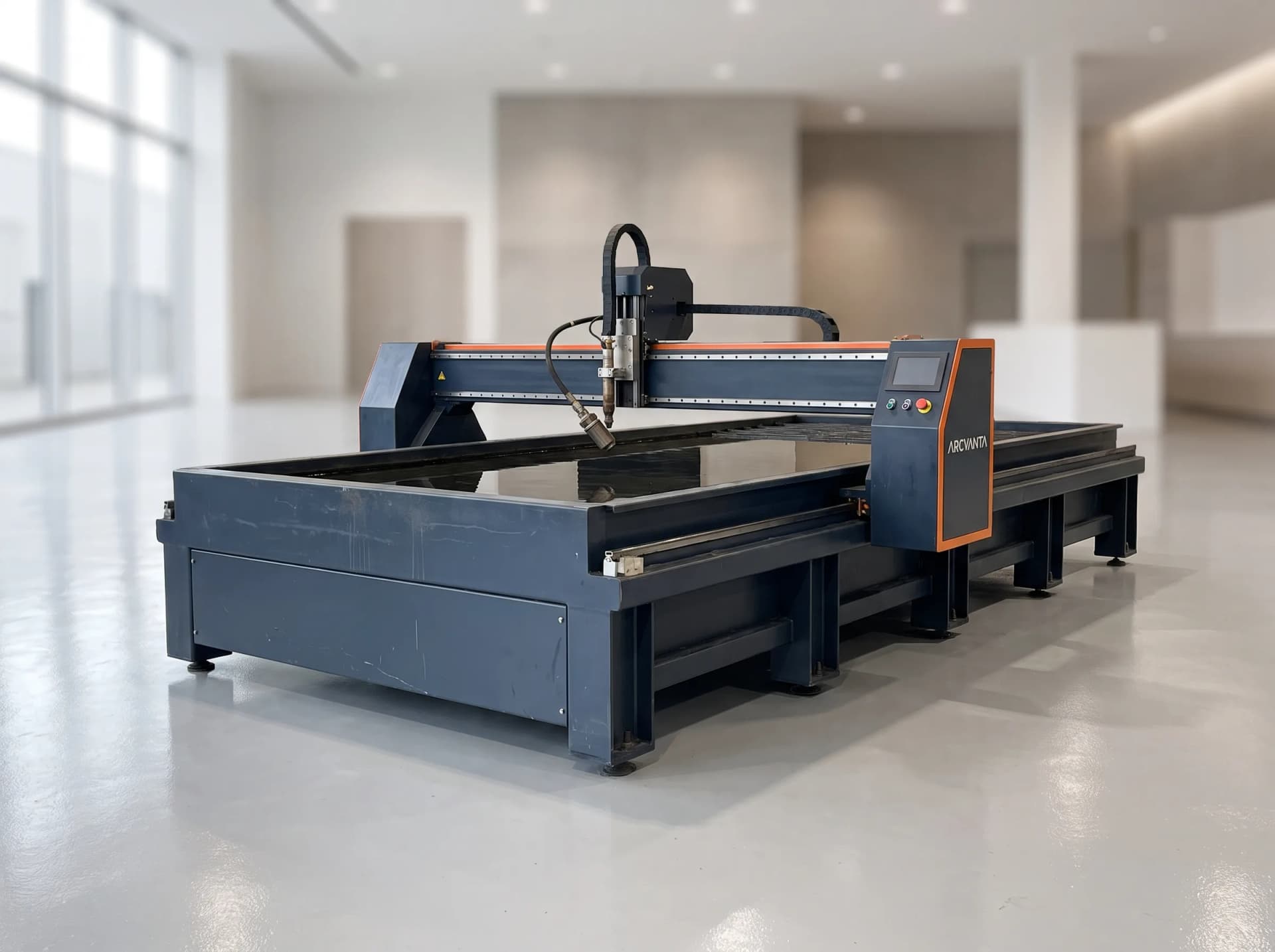

AV-2560 Bevel
The AV-2560 Bevel puts weld-prep edges on parts without a second operation. A 260A plasma source over a 2500 x 6000 mm (8'2" x 19'8") bed pierces up to 50 mm (2") mild steel, and the bevel-head torch tilts up to ±45° to cut V, X, K and Y weld-prep bevels in the same pass as the profile cut. The Arcvanta Pathfinder control drives true-hole plasma technology for bolt-ready holes and manages bevel-angle transitions automatically at corners. It suits fabricators who currently grind or machine bevels by hand and want that step off the floor entirely. Tollaston sizes the water table and gas supply, proves bevel accuracy on your own plate, and trains your operators.
- Cutting bed
- 2500 x 6000 mm (8'2" x 19'8")
- Plasma amperage
- Up to 260A
- Plasma pierce capacity, mild steel
- 50 mm (2")
- Plasma quality-cut range, mild steel
- 0.5 - 32 mm (0.02" - 1.25")
Plasma and oxyfuel cutting gantry

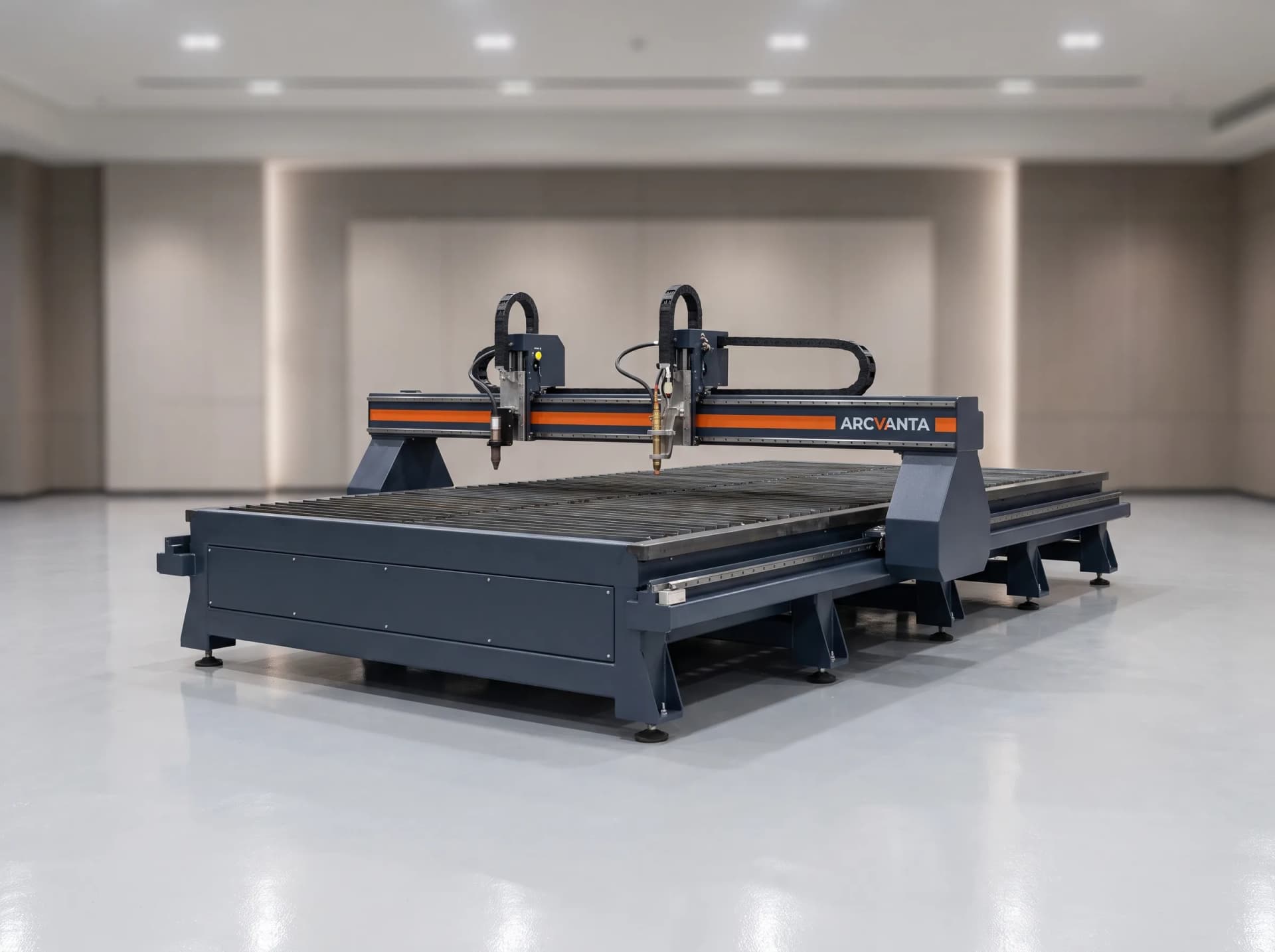

AVX-3080 Dual
The AVX-3080 Dual pairs a high-amperage plasma carriage with a multi-torch oxyfuel station on one reinforced gantry, so a single table cuts thin-to-mid steel fast with plasma and switches to oxyfuel for plate thicker than plasma can economically pierce. A 3000 x 8000 mm (10' x 26') bed and 400A plasma source pierce up to 80 mm (3.15") mild steel, while the four-torch oxyfuel station runs up to 300 mm (12") for the heaviest plate work. The Arcvanta Pathfinder control switches between processes on the same part program and drives true-hole and pierce-delay technology to keep edge quality consistent across both. Tollaston sizes the water table and gas supply for your shop, runs a test cut on your own plate, and trains your team on both processes.
- Cutting bed
- 3000 x 8000 mm (10' x 26')
- Plasma amperage
- Up to 400A
- Plasma pierce capacity, mild steel
- 80 mm (3.15")
- Plasma quality-cut range, mild steel
- 0.5 - 50 mm (0.02" - 2")
Why us
Why buy Arcvanta from Tollaston Machinery
Proven at the Tech Centre
Every Arcvanta quote comes with a real test on your own material or parts at our Vaughan Tech Centre, not a catalogue cycle time.
Applications engineering included
Our applications engineers build your process, program your first parts and train your team on every Arcvanta machine we sell.
Parts stocked in Vaughan
Common Arcvanta spindle, tooling and electrical components are on our own shelves, not on a boat from overseas.
Coast-to-coast service
Factory-trained technicians cover installation, preventive maintenance and emergency calls on Arcvanta equipment across Canada and the US.
FAQ
Arcvanta at Tollaston Machinery: common questions
Answers to common questions about our arcvanta products.
Yes. We are an authorized Arcvanta dealer across Canada and the US. We quote the machines, install and commission them, train your team, and service them afterward with our own factory-trained technicians.
We carry the AV-2560 Bevel and the AVX-3080 Dual. The current lineup and specifications are listed on this page.
Yes. We service Arcvanta equipment whether or not we supplied it. Send us the model and we will tell you what our technicians can cover and what parts we have on the shelf.
We hold common Arcvanta spare parts and consumables in our Vaughan warehouse. Anything not on the shelf, we order directly and give you a lead time before you commit.
Request a quote from this page or call your local branch. We'll ask about your parts, material and volume before quoting, so the machine matches the work rather than the other way around.
Not sure which Arcvanta machine fits?
Ask our assistant about material, thickness, and volume. It knows the lineup and what we stock.
