Plasma & Oxyfuel Cutting

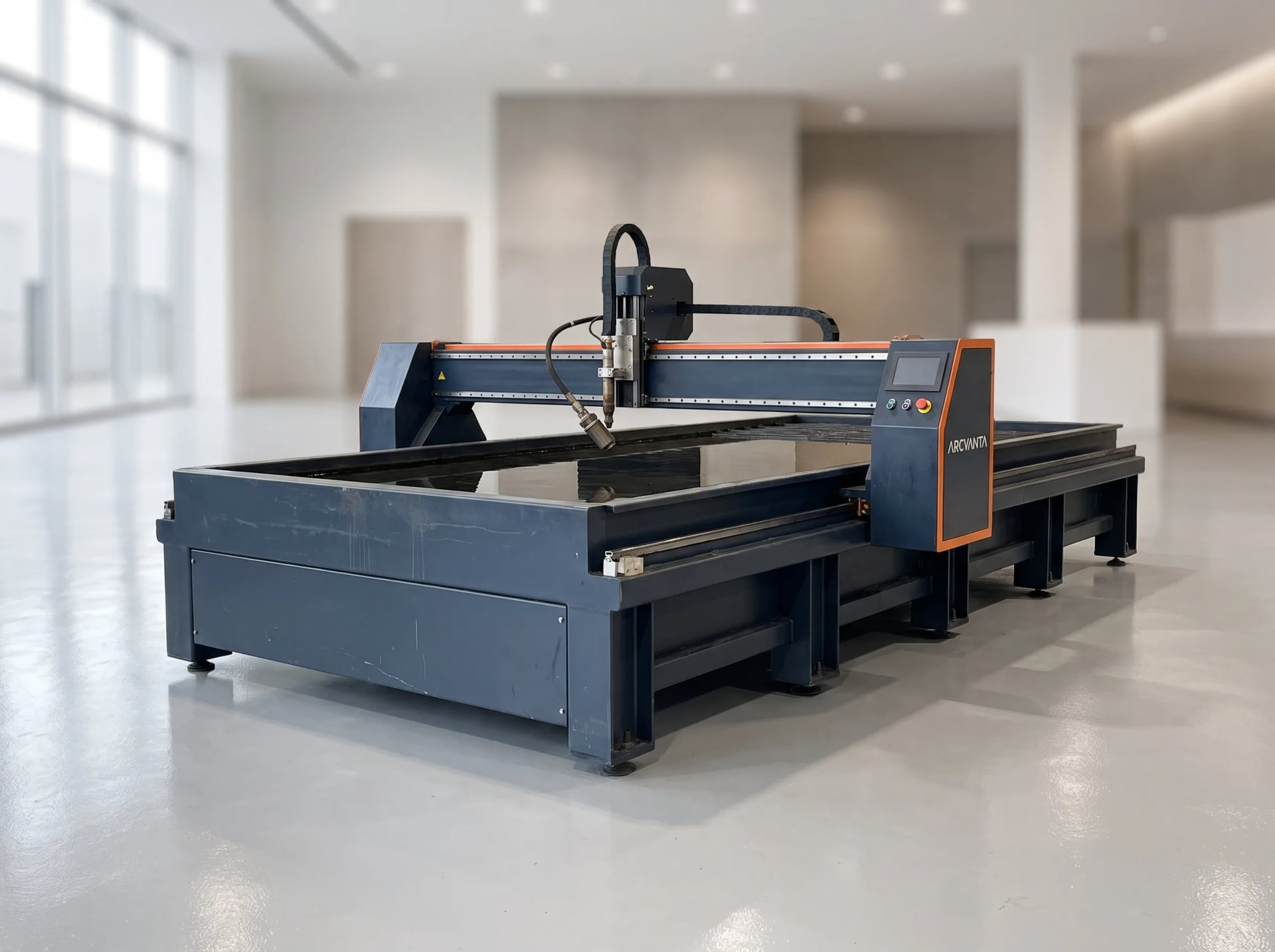

AV-2560 Bevel
by Arcvanta
Plasma cutting table with a bevel-head torch for weld-prep edges straight off the table.
2500 x 6000 mm (8'2" x 19'8")
Cutting bed
Up to 260A
Plasma amperage
50 mm (2")
Plasma pierce capacity, mild steel
Not sure if the AV-2560 Bevel is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Shops currently grinding or machining weld bevels by hand
- Structural and pressure-vessel fabricators
- Job shops wanting one table for profile and bevel work
Cutting bed
2500 x 6000 mm (8'2" x 19'8")
Plasma amperage
Up to 260A
Plasma pierce capacity, mild steel
50 mm (2")
Plasma quality-cut range, mild steel
0.5 - 32 mm (0.02" - 1.25")
Key Features
AV-2560 Bevel Features
Standard features that set this machine apart in demanding manufacturing environments.
Ease of Operation
- Automatic bevel-head torch, ±45° for weld-prep edges
- Arcvanta Pathfinder control with automatic bevel transitions
- Slatted water table with downdraft fume control
- Remote diagnostics and cut-recipe updates
Built-In Extras
- Automatic pierce-height sensing
- True-hole plasma technology for bolt-ready holes
Full Specifications
Arcvanta AV-2560 Bevel Technical Details
Complete specifications, standard features, and optional upgrades.
- Cutting bed
- 2500 x 6000 mm (8'2" x 19'8")
- Plasma amperage
- Up to 260A
- Plasma pierce capacity, mild steel
- 50 mm (2")
- Plasma quality-cut range, mild steel
- 0.5 - 32 mm (0.02" - 1.25")
- Bevel angle range
- ±45°
- Bevel types supported
- V, X, K, Y weld-prep bevels
- Max positioning speed
- 22 m/min (866 in/min)
- Positioning accuracy
- ±0.25 mm (0.01")
- Cutting table type
- Slatted water table with downdraft
- Control
- Arcvanta Pathfinder control, 18" touchscreen
- Gas requirements
- Compressed air or oxygen (plasma), nitrogen for stainless
- Power requirement
- 600V/3-phase, 100A service
- Footprint
- 9.5 x 4.5 m (31' x 15')
| Cutting bed | 2500 x 6000 mm (8'2" x 19'8") |
| Plasma amperage | Up to 260A |
| Plasma pierce capacity, mild steel | 50 mm (2") |
| Plasma quality-cut range, mild steel | 0.5 - 32 mm (0.02" - 1.25") |
| Bevel angle range | ±45° |
| Bevel types supported | V, X, K, Y weld-prep bevels |
| Max positioning speed | 22 m/min (866 in/min) |
| Positioning accuracy | ±0.25 mm (0.01") |
| Cutting table type | Slatted water table with downdraft |
| Control | Arcvanta Pathfinder control, 18" touchscreen |
| Gas requirements | Compressed air or oxygen (plasma), nitrogen for stainless |
| Power requirement | 600V/3-phase, 100A service |
| Footprint | 9.5 x 4.5 m (31' x 15') |
- Automatic bevel-head torch, ±45° for weld-prep edges
- Arcvanta Pathfinder control with automatic bevel transitions
- True-hole plasma technology for bolt-ready holes
- Automatic pierce-height sensing
- Slatted water table with downdraft fume control
- Remote diagnostics and cut-recipe updates
- Stainless/aluminum high-definition plasma cartridge
- Automatic torch-height crash protection
- Remote monitoring package
- Plate-marking station for part traceability
- Weld-prep edges for structural fabrication
- Pressure vessel and pipe fitting components
- General steel plate profile cutting
- Shipbuilding weld-joint preparation
FAQ
AV-2560 Bevel Questions
Answers to common questions about the AV-2560 Bevel.
Typically 10-12 weeks from order; we confirm the exact date at order.
A 600V/3-phase, 100A service, plus compressed air or oxygen for the plasma cartridge — nitrogen is available as an option for stainless work.
Yes — on-site training covers bevel-head setup, angle programming and torch-consumable service.
Base machine, water table, bevel-head torch, standard consumable starter kit, Arcvanta Pathfinder control, rigging and installation, and operator training.
