Plasma & Oxyfuel Cutting

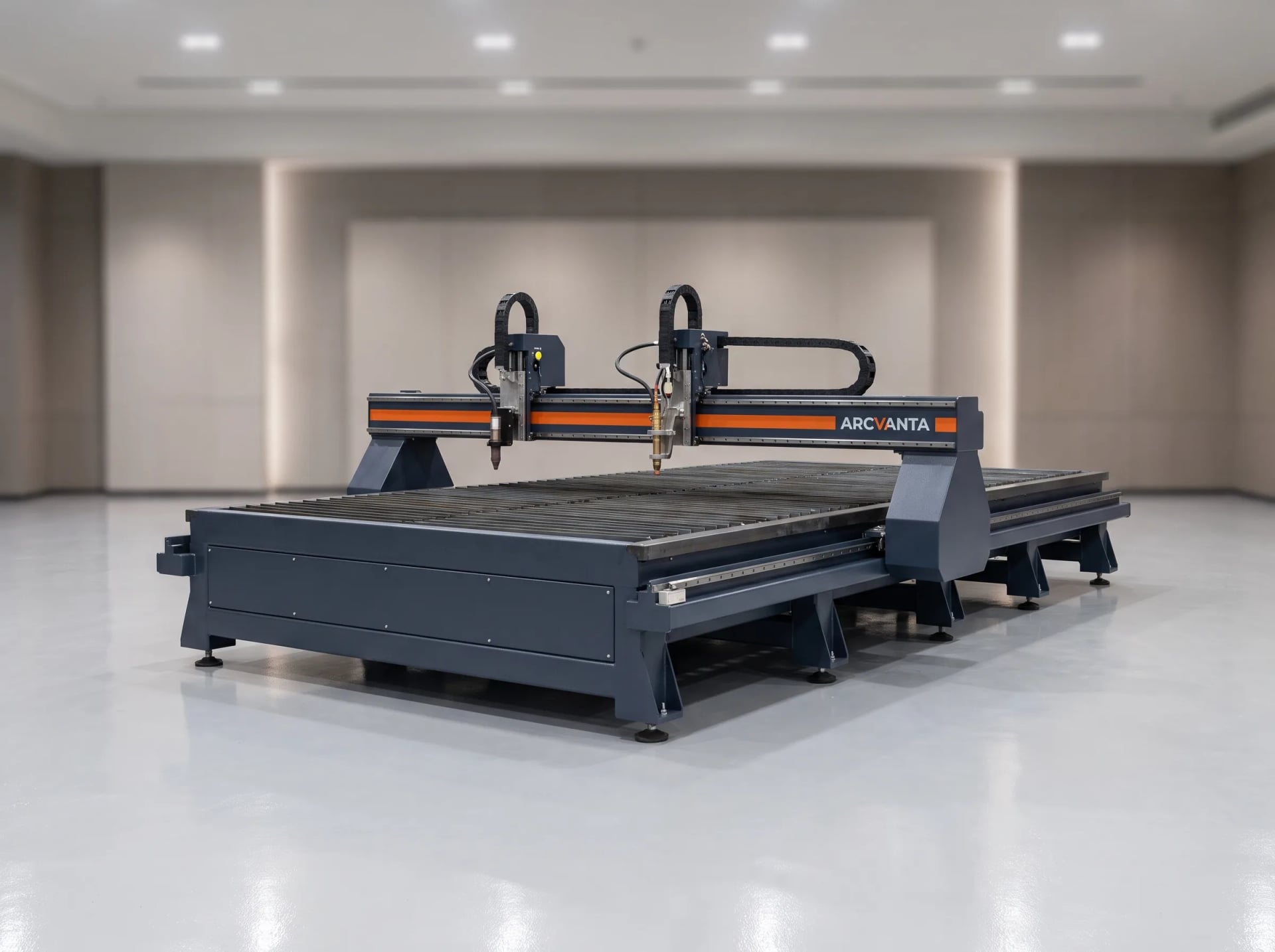

AVX-3080 Dual
by Arcvanta
Heavy dual-process gantry cutting table combining high-amperage plasma with oxyfuel torches.
3000 x 8000 mm (10' x 26')
Cutting bed
Up to 400A
Plasma amperage
80 mm (3.15")
Plasma pierce capacity, mild steel
Not sure if the AVX-3080 Dual is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Shops cutting a wide thickness range on one table
- Heavy plate fabricators needing both speed and thickness
- Fabricators consolidating plasma and oxyfuel tables
Cutting bed
3000 x 8000 mm (10' x 26')
Plasma amperage
Up to 400A
Plasma pierce capacity, mild steel
80 mm (3.15")
Plasma quality-cut range, mild steel
0.5 - 50 mm (0.02" - 2")
Key Features
AVX-3080 Dual Features
Standard features that set this machine apart in demanding manufacturing environments.
Ease of Operation
- Arcvanta Pathfinder control with mixed-process part programs
- Slatted water table with downdraft fume control
- Remote diagnostics and cut-recipe updates
Cutting Capability

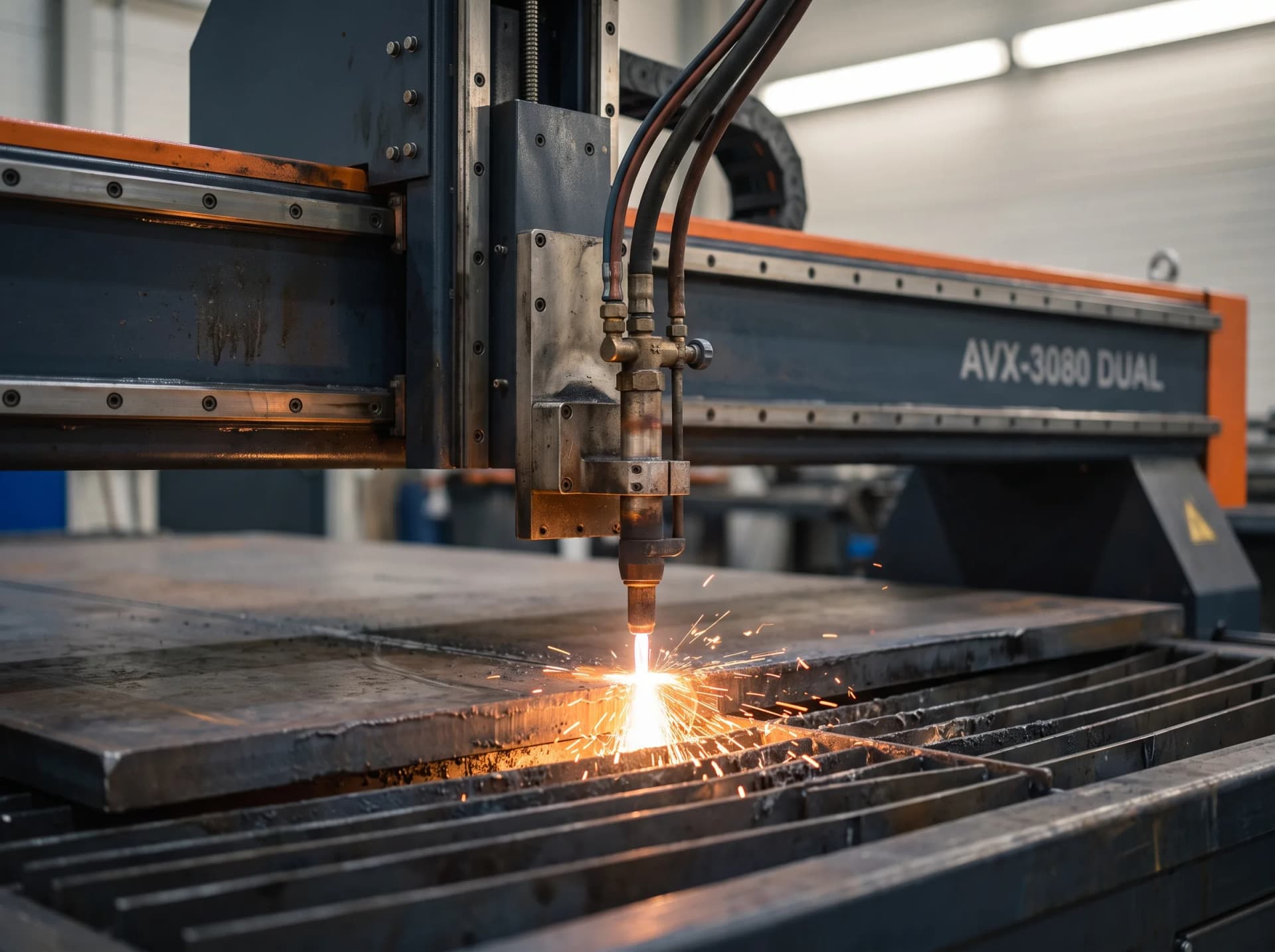

- Combined plasma and 4-station oxyfuel gantry
- True-hole plasma technology for bolt-ready holes
- Independent torch indexing for multi-part oxyfuel runs
Built-In Extras
- Automatic pierce-height sensing on both processes
Full Specifications
Arcvanta AVX-3080 Dual Technical Details
Complete specifications, standard features, and optional upgrades.
- Cutting bed
- 3000 x 8000 mm (10' x 26')
- Plasma amperage
- Up to 400A
- Plasma pierce capacity, mild steel
- 80 mm (3.15")
- Plasma quality-cut range, mild steel
- 0.5 - 50 mm (0.02" - 2")
- Oxyfuel torch stations
- 4, independently indexed
- Oxyfuel cut capacity, mild steel
- 6 - 300 mm (0.24" - 12")
- Max positioning speed
- 20 m/min (787 in/min)
- Positioning accuracy
- ±0.3 mm (0.012")
- Cutting table type
- Slatted water table with downdraft
- Control
- Arcvanta Pathfinder control, 21" touchscreen
- Gas requirements
- Compressed air or oxygen (plasma), acetylene/propane and oxygen (oxyfuel)
- Power requirement
- 600V/3-phase, 150A service
- Footprint
- 11.5 x 5.5 m (38' x 18')
| Cutting bed | 3000 x 8000 mm (10' x 26') |
| Plasma amperage | Up to 400A |
| Plasma pierce capacity, mild steel | 80 mm (3.15") |
| Plasma quality-cut range, mild steel | 0.5 - 50 mm (0.02" - 2") |
| Oxyfuel torch stations | 4, independently indexed |
| Oxyfuel cut capacity, mild steel | 6 - 300 mm (0.24" - 12") |
| Max positioning speed | 20 m/min (787 in/min) |
| Positioning accuracy | ±0.3 mm (0.012") |
| Cutting table type | Slatted water table with downdraft |
| Control | Arcvanta Pathfinder control, 21" touchscreen |
| Gas requirements | Compressed air or oxygen (plasma), acetylene/propane and oxygen (oxyfuel) |
| Power requirement | 600V/3-phase, 150A service |
| Footprint | 11.5 x 5.5 m (38' x 18') |
- Combined plasma and 4-station oxyfuel gantry
- Arcvanta Pathfinder control with mixed-process part programs
- True-hole plasma technology for bolt-ready holes
- Automatic pierce-height sensing on both processes
- Slatted water table with downdraft fume control
- Independent torch indexing for multi-part oxyfuel runs
- Remote diagnostics and cut-recipe updates
- Bevel-head upgrade for the plasma carriage
- Additional oxyfuel torch stations
- Automatic torch-height crash protection
- Remote monitoring package
- Plate-marking station for part traceability
- Heavy structural steel fabrication
- Off-highway and construction equipment plate parts
- Shipbuilding and heavy transportation components
- Pressure vessel and tank plate cutting
FAQ
AVX-3080 Dual Questions
Answers to common questions about the AVX-3080 Dual.
Typically 14-16 weeks from order given the dual-process gantry build; we confirm the exact date at order.
A 600V/3-phase, 150A service, compressed air or oxygen for plasma, and acetylene or propane plus oxygen for the oxyfuel stations — we size bottled versus bulk supply during the site survey.
The gantry and water table weigh roughly 14,000 kg combined; a level, standard-loading floor is sufficient and we coordinate rigging as part of installation.
Base machine, water table, standard consumable starter kit, Arcvanta Pathfinder control, rigging and installation, and operator training on both processes.
