Tollaston Machinery · Authorized dealer
Authorized Sparion dealer in Canada and the US
Sparion wire and sinker EDM, demonstrated at our Tech Centre and supported coast to coast.
2
Models we supply
1994
In business since
Vaughan, ON
Parts and service
Sparion builds wire and sinker EDM, and Tollaston is an authorized dealer across Canada and the US. The line is Japanese-engineered and suits mold, die and precision tooling departments cutting hardened material. We carry the SW-400 wire EDM and the SE-600 sinker EDM, all sharing the Sparion Nexis W control (Nexis S on the sinker). Every purchase includes a real test on your own material or parts at our Vaughan Tech Centre, applications engineering from your first quote through your first production run, Sparion parts stocked in our Vaughan warehouse, and factory-trained service technicians across Canada and the US.
The lineup
Sparion machines we carry
Grouped by what they do. Every one of these is quoted, installed, and serviced by our own team.
EDM (Wire & Sinker)
See all EDM (Wire & Sinker) at Tollaston
sinker EDM

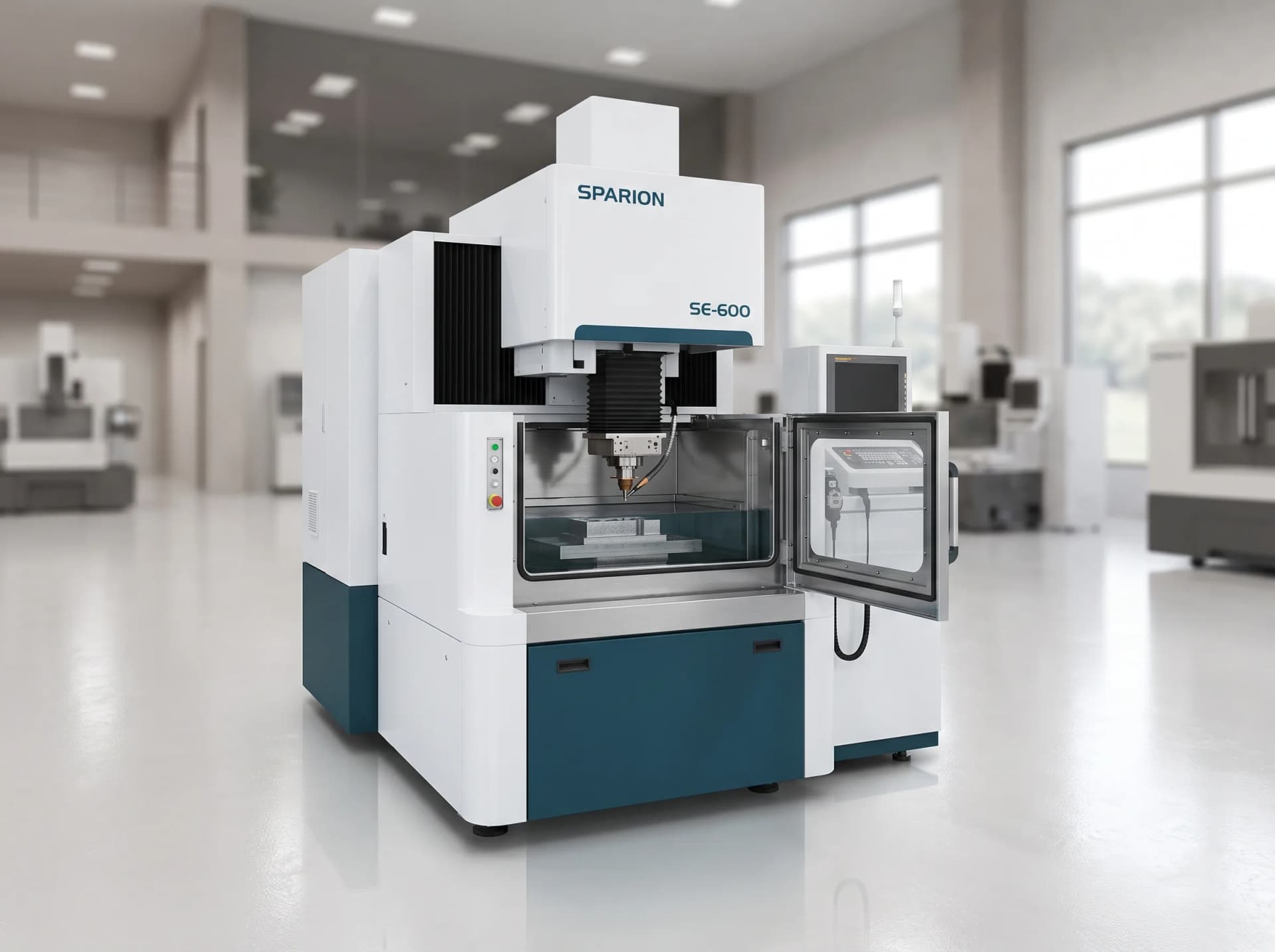

SE-600
The SE-600 is Sparion's sinker (die-sinking) EDM, purpose-built for burning deep cavities, sharp internal corners and fine surface detail that no cutting tool can reach mechanically. A 400 x 300 x 300 mm travel envelope, a 600 kg workpiece capacity and a 0.1 μm servo head resolution let it hold electrode positioning tight enough for mold cavity and core work at Ra 0.05 μm best finish. Tollaston sells the SE-600 into mold, die and precision tooling shops that need to complement their wire EDM capability with cavity-sinking for closed-end pockets a wire simply can't cut. The oil-based dielectric and automatic level control keep the process stable through long unattended finishing burns.
- Max workpiece size
- 800 x 600 x 400 mm (31.5 x 23.6 x 15.7 in)
- Max workpiece weight
- 600 kg (1,323 lb)
- X / Y / Z travel
- 400 x 300 x 300 mm (15.7 x 11.8 x 11.8 in)
- Max electrode weight
- 50 kg (110 lb)
wire EDM

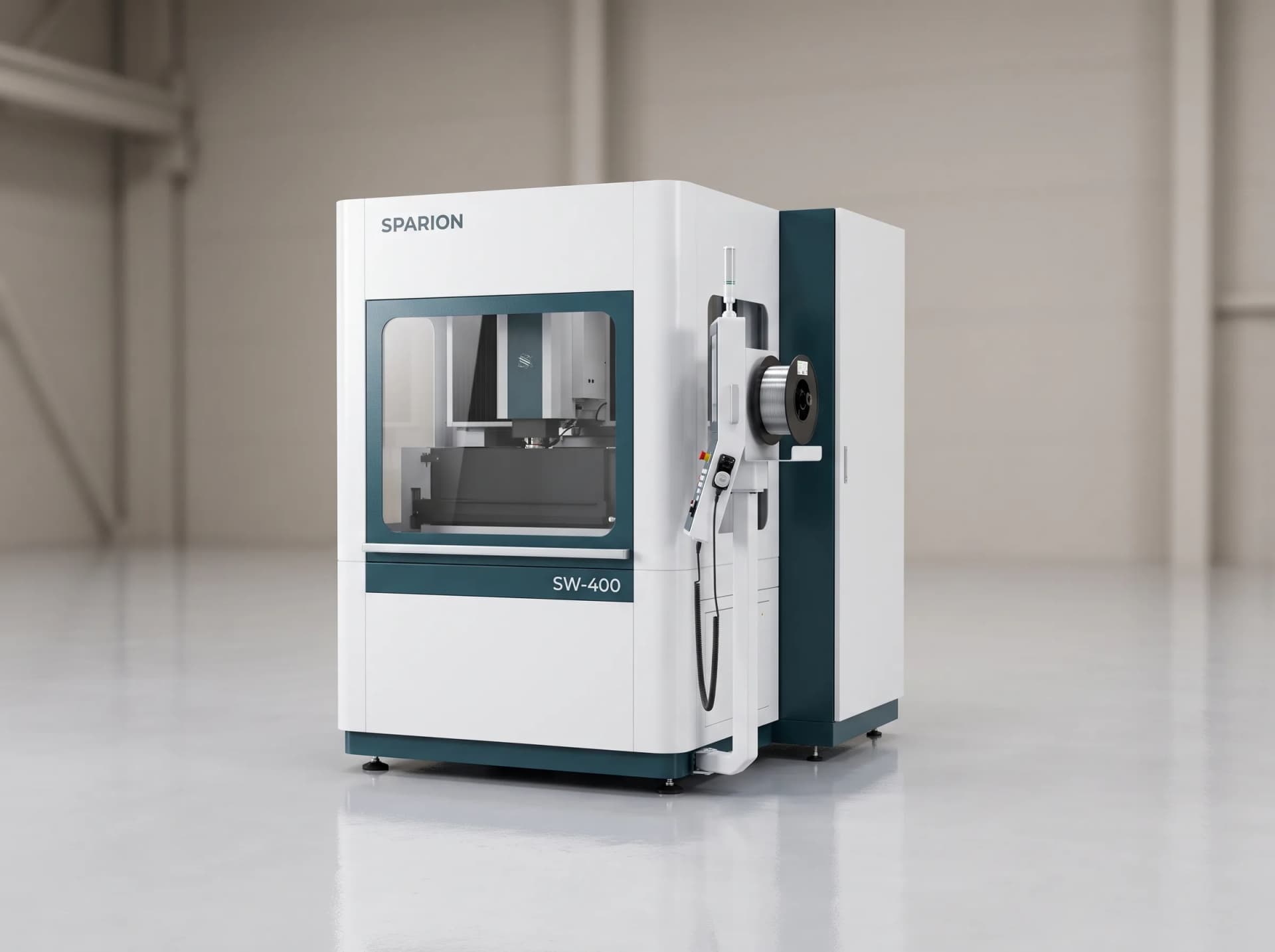

SW-400
The SW-400 is Sparion's wire EDM platform for die, mold and precision component shops that need to cut hardened tool steel, carbide and exotic alloys without the heat-affected distortion of conventional machining. Automatic wire threading, a 400 x 300 mm work envelope and ±30° taper cutting at 80 mm workpiece height cover everything from simple through-cuts to complex die details. Tollaston installs the SW-400 most often alongside a mold or die-machining department, where wire EDM handles the hardened details a mill can't reach. The deionized-water dielectric system and closed-loop filtration keep surface finish consistent down to Ra 0.1 μm on the best passes, which matters as much for mold polish work as it does for tolerance.
- Max workpiece size
- 650 x 450 x 250 mm (25.6 x 17.7 x 9.8 in)
- Max workpiece weight
- 400 kg (882 lb)
- X / Y / Z travel
- 400 x 300 x 250 mm (15.7 x 11.8 x 9.8 in)
- U / V travel
- ±40 mm (±1.57 in)
Why us
Why buy Sparion from Tollaston Machinery

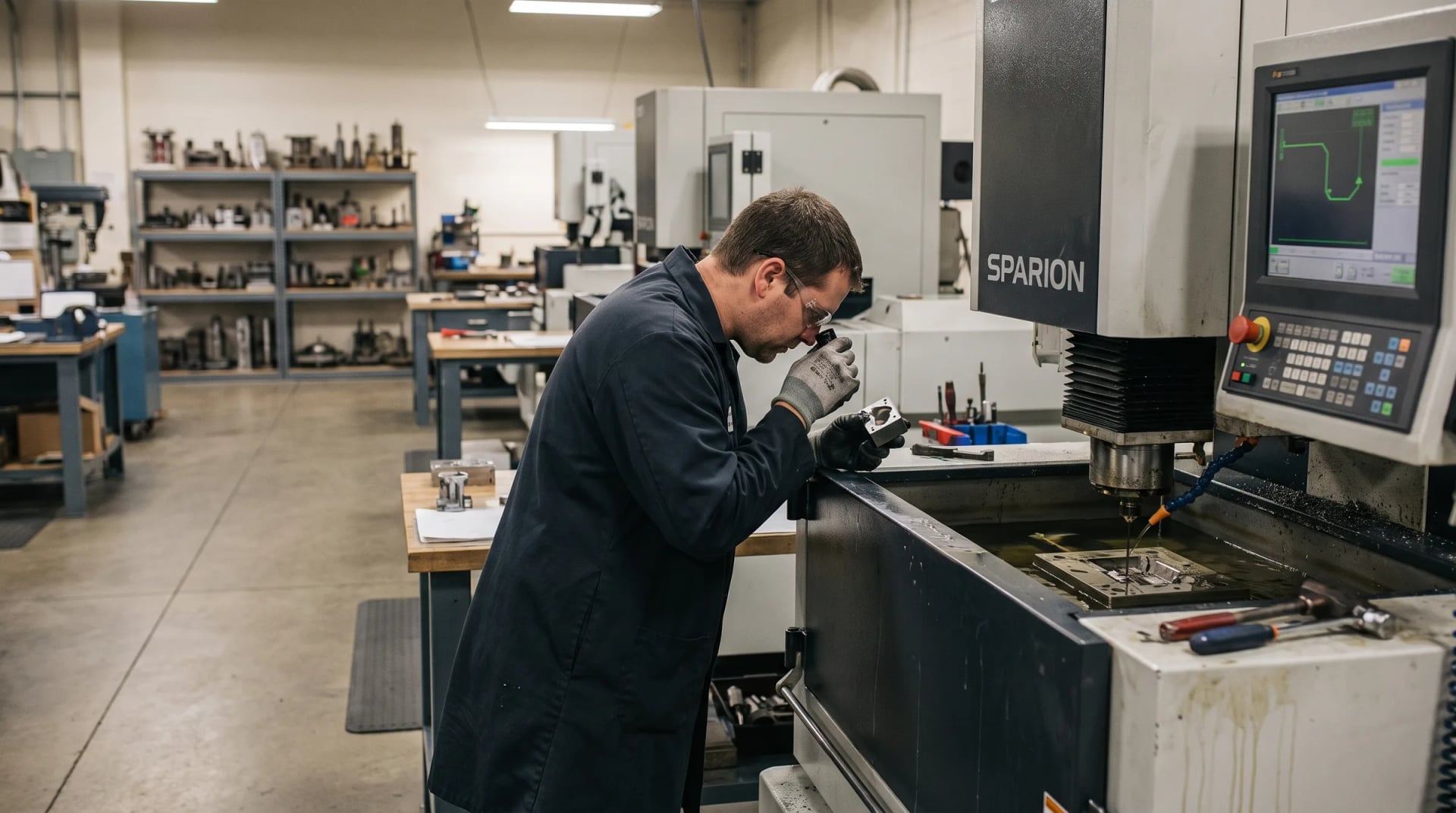

Proven at the Tech Centre
Every Sparion quote comes with a real test on your own material or parts at our Vaughan Tech Centre, not a catalogue cycle time.
Applications engineering included
Our applications engineers build your process, program your first parts and train your team on every Sparion machine we sell.
Parts stocked in Vaughan
Common Sparion spindle, tooling and electrical components are on our own shelves, not on a boat from overseas.
Coast-to-coast service
Factory-trained technicians cover installation, preventive maintenance and emergency calls on Sparion equipment across Canada and the US.
FAQ
Sparion at Tollaston Machinery: common questions
Answers to common questions about our sparion products.
Yes. We are an authorized Sparion dealer across Canada and the US. We quote the machines, install and commission them, train your team, and service them afterward with our own factory-trained technicians.
We carry the SW-400 wire EDM and the SE-600 sinker EDM. The current lineup and specifications are listed on this page.
Yes. We service Sparion equipment whether or not we supplied it. Send us the model and we will tell you what our technicians can cover and what parts we have on the shelf.
We hold common Sparion spare parts and consumables in our Vaughan warehouse. Anything not on the shelf, we order directly and give you a lead time before you commit.
Request a quote from this page or call your local branch. We'll ask about your parts, material and volume before quoting, so the machine matches the work rather than the other way around.
Not sure which Sparion machine fits?
Ask our assistant about material, thickness, and volume. It knows the lineup and what we stock.
