EDM (Wire & Sinker)

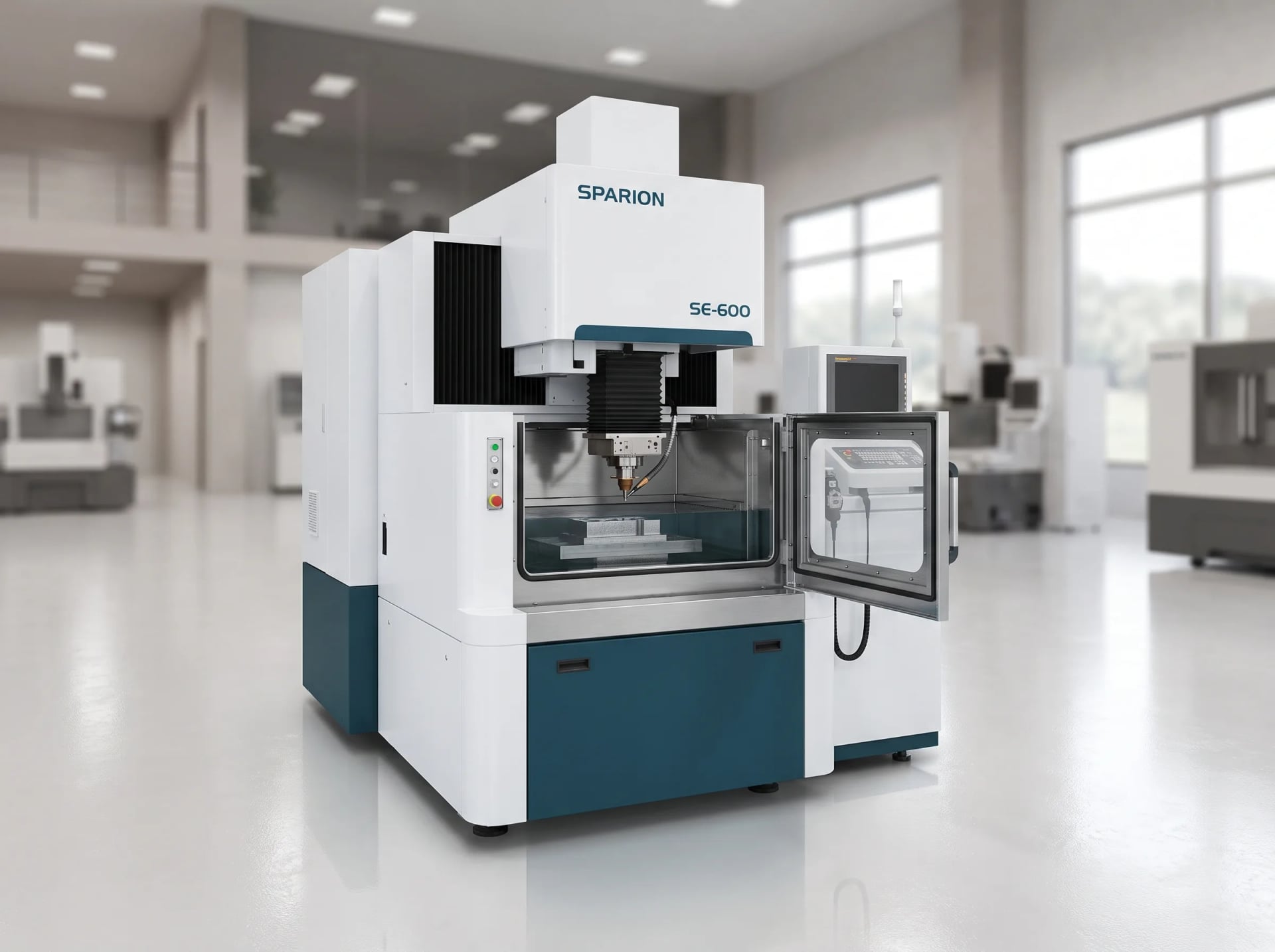

SE-600
by Sparion
Oil-dielectric sinker EDM for deep cavities, fine detail and mirror-finish die work.
800 x 600 x 400 mm (31.5 x 23.6 x 15.7 in)
Max workpiece size
600 kg (1,323 lb)
Max workpiece weight
400 x 300 x 300 mm (15.7 x 11.8 x 11.8 in)
X / Y / Z travel
Not sure if the SE-600 is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Mold and die shops needing cavity-sinking capability
- Fine-detail work with sharp internal corners
- Shops complementing existing wire EDM with sinker capability
- Precision tooling requiring mirror-finish cavities
Max workpiece size
800 x 600 x 400 mm (31.5 x 23.6 x 15.7 in)
Max workpiece weight
600 kg (1,323 lb)
X / Y / Z travel
400 x 300 x 300 mm (15.7 x 11.8 x 11.8 in)
Max electrode weight
50 kg (110 lb)
Key Features
SE-600 Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance
- 0.1 μm servo head resolution for fine cavity detail
- Orbiting/planetary electrode motion for polishing passes
- Submersible full-tank machining for thermal stability
Ease of Operation
- Automatic dielectric level control with fire-safety monitoring
- Sparion Nexis S control with adaptive burn parameters
- Remote diagnostics port
Built-In Extras
- 600 kg workpiece capacity for large mold and die sections
- Anti-electrolysis power supply for finish consistency
Full Specifications
Sparion SE-600 Technical Details
Complete specifications, standard features, and optional upgrades.
- Max workpiece size
- 800 x 600 x 400 mm (31.5 x 23.6 x 15.7 in)
- Max workpiece weight
- 600 kg (1,323 lb)
- X / Y / Z travel
- 400 x 300 x 300 mm (15.7 x 11.8 x 11.8 in)
- Max electrode weight
- 50 kg (110 lb)
- Dielectric tank size
- 900 x 700 x 450 mm (35.4 x 27.6 x 17.7 in)
- Servo head resolution
- 0.1 μm
- Positioning accuracy
- ±0.003 mm (0.00012 in)
- Best surface finish
- Ra 0.05 μm
- Dielectric system
- Oil-based, automatic level control
- C-axis orbiting
- Optional, linear-motor driven
- Control
- Sparion Nexis S control
| Max workpiece size | 800 x 600 x 400 mm (31.5 x 23.6 x 15.7 in) |
| Max workpiece weight | 600 kg (1,323 lb) |
| X / Y / Z travel | 400 x 300 x 300 mm (15.7 x 11.8 x 11.8 in) |
| Max electrode weight | 50 kg (110 lb) |
| Dielectric tank size | 900 x 700 x 450 mm (35.4 x 27.6 x 17.7 in) |
| Servo head resolution | 0.1 μm |
| Positioning accuracy | ±0.003 mm (0.00012 in) |
| Best surface finish | Ra 0.05 μm |
| Dielectric system | Oil-based, automatic level control |
| C-axis orbiting | Optional, linear-motor driven |
| Control | Sparion Nexis S control |
- 0.1 μm servo head resolution for fine cavity detail
- 600 kg workpiece capacity for large mold and die sections
- Automatic dielectric level control with fire-safety monitoring
- Sparion Nexis S control with adaptive burn parameters
- Orbiting/planetary electrode motion for polishing passes
- Anti-electrolysis power supply for finish consistency
- Submersible full-tank machining for thermal stability
- Remote diagnostics port
- Linear-motor C-axis for high-speed orbiting finish passes
- Automatic electrode changer for multi-electrode jobs
- Extended dielectric tank for larger workpieces
- Graphite electrode wear-compensation software
- Deep mold cavity and core sinking
- Sharp internal corner and fine-detail die work
- Micro-feature texturing and engraving
- Closed-end pocket work that a wire EDM cannot reach
FAQ
SE-600 Questions
Answers to common questions about the SE-600.
Wire EDM cuts through a part like a bandsaw and needs a through-path; sinker EDM burns a shaped electrode into the material to create closed-end cavities, sharp internal corners and fine surface texture that a wire simply cannot reach.
Graphite and copper electrodes are both standard; our applications engineers can advise on electrode material selection based on your cavity geometry and required finish.
Yes — the SE-600 includes automatic level control and fire-safety monitoring standard, and our install team reviews your fire-suppression and ventilation setup as part of the site survey.
Typically 10-12 weeks build-to-order; we confirm your exact date once your configuration and any optional electrode-changer package are finalized.
