EDM (Wire & Sinker)

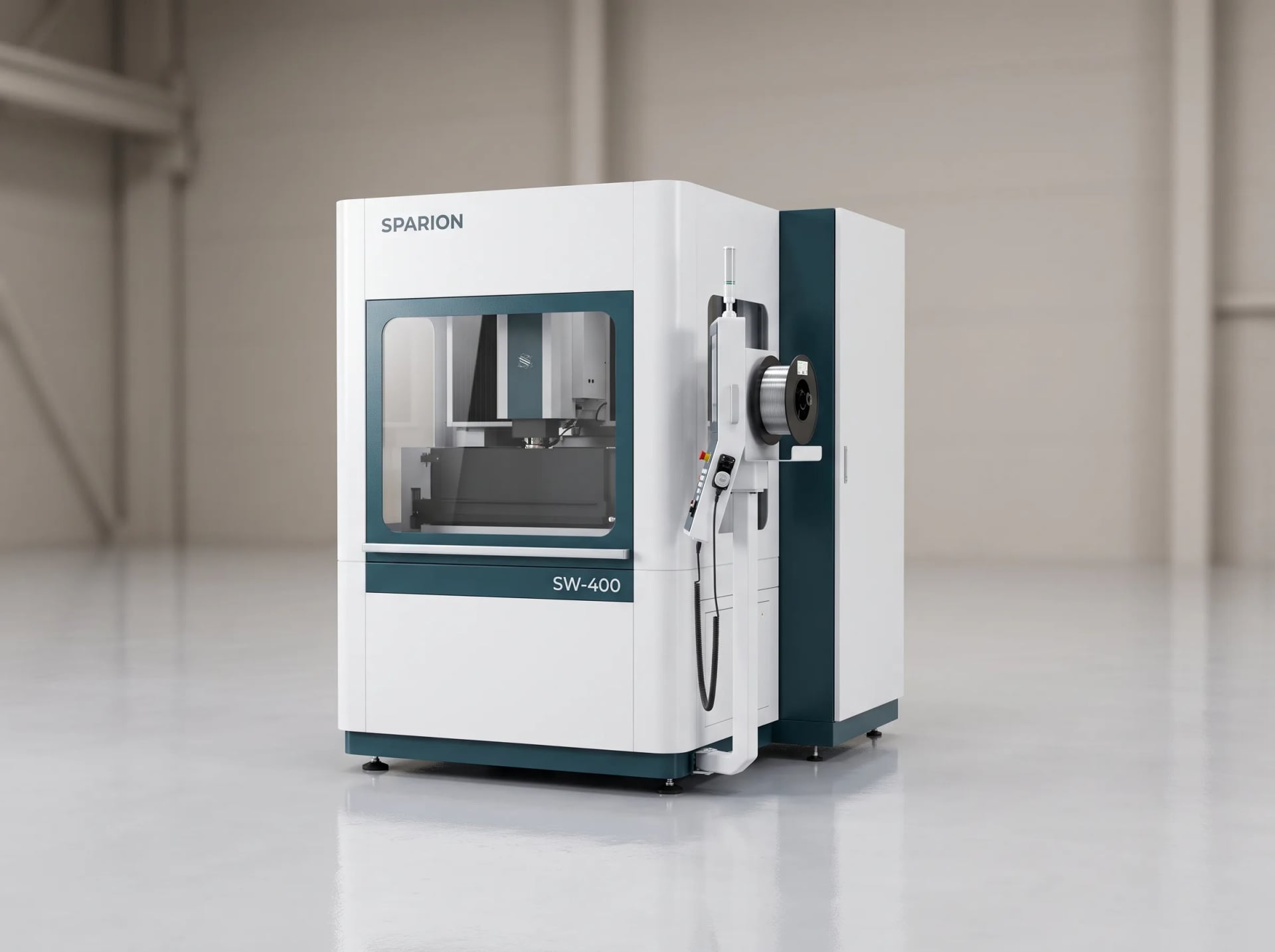

SW-400
by Sparion

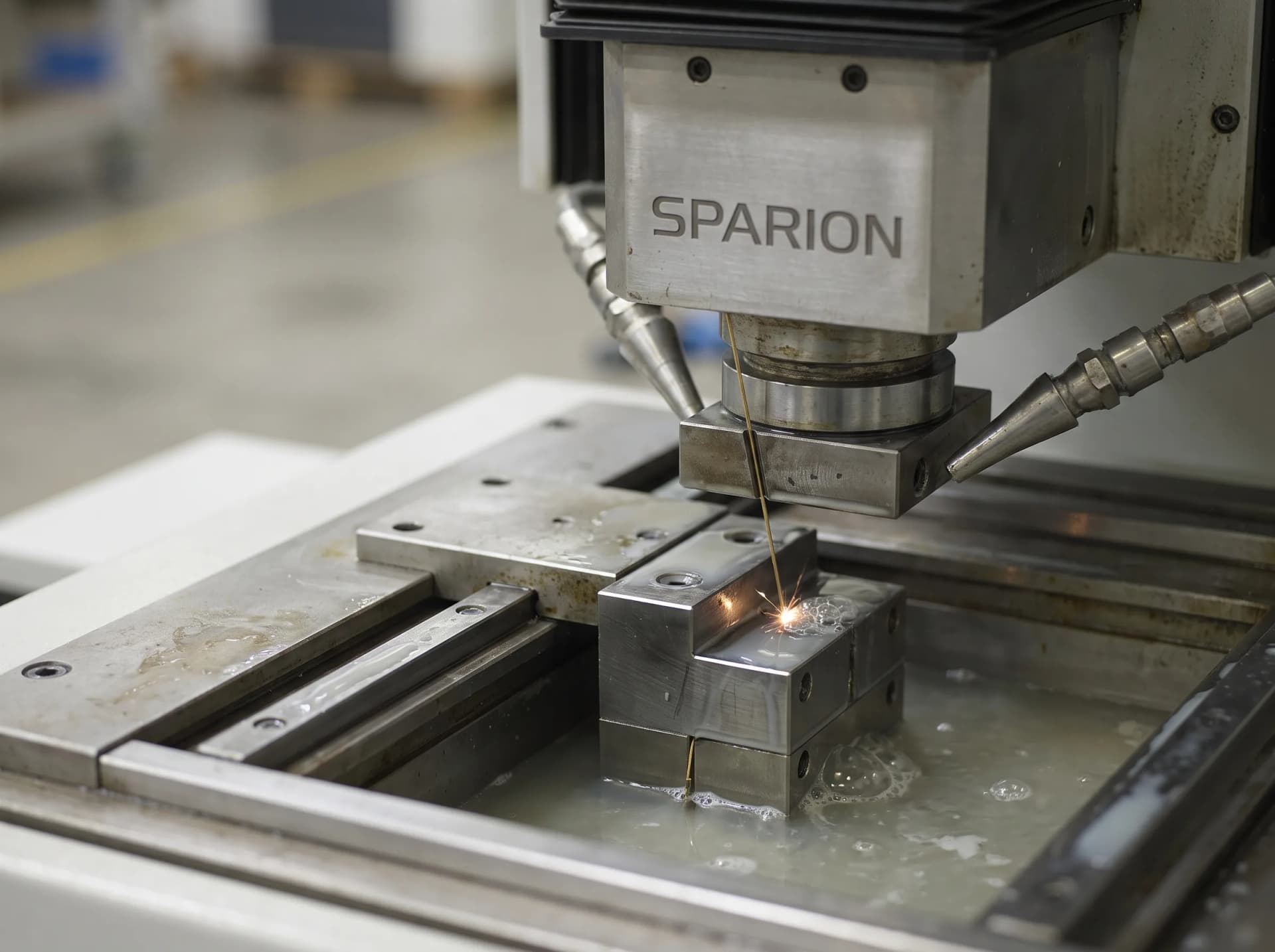

Precision wire EDM with automatic threading, cutting hardened tool steel to a mirror finish.
650 x 450 x 250 mm (25.6 x 17.7 x 9.8 in)
Max workpiece size
400 kg (882 lb)
Max workpiece weight
400 x 300 x 250 mm (15.7 x 11.8 x 9.8 in)
X / Y / Z travel
Not sure if the SW-400 is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Die and mold shops cutting hardened tool steel details
- Carbide tooling and punch manufacturers
- Shops needing distortion-free cutting on hardened parts
- Fine-finish work requiring mirror-quality edges
Max workpiece size
650 x 450 x 250 mm (25.6 x 17.7 x 9.8 in)
Max workpiece weight
400 kg (882 lb)
X / Y / Z travel
400 x 300 x 250 mm (15.7 x 11.8 x 9.8 in)
U / V travel
±40 mm (±1.57 in)
Key Features
SW-400 Features
Standard features that set this machine apart in demanding manufacturing environments.
Ease of Operation
- Automatic wire threading, including after a wire break
- Sparion Nexis W control with adaptive cutting parameters
- Remote diagnostics port
Built-In Extras
- Closed-loop deionized-water dielectric filtration
- 0.10 - 0.30 mm wire range for rough cuts through fine finishing passes
- Anti-electrolysis power supply for consistent surface finish
- Submersible full-tank machining for thermal stability
- ±30° taper cutting capability at 80 mm workpiece height
Full Specifications
Sparion SW-400 Technical Details
Complete specifications, standard features, and optional upgrades.
- Max workpiece size
- 650 x 450 x 250 mm (25.6 x 17.7 x 9.8 in)
- Max workpiece weight
- 400 kg (882 lb)
- X / Y / Z travel
- 400 x 300 x 250 mm (15.7 x 11.8 x 9.8 in)
- U / V travel
- ±40 mm (±1.57 in)
- Wire diameter range
- 0.10 - 0.30 mm (0.004 - 0.012 in)
- Max taper angle
- ±30° at 80 mm (3.15 in) workpiece height
- Positioning accuracy
- ±0.002 mm (0.00008 in)
- Best surface finish
- Ra 0.1 μm
- Dielectric system
- Deionized water, closed-loop filtration
- Auto wire threading
- Standard
- Control
- Sparion Nexis W control
| Max workpiece size | 650 x 450 x 250 mm (25.6 x 17.7 x 9.8 in) |
| Max workpiece weight | 400 kg (882 lb) |
| X / Y / Z travel | 400 x 300 x 250 mm (15.7 x 11.8 x 9.8 in) |
| U / V travel | ±40 mm (±1.57 in) |
| Wire diameter range | 0.10 - 0.30 mm (0.004 - 0.012 in) |
| Max taper angle | ±30° at 80 mm (3.15 in) workpiece height |
| Positioning accuracy | ±0.002 mm (0.00008 in) |
| Best surface finish | Ra 0.1 μm |
| Dielectric system | Deionized water, closed-loop filtration |
| Auto wire threading | Standard |
| Control | Sparion Nexis W control |
- Automatic wire threading, including after a wire break
- ±30° taper cutting capability at 80 mm workpiece height
- Closed-loop deionized-water dielectric filtration
- Sparion Nexis W control with adaptive cutting parameters
- 0.10 - 0.30 mm wire range for rough cuts through fine finishing passes
- Anti-electrolysis power supply for consistent surface finish
- Submersible full-tank machining for thermal stability
- Remote diagnostics port
- Automatic workpiece leveling probe
- Multi-axis rotary attachment for complex profile work
- Extended wire spool capacity for long unattended runs
- Fine-finish power supply upgrade for mirror finishes
- Hardened tool steel die and mold detail cutting
- Carbide die and punch component manufacturing
- Aerospace and medical components in exotic alloys
- Fine-blanking die and stamping tool production
FAQ
SW-400 Questions
Answers to common questions about the SW-400.
Any electrically conductive material regardless of hardness — hardened tool steel, carbide, titanium and other exotic alloys cut cleanly since the process erodes material with electrical discharge rather than mechanical cutting force.
The SW-400's automatic threading system re-threads the wire and resumes the cut without operator intervention in almost all cases, which is critical for unattended overnight runs.
Standard 208-230V three-phase power and a water supply for the dielectric system; our install team confirms exact requirements and drain considerations during your site survey.
Yes, on-site training covers wire threading, taper programming and dielectric system maintenance, with follow-up classes available at our Vaughan Tech Centre.
