Tollaston Machinery · Authorized dealer
Authorized Truvera dealer in Canada and the US
Truvera CMMs and inspection equipment, demonstrated at our Tech Centre and supported coast to coast.
2
Models we supply
1994
In business since
Vaughan, ON
Parts and service
Truvera builds CMMs and inspection equipment, and Tollaston is an authorized dealer across Canada and the US. The line is North American-built and suits quality teams needing documented, repeatable dimensional proof. We carry the TB-7106 granite bridge CMM and the TP-Arm25 portable arm, all sharing the Truvera Veyra metrology software. Every purchase includes a real test on your own material or parts at our Vaughan Tech Centre, applications engineering from your first quote through your first production run, Truvera parts stocked in our Vaughan warehouse, and factory-trained service technicians across Canada and the US.
The lineup
Truvera machines we carry
Grouped by what they do. Every one of these is quoted, installed, and serviced by our own team.
CMM & Inspection
See all CMM & Inspection at Tollaston
bridge coordinate measuring machine

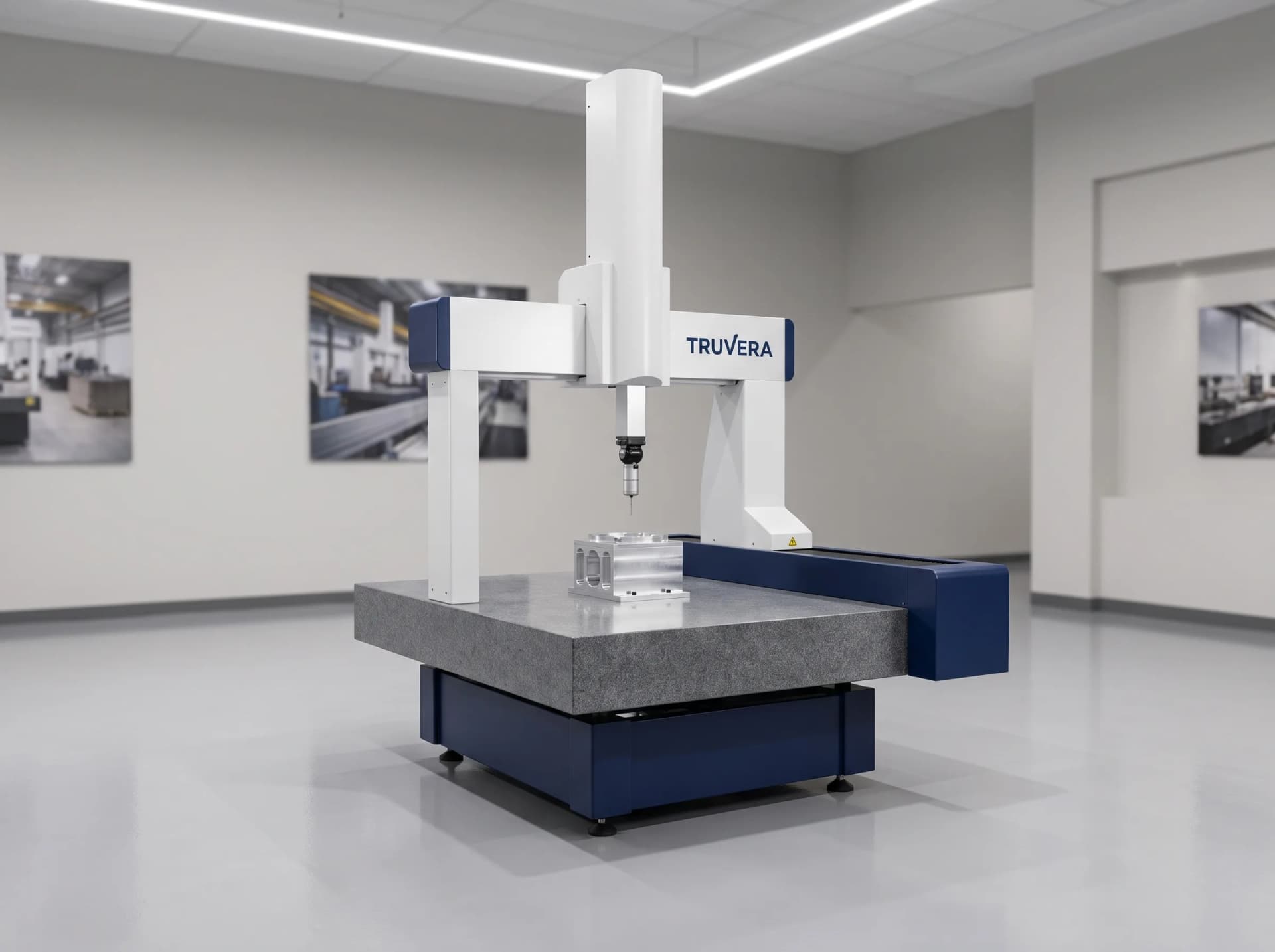

TB-7106
The TB-7106 is Truvera's granite bridge CMM, the standard first-article and in-process inspection platform Tollaston recommends for shops that need documented dimensional proof, not just a go/no-go gauge check. Its 700 x 1,000 x 600 mm measuring volume covers most machined housings, castings and fixtured assemblies, with a maximum permissible error of E0 = 1.9 + L/300 μm holding tight enough tolerance for aerospace and medical inspection work. Glass linear scales resolving to 0.1 μm and a granite table isolate the measurement from thermal and vibration noise that would otherwise creep into a shop-floor reading. We set up the TB-7106 in a temperature-controlled inspection room during installation and train your quality team on Truvera's Veyra metrology software so first-article reports come out consistent from day one.
- Measuring volume (X/Y/Z)
- 700 x 1,000 x 600 mm (27.6 x 39.4 x 23.6 in)
- Max permissible error (E0)
- 1.9 + L/300 μm
- Probing error (P)
- 1.7 μm
- Max table load
- 500 kg (1,102 lb)
portable articulating-arm CMM

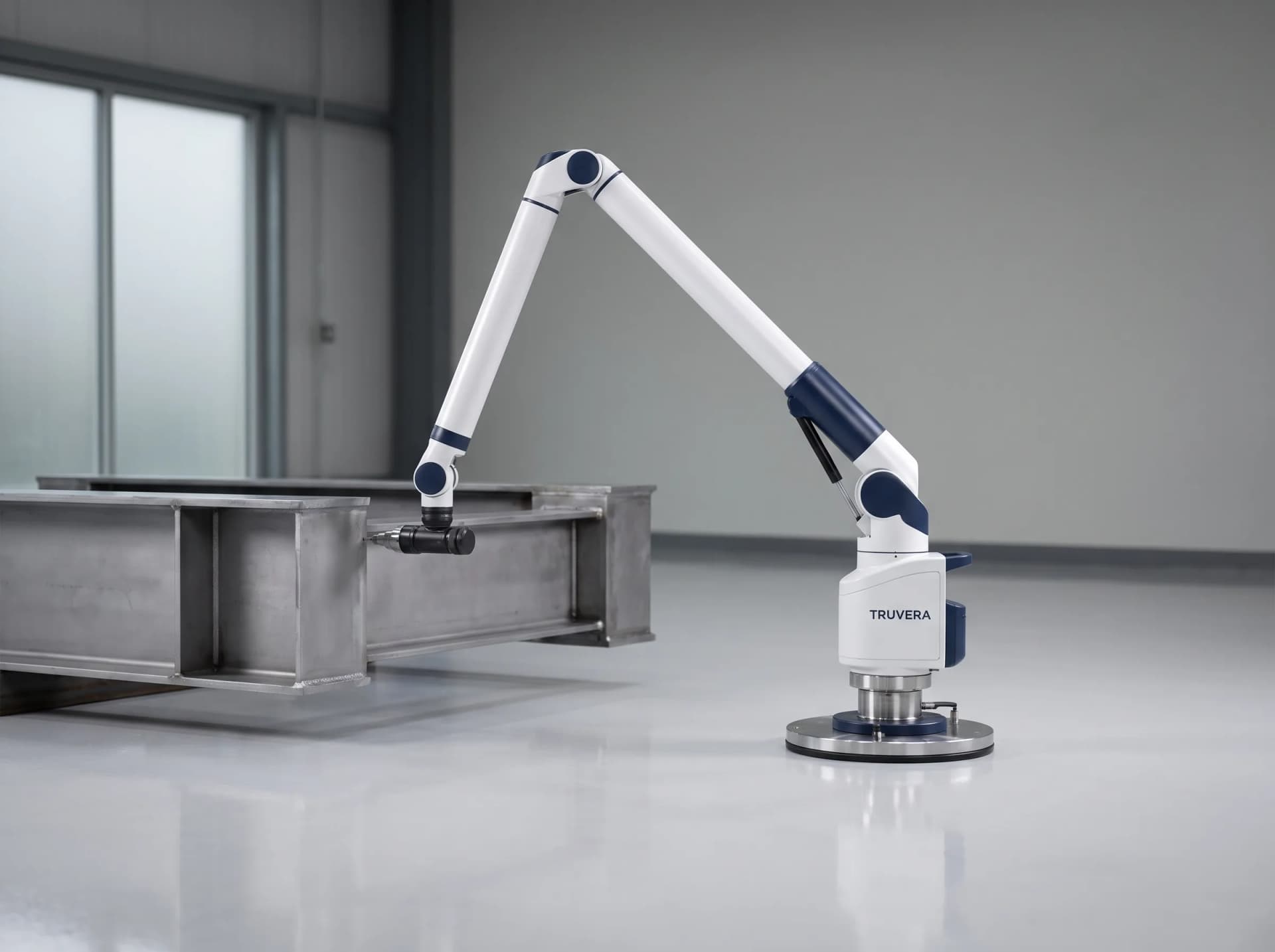

TP-Arm25

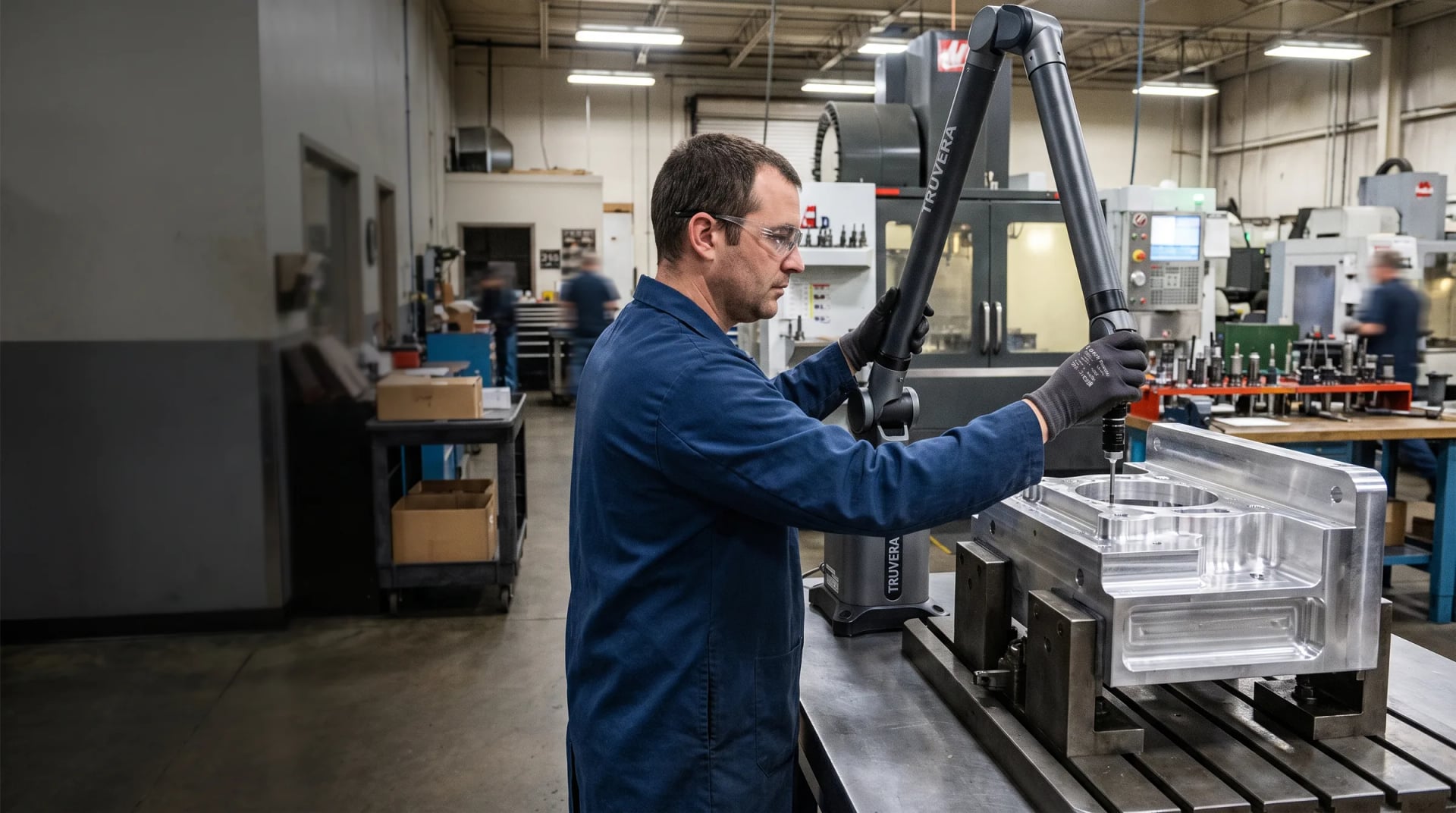

The TP-Arm25 puts Truvera's measurement accuracy on the shop floor instead of locking it in a temperature-controlled room. A 2.5 m measuring sphere, seven articulating axes and an 8-hour battery let a quality technician walk up to a large weldment, a fixtured assembly or a machine-in-progress part and take a real measurement without craning it onto a bridge CMM. Volumetric accuracy of ±0.024 mm is tighter than most shop-floor gauging and, with the optional laser line scanner, the TP-Arm25 captures dense point-cloud data for reverse engineering and full-surface inspection. Tollaston pairs this arm most often with the TB-7106 bridge CMM — the arm handles in-line and oversized checks, the bridge handles the formal first-article report.
- Measuring sphere diameter
- 2.5 m (8.2 ft)
- Volumetric accuracy
- ±0.024 mm (0.0009 in)
- Axes
- 7 (6 rotary plus integrated scanner option)
- Weight (with counterbalance)
- 9.5 kg (21 lb)
Why us
Why buy Truvera from Tollaston Machinery
Proven at the Tech Centre
Every Truvera quote comes with a real test on your own material or parts at our Vaughan Tech Centre, not a catalogue cycle time.
Applications engineering included
Our applications engineers build your process, program your first parts and train your team on every Truvera machine we sell.
Parts stocked in Vaughan
Common Truvera spindle, tooling and electrical components are on our own shelves, not on a boat from overseas.
Coast-to-coast service
Factory-trained technicians cover installation, preventive maintenance and emergency calls on Truvera equipment across Canada and the US.
FAQ
Truvera at Tollaston Machinery: common questions
Answers to common questions about our truvera products.
Yes. We are an authorized Truvera dealer across Canada and the US. We quote the machines, install and commission them, train your team, and service them afterward with our own factory-trained technicians.
We carry the TB-7106 granite bridge CMM and the TP-Arm25 portable arm. The current lineup and specifications are listed on this page.
Yes. We service Truvera equipment whether or not we supplied it. Send us the model and we will tell you what our technicians can cover and what parts we have on the shelf.
We hold common Truvera spare parts and consumables in our Vaughan warehouse. Anything not on the shelf, we order directly and give you a lead time before you commit.
Request a quote from this page or call your local branch. We'll ask about your parts, material and volume before quoting, so the machine matches the work rather than the other way around.
Not sure which Truvera machine fits?
Ask our assistant about material, thickness, and volume. It knows the lineup and what we stock.
