CNC Bridge Saws

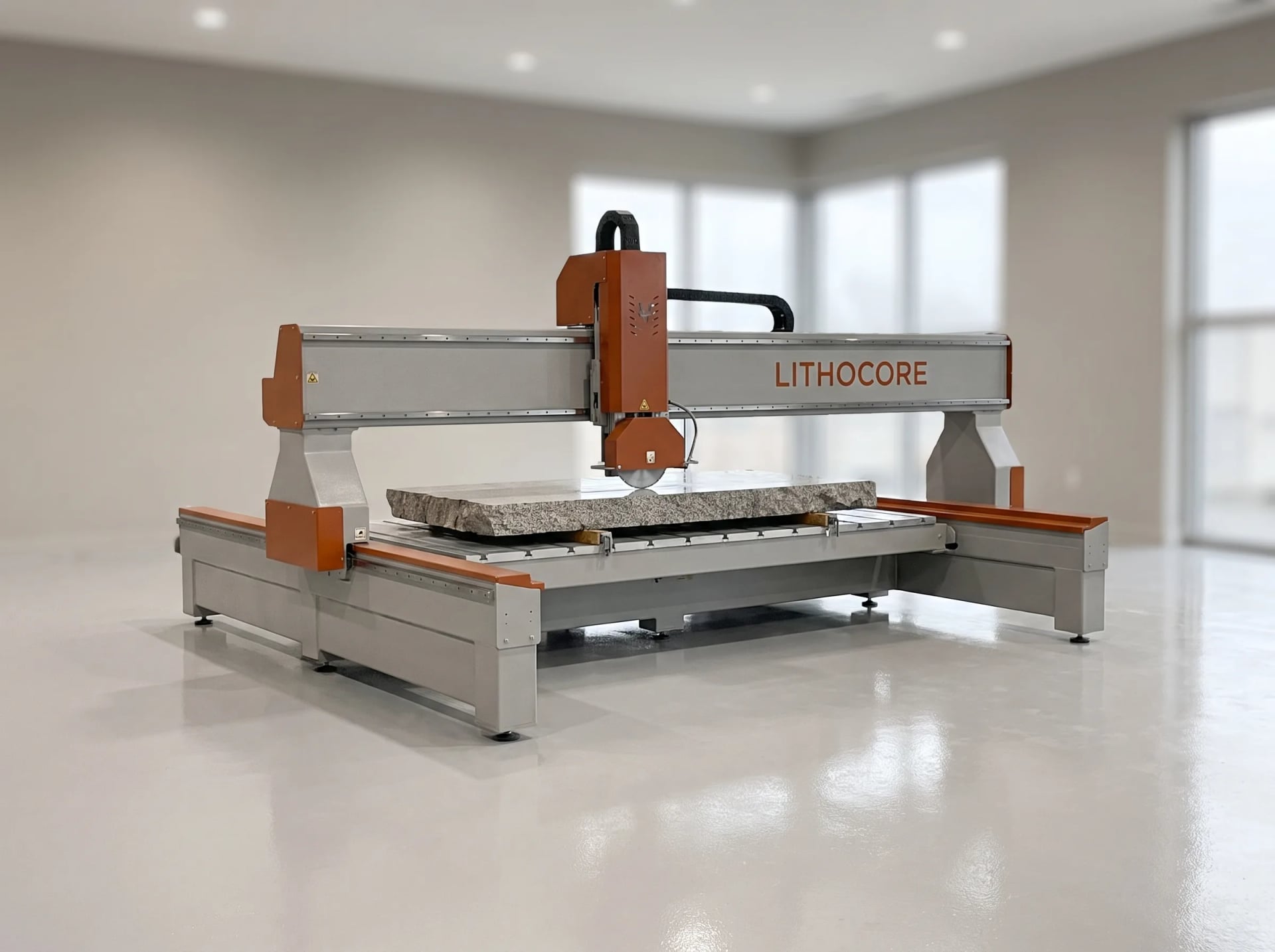

LB-3600 Monoblock
by Lithocore
Monoblock CNC bridge saw for straight and profile cuts on granite, quartz and porcelain slabs.
Max 500 mm (20")
Blade diameter
3300 x 1900 mm (130" x 75")
Max slab size
250 mm (9.8")
Cutting depth
Not sure if the LB-3600 Monoblock is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Countertop fabrication shops starting CNC cutting
- Shops needing mitred waterfall edges
- Shops processing granite, quartz and porcelain
Blade diameter
Max 500 mm (20")
Max slab size
3300 x 1900 mm (130" x 75")
Cutting depth
250 mm (9.8")
Head tilt
0 - 90°
Key Features
LB-3600 Monoblock Features
Standard features that set this machine apart in demanding manufacturing environments.
Cutting Capability
- Monoblock welded-steel frame for vibration-free cutting
- 0 - 90° head tilt for mitred and bevel edges
Built-In Extras
- 0 - 45° table tilt for profile cuts
- Recirculating water and slurry management system
- Digital readout for repeat cuts
- Lithocore Vein control with shape library
Full Specifications
Lithocore LB-3600 Monoblock Technical Details
Complete specifications, standard features, and optional upgrades.
- Blade diameter
- Max 500 mm (20")
- Max slab size
- 3300 x 1900 mm (130" x 75")
- Cutting depth
- 250 mm (9.8")
- Head tilt
- 0 - 90°
- Table tilt
- 0 - 45°
- Bridge travel speed
- 0 - 20 m/min (0 - 66 ft/min)
- Spindle power
- 15 kW (20 HP)
- Water system
- Recirculating pump, 1,200 L tank
- Positioning accuracy
- ±0.2 mm (0.008")
- Control
- Lithocore Vein control, 19" touchscreen
- Power requirement
- 400V/3-phase, 63A
- Footprint
- 7.5 x 4.5 m (25' x 15')
| Blade diameter | Max 500 mm (20") |
| Max slab size | 3300 x 1900 mm (130" x 75") |
| Cutting depth | 250 mm (9.8") |
| Head tilt | 0 - 90° |
| Table tilt | 0 - 45° |
| Bridge travel speed | 0 - 20 m/min (0 - 66 ft/min) |
| Spindle power | 15 kW (20 HP) |
| Water system | Recirculating pump, 1,200 L tank |
| Positioning accuracy | ±0.2 mm (0.008") |
| Control | Lithocore Vein control, 19" touchscreen |
| Power requirement | 400V/3-phase, 63A |
| Footprint | 7.5 x 4.5 m (25' x 15') |
- Monoblock welded-steel frame for vibration-free cutting
- 0 - 90° head tilt for mitred and bevel edges
- 0 - 45° table tilt for profile cuts
- Lithocore Vein control with shape library
- Recirculating water and slurry management system
- Digital readout for repeat cuts
- Automatic slab loading arm
- Laser projection for template-free layout
- Extended rail for oversized slabs
- Countertop blank sizing
- Mitred and bevel edge cutting
- Slab re-sawing and thickness reduction
- Waterfall edge cutting for islands
FAQ
LB-3600 Monoblock Questions
Answers to common questions about the LB-3600 Monoblock.
Granite, quartz, porcelain, marble and engineered stone in slab form, up to the listed cutting depth and slab size.
A 400V/3-phase, 63A service, plus a water supply for the recirculating tank — sized during the site survey.
Yes — on-site training covers the Lithocore Vein control's shape library, mitre programming and day-to-day operation.
The bridge saw, water recirculation system, Lithocore Vein control, rigging and installation, and operator training.
