CNC Bridge Saws

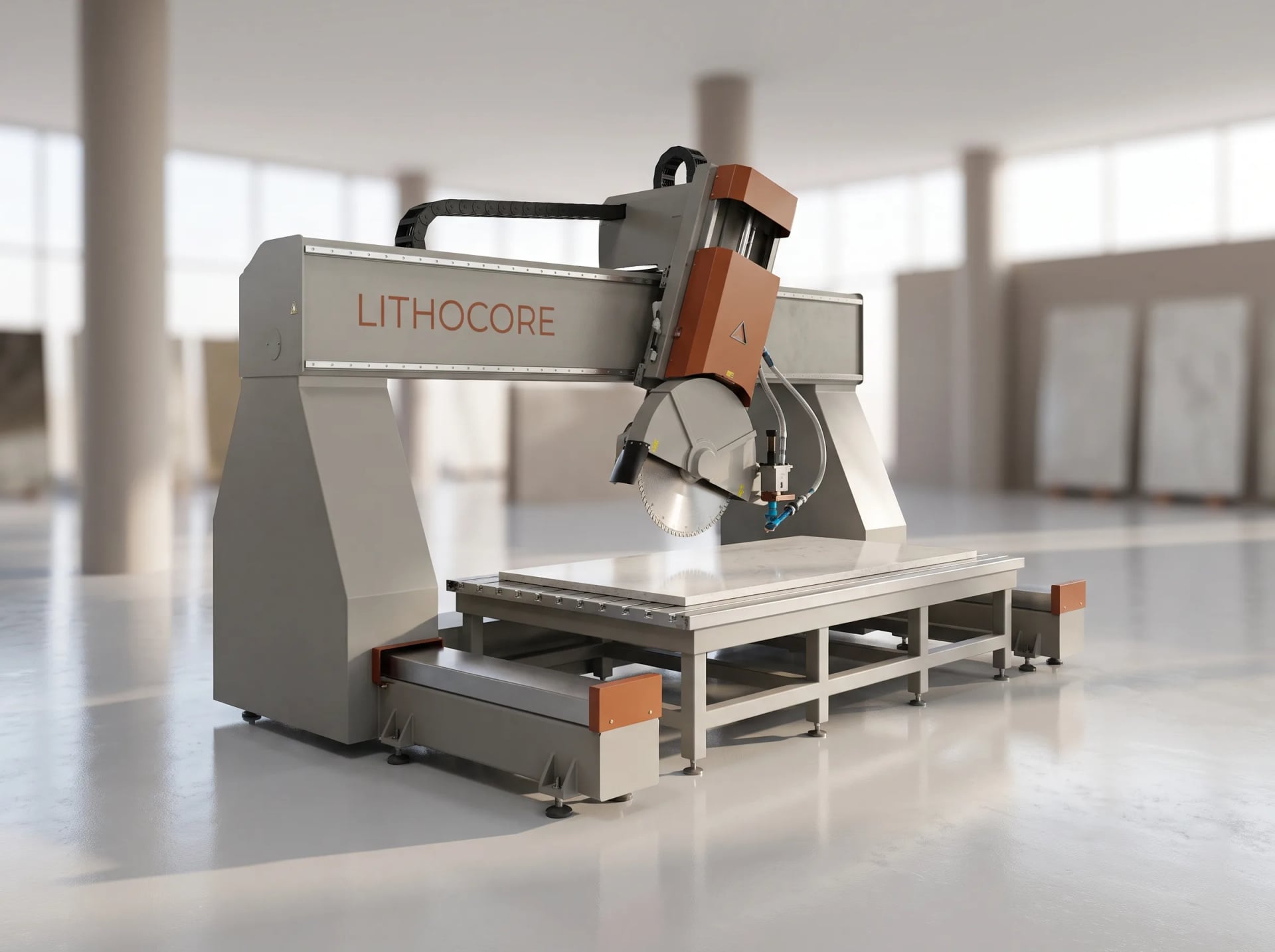

LB5-3800 SawJet
by Lithocore
5-axis saw-jet combining a tilting saw blade with an integrated waterjet head for complex shapes in one setup.
Max 500 mm (20")
Blade diameter
60,000 psi
Waterjet pressure
3800 x 2100 mm (150" x 83")
Max slab size
Not sure if the LB5-3800 SawJet is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Fabricators wanting both cold and mechanical cutting on one machine
- Shops doing decorative waterjet inlay work
- High-end countertop shops differentiating on capability
Blade diameter
Max 500 mm (20")
Waterjet pressure
60,000 psi
Max slab size
3800 x 2100 mm (150" x 83")
Cutting depth (saw)
250 mm (9.8")
Key Features
LB5-3800 SawJet Features
Standard features that set this machine apart in demanding manufacturing environments.
Ease of Operation
- Automatic tool selection between blade and jet within one program
- Lithocore Vein control with shape library and nesting
- Automatic slab measurement and optimization
Built-In Extras
- 0 - 90° continuous head tilt
- Closed-loop water and garnet abrasive recirculation
- Combined saw blade and waterjet head on one 5-axis carriage
- Digital slab layout with camera-assisted vein matching
Full Specifications
Lithocore LB5-3800 SawJet Technical Details
Complete specifications, standard features, and optional upgrades.
- Blade diameter
- Max 500 mm (20")
- Waterjet pressure
- 60,000 psi
- Max slab size
- 3800 x 2100 mm (150" x 83")
- Cutting depth (saw)
- 250 mm (9.8")
- Head tilt
- 0 - 90° continuous, saw and waterjet share the carriage
- Table tilt
- 0 - 45°
- Spindle power
- 18.5 kW (25 HP)
- Water/abrasive system
- Closed-loop recirculating, garnet abrasive feed
- Positioning accuracy
- ±0.15 mm (0.006")
- Control
- Lithocore Vein control with combined saw/jet toolpaths
- Power requirement
- 400V/3-phase, 100A
- Footprint
- 9.0 x 5.0 m (30' x 16'5")
| Blade diameter | Max 500 mm (20") |
| Waterjet pressure | 60,000 psi |
| Max slab size | 3800 x 2100 mm (150" x 83") |
| Cutting depth (saw) | 250 mm (9.8") |
| Head tilt | 0 - 90° continuous, saw and waterjet share the carriage |
| Table tilt | 0 - 45° |
| Spindle power | 18.5 kW (25 HP) |
| Water/abrasive system | Closed-loop recirculating, garnet abrasive feed |
| Positioning accuracy | ±0.15 mm (0.006") |
| Control | Lithocore Vein control with combined saw/jet toolpaths |
| Power requirement | 400V/3-phase, 100A |
| Footprint | 9.0 x 5.0 m (30' x 16'5") |
- Combined saw blade and waterjet head on one 5-axis carriage
- Automatic tool selection between blade and jet within one program
- 0 - 90° continuous head tilt
- Lithocore Vein control with shape library and nesting
- Closed-loop water and garnet abrasive recirculation
- Digital slab layout with camera-assisted vein matching
- Automatic slab measurement and optimization
- Automatic slab loading and offloading conveyor
- Secondary polishing head attachment
- Extended garnet storage with auto-refill
- Complex countertop cutouts and sink templates
- Waterjet inlay and decorative medallions
- Mixed-material slabs with stone, glass or metal accents
- Mitred waterfall edges paired with curved cutouts
FAQ
LB5-3800 SawJet Questions
Answers to common questions about the LB5-3800 SawJet.
Yes — the job program assigns each cut to the appropriate tool, and the 5-axis carriage switches between the blade and the waterjet head without an operator re-clamping the slab.
Garnet abrasive consumption scales with waterjet cutting hours; blade wear scales with saw hours. We estimate a monthly budget from your actual job mix before you buy.
A 400V/3-phase, 100A service, plus a steady water supply for the intensifier pump, sized during the site survey.
The saw-jet, water and abrasive recirculation system, Lithocore Vein control, rigging and installation, cut-quality commissioning, and operator training on both processes.
