CNC Lathes & Turning Centres

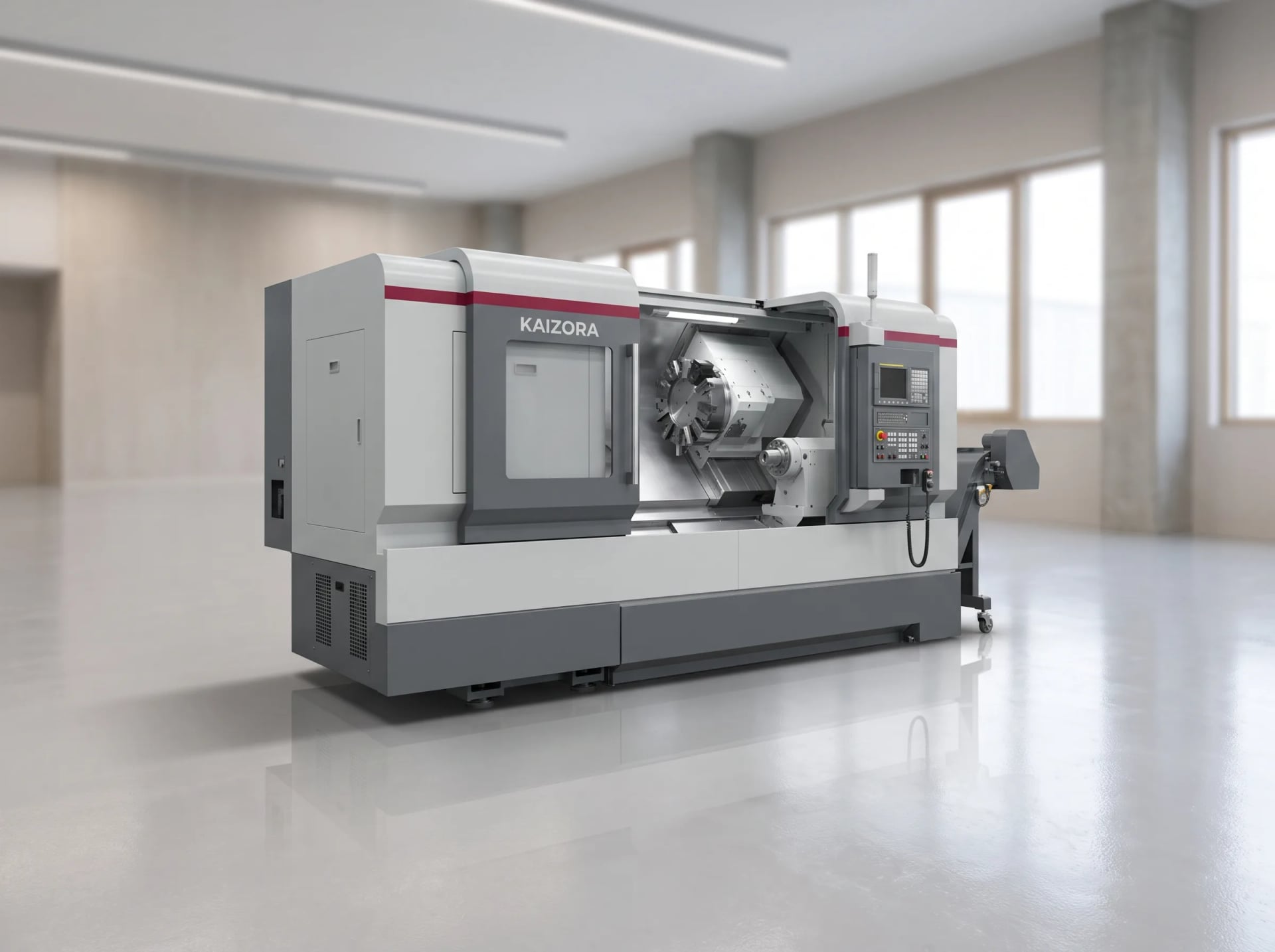

KM-2600
by Kaizora

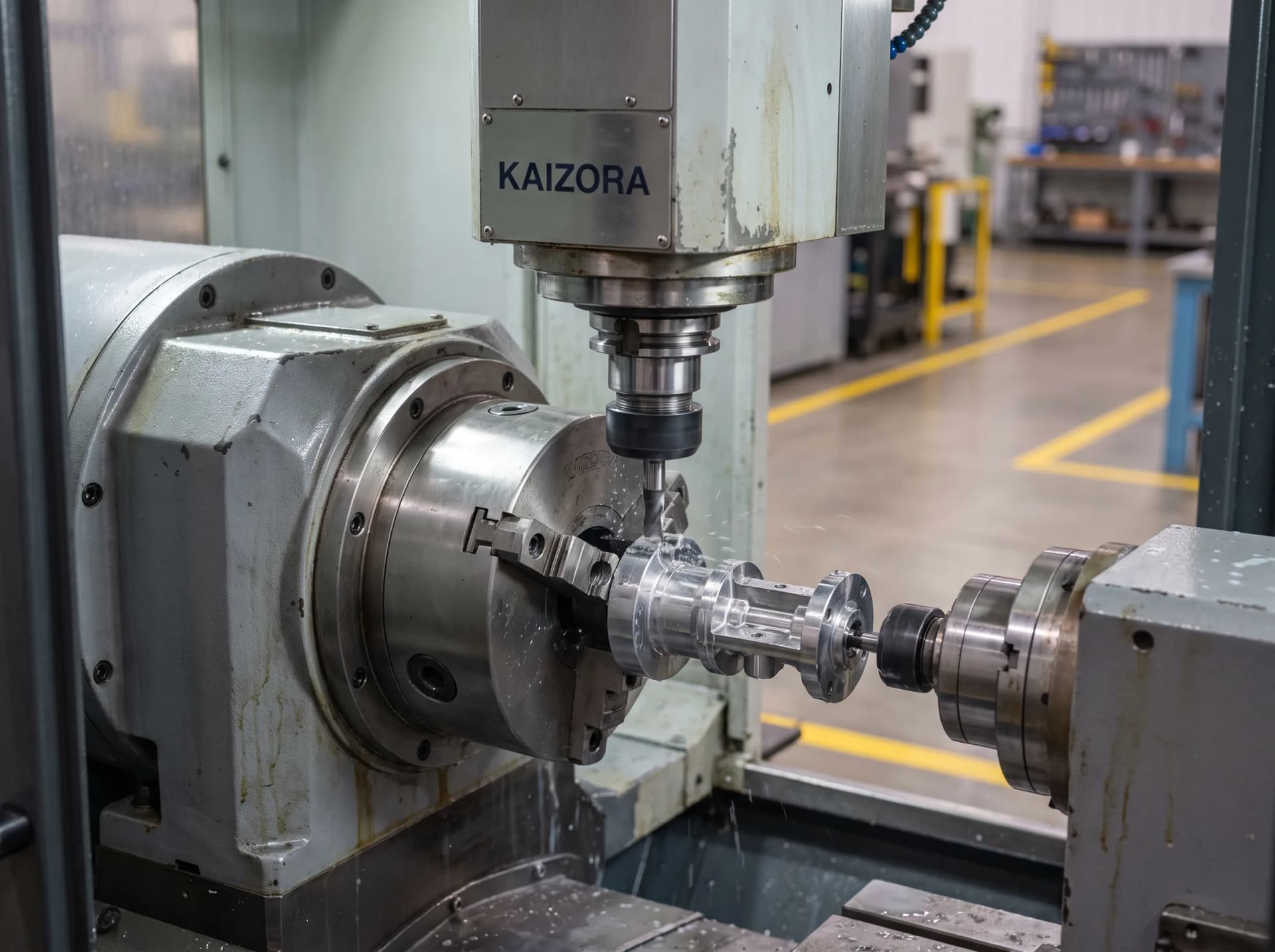

Full mill-turn multitasking centre with a B-axis milling spindle and synchronized sub-spindle.
660 mm (26.0 in) over bed, 380 mm (15.0 in) over cross-slide
Max turning diameter
1,000 mm (39.4 in)
Max turning length
80 mm (3.15 in) through main spindle
Bar capacity
Not sure if the KM-2600 is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Shops eliminating a lathe-to-mill-to-lathe part routing
- Complex, high-value parts justifying a multitasking investment
- Operations reducing work-in-process and setup labor
- Buyers ready to invest in a full process-plan partnership with their dealer
Max turning diameter
660 mm (26.0 in) over bed, 380 mm (15.0 in) over cross-slide
Max turning length
1,000 mm (39.4 in)
Bar capacity
80 mm (3.15 in) through main spindle
Main spindle power
30 kW (40 hp)
Key Features
KM-2600 Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance
- 12,000 rpm B-axis milling spindle with ±120° swing
- Synchronized 22 kW sub-spindle for back-working and part transfer
- 30 kW main turning spindle for heavy stock removal
- ±100 mm Y-axis for off-center milling on the main spindle
- Absolute linear scales on all linear axes
Built-In Extras
- Kaizora Nexa 5T control with full mill-turn synchronization
- Full enclosure with high-volume chip and coolant management
- 40-station tool magazine, shared between turning and milling operations
Full Specifications
Kaizora KM-2600 Technical Details
Complete specifications, standard features, and optional upgrades.
- Max turning diameter
- 660 mm (26.0 in) over bed, 380 mm (15.0 in) over cross-slide
- Max turning length
- 1,000 mm (39.4 in)
- Bar capacity
- 80 mm (3.15 in) through main spindle
- Main spindle power
- 30 kW (40 hp)
- Main spindle speed
- 3,500 rpm
- Sub-spindle power / speed
- 22 kW / 4,000 rpm, synchronized
- Milling (B-axis) spindle
- 15 kW, 12,000 rpm, BT40
- B-axis swing
- ±120°
- Y-axis travel
- ±100 mm (±3.94 in)
- Tool capacity
- 40-station magazine
- Rapid traverse
- 30 m/min (1,181 ipm)
- Positioning accuracy
- ±0.005 mm (0.0002 in)
- Repeatability
- ±0.003 mm (0.00012 in)
- Control
- Kaizora Nexa 5T control
| Max turning diameter | 660 mm (26.0 in) over bed, 380 mm (15.0 in) over cross-slide |
| Max turning length | 1,000 mm (39.4 in) |
| Bar capacity | 80 mm (3.15 in) through main spindle |
| Main spindle power | 30 kW (40 hp) |
| Main spindle speed | 3,500 rpm |
| Sub-spindle power / speed | 22 kW / 4,000 rpm, synchronized |
| Milling (B-axis) spindle | 15 kW, 12,000 rpm, BT40 |
| B-axis swing | ±120° |
| Y-axis travel | ±100 mm (±3.94 in) |
| Tool capacity | 40-station magazine |
| Rapid traverse | 30 m/min (1,181 ipm) |
| Positioning accuracy | ±0.005 mm (0.0002 in) |
| Repeatability | ±0.003 mm (0.00012 in) |
| Control | Kaizora Nexa 5T control |
- 12,000 rpm B-axis milling spindle with ±120° swing
- Synchronized 22 kW sub-spindle for back-working and part transfer
- 30 kW main turning spindle for heavy stock removal
- 40-station tool magazine, shared between turning and milling operations
- ±100 mm Y-axis for off-center milling on the main spindle
- Kaizora Nexa 5T control with full mill-turn synchronization
- Absolute linear scales on all linear axes
- Full enclosure with high-volume chip and coolant management
- Bar feeder interface for the main spindle
- Automatic tool and work probing across turning and milling operations
- High-pressure through-tool coolant, 70 bar
- Extended tool magazine, 60 stations
- Parts catcher and automated unload conveyor
- Complex valve bodies, manifolds and housings
- Shafts requiring both turning and milled features in one setup
- Aerospace and energy-sector turned/milled components
- High-value parts where work-in-process and setup time drive cost
FAQ
KM-2600 Questions
Answers to common questions about the KM-2600.
The KT-400Y is a turning centre with live tooling for simple milled features; the KM-2600 is a full mill-turn machine with a dedicated B-axis milling spindle and a synchronized sub-spindle, built for parts that need real milling operations and back-working, not just cross-drilling.
Yes — for a mill-turn investment like this, our applications engineers build your full process plan, including fixturing and tool sequencing across both spindles, and prove it out on your actual part in the Vaughan Tech Centre before delivery.
Typically 16-20 weeks build-to-order given the dual-spindle and B-axis milling package; we confirm your exact ship date once your configuration and process plan are finalized.
More than a standard lathe — we schedule extended on-site training covering mill-turn programming, sub-spindle synchronization and tooling strategy, plus follow-up sessions at our Tech Centre as your team ramps up.
