CNC Lathes & Turning Centres

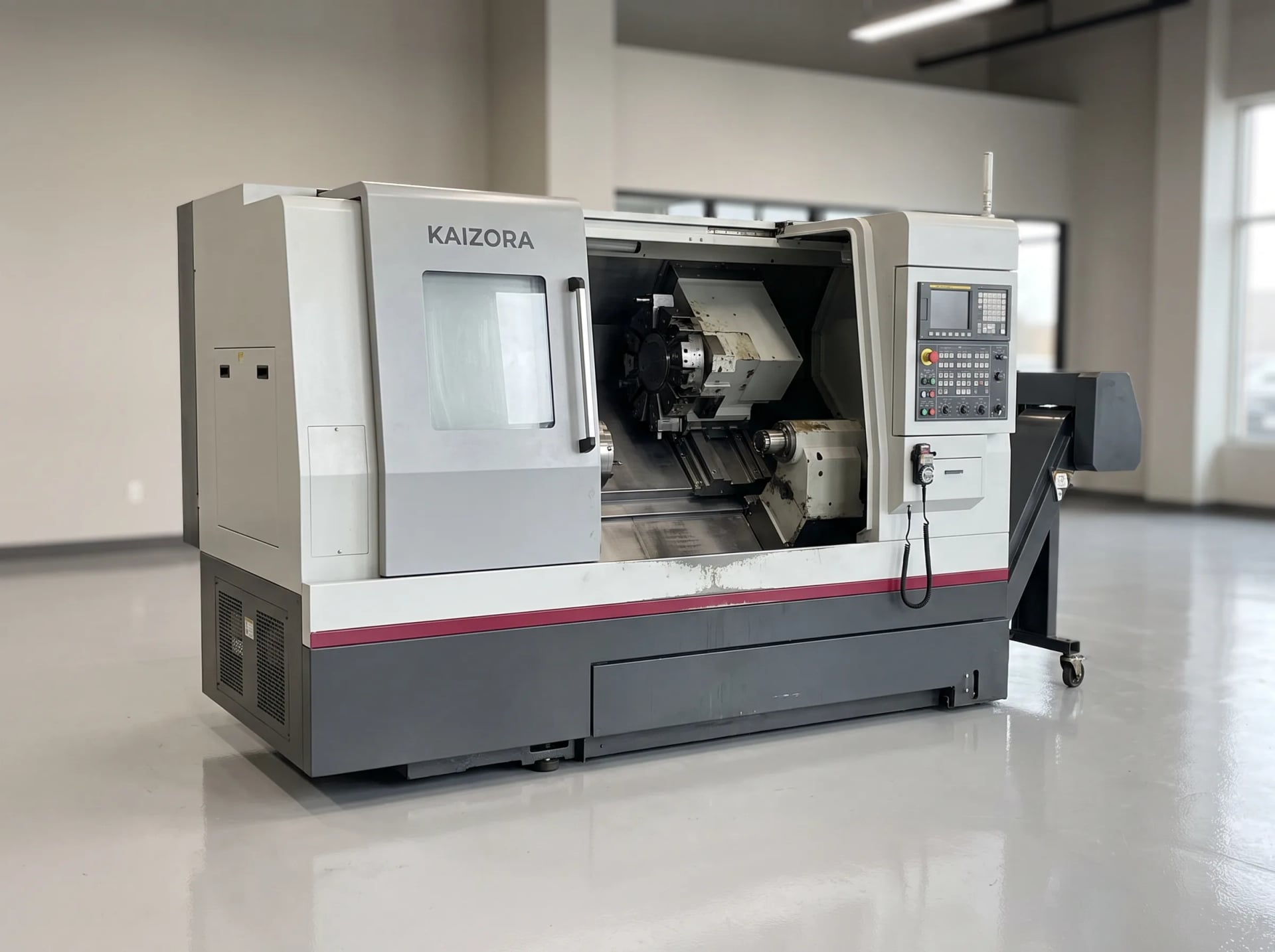

KT-400Y
by Kaizora
Live-tool Y-axis turning centre that mills, drills and cross-drills without leaving the chuck.
450 mm (17.7 in)
Max turning diameter
700 mm (27.6 in)
Max turning length
65 mm (2.6 in) through spindle
Bar capacity
Not sure if the KT-400Y is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Shops whose parts need more than straight OD/ID turning
- Complex components combining turning and milling features
- Operations eliminating a second machine setup
- Production runs needing driven-tool cross-drilling or milling
Max turning diameter
450 mm (17.7 in)
Max turning length
700 mm (27.6 in)
Bar capacity
65 mm (2.6 in) through spindle
Chuck size
250 mm (10 in), 3-jaw hydraulic
Key Features
KT-400Y Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance
- ±60 mm Y-axis for off-center milling and drilling

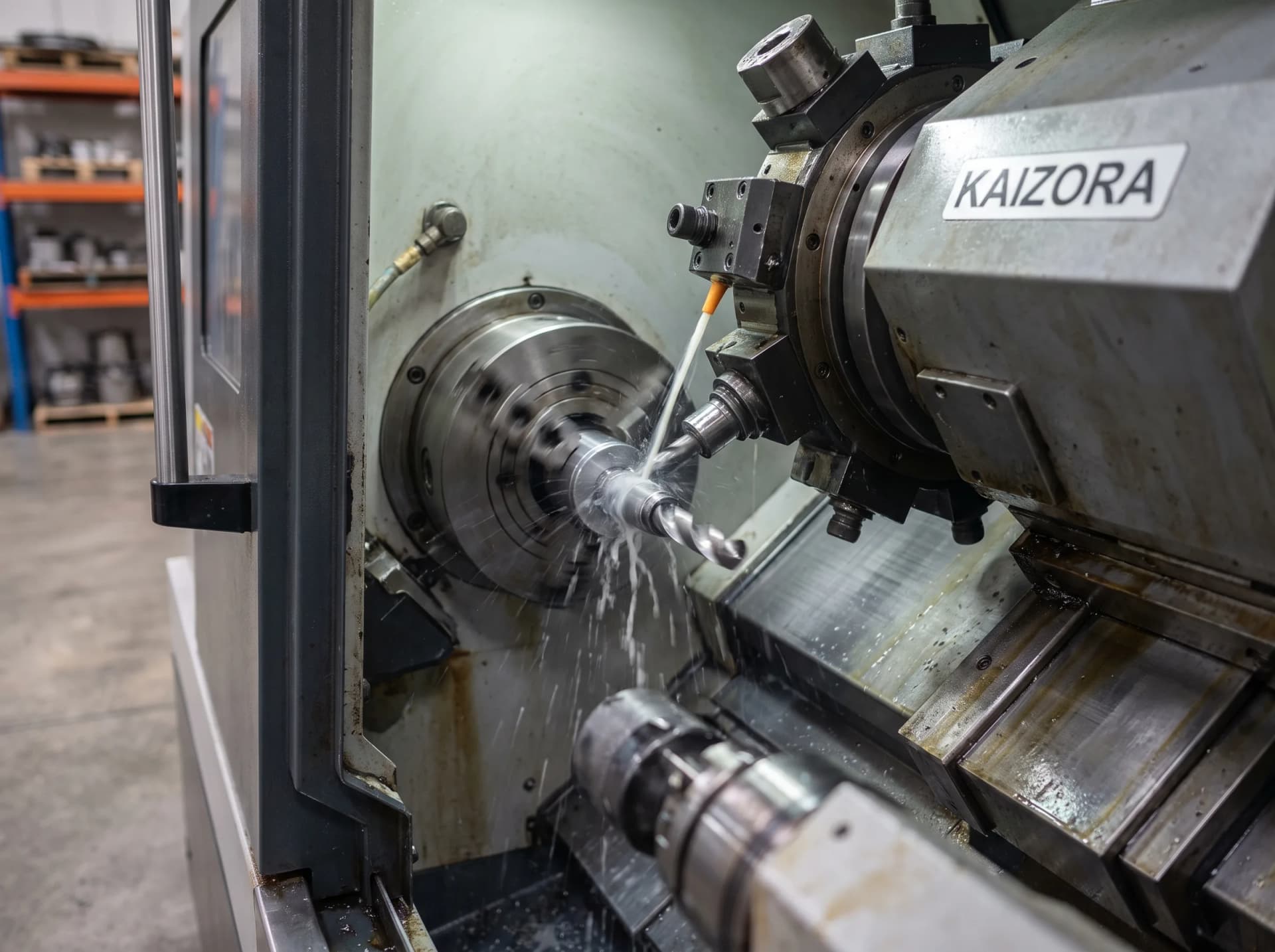

- 12-station live BMT turret, driven tools to 6,000 rpm
- 65 mm through-spindle bar capacity
- Sub-spindle-ready base casting (sub-spindle optional)
- Rigid tapping, thread-cutting and C-axis contouring standard
Ease of Operation
- 250 mm hydraulic chuck with programmable clamping pressure
- Kaizora Nexa 5T control with live-tool synchronization
Built-In Extras
- Full enclosure with high-pressure coolant-ready plumbing
Full Specifications
Kaizora KT-400Y Technical Details
Complete specifications, standard features, and optional upgrades.
- Max turning diameter
- 450 mm (17.7 in)
- Max turning length
- 700 mm (27.6 in)
- Bar capacity
- 65 mm (2.6 in) through spindle
- Chuck size
- 250 mm (10 in), 3-jaw hydraulic
- Spindle bore
- 91 mm (3.6 in)
- Spindle speed
- 4,000 rpm
- Spindle motor power
- 18.5 kW (25 hp)
- Y-axis travel
- ±60 mm (±2.36 in)
- Turret
- 12-station live BMT turret
- Driven tool speed
- up to 6,000 rpm
- Rapid traverse (X/Z)
- 30 / 36 m/min (1,181 / 1,417 ipm)
- Positioning accuracy
- ±0.004 mm (0.00016 in)
- Repeatability
- ±0.002 mm (0.00008 in)
- Control
- Kaizora Nexa 5T control
| Max turning diameter | 450 mm (17.7 in) |
| Max turning length | 700 mm (27.6 in) |
| Bar capacity | 65 mm (2.6 in) through spindle |
| Chuck size | 250 mm (10 in), 3-jaw hydraulic |
| Spindle bore | 91 mm (3.6 in) |
| Spindle speed | 4,000 rpm |
| Spindle motor power | 18.5 kW (25 hp) |
| Y-axis travel | ±60 mm (±2.36 in) |
| Turret | 12-station live BMT turret |
| Driven tool speed | up to 6,000 rpm |
| Rapid traverse (X/Z) | 30 / 36 m/min (1,181 / 1,417 ipm) |
| Positioning accuracy | ±0.004 mm (0.00016 in) |
| Repeatability | ±0.002 mm (0.00008 in) |
| Control | Kaizora Nexa 5T control |
- ±60 mm Y-axis for off-center milling and drilling
- 12-station live BMT turret, driven tools to 6,000 rpm
- 250 mm hydraulic chuck with programmable clamping pressure
- 65 mm through-spindle bar capacity
- Kaizora Nexa 5T control with live-tool synchronization
- Sub-spindle-ready base casting (sub-spindle optional)
- Rigid tapping, thread-cutting and C-axis contouring standard
- Full enclosure with high-pressure coolant-ready plumbing
- Sub-spindle for back-working and part transfer
- Bar feeder interface package
- Automatic tool-tip touch probing
- High-pressure coolant through live tools, 20 bar
- Parts catcher and conveyor
- Complex turned parts needing cross-holes and off-center flats
- Hydraulic and pneumatic fitting production
- Automotive and industrial shaft components with milled features
- Parts that previously needed a lathe operation plus a mill operation
FAQ
KT-400Y Questions
Answers to common questions about the KT-400Y.
A standard turret only reaches features on the part's centerline; the ±60 mm Y-axis lets live tools mill flats, drill off-center holes and cut slots anywhere on the face without repositioning the part — features that otherwise need a separate milling operation.
The KT-400Y's base casting is sub-spindle-ready, but it's a factory-fitted option — retrofitting after delivery requires a service visit and is best planned at time of purchase if there's a chance you'll need it.
Typically 10-12 weeks build-to-order given the live-tool turret and Y-axis package; we confirm your exact date once the configuration is finalized.
Yes — our applications engineers develop and test your first live-tool program in the Vaughan Tech Centre, including turret synchronization, before the machine ships.
