CNC Lathes & Turning Centres

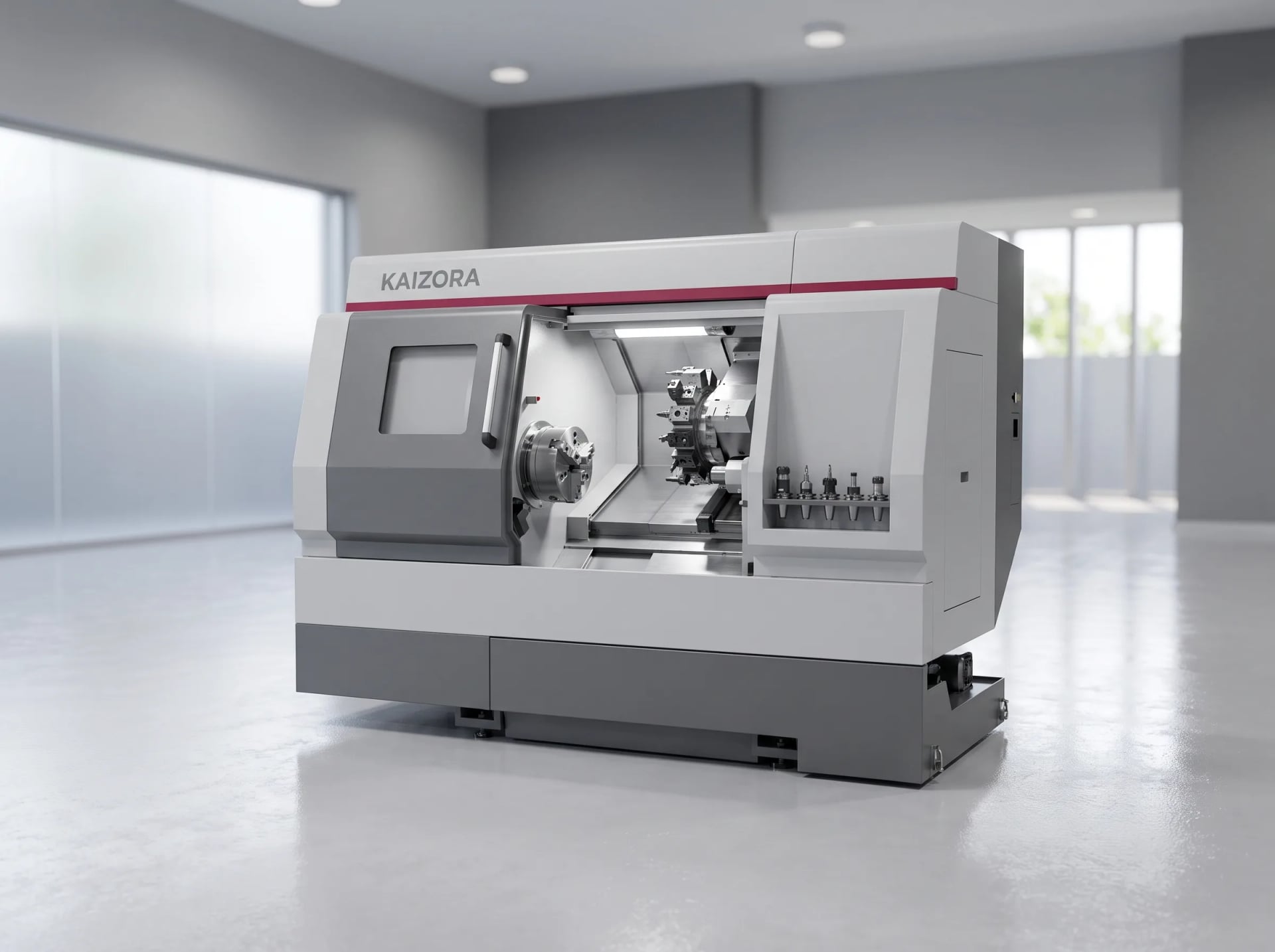

KT-250
by Kaizora
Compact 2-axis chucker lathe for toolroom and short-run turning work.
350 mm (13.8 in)
Max turning diameter
500 mm (19.7 in)
Max turning length
51 mm (2.0 in) through spindle
Bar capacity
Not sure if the KT-250 is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Toolrooms and job shops needing straightforward 2-axis turning
- Shops moving off manual lathes for the first time
- Simple shaft and bushing production runs
Max turning diameter
350 mm (13.8 in)
Max turning length
500 mm (19.7 in)
Bar capacity
51 mm (2.0 in) through spindle
Chuck size
200 mm (8 in), 3-jaw hydraulic
Key Features
KT-250 Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance
- 51 mm through-spindle bar capacity
- Rigid tapping and thread-cutting cycles standard
Ease of Operation
- 200 mm hydraulic 3-jaw chuck with programmable clamping pressure
- Kaizora Nexa 5T control with conversational and G-code programming
- Sliding-door full enclosure with chip conveyor
- Remote diagnostics port
Built-In Extras
- 12-station bolt-on turret, 0.3 sec index time
- Tailstock standard for shaft work
Full Specifications
Kaizora KT-250 Technical Details
Complete specifications, standard features, and optional upgrades.
- Max turning diameter
- 350 mm (13.8 in)
- Max turning length
- 500 mm (19.7 in)
- Bar capacity
- 51 mm (2.0 in) through spindle
- Chuck size
- 200 mm (8 in), 3-jaw hydraulic
- Spindle bore
- 66 mm (2.6 in)
- Spindle speed
- 4,500 rpm
- Spindle motor power
- 11 kW (14.7 hp)
- Turret
- 12-station bolt-on turret (BOT)
- Turret index time
- 0.3 sec per station
- Rapid traverse (X/Z)
- 24 / 30 m/min (945 / 1,181 ipm)
- Positioning accuracy
- ±0.005 mm (0.0002 in)
- Repeatability
- ±0.003 mm (0.00012 in)
- Control
- Kaizora Nexa 5T control
| Max turning diameter | 350 mm (13.8 in) |
| Max turning length | 500 mm (19.7 in) |
| Bar capacity | 51 mm (2.0 in) through spindle |
| Chuck size | 200 mm (8 in), 3-jaw hydraulic |
| Spindle bore | 66 mm (2.6 in) |
| Spindle speed | 4,500 rpm |
| Spindle motor power | 11 kW (14.7 hp) |
| Turret | 12-station bolt-on turret (BOT) |
| Turret index time | 0.3 sec per station |
| Rapid traverse (X/Z) | 24 / 30 m/min (945 / 1,181 ipm) |
| Positioning accuracy | ±0.005 mm (0.0002 in) |
| Repeatability | ±0.003 mm (0.00012 in) |
| Control | Kaizora Nexa 5T control |
- 200 mm hydraulic 3-jaw chuck with programmable clamping pressure
- 51 mm through-spindle bar capacity
- 12-station bolt-on turret, 0.3 sec index time
- Kaizora Nexa 5T control with conversational and G-code programming
- Sliding-door full enclosure with chip conveyor
- Rigid tapping and thread-cutting cycles standard
- Tailstock standard for shaft work
- Remote diagnostics port
- Bar feeder interface package
- Parts catcher for small finished-part unloading
- Automatic tool-tip touch probing
- Chip conveyor upgrade for high-volume swarf
- Shaft, flange and bushing turning
- Toolroom and prototype turning work
- Short-run production of simple turned components
- Second lathe supporting a busier mill-turn cell
FAQ
KT-250 Questions
Answers to common questions about the KT-250.
Stocked configurations ship in 2-4 weeks; a build-to-order unit with options typically runs 8-10 weeks, confirmed at quote stage.
Yes, the KT-250 has a factory-fitted bar feeder interface option so you can run unattended bar-fed production once you're ready to add a feeder.
The machine ships with a standard turning tool holder starter set; we quote a full tooling package matched to your first parts during the sales process.
Yes, on-site training on the Kaizora Nexa 5T control and turret setup is included with every KT-250, with follow-up classes available at our Vaughan Tech Centre.
