CNC Routers

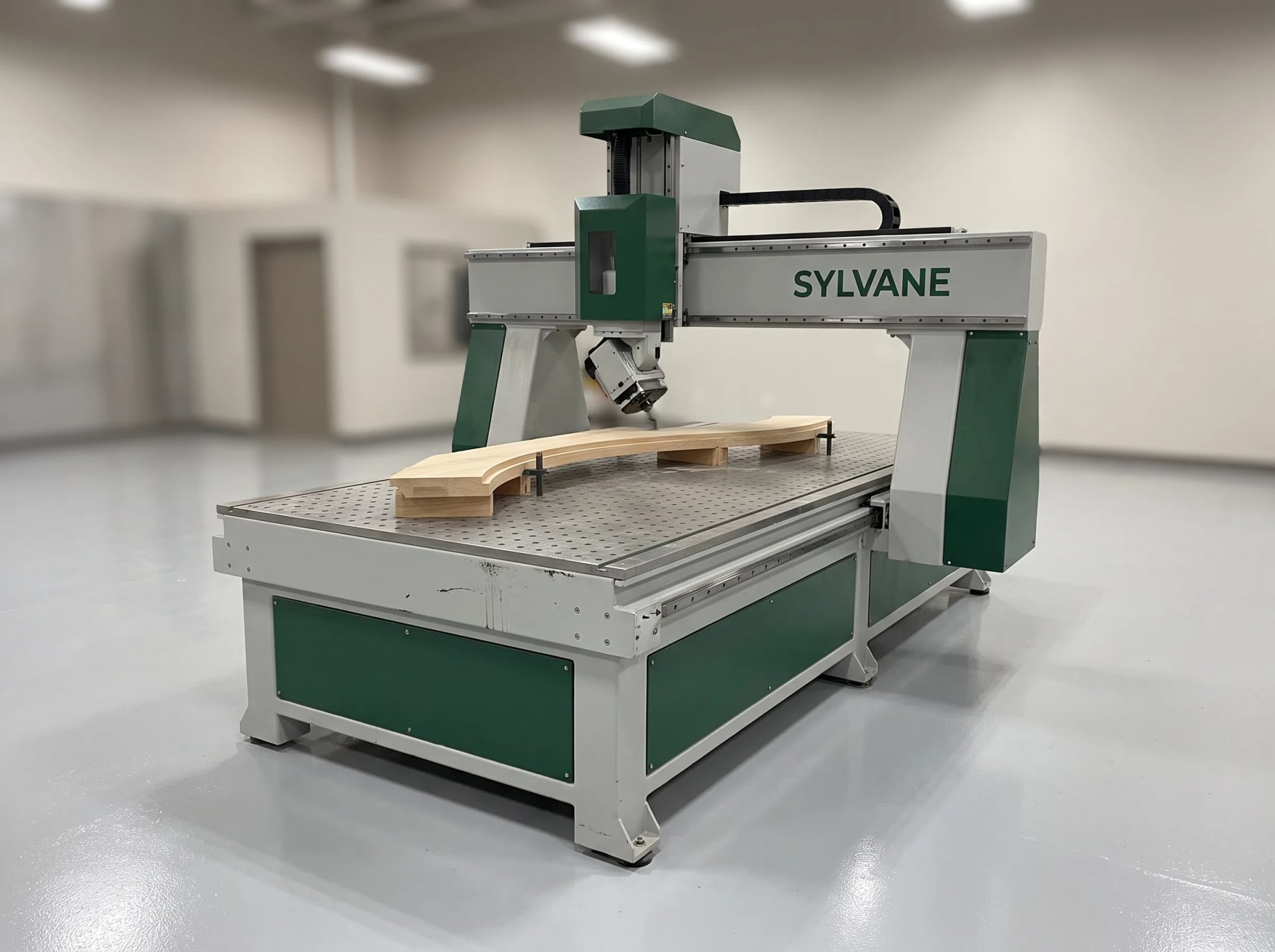

SR5-3016 5-Axis
by Sylvane
5-axis CNC router for solid-wood furniture, staircases and curved composite components.
1600 x 3050 mm (5'3" x 10')
Table size
400 mm (15.7")
Gantry clearance
13 kW (17 HP), 24,000 rpm continuous 5-axis head
Spindle power
Not sure if the SR5-3016 5-Axis is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Furniture makers doing complex joinery
- Staircase and millwork specialists
- Shops moving from 3-axis to true 5-axis capability
Table size
1600 x 3050 mm (5'3" x 10')
Gantry clearance
400 mm (15.7")
Spindle power
13 kW (17 HP), 24,000 rpm continuous 5-axis head
Tool changer
12-position carousel ATC
Key Features
SR5-3016 5-Axis Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance
- Continuous 5-axis machining head, ±120° tilt
- Sylvane Grain control with 5-axis post-processor support
- Rotary 4th-axis unit compatible for turned components
Ease of Operation
- 12-position carousel tool changer
- Automatic tool-length measurement
Safety & Reliability
- Zoned vacuum table with manual clamps for solid stock
- Collision-avoidance simulation software
Full Specifications
Sylvane SR5-3016 5-Axis Technical Details
Complete specifications, standard features, and optional upgrades.
- Table size
- 1600 x 3050 mm (5'3" x 10')
- Gantry clearance
- 400 mm (15.7")
- Spindle power
- 13 kW (17 HP), 24,000 rpm continuous 5-axis head
- Tool changer
- 12-position carousel ATC
- Vacuum pump
- 450 m³/h (265 CFM)
- Head rotation
- ±120° tilt, 360° continuous rotation
- Max cutting speed
- 50 m/min (1,968 in/min)
- Positioning accuracy
- ±0.02 mm (0.0008")
- Repeatability
- ±0.015 mm (0.0006")
- Control
- Sylvane Grain control with 5-axis post-processor support
- Power requirement
- 400V/3-phase, 70A service
- Footprint
- 6.8 x 4.5 m (22' x 15')
| Table size | 1600 x 3050 mm (5'3" x 10') |
| Gantry clearance | 400 mm (15.7") |
| Spindle power | 13 kW (17 HP), 24,000 rpm continuous 5-axis head |
| Tool changer | 12-position carousel ATC |
| Vacuum pump | 450 m³/h (265 CFM) |
| Head rotation | ±120° tilt, 360° continuous rotation |
| Max cutting speed | 50 m/min (1,968 in/min) |
| Positioning accuracy | ±0.02 mm (0.0008") |
| Repeatability | ±0.015 mm (0.0006") |
| Control | Sylvane Grain control with 5-axis post-processor support |
| Power requirement | 400V/3-phase, 70A service |
| Footprint | 6.8 x 4.5 m (22' x 15') |
- Continuous 5-axis machining head, ±120° tilt
- Sylvane Grain control with 5-axis post-processor support
- 12-position carousel tool changer
- Zoned vacuum table with manual clamps for solid stock
- Automatic tool-length measurement
- Rotary 4th-axis unit compatible for turned components
- Collision-avoidance simulation software
- Probing package for irregular or reclaimed stock
- Extended Z-travel for thick timber
- Second work-zone for continuous loading
- Solid-wood furniture components
- Curved staircase stringers and treads
- Architectural composite panels
- Boat and marine woodwork
FAQ
SR5-3016 5-Axis Questions
Answers to common questions about the SR5-3016 5-Axis.
Most modern CAM packages already support 5-axis toolpaths; our applications engineers build the specific post-processor for the Sylvane Grain control as part of your purchase.
A 400V/3-phase, 70A service. We confirm exact requirements during the site survey.
There's a real learning curve around workholding and toolpath strategy, which is why every purchase includes on-site training and a proven program from our applications engineers rather than a blank machine and a manual.
The router, 12-position tool changer, Sylvane Grain control, rigging and installation, cut-quality commissioning on your own stock, and operator and programmer training.
