CNC Routers

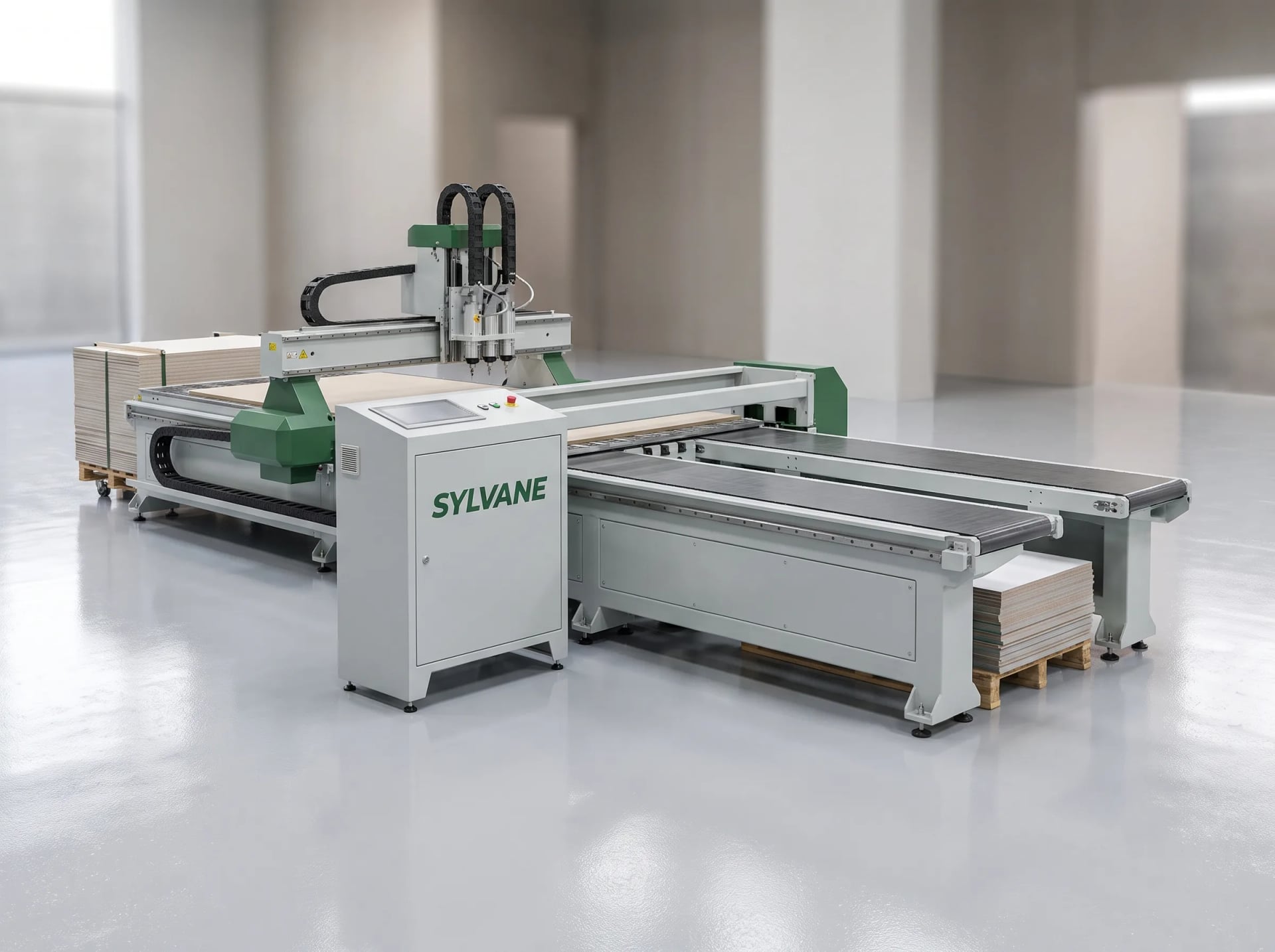

SR-1530 Nest
by Sylvane
Nested-based CNC router with automatic load and unload for continuous cabinet-shop production.
1600 x 3660 mm (5'3" x 12')
Table size
200 mm (7.9")
Gantry clearance
9 kW (12 HP), 18,000 rpm
Spindle power
Not sure if the SR-1530 Nest is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Cabinet shops running repeat nested parts
- Shops ready to automate load and unload
- Growing shops outgrowing a flat-table router
Table size
1600 x 3660 mm (5'3" x 12')
Gantry clearance
200 mm (7.9")
Spindle power
9 kW (12 HP), 18,000 rpm
Tool changer
8-position carousel ATC
Key Features
SR-1530 Nest Features
Standard features that set this machine apart in demanding manufacturing environments.
Ease of Operation
- Automatic dual-conveyor load and unload for unattended nesting
- Sylvane Grain control with nesting and label-printing software
- 8-position automatic tool changer
- Automatic pop-up pins for staged nesting
- Remote diagnostics and software updates
Built-In Extras
- 21-spindle vertical drill block for shelf-pin and hardware boring
- Twin vacuum pump bed with zoned hold-down
- Onboard barcode/label printer for part tracking
Full Specifications
Sylvane SR-1530 Nest Technical Details
Complete specifications, standard features, and optional upgrades.
- Table size
- 1600 x 3660 mm (5'3" x 12')
- Gantry clearance
- 200 mm (7.9")
- Spindle power
- 9 kW (12 HP), 18,000 rpm
- Tool changer
- 8-position carousel ATC
- Vacuum pump
- 400 m³/h (235 CFM), twin pump
- Drill block
- 21-spindle vertical, 32 mm pitch
- Load/unload
- Automatic dual-conveyor system
- Max cutting speed
- 60 m/min (2,362 in/min)
- Positioning accuracy
- ±0.05 mm (0.002")
- Control
- Sylvane Grain control, 21" touchscreen
- Power requirement
- 400V/3-phase, 63A service
- Footprint
- 7.2 x 5.8 m (24' x 19')
| Table size | 1600 x 3660 mm (5'3" x 12') |
| Gantry clearance | 200 mm (7.9") |
| Spindle power | 9 kW (12 HP), 18,000 rpm |
| Tool changer | 8-position carousel ATC |
| Vacuum pump | 400 m³/h (235 CFM), twin pump |
| Drill block | 21-spindle vertical, 32 mm pitch |
| Load/unload | Automatic dual-conveyor system |
| Max cutting speed | 60 m/min (2,362 in/min) |
| Positioning accuracy | ±0.05 mm (0.002") |
| Control | Sylvane Grain control, 21" touchscreen |
| Power requirement | 400V/3-phase, 63A service |
| Footprint | 7.2 x 5.8 m (24' x 19') |
- Automatic dual-conveyor load and unload for unattended nesting
- Sylvane Grain control with nesting and label-printing software
- 21-spindle vertical drill block for shelf-pin and hardware boring
- 8-position automatic tool changer
- Twin vacuum pump bed with zoned hold-down
- Automatic pop-up pins for staged nesting
- Onboard barcode/label printer for part tracking
- Remote diagnostics and software updates
- Second drill block for double-sided boring in one pass
- Off-load area extension for larger sheet stacks
- Edge-sensing camera for pre-nested offcut stock
- Extended vacuum table for oversized panels
- Frameless cabinet box production
- Closet and storage systems
- Shelving and hardware-bored components
- Melamine and laminate panel processing
FAQ
SR-1530 Nest Questions
Answers to common questions about the SR-1530 Nest.
Typically 8-10 weeks from order, including the conveyor load/unload system. We confirm your exact date at order and keep you posted through production.
A 400V/3-phase, 63A service. Our applications engineers confirm the exact draw for your configuration during the site survey.
Yes — on-site training covers nesting, label printing and day-to-day operation, plus a test run on your own sheet stock at the Vaughan Tech Centre before delivery.
The router, drill block, dual-conveyor load/unload system, Sylvane Grain control with nesting licence, rigging and installation, and operator training.
