CNC Routers

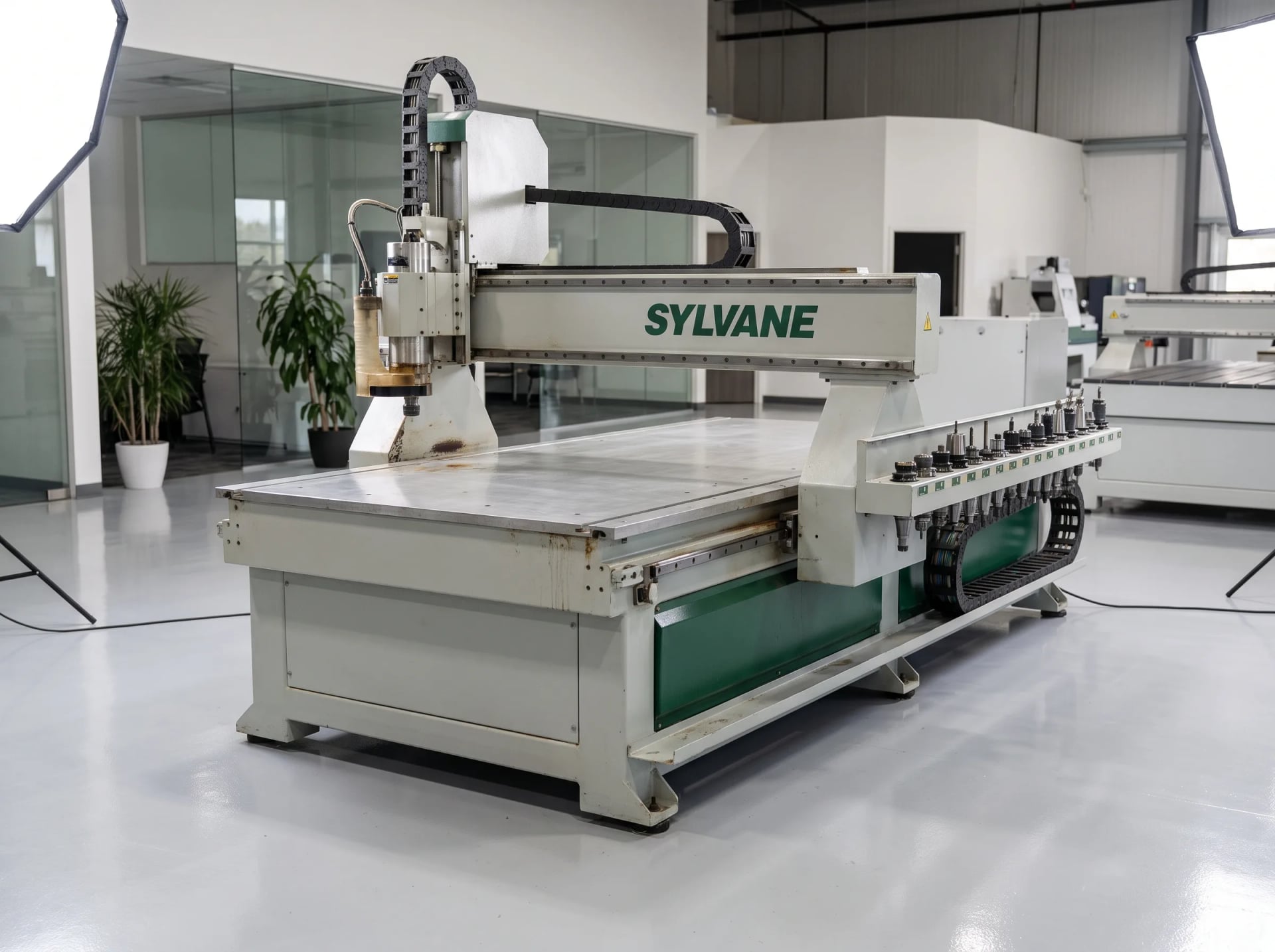

SR-2150 ATC
by Sylvane
Heavy-duty ATC router with interchangeable 4' x 8' and 5' x 12' tables for millwork and sign work.
1220 x 2440 mm (4' x 8'), optional 1530 x 3660 mm (5' x 12')
Table size (standard)
250 mm (9.8")
Gantry clearance
12 kW (16 HP), 24,000 rpm HSD spindle
Spindle power
Not sure if the SR-2150 ATC is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Millwork shops needing table flexibility
- Sign shops cutting acrylic and aluminum composite
- Shops running mixed sheet and solid-wood work
Table size (standard)
1220 x 2440 mm (4' x 8'), optional 1530 x 3660 mm (5' x 12')
Gantry clearance
250 mm (9.8")
Spindle power
12 kW (16 HP), 24,000 rpm HSD spindle
Tool changer
10-position linear ATC
Key Features
SR-2150 ATC Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance

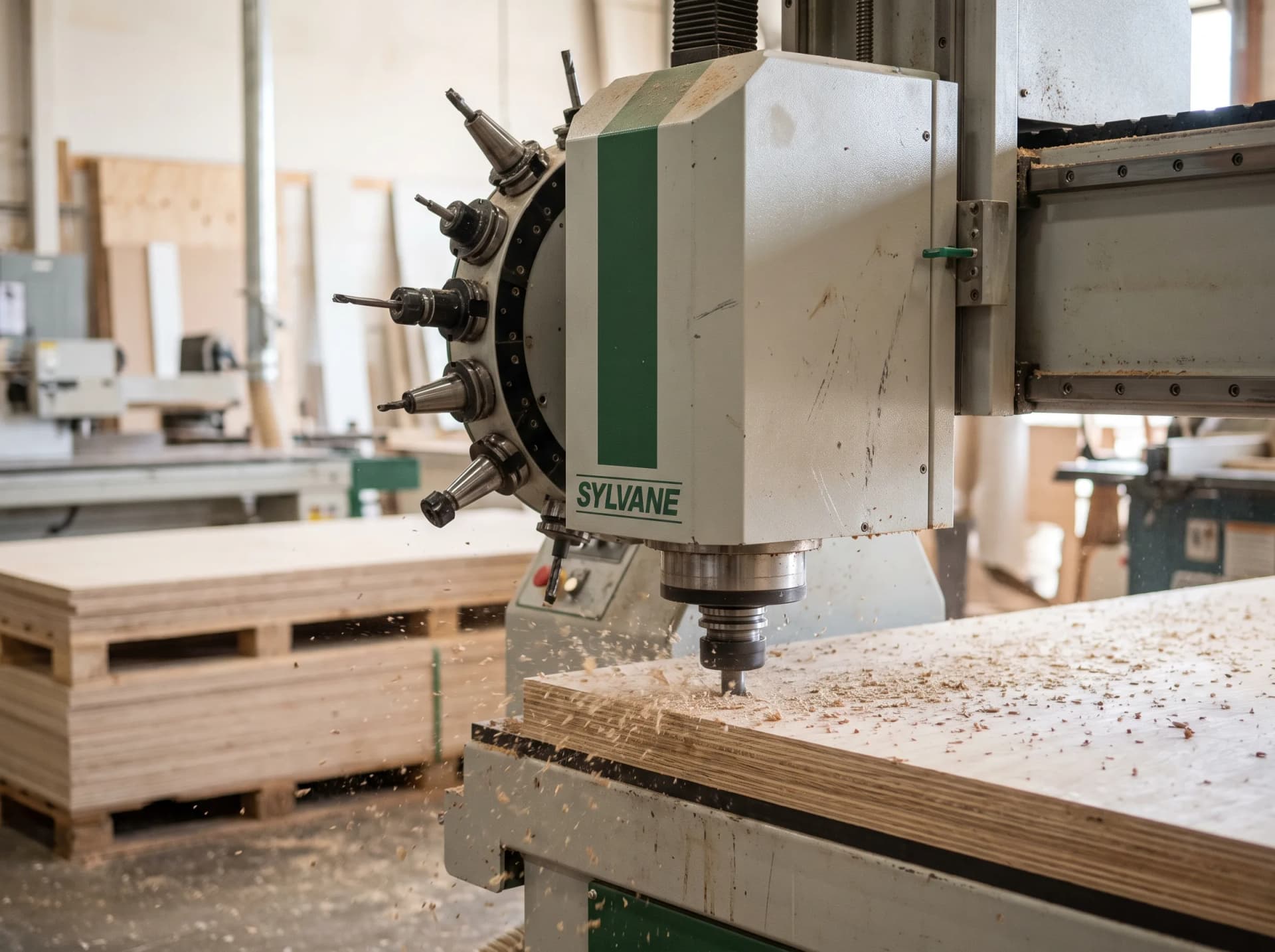

- 10-position linear automatic tool changer
- 24,000 rpm HSD spindle
Ease of Operation
- Sylvane Grain control with nesting software
- Automatic pop-up registration pins
Safety & Reliability
- Zoned vacuum hold-down table
- Dust collection hood with auto height-follow
Built-In Extras
- Interchangeable 4' x 8' and 5' x 12' table modules
- Onboard laser pointer for material registration
Full Specifications
Sylvane SR-2150 ATC Technical Details
Complete specifications, standard features, and optional upgrades.
- Table size (standard)
- 1220 x 2440 mm (4' x 8'), optional 1530 x 3660 mm (5' x 12')
- Gantry clearance
- 250 mm (9.8")
- Spindle power
- 12 kW (16 HP), 24,000 rpm HSD spindle
- Tool changer
- 10-position linear ATC
- Vacuum pump
- 550 m³/h (324 CFM), twin pump
- Drill block
- Optional 5-spindle boring head
- Max cutting speed
- 80 m/min (3,150 in/min)
- Positioning accuracy
- ±0.03 mm (0.0012")
- Repeatability
- ±0.02 mm (0.0008")
- Control
- Sylvane Grain control, 21" touchscreen
- Power requirement
- 400V/3-phase, 80A service
- Footprint (4x8 config)
- 6.5 x 4.2 m (21' x 14')
| Table size (standard) | 1220 x 2440 mm (4' x 8'), optional 1530 x 3660 mm (5' x 12') |
| Gantry clearance | 250 mm (9.8") |
| Spindle power | 12 kW (16 HP), 24,000 rpm HSD spindle |
| Tool changer | 10-position linear ATC |
| Vacuum pump | 550 m³/h (324 CFM), twin pump |
| Drill block | Optional 5-spindle boring head |
| Max cutting speed | 80 m/min (3,150 in/min) |
| Positioning accuracy | ±0.03 mm (0.0012") |
| Repeatability | ±0.02 mm (0.0008") |
| Control | Sylvane Grain control, 21" touchscreen |
| Power requirement | 400V/3-phase, 80A service |
| Footprint (4x8 config) | 6.5 x 4.2 m (21' x 14') |
- 10-position linear automatic tool changer
- Interchangeable 4' x 8' and 5' x 12' table modules
- Sylvane Grain control with nesting software
- 24,000 rpm HSD spindle
- Zoned vacuum hold-down table
- Automatic pop-up registration pins
- Dust collection hood with auto height-follow
- Onboard laser pointer for material registration
- 5-spindle boring head
- Rotary 4th-axis attachment for round stock
- Oscillating knife tool station for gasket and signage material
- Vacuum pod system for irregular parts
- Architectural millwork and mouldings
- Dimensional sign lettering and channel letters
- Store fixtures and point-of-purchase displays
- Solid-wood and MDF door components
FAQ
SR-2150 ATC Questions
Answers to common questions about the SR-2150 ATC.
Yes — the table modules are designed for in-house changeover, and our installation team trains your crew on the swap during commissioning.
A 400V/3-phase, 80A service. We confirm exact requirements for your configuration during the site survey.
Yes — on-site training covers tool-changer setup, table swaps and nesting software, plus a test cut on your own material at the Tech Centre.
The router with the standard 4' x 8' table, 10-position ATC, Sylvane Grain control, rigging and installation, and operator training.
