Edgebanders

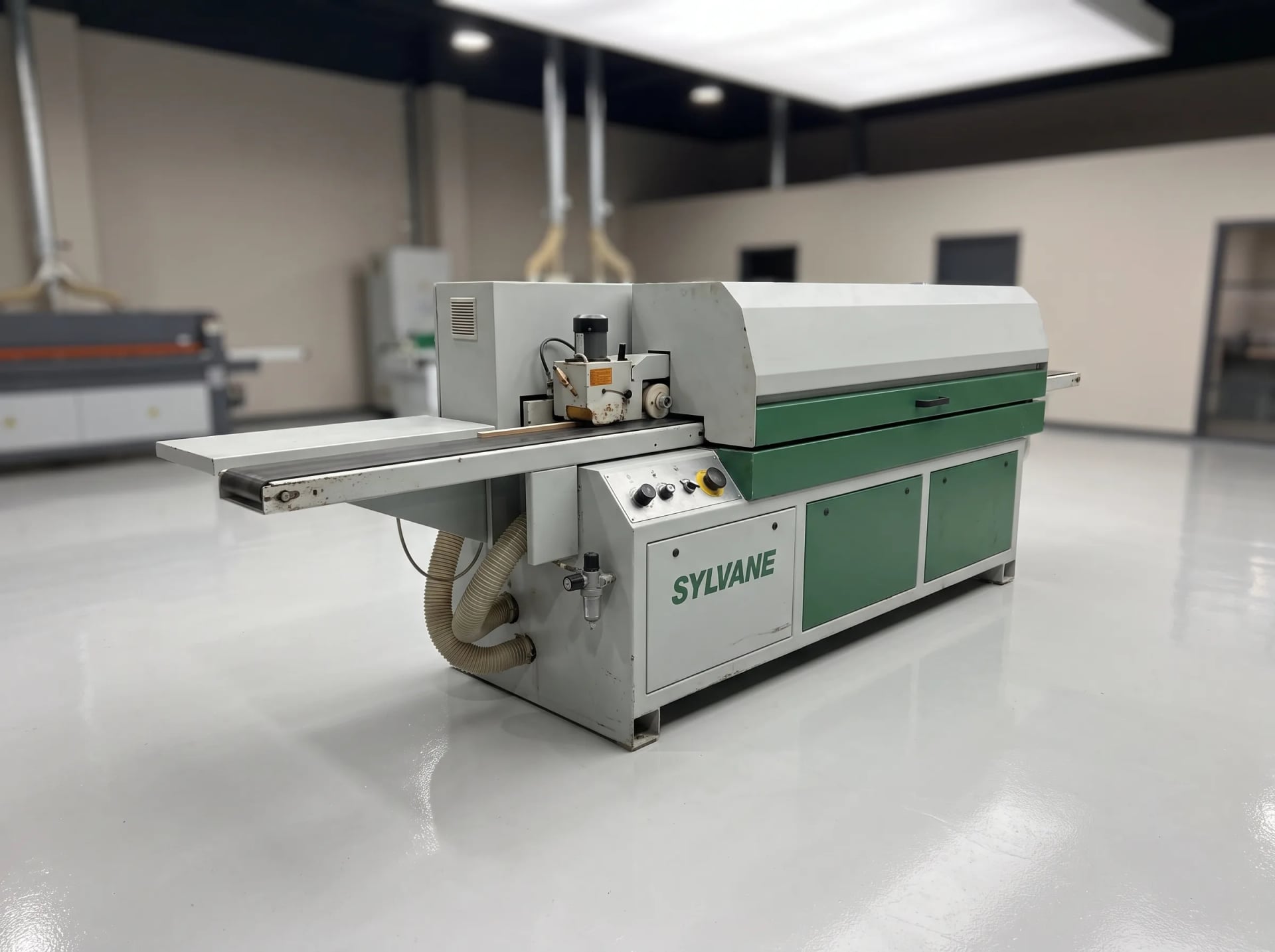

SE-45 Compact
by Sylvane
Compact single-sided edgebander sized for job shops banding cabinet parts without a full production line.
0.4 - 12 mm (0.02" - 0.47")
Edge thickness range
10 - 60 mm (0.4" - 2.4")
Panel thickness
10 - 16 m/min (33 - 52 ft/min), variable
Feed speed
Not sure if the SE-45 Compact is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Small cabinet shops starting to band in-house
- Shops with limited floor space or single-phase power
- Job shops banding mixed small-batch parts
Edge thickness range
0.4 - 12 mm (0.02" - 0.47")
Panel thickness
10 - 60 mm (0.4" - 2.4")
Feed speed
10 - 16 m/min (33 - 52 ft/min), variable
Min panel length
120 mm (4.7")
Key Features
SE-45 Compact Features
Standard features that set this machine apart in demanding manufacturing environments.
Built-In Extras
- EVA hot-melt glue application
- Flush end-trimming, front and rear
- Standard scraper and buffing unit
- Compact single-phase power requirement
- Variable feed speed, 10 - 16 m/min
- Pre-milling station for a consistent panel edge
Full Specifications
Sylvane SE-45 Compact Technical Details
Complete specifications, standard features, and optional upgrades.
- Edge thickness range
- 0.4 - 12 mm (0.02" - 0.47")
- Panel thickness
- 10 - 60 mm (0.4" - 2.4")
- Feed speed
- 10 - 16 m/min (33 - 52 ft/min), variable
- Min panel length
- 120 mm (4.7")
- Glue system
- EVA hot-melt glue pot, 3 kg capacity
- Pre-milling
- Single-motor pre-mill station
- End trimming
- Flush trim, front and end
- Finishing
- Standard scraper and buffing unit
- Control
- Sylvane Grain control, 10" touchscreen
- Power requirement
- 208-240V single-phase, 30A
- Footprint
- 4.5 x 1.2 m (15' x 4')
| Edge thickness range | 0.4 - 12 mm (0.02" - 0.47") |
| Panel thickness | 10 - 60 mm (0.4" - 2.4") |
| Feed speed | 10 - 16 m/min (33 - 52 ft/min), variable |
| Min panel length | 120 mm (4.7") |
| Glue system | EVA hot-melt glue pot, 3 kg capacity |
| Pre-milling | Single-motor pre-mill station |
| End trimming | Flush trim, front and end |
| Finishing | Standard scraper and buffing unit |
| Control | Sylvane Grain control, 10" touchscreen |
| Power requirement | 208-240V single-phase, 30A |
| Footprint | 4.5 x 1.2 m (15' x 4') |
- Pre-milling station for a consistent panel edge
- EVA hot-melt glue application
- Flush end-trimming, front and rear
- Standard scraper and buffing unit
- Variable feed speed, 10 - 16 m/min
- Compact single-phase power requirement
- Corner-rounding unit
- Glue-line cleaning and polishing station
- Roller pre-feeder for long panels
- Cabinet door and drawer front banding
- Closet component edging
- Small-shop melamine panel finishing
- Retail fixture edge finishing
FAQ
SE-45 Compact Questions
Answers to common questions about the SE-45 Compact.
PVC, ABS, melamine and real-wood veneer edge banding in the listed thickness range, fed from a coil or pre-cut strips.
A 208-240V single-phase, 30A service — most shops can install it without an electrical upgrade.
Yes — on-site training covers glue-pot care, edge-band changeover and day-to-day operation.
The edgebander, Sylvane Grain control, rigging and installation, and operator training.
Ready to Discuss the SE-45 Compact?
Our team has 32+ years of experience helping Canadian manufacturers find the right cutting and processing equipment.
32
Years in Business
4,800+
Machines Installed
46
Factory-Trained Technicians
Request a Quote
Tell us about your application and we'll recommend the right configuration for your operation.
Financing Available
Flexible payment options on qualifying equipment.
Or email us at [email protected]
