Edgebanders

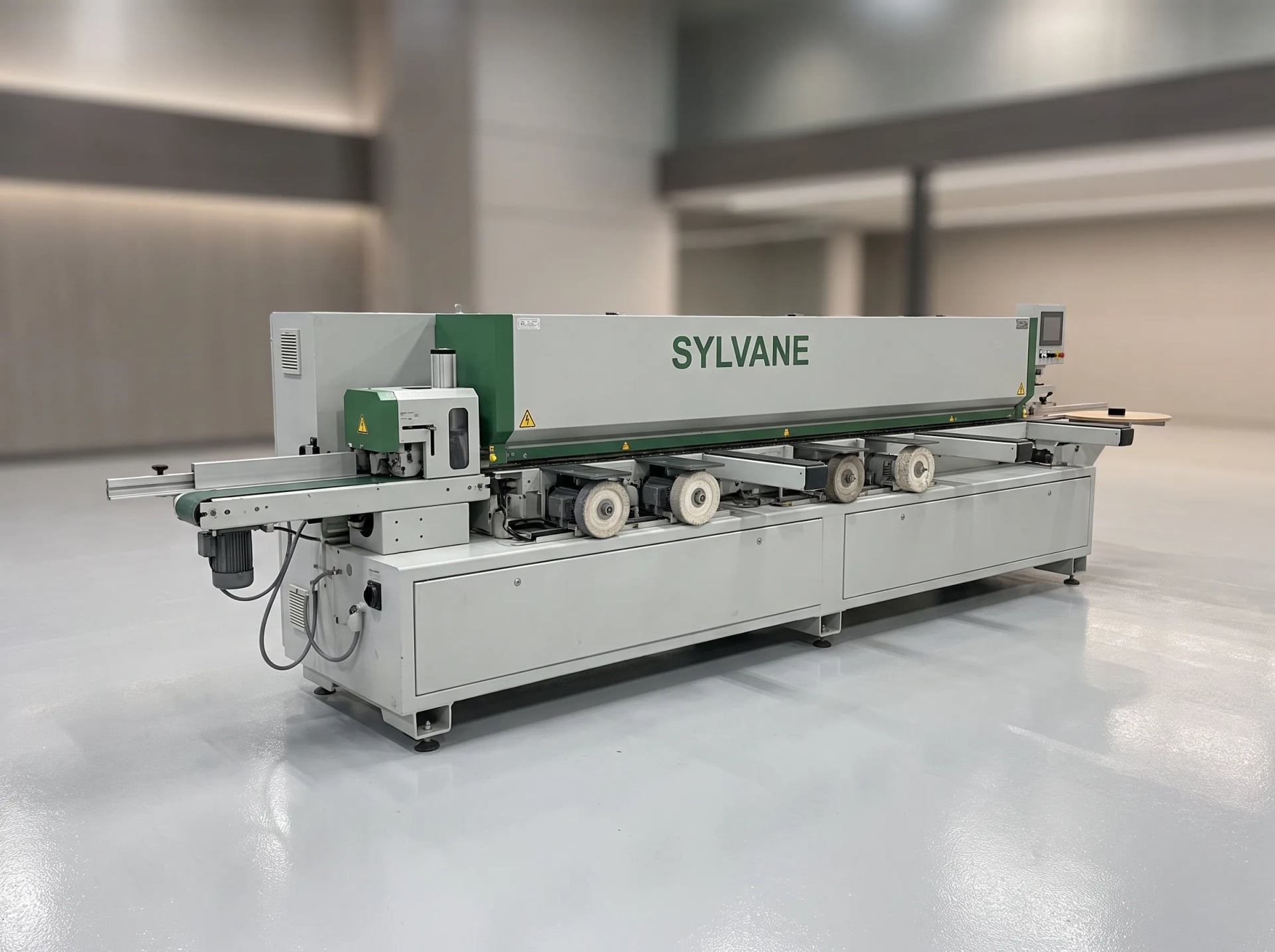

SE-90 Pro
by Sylvane
High-speed edgebander with pre-milling, corner rounding and an optional zero-joint laminate edge for production shops.
0.4 - 14 mm (0.02" - 0.55")
Edge thickness range
8 - 60 mm (0.3" - 2.4")
Panel thickness
15 - 25 m/min (49 - 82 ft/min), variable
Feed speed
Not sure if the SE-90 Pro is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Production cabinet shops running multiple shifts
- Shops wanting a premium zero-joint finish
- Shops standardizing on one high-throughput bander
Edge thickness range
0.4 - 14 mm (0.02" - 0.55")
Panel thickness
8 - 60 mm (0.3" - 2.4")
Feed speed
15 - 25 m/min (49 - 82 ft/min), variable
Min panel length
100 mm (3.9")
Key Features
SE-90 Pro Features
Standard features that set this machine apart in demanding manufacturing environments.
Ease of Operation
- Automatic corner-rounding unit
- Sylvane Grain control with recipe memory
- Automatic panel thickness sensing
Built-In Extras
- Optional zero-joint laminate edge station
- PUR glue capability for moisture-resistant joints
- Multi-wheel buffing and polishing
- Quick glue-pot changeover between EVA and PUR
- Dual-motor pre-milling station
Full Specifications
Sylvane SE-90 Pro Technical Details
Complete specifications, standard features, and optional upgrades.
- Edge thickness range
- 0.4 - 14 mm (0.02" - 0.55")
- Panel thickness
- 8 - 60 mm (0.3" - 2.4")
- Feed speed
- 15 - 25 m/min (49 - 82 ft/min), variable
- Min panel length
- 100 mm (3.9")
- Glue system
- EVA/PUR dual glue pot, 5 kg capacity
- Pre-milling
- Dual-motor pre-mill station
- Corner rounding
- Automatic unit, 1 - 3 mm radius
- Zero-joint option
- Laser/hot-air zero-joint edge station
- End trimming
- Dual-motor flush trim
- Finishing
- Multi-wheel buffing and polishing
- Control
- Sylvane Grain control, 15" touchscreen
- Power requirement
- 400V/3-phase, 45A
- Footprint
- 7.5 x 1.4 m (25' x 5')
| Edge thickness range | 0.4 - 14 mm (0.02" - 0.55") |
| Panel thickness | 8 - 60 mm (0.3" - 2.4") |
| Feed speed | 15 - 25 m/min (49 - 82 ft/min), variable |
| Min panel length | 100 mm (3.9") |
| Glue system | EVA/PUR dual glue pot, 5 kg capacity |
| Pre-milling | Dual-motor pre-mill station |
| Corner rounding | Automatic unit, 1 - 3 mm radius |
| Zero-joint option | Laser/hot-air zero-joint edge station |
| End trimming | Dual-motor flush trim |
| Finishing | Multi-wheel buffing and polishing |
| Control | Sylvane Grain control, 15" touchscreen |
| Power requirement | 400V/3-phase, 45A |
| Footprint | 7.5 x 1.4 m (25' x 5') |
- Dual-motor pre-milling station
- Automatic corner-rounding unit
- Optional zero-joint laminate edge station
- PUR glue capability for moisture-resistant joints
- Multi-wheel buffing and polishing
- Sylvane Grain control with recipe memory
- Automatic panel thickness sensing
- Quick glue-pot changeover between EVA and PUR
- Zero-joint laser edge module
- Return conveyor for one-operator running
- Pre-feeder with panel stacker
- High-volume cabinet component banding
- Laminate and thermofoil panel finishing
- Retail fixture and store display components
- Kitchen and bath moisture-resistant panel edging
FAQ
SE-90 Pro Questions
Answers to common questions about the SE-90 Pro.
It melts the edge band's own core instead of using a visible glue line, so the seam is effectively invisible on laminate panels — most production shops running retail-facing cabinetry find it pays for itself in fewer callbacks over glue-line failures.
Yes — the dual glue-pot design lets your operator change over between standard EVA and moisture-resistant PUR within a shift without a lengthy purge and refill.
A 400V/3-phase, 45A service. We confirm exact requirements during the site survey.
The edgebander, Sylvane Grain control, rigging and installation, cut-quality commissioning on your own panels, and operator training.
