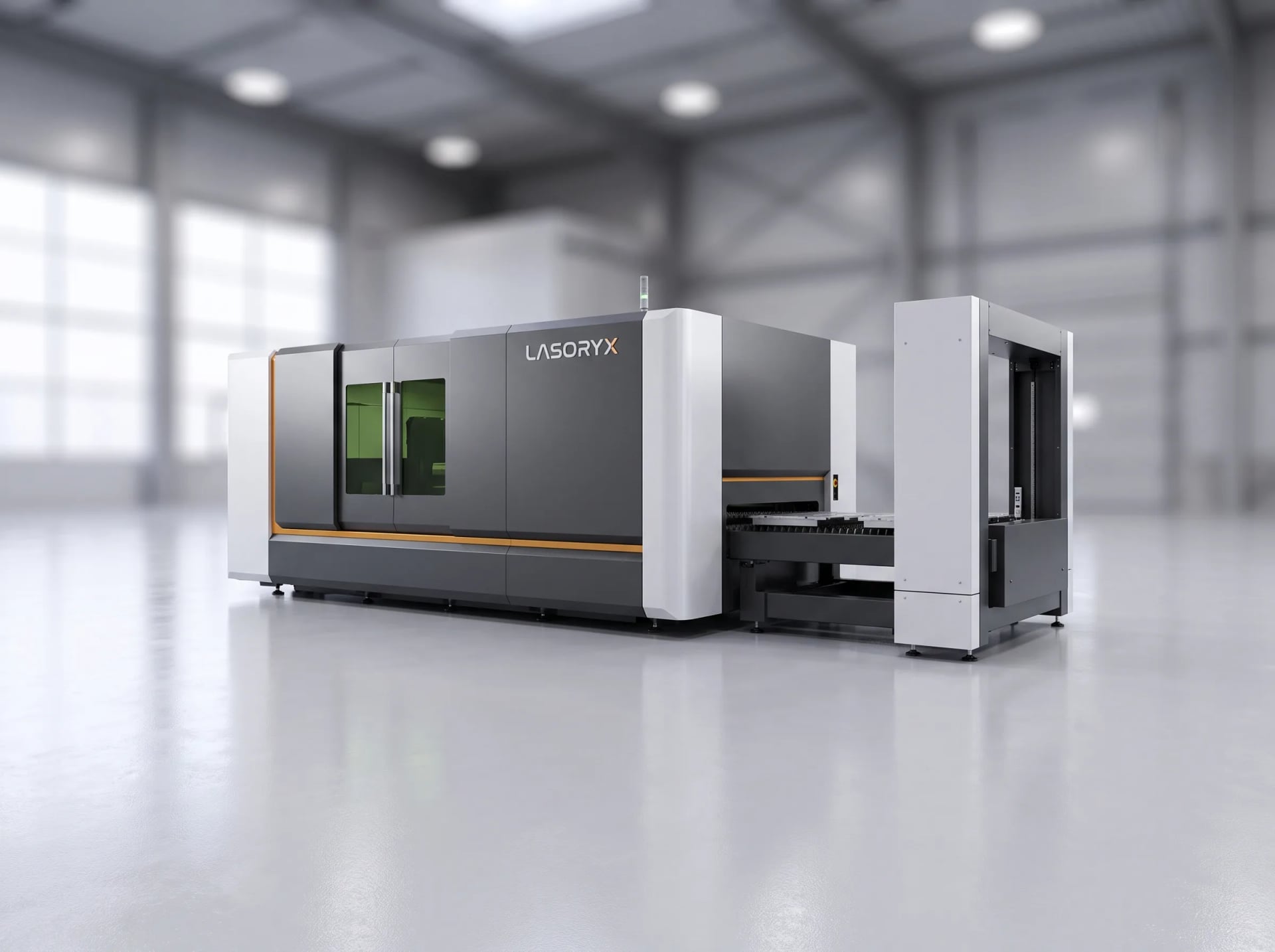

Fiber Laser Cutting
LX-4020 Pro
by Lasoryx
Production-grade 12 kW fiber laser with automated load and unload for round-the-clock cutting.
1830 x 3660 mm (6' x 12')
Cutting bed
12,000 W (12 kW) in-house fiber laser source
Laser power
30 mm (1.18")
Mild steel max thickness
Not sure if the LX-4020 Pro is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Fabricators running two or three shifts
- Shops ready to automate load/unload
- Job shops with a steady mix of steel, stainless and aluminum
- Growing fabricators outgrowing an entry-level laser
Cutting bed
1830 x 3660 mm (6' x 12')
Laser power
12,000 W (12 kW) in-house fiber laser source
Mild steel max thickness
30 mm (1.18")
Stainless steel max thickness
25 mm (1")
Key Features
LX-4020 Pro Features
Standard features that set this machine apart in demanding manufacturing environments.
Ease of Operation
- Automated dual-pallet load/unload tower for unattended running
- Lasoryx Vector control with automatic nesting and pierce optimization
- Automatic nozzle and lens changeover
- Remote diagnostics and cut-recipe updates
Safety & Reliability
- Full-perimeter safety enclosure with laser-safe viewing panels
- Integrated fume extraction with downdraft cutting bed
Built-In Extras
- Auto gas changeover between nitrogen, oxygen and air
- Capacitive height sensing for warped or coated sheet
- Smart part-marking for downstream sorting
Full Specifications
Lasoryx LX-4020 Pro Technical Details
Complete specifications, standard features, and optional upgrades.
- Cutting bed
- 1830 x 3660 mm (6' x 12')
- Laser power
- 12,000 W (12 kW) in-house fiber laser source
- Mild steel max thickness
- 30 mm (1.18")
- Stainless steel max thickness
- 25 mm (1")
- Aluminum max thickness
- 20 mm (0.8")
- Max positioning speed
- 170 m/min (6,693 in/min)
- Acceleration
- 2.0 G
- Positioning accuracy
- ±0.02 mm (0.0008")
- Repeatability
- ±0.01 mm (0.0004")
- Load/unload
- Automated dual-pallet shuttle tower
- Control
- Lasoryx Vector control, 21" touchscreen
- Assist gas
- Nitrogen, oxygen, compressed air (auto changeover)
- Power requirement
- 400V/3-phase, 100A service
- Footprint
- 9.8 x 6.4 m (32' x 21') with load/unload tower
| Cutting bed | 1830 x 3660 mm (6' x 12') |
| Laser power | 12,000 W (12 kW) in-house fiber laser source |
| Mild steel max thickness | 30 mm (1.18") |
| Stainless steel max thickness | 25 mm (1") |
| Aluminum max thickness | 20 mm (0.8") |
| Max positioning speed | 170 m/min (6,693 in/min) |
| Acceleration | 2.0 G |
| Positioning accuracy | ±0.02 mm (0.0008") |
| Repeatability | ±0.01 mm (0.0004") |
| Load/unload | Automated dual-pallet shuttle tower |
| Control | Lasoryx Vector control, 21" touchscreen |
| Assist gas | Nitrogen, oxygen, compressed air (auto changeover) |
| Power requirement | 400V/3-phase, 100A service |
| Footprint | 9.8 x 6.4 m (32' x 21') with load/unload tower |
- Automated dual-pallet load/unload tower for unattended running
- Lasoryx Vector control with automatic nesting and pierce optimization
- Full-perimeter safety enclosure with laser-safe viewing panels
- Automatic nozzle and lens changeover
- Capacitive height sensing for warped or coated sheet
- Auto gas changeover between nitrogen, oxygen and air
- Remote diagnostics and cut-recipe updates
- Integrated fume extraction with downdraft cutting bed
- Smart part-marking for downstream sorting
- Second load/unload pallet tower for extended unattended runs
- High-pressure cutting head upgrade for reflective metals
- Remote monitoring package with SMS/email alerts
- Extra chiller capacity for high-duty-cycle production
- Sheet-thickness auto-sensing camera package
- Structural steel fabrication
- HVAC ductwork and enclosures
- Agricultural equipment components
- Truck and trailer body parts
- Electrical enclosure production
FAQ
LX-4020 Pro Questions
Answers to common questions about the LX-4020 Pro.
It typically ships 10-12 weeks after order, including the load/unload tower. We confirm the exact date when your order is placed and keep you posted through production.
A 400V/3-phase, 100A service, plus nitrogen and oxygen assist gas — bottled, a house generator, or bulk tank sized to your cutting volume. Our applications engineers size the gas supply during the site survey.
The base machine, load/unload tower, chiller, Lasoryx Vector control with nesting licence, rigging and installation, cut-quality commissioning on your own material, and operator and programmer training.
Nozzles, lenses and ceramic tips are regular wear items, and gas consumption scales with cutting hours. We help estimate a monthly consumable budget from your actual nest files before you buy.
