Fiber Laser Cutting

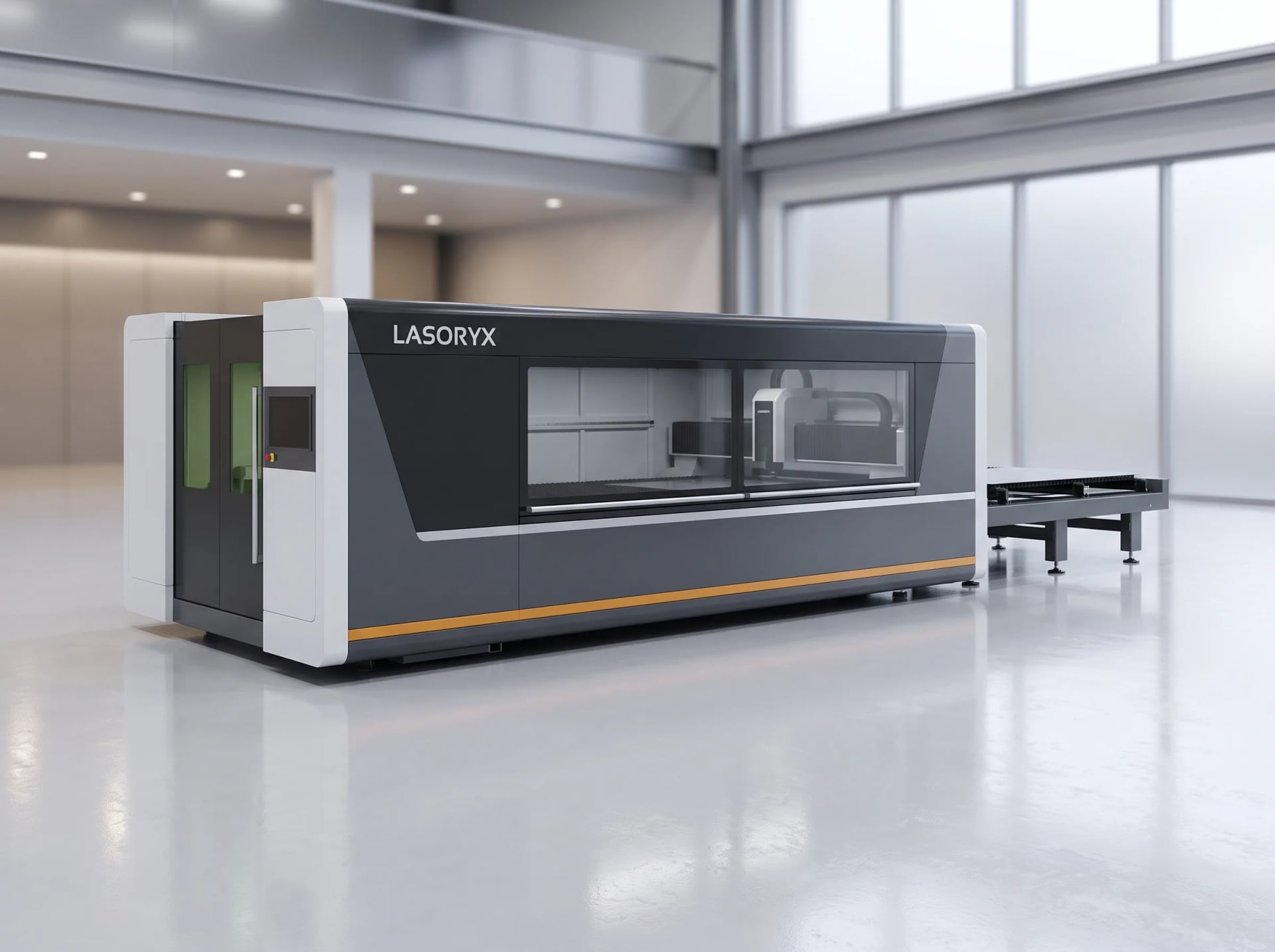

LX-3015
by Lasoryx
Entry-level 3 kW fiber laser with a 5' x 10' bed — an affordable first laser for job shops.
1500 x 3000 mm (5' x 10')
Cutting bed
3,000 W (3 kW) in-house fiber laser source
Laser power
20 mm (0.8")
Mild steel max thickness
Not sure if the LX-3015 is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- First-time laser buyers
- Job shops with mixed low-to-mid-thickness work
- Shops with limited floor space or power service
Cutting bed
1500 x 3000 mm (5' x 10')
Laser power
3,000 W (3 kW) in-house fiber laser source
Mild steel max thickness
20 mm (0.8")
Stainless steel max thickness
12 mm (0.5")
Key Features
LX-3015 Features
Standard features that set this machine apart in demanding manufacturing environments.
Ease of Operation
- Lasoryx Vector control with guided nesting software
- Single-pallet manual load table
Safety & Reliability
- Enclosed cutting chamber with laser-safe viewing window
- Integrated fume extraction
Built-In Extras
- Auto gas changeover, nitrogen/oxygen/air
- Compact footprint for job-shop floors
- Capacitive height sensing
Full Specifications
Lasoryx LX-3015 Technical Details
Complete specifications, standard features, and optional upgrades.
- Cutting bed
- 1500 x 3000 mm (5' x 10')
- Laser power
- 3,000 W (3 kW) in-house fiber laser source
- Mild steel max thickness
- 20 mm (0.8")
- Stainless steel max thickness
- 12 mm (0.5")
- Aluminum max thickness
- 10 mm (0.4")
- Max positioning speed
- 130 m/min (5,118 in/min)
- Acceleration
- 1.2 G
- Positioning accuracy
- ±0.03 mm (0.0012")
- Repeatability
- ±0.02 mm (0.0008")
- Control
- Lasoryx Vector control, 15" touchscreen
- Assist gas
- Nitrogen, oxygen, compressed air
- Power requirement
- 208-240V or 400V/3-phase, 60A service
- Footprint
- 6.4 x 4.0 m (21' x 13')
| Cutting bed | 1500 x 3000 mm (5' x 10') |
| Laser power | 3,000 W (3 kW) in-house fiber laser source |
| Mild steel max thickness | 20 mm (0.8") |
| Stainless steel max thickness | 12 mm (0.5") |
| Aluminum max thickness | 10 mm (0.4") |
| Max positioning speed | 130 m/min (5,118 in/min) |
| Acceleration | 1.2 G |
| Positioning accuracy | ±0.03 mm (0.0012") |
| Repeatability | ±0.02 mm (0.0008") |
| Control | Lasoryx Vector control, 15" touchscreen |
| Assist gas | Nitrogen, oxygen, compressed air |
| Power requirement | 208-240V or 400V/3-phase, 60A service |
| Footprint | 6.4 x 4.0 m (21' x 13') |
- Lasoryx Vector control with guided nesting software
- Single-pallet manual load table
- Capacitive height sensing
- Auto gas changeover, nitrogen/oxygen/air
- Enclosed cutting chamber with laser-safe viewing window
- Integrated fume extraction
- Compact footprint for job-shop floors
- Second manual load pallet for faster changeover
- Rotary attachment for round tube up to 150 mm
- Extended material support arms for long sheet
- Remote monitoring package
- Job-shop prototype and short-run parts
- Sign and display metal components
- Light structural brackets and enclosures
- Metal art and architectural panels
FAQ
LX-3015 Questions
Answers to common questions about the LX-3015.
Typically 8-10 weeks from order; we confirm the exact date when you place it.
It runs on 208-240V or 400V/3-phase, 60A service. Bottled nitrogen and oxygen are fine at this duty cycle — no bulk tank required.
Yes — we arrange lease and term financing structured around your monthly cutting volume.
Base machine, Lasoryx Vector control with nesting licence, rigging and installation, and on-site operator training.
Ready to Discuss the LX-3015?
Our team has 32+ years of experience helping Canadian manufacturers find the right cutting and processing equipment.
32
Years in Business
4,800+
Machines Installed
46
Factory-Trained Technicians
Request a Quote
Tell us about your application and we'll recommend the right configuration for your operation.
Financing Available
Flexible payment options on qualifying equipment.
Or email us at [email protected]
