Fiber Laser Cutting

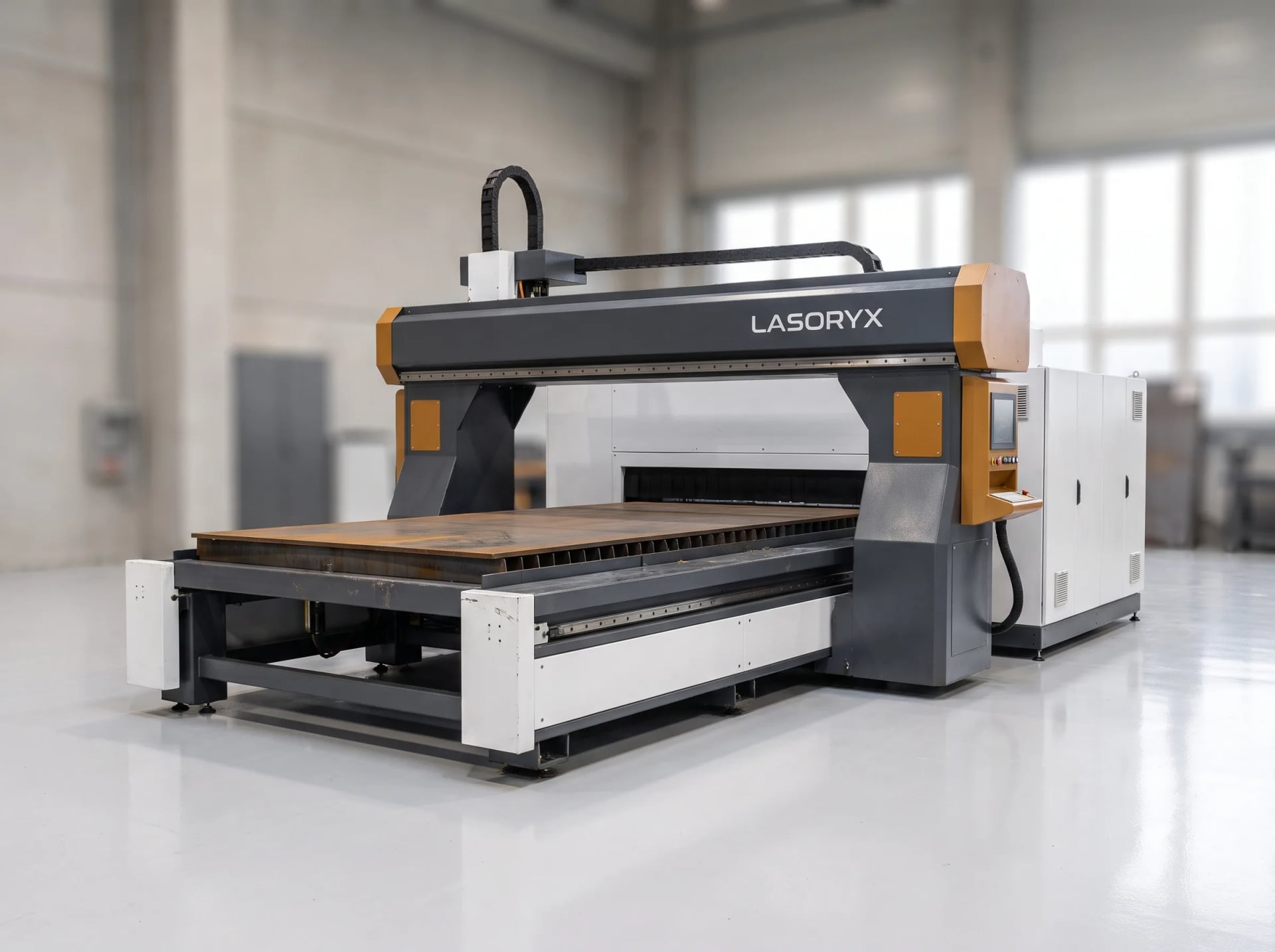

LX-8020 Titan
by Lasoryx
High-power 30 kW fiber laser with an 8' x 20' bed for heavy-plate production cutting.
2440 x 6100 mm (8' x 20')
Cutting bed
30,000 W (30 kW) in-house fiber laser source
Laser power
50 mm (2")
Mild steel max thickness
Not sure if the LX-8020 Titan is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Fabricators cutting thick plate in volume
- Shops replacing a plasma table with laser edge quality
- Heavy equipment and structural manufacturers
Cutting bed
2440 x 6100 mm (8' x 20')
Laser power
30,000 W (30 kW) in-house fiber laser source
Mild steel max thickness
50 mm (2")
Stainless steel max thickness
40 mm (1.6")
Key Features
LX-8020 Titan Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance
- Reinforced dual-drive gantry for heavy-plate accuracy
- Automatic capacitive height sensing across long plate runs
Ease of Operation
- Lasoryx Vector control with automatic pierce and lead-in optimization
- Remote diagnostics and cut-recipe updates
Safety & Reliability
- Full-perimeter enclosure with laser-safe viewing panels
- Heavy-duty fume extraction sized to plate cutting volume
Built-In Extras
- Auto gas changeover, nitrogen/oxygen/air
- High-pressure cutting head for thick carbon steel
Full Specifications
Lasoryx LX-8020 Titan Technical Details
Complete specifications, standard features, and optional upgrades.
- Cutting bed
- 2440 x 6100 mm (8' x 20')
- Laser power
- 30,000 W (30 kW) in-house fiber laser source
- Mild steel max thickness
- 50 mm (2")
- Stainless steel max thickness
- 40 mm (1.6")
- Aluminum max thickness
- 30 mm (1.2")
- Max positioning speed
- 150 m/min (5,906 in/min)
- Acceleration
- 1.4 G (reinforced heavy-plate gantry)
- Positioning accuracy
- ±0.05 mm (0.002")
- Repeatability
- ±0.03 mm (0.0012")
- Drive system
- Dual-drive rack-and-pinion, reinforced gantry
- Control
- Lasoryx Vector control, 21" touchscreen
- Assist gas
- Nitrogen, oxygen, compressed air
- Power requirement
- 400V/3-phase, 200A service
- Footprint
- 13.5 x 7.2 m (44' x 24')
| Cutting bed | 2440 x 6100 mm (8' x 20') |
| Laser power | 30,000 W (30 kW) in-house fiber laser source |
| Mild steel max thickness | 50 mm (2") |
| Stainless steel max thickness | 40 mm (1.6") |
| Aluminum max thickness | 30 mm (1.2") |
| Max positioning speed | 150 m/min (5,906 in/min) |
| Acceleration | 1.4 G (reinforced heavy-plate gantry) |
| Positioning accuracy | ±0.05 mm (0.002") |
| Repeatability | ±0.03 mm (0.0012") |
| Drive system | Dual-drive rack-and-pinion, reinforced gantry |
| Control | Lasoryx Vector control, 21" touchscreen |
| Assist gas | Nitrogen, oxygen, compressed air |
| Power requirement | 400V/3-phase, 200A service |
| Footprint | 13.5 x 7.2 m (44' x 24') |
- Reinforced dual-drive gantry for heavy-plate accuracy
- Lasoryx Vector control with automatic pierce and lead-in optimization
- High-pressure cutting head for thick carbon steel
- Full-perimeter enclosure with laser-safe viewing panels
- Automatic capacitive height sensing across long plate runs
- Auto gas changeover, nitrogen/oxygen/air
- Remote diagnostics and cut-recipe updates
- Heavy-duty fume extraction sized to plate cutting volume
- Motorized load/unload cart for full-size plate
- Second chiller for continuous heavy-duty-cycle cutting
- Bevel-cutting head upgrade
- Remote monitoring package
- Plate-marking camera for traceability
- Heavy structural steel fabrication
- Pressure vessel and tank components
- Off-highway and construction equipment parts
- Heavy transportation components
- Plate work migrating off plasma
FAQ
LX-8020 Titan Questions
Answers to common questions about the LX-8020 Titan.
Expect 14-18 weeks given the heavier gantry build; we confirm your exact ship date at order.
A 400V/3-phase, 200A service, with nitrogen and oxygen sized to plate-cutting volume — bottled or bulk tank depending on your throughput.
The Titan's reinforced gantry weighs roughly 9,000 kg. We spec the pad and coordinate rigging as part of installation — no special foundation beyond a flat, level floor at standard shop-floor loading.
Base machine, control, nesting licence, rigging and installation, cut-quality commissioning, and on-site operator and programmer training.
