Tube Laser Cutting

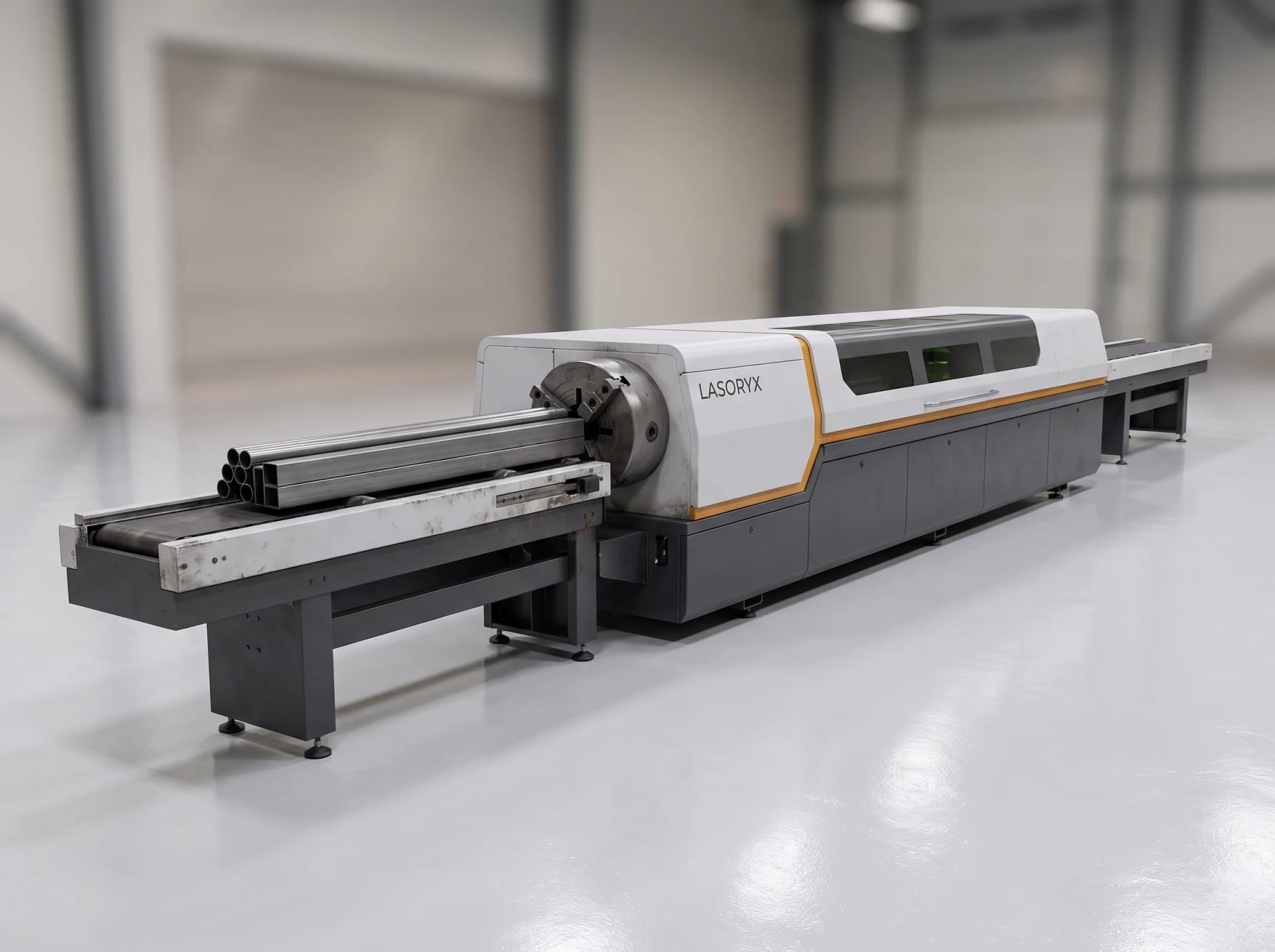

LXT-230
by Lasoryx
Heavy-duty tube laser cutting round, square and rectangular profile up to 230 mm across.
20 - 230 mm (0.8" - 9")
Tube diameter range (round)
20 x 20 mm to 200 x 200 mm (0.8" - 7.9")
Square/rectangular profile range
8 m (26')
Max bar length
Not sure if the LXT-230 is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Shops running heavy structural profile
- Truck, trailer and off-highway frame builders
- Fabricators cutting long bar lengths
Tube diameter range (round)
20 - 230 mm (0.8" - 9")
Square/rectangular profile range
20 x 20 mm to 200 x 200 mm (0.8" - 7.9")
Max bar length
8 m (26')
Max bar weight
40 kg/m (27 lb/ft)
Key Features
LXT-230 Features
Standard features that set this machine apart in demanding manufacturing environments.
Ease of Operation
- Automatic bar loader for unattended tube feeding
- Lasoryx Vector control with remnant-minimizing nesting
- Automatic profile-type detection at load
- Remote diagnostics and cut-recipe updates
Cutting Capability

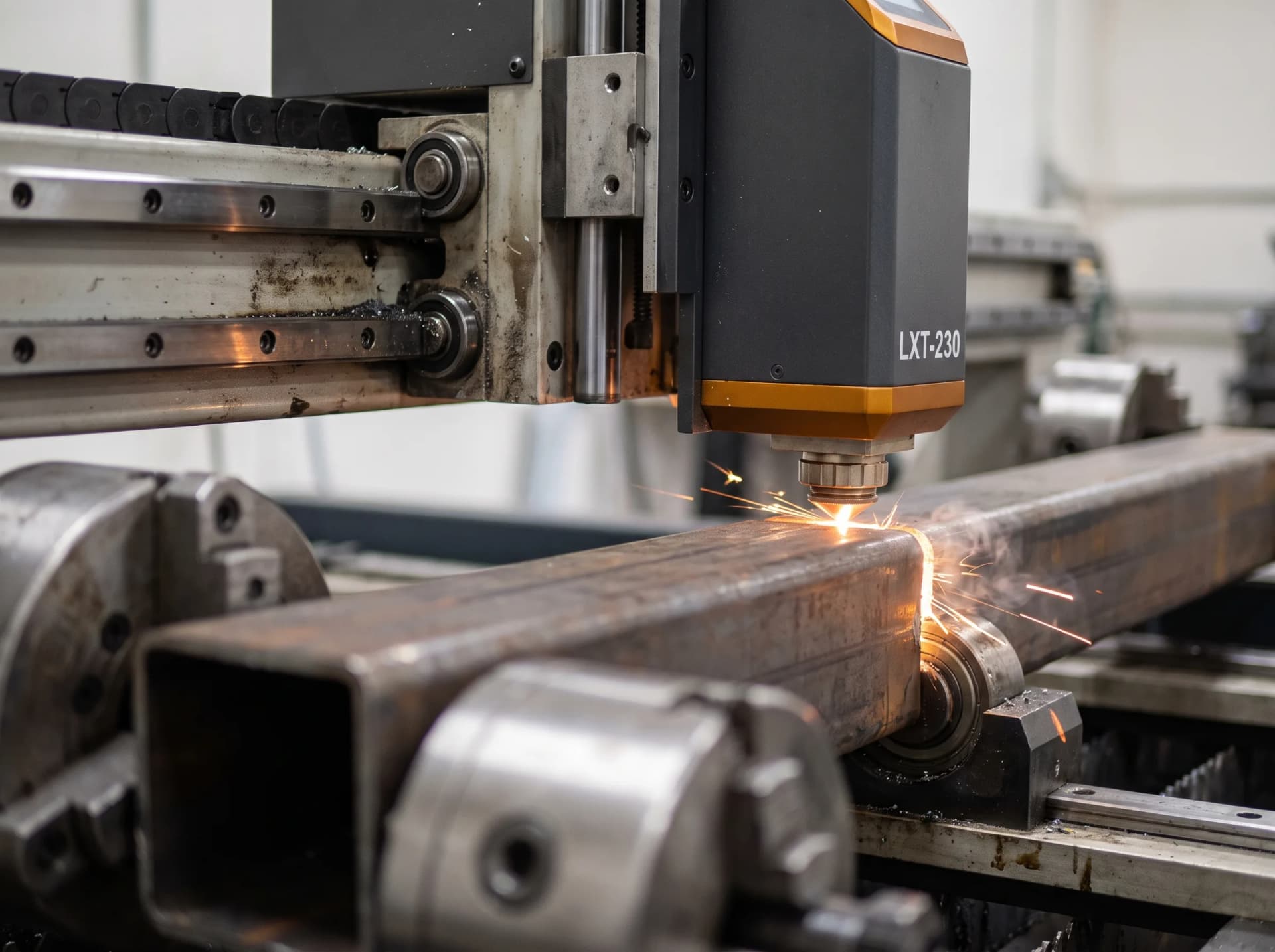

- Self-centring chuck for round, square and rectangular profile
- Compound miter and notch cutting in one setup
Built-In Extras
- Auto gas changeover, nitrogen/oxygen/air
- Integrated fume extraction
Full Specifications
Lasoryx LXT-230 Technical Details
Complete specifications, standard features, and optional upgrades.
- Tube diameter range (round)
- 20 - 230 mm (0.8" - 9")
- Square/rectangular profile range
- 20 x 20 mm to 200 x 200 mm (0.8" - 7.9")
- Max bar length
- 8 m (26')
- Max bar weight
- 40 kg/m (27 lb/ft)
- Laser power
- 6,000 W (6 kW) in-house fiber laser source
- Mild steel max wall thickness
- 12 mm (0.5")
- Stainless steel max wall thickness
- 8 mm (0.3")
- Max positioning speed
- 140 m/min (5,512 in/min)
- Chuck type
- Self-centring 3-jaw with auto bar loader
- Control
- Lasoryx Vector control, 21" touchscreen
- Assist gas
- Nitrogen, oxygen, compressed air
- Power requirement
- 400V/3-phase, 125A service
- Footprint
- 14 x 4.5 m (46' x 15') with bar loader
| Tube diameter range (round) | 20 - 230 mm (0.8" - 9") |
| Square/rectangular profile range | 20 x 20 mm to 200 x 200 mm (0.8" - 7.9") |
| Max bar length | 8 m (26') |
| Max bar weight | 40 kg/m (27 lb/ft) |
| Laser power | 6,000 W (6 kW) in-house fiber laser source |
| Mild steel max wall thickness | 12 mm (0.5") |
| Stainless steel max wall thickness | 8 mm (0.3") |
| Max positioning speed | 140 m/min (5,512 in/min) |
| Chuck type | Self-centring 3-jaw with auto bar loader |
| Control | Lasoryx Vector control, 21" touchscreen |
| Assist gas | Nitrogen, oxygen, compressed air |
| Power requirement | 400V/3-phase, 125A service |
| Footprint | 14 x 4.5 m (46' x 15') with bar loader |
- Automatic bar loader for unattended tube feeding
- Self-centring chuck for round, square and rectangular profile
- Lasoryx Vector control with remnant-minimizing nesting
- Compound miter and notch cutting in one setup
- Automatic profile-type detection at load
- Auto gas changeover, nitrogen/oxygen/air
- Remote diagnostics and cut-recipe updates
- Integrated fume extraction
- Extended bar loader magazine for longer unattended runs
- Angle and channel profile clamping package
- Remote monitoring package with SMS/email alerts
- Automatic part-unloading conveyor
- Structural steel and truck frame fabrication
- Agricultural equipment framing
- Architectural railing and structural tube
- Material handling and rack structures
FAQ
LXT-230 Questions
Answers to common questions about the LXT-230.
Typically 12-14 weeks from order, including the bar loader; we confirm the exact date at order.
A 400V/3-phase, 125A service, plus nitrogen and oxygen assist gas sized to your cutting volume.
Yes — on-site setup and nesting training is included, plus a test cut on your own tube stock at the Tech Centre before delivery.
Base machine, automatic bar loader, chuck, Lasoryx Vector control with nesting licence, rigging and installation, and operator/programmer training.
