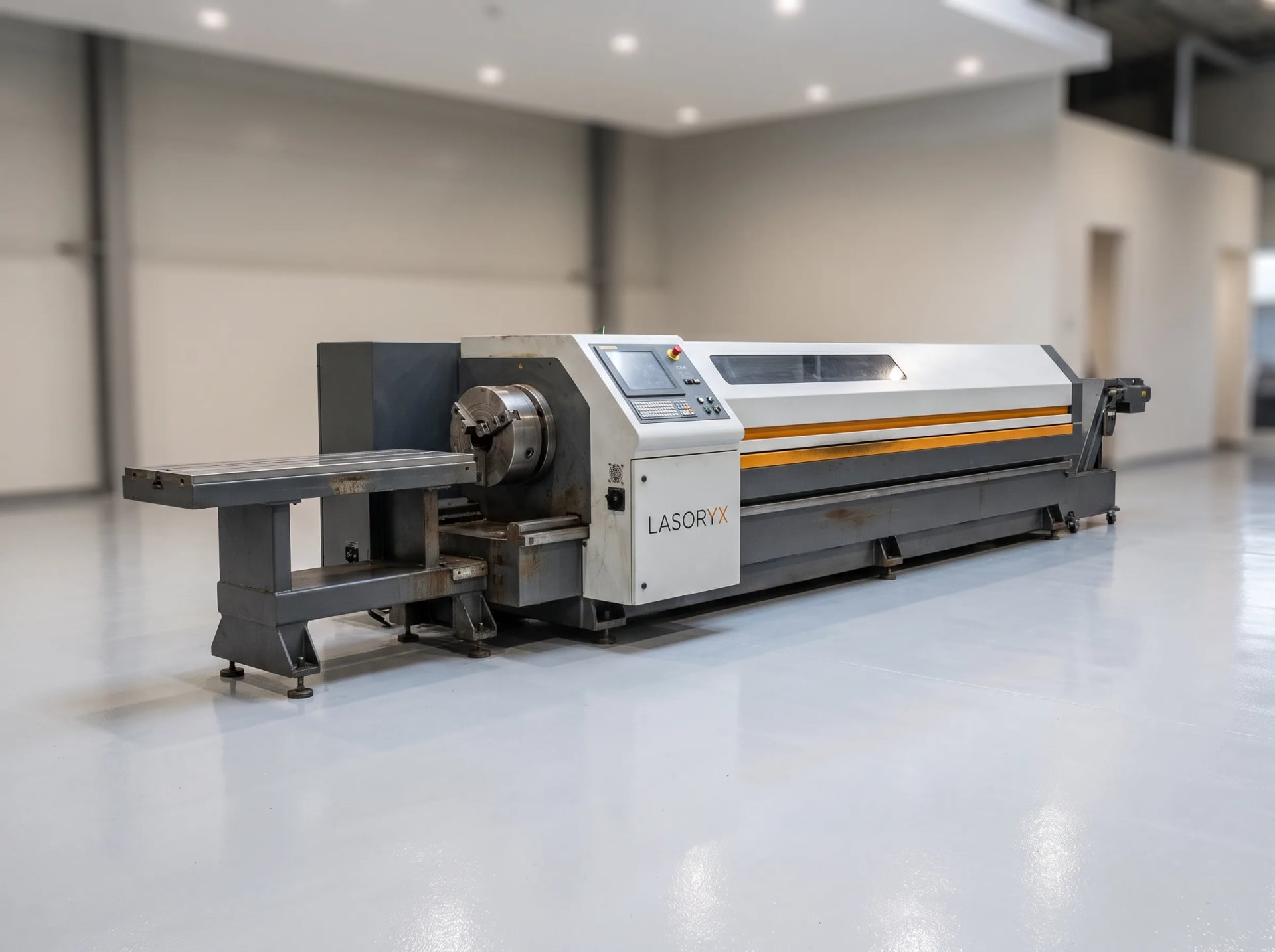

Tube Laser Cutting
LXT-65
by Lasoryx
Compact tube laser for round, square and rectangular profile up to 65 mm — a job shop's first tube laser.
12.7 - 65 mm (0.5" - 2.6")
Tube diameter range (round)
10 x 10 mm to 60 x 60 mm (0.4" - 2.4")
Square/rectangular profile range
6.5 m (21')
Max bar length
Not sure if the LXT-65 is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Job shops adding tube capability without heavy volume
- Architectural and furniture fabricators
- Shops with a mixed small-tube job book
Tube diameter range (round)
12.7 - 65 mm (0.5" - 2.6")
Square/rectangular profile range
10 x 10 mm to 60 x 60 mm (0.4" - 2.4")
Max bar length
6.5 m (21')
Max bar weight
20 kg/m (13 lb/ft)
Key Features
LXT-65 Features
Standard features that set this machine apart in demanding manufacturing environments.
Ease of Operation
- Lasoryx Vector control with remnant-minimizing nesting
- Compact single-chuck loading table
Cutting Capability
- Self-centring chuck for round, square and rectangular tube
- Compound miter and notch cutting in one setup
Built-In Extras
- Auto gas changeover, nitrogen/oxygen/air
- Integrated fume extraction
Full Specifications
Lasoryx LXT-65 Technical Details
Complete specifications, standard features, and optional upgrades.
- Tube diameter range (round)
- 12.7 - 65 mm (0.5" - 2.6")
- Square/rectangular profile range
- 10 x 10 mm to 60 x 60 mm (0.4" - 2.4")
- Max bar length
- 6.5 m (21')
- Max bar weight
- 20 kg/m (13 lb/ft)
- Laser power
- 3,000 W (3 kW) in-house fiber laser source
- Mild steel max wall thickness
- 6 mm (0.24")
- Stainless steel max wall thickness
- 4 mm (0.16")
- Max positioning speed
- 120 m/min (4,724 in/min)
- Chuck type
- Self-centring 3-jaw, manual bar loading
- Control
- Lasoryx Vector control, 15" touchscreen
- Assist gas
- Nitrogen, oxygen, compressed air
- Power requirement
- 400V/3-phase, 80A service
- Footprint
- 9 x 3.5 m (30' x 11.5')
| Tube diameter range (round) | 12.7 - 65 mm (0.5" - 2.6") |
| Square/rectangular profile range | 10 x 10 mm to 60 x 60 mm (0.4" - 2.4") |
| Max bar length | 6.5 m (21') |
| Max bar weight | 20 kg/m (13 lb/ft) |
| Laser power | 3,000 W (3 kW) in-house fiber laser source |
| Mild steel max wall thickness | 6 mm (0.24") |
| Stainless steel max wall thickness | 4 mm (0.16") |
| Max positioning speed | 120 m/min (4,724 in/min) |
| Chuck type | Self-centring 3-jaw, manual bar loading |
| Control | Lasoryx Vector control, 15" touchscreen |
| Assist gas | Nitrogen, oxygen, compressed air |
| Power requirement | 400V/3-phase, 80A service |
| Footprint | 9 x 3.5 m (30' x 11.5') |
- Self-centring chuck for round, square and rectangular tube
- Lasoryx Vector control with remnant-minimizing nesting
- Compound miter and notch cutting in one setup
- Auto gas changeover, nitrogen/oxygen/air
- Compact single-chuck loading table
- Integrated fume extraction
- Automatic bar loader upgrade
- Angle profile clamping package
- Remote monitoring package
- Architectural railing and handrail
- Furniture and store-fixture framing
- Light structural brackets
- Small equipment framing
FAQ
LXT-65 Questions
Answers to common questions about the LXT-65.
Typically 8-10 weeks from order; we confirm the exact date when you place it.
A 400V/3-phase, 80A service. Bottled nitrogen and oxygen are fine at this duty cycle.
Yes — lease and term financing structured around your monthly cutting volume.
Base machine, chuck, Lasoryx Vector control with nesting licence, rigging and installation, and operator training.
