Vertical Machining Centres

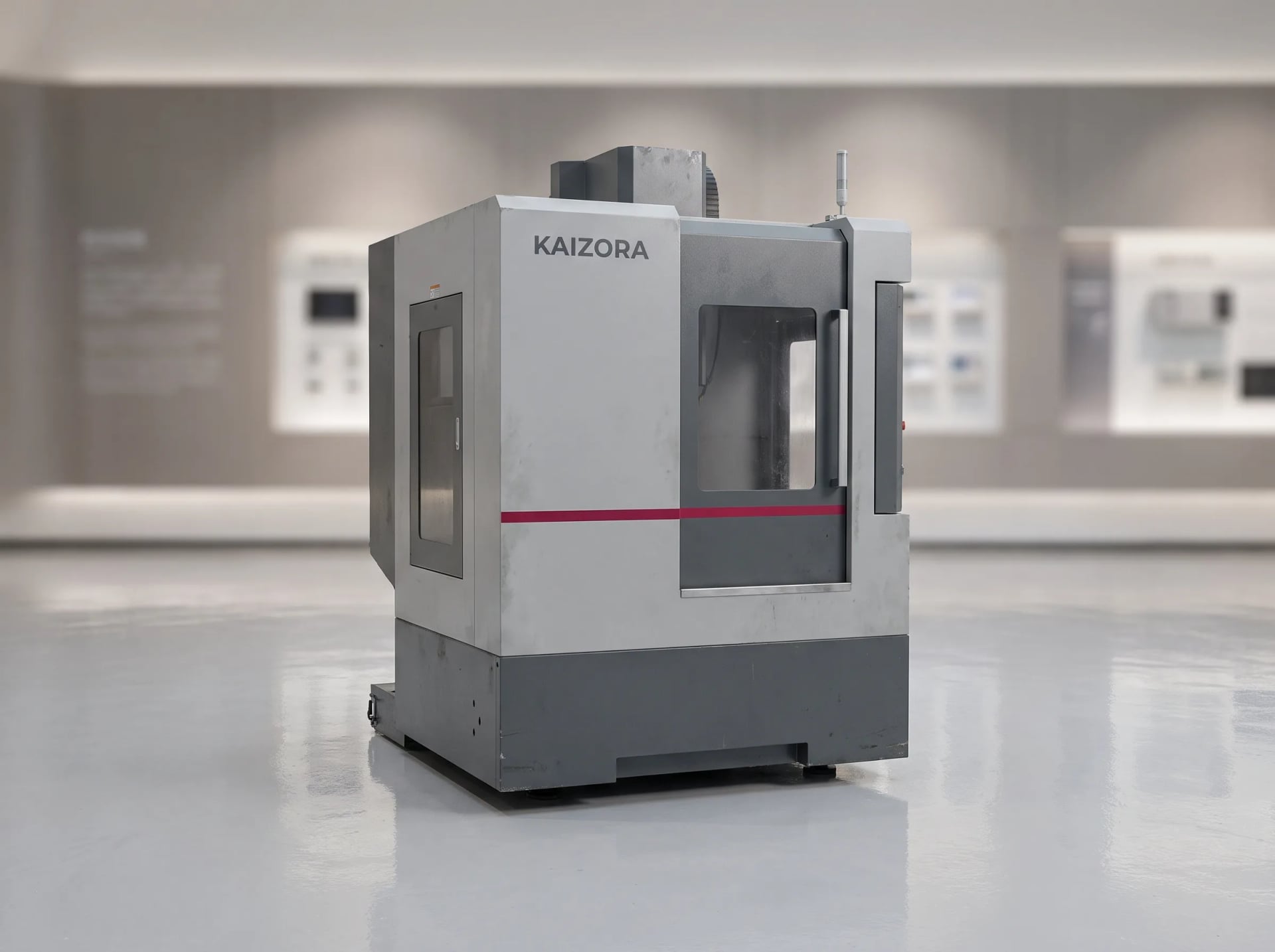

KV-560
by Kaizora
Compact 560 mm-travel VMC built for job shops running mixed small-to-mid parts all day.
560 x 460 x 510 mm (22.0 x 18.1 x 20.1 in)
X / Y / Z travel
700 x 400 mm (27.6 x 15.7 in)
Table size
400 kg (880 lb)
Max table load
Not sure if the KV-560 is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Job shops running mixed small-to-mid part families
- Shops with a tight machine footprint
- First-time CNC buyers who want room to grow into 4th-axis work
- Toolroom and prototype departments
X / Y / Z travel
560 x 460 x 510 mm (22.0 x 18.1 x 20.1 in)
Table size
700 x 400 mm (27.6 x 15.7 in)
Max table load
400 kg (880 lb)
Spindle taper
BT40 (#40)
Key Features
KV-560 Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance
- BT40 direct-drive spindle, no belts or gears to maintain
- Box-way linear guides on X, Y and Z for rigidity under heavy cuts
- Rigid tapping and high-speed cycle software standard
Ease of Operation
- 24-station side-mount arm tool changer
- Kaizora Nexa 5 control with conversational and full G-code programming
- Programmable coolant nozzle and through-tool coolant ready
- Remote diagnostics port for Tollaston service technicians
Built-In Extras
- Fully enclosed splash guarding with interlocked sliding doors
Full Specifications
Kaizora KV-560 Technical Details
Complete specifications, standard features, and optional upgrades.
- X / Y / Z travel
- 560 x 460 x 510 mm (22.0 x 18.1 x 20.1 in)
- Table size
- 700 x 400 mm (27.6 x 15.7 in)
- Max table load
- 400 kg (880 lb)
- Spindle taper
- BT40 (#40)
- Spindle speed
- 12,000 rpm (15,000 rpm optional)
- Spindle motor power
- 11 kW (14.7 hp) continuous
- Spindle torque
- 70 Nm (52 lb-ft)
- Rapid traverse (X/Y/Z)
- 36 m/min (1,417 ipm)
- Tool capacity
- 24 stations, side-mount arm changer
- Tool-to-tool change time
- 1.8 sec
- Positioning accuracy
- ±0.005 mm (0.0002 in) full travel
- Repeatability
- ±0.003 mm (0.00012 in)
- Control
- Kaizora Nexa 5 control
- Coolant tank capacity
- 250 L (66 gal)
| X / Y / Z travel | 560 x 460 x 510 mm (22.0 x 18.1 x 20.1 in) |
| Table size | 700 x 400 mm (27.6 x 15.7 in) |
| Max table load | 400 kg (880 lb) |
| Spindle taper | BT40 (#40) |
| Spindle speed | 12,000 rpm (15,000 rpm optional) |
| Spindle motor power | 11 kW (14.7 hp) continuous |
| Spindle torque | 70 Nm (52 lb-ft) |
| Rapid traverse (X/Y/Z) | 36 m/min (1,417 ipm) |
| Tool capacity | 24 stations, side-mount arm changer |
| Tool-to-tool change time | 1.8 sec |
| Positioning accuracy | ±0.005 mm (0.0002 in) full travel |
| Repeatability | ±0.003 mm (0.00012 in) |
| Control | Kaizora Nexa 5 control |
| Coolant tank capacity | 250 L (66 gal) |
- BT40 direct-drive spindle, no belts or gears to maintain
- Box-way linear guides on X, Y and Z for rigidity under heavy cuts
- 24-station side-mount arm tool changer
- Kaizora Nexa 5 control with conversational and full G-code programming
- Rigid tapping and high-speed cycle software standard
- Fully enclosed splash guarding with interlocked sliding doors
- Programmable coolant nozzle and through-tool coolant ready
- Remote diagnostics port for Tollaston service technicians
- 15,000 rpm high-speed spindle package
- 4th-axis rotary table interface (pre-wired)
- Through-spindle coolant, 20 bar
- Chip auger and conveyor
- Automatic tool length probing and work offset probing
- Prototype and short-run production for job shops
- Aluminum and mild steel component machining
- Toolroom and mold-base work
- First CNC purchase for shops moving off manual mills
- Education and apprenticeship programs
FAQ
KV-560 Questions
Answers to common questions about the KV-560.
Stocked units ship from Vaughan in 2-4 weeks; a build-to-order unit with options typically runs 10-12 weeks. Our applications engineers confirm your exact date at quote stage.
208-230V or 460V three-phase depending on your configuration, roughly 20 kVA, plus clean shop air at 90 psi for the tool changer and doors. Our install team confirms exact draw from your machine's nameplate before delivery.
Yes. Every KV-560 includes on-site operator and programming training at installation, and our Vaughan Tech Centre runs Kaizora Nexa 5 control classes throughout the year for new hires.
The KV-560 ships with a standard BT40 tool holder starter kit and a rigid tapping/probing software package. We quote a full tooling package matched to your first parts during the sales process.
