Vertical Machining Centres

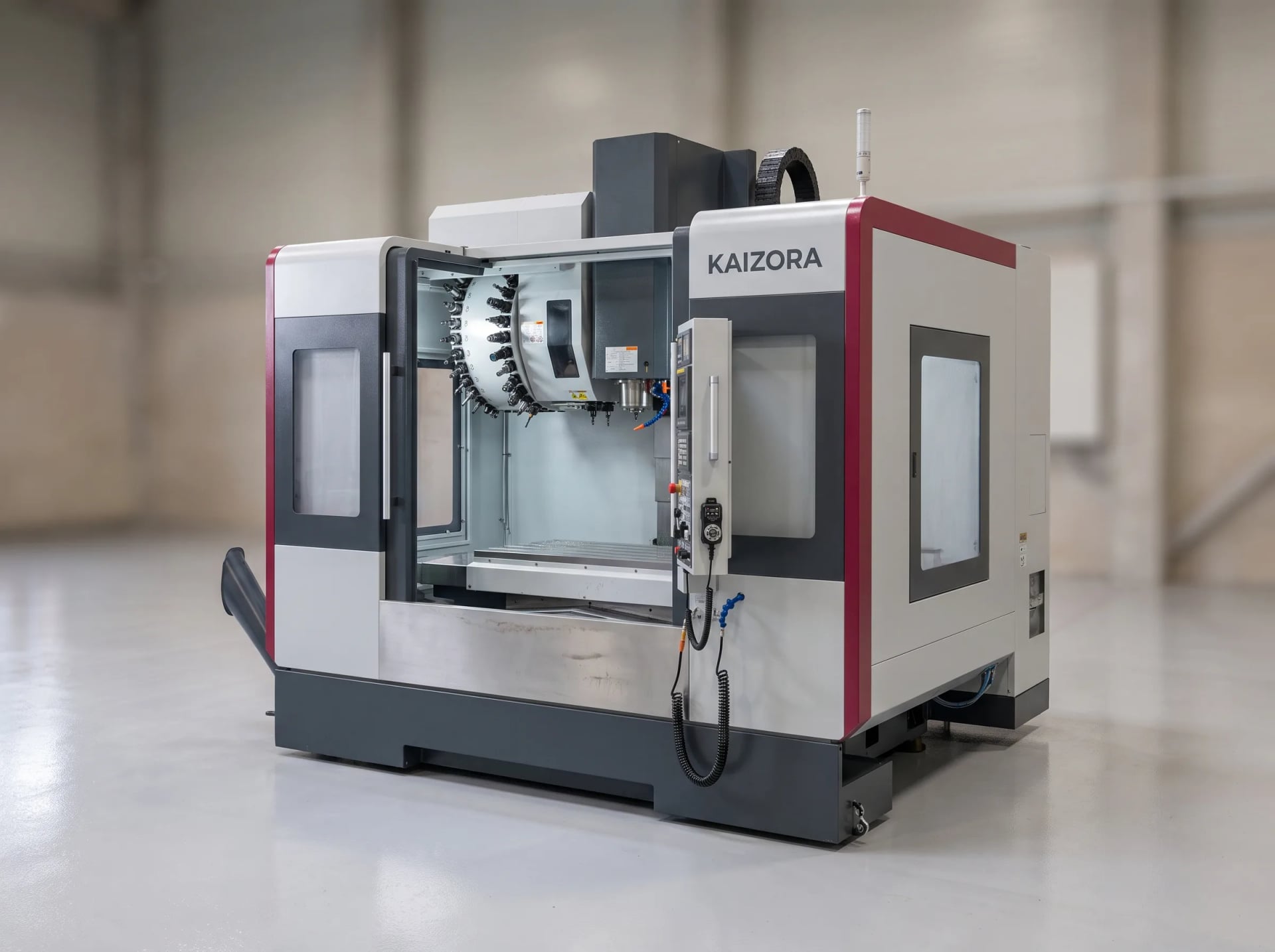

KV-800
by Kaizora
Kaizora's best-selling mid-size VMC, sized for real production runs without a production footprint.
800 x 500 x 550 mm (31.5 x 19.7 x 21.7 in)
X / Y / Z travel
900 x 500 mm (35.4 x 19.7 in)
Table size
700 kg (1,543 lb)
Max table load
Not sure if the KV-800 is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Shops scaling from prototype into repeatable production
- Contract manufacturers running multiple part families per week
- Operations that need unattended multi-hour cycles
- Buyers who want a documented time study before they commit
X / Y / Z travel
800 x 500 x 550 mm (31.5 x 19.7 x 21.7 in)
Table size
900 x 500 mm (35.4 x 19.7 in)
Max table load
700 kg (1,543 lb)
Spindle taper
BT40 (#40), HSK-A63 optional
Key Features
KV-800 Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance

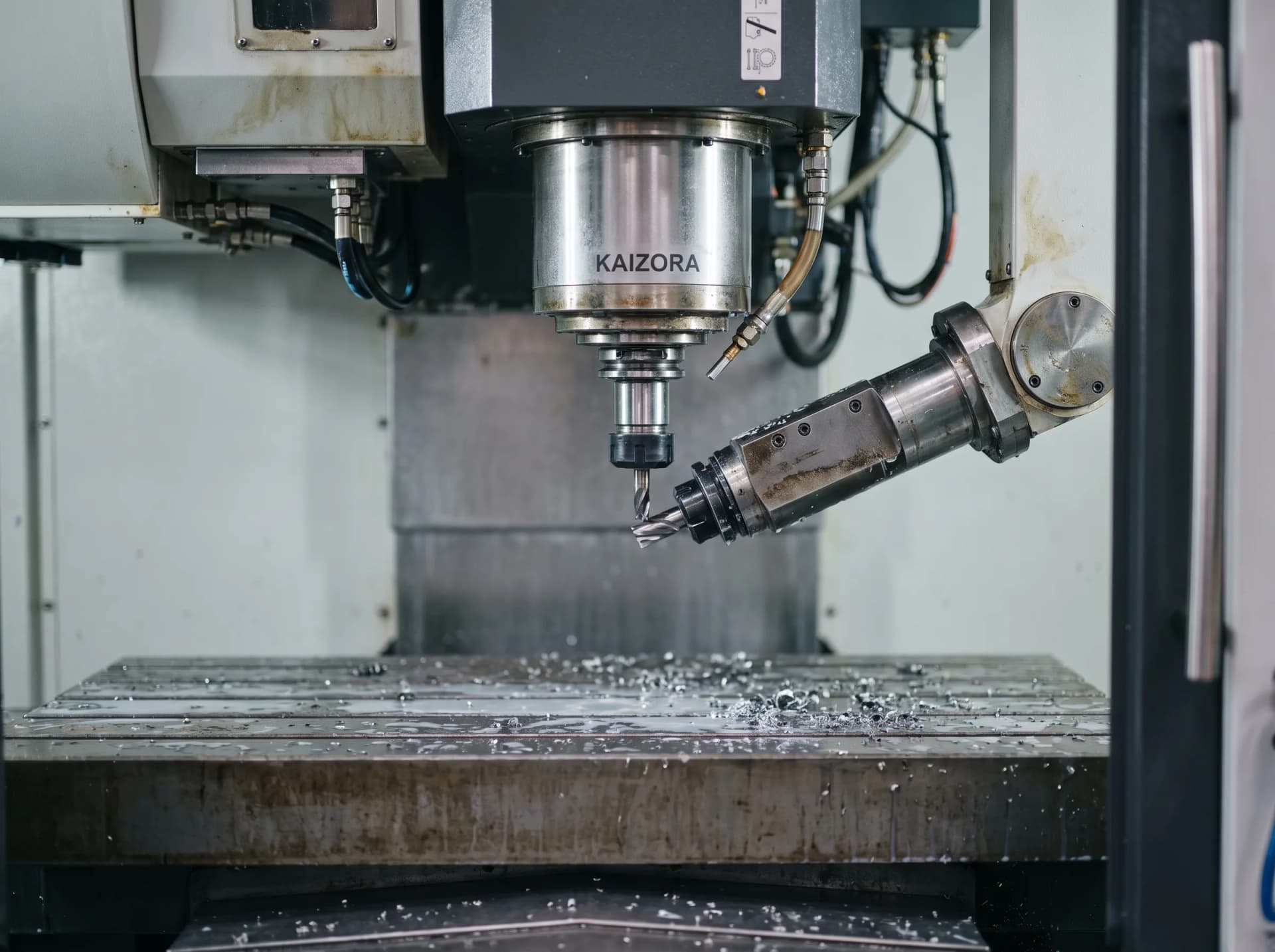

- 15 kW BT40 direct-drive spindle with HSK-A63 option
- Rigid tapping, high-speed machining and 5-axis-ready look-ahead software
Ease of Operation
- 30-station chain-type tool changer, 1.5 sec tool-to-tool
- Box-way guides on X/Y/Z rated for continuous production load
- Kaizora Nexa 5 control with collision-avoidance simulation
- 700 kg table load rating for large or multi-part fixturing
- Remote diagnostics and OEE production monitoring standard
Built-In Extras
- Full enclosure with mist collection port
Full Specifications
Kaizora KV-800 Technical Details
Complete specifications, standard features, and optional upgrades.
- X / Y / Z travel
- 800 x 500 x 550 mm (31.5 x 19.7 x 21.7 in)
- Table size
- 900 x 500 mm (35.4 x 19.7 in)
- Max table load
- 700 kg (1,543 lb)
- Spindle taper
- BT40 (#40), HSK-A63 optional
- Spindle speed
- 12,000 rpm standard, 15,000 / 20,000 rpm optional
- Spindle motor power
- 15 kW (20 hp) continuous
- Spindle torque
- 95 Nm (70 lb-ft)
- Rapid traverse (X/Y/Z)
- 40 m/min (1,575 ipm)
- Tool capacity
- 30 stations standard, 40 optional
- Tool-to-tool change time
- 1.5 sec
- Positioning accuracy
- ±0.005 mm (0.0002 in) full travel
- Repeatability
- ±0.003 mm (0.00012 in)
- Control
- Kaizora Nexa 5 control
- Through-spindle coolant
- 20 bar, optional
| X / Y / Z travel | 800 x 500 x 550 mm (31.5 x 19.7 x 21.7 in) |
| Table size | 900 x 500 mm (35.4 x 19.7 in) |
| Max table load | 700 kg (1,543 lb) |
| Spindle taper | BT40 (#40), HSK-A63 optional |
| Spindle speed | 12,000 rpm standard, 15,000 / 20,000 rpm optional |
| Spindle motor power | 15 kW (20 hp) continuous |
| Spindle torque | 95 Nm (70 lb-ft) |
| Rapid traverse (X/Y/Z) | 40 m/min (1,575 ipm) |
| Tool capacity | 30 stations standard, 40 optional |
| Tool-to-tool change time | 1.5 sec |
| Positioning accuracy | ±0.005 mm (0.0002 in) full travel |
| Repeatability | ±0.003 mm (0.00012 in) |
| Control | Kaizora Nexa 5 control |
| Through-spindle coolant | 20 bar, optional |
- 15 kW BT40 direct-drive spindle with HSK-A63 option
- 30-station chain-type tool changer, 1.5 sec tool-to-tool
- Box-way guides on X/Y/Z rated for continuous production load
- Kaizora Nexa 5 control with collision-avoidance simulation
- 700 kg table load rating for large or multi-part fixturing
- Rigid tapping, high-speed machining and 5-axis-ready look-ahead software
- Full enclosure with mist collection port
- Remote diagnostics and OEE production monitoring standard
- HSK-A63 spindle taper upgrade
- 20,000 rpm high-speed spindle package
- 4th-axis rotary table interface, pre-wired and pre-mapped
- 40-station tool magazine upgrade
- Automatic tool and work probing package
- High-pressure through-spindle coolant, 70 bar
- Multi-shift production machining of steel, stainless and aluminum
- Fixture-plate work holding multiple parts per cycle
- Mold and die component finishing
- Contract manufacturing with frequent job changeovers
- Aerospace and industrial component machining
FAQ
KV-800 Questions
Answers to common questions about the KV-800.
Yes — send us a print or sample part and our applications engineers run an actual test cut in the Vaughan Tech Centre, then hand you a documented cycle time and a video of the run.
Tollaston works with several equipment lenders offering term loans and lease-to-own structures; our sales team can put together side-by-side numbers once we have your quote finalized.
Delivery quotes include forklift/rigger coordination to your dock and machine placement on a standard shop floor; a specialized foundation or crane pick is scoped separately during your site survey.
The KV-800 has larger travels, a heavier table load rating and a stronger spindle, aimed at production runs rather than prototype and toolroom work — see the comparison table on this page for the full spec differences.
