Vertical Machining Centres

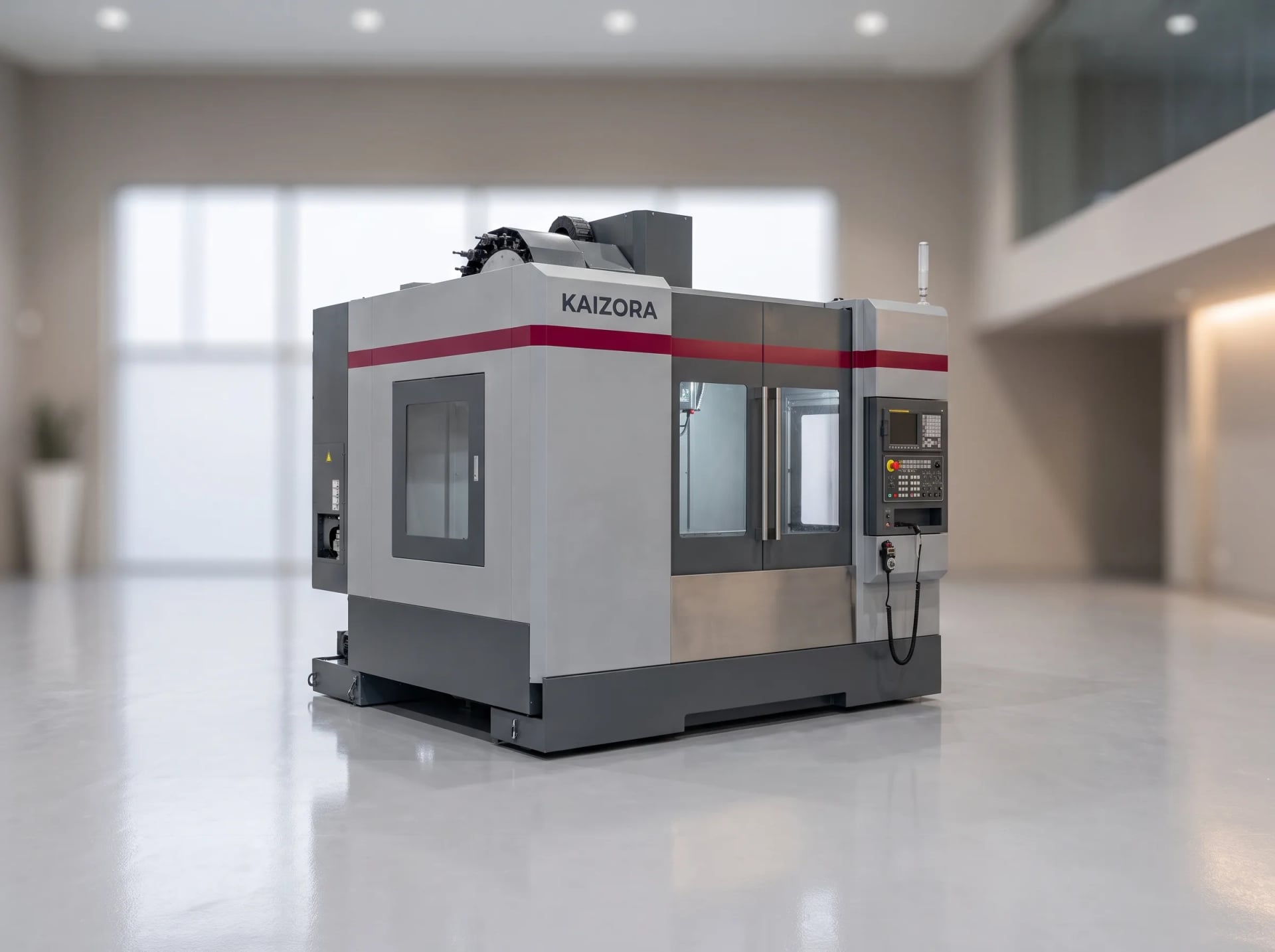

KV-1100
by Kaizora
Large-table Kaizora VMC for heavy fixtures, oversized parts and BT50 horsepower.
1,100 x 600 x 650 mm (43.3 x 23.6 x 25.6 in)
X / Y / Z travel
1,300 x 600 mm (51.2 x 23.6 in)
Table size
1,200 kg (2,646 lb)
Max table load
Not sure if the KV-1100 is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Die/mold shops running large tooling
- Heavy-industrial contract manufacturers
- Shops that need BT50 torque without a second machine
- Fixtured multi-part production on a large table
X / Y / Z travel
1,100 x 600 x 650 mm (43.3 x 23.6 x 25.6 in)
Table size
1,300 x 600 mm (51.2 x 23.6 in)
Max table load
1,200 kg (2,646 lb)
Spindle taper
BT50 (#50)
Key Features
KV-1100 Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance
- 22 kW BT50 spindle for heavy roughing in steel and cast iron
- Thermal growth compensation on spindle and column
Ease of Operation
- 1,200 kg table load rating for oversized parts and fixtures
- Kaizora Nexa 5 control with adaptive feed-rate control
- Twin-screen operator station with production dashboard
- Heavy-duty chip conveyor standard
Built-In Extras
- 40-station chain-type tool magazine
- Reinforced box-way construction on all three axes
Full Specifications
Kaizora KV-1100 Technical Details
Complete specifications, standard features, and optional upgrades.
- X / Y / Z travel
- 1,100 x 600 x 650 mm (43.3 x 23.6 x 25.6 in)
- Table size
- 1,300 x 600 mm (51.2 x 23.6 in)
- Max table load
- 1,200 kg (2,646 lb)
- Spindle taper
- BT50 (#50)
- Spindle speed
- 8,000 rpm standard, 10,000 rpm optional
- Spindle motor power
- 22 kW (29.5 hp) continuous
- Spindle torque
- 220 Nm (162 lb-ft)
- Rapid traverse (X/Y/Z)
- 32 m/min (1,260 ipm)
- Tool capacity
- 40 stations, chain-type magazine
- Tool-to-tool change time
- 2.5 sec
- Positioning accuracy
- ±0.006 mm (0.00024 in) full travel
- Repeatability
- ±0.004 mm (0.00016 in)
- Control
- Kaizora Nexa 5 control
- Machine weight
- 9,200 kg (20,282 lb)
| X / Y / Z travel | 1,100 x 600 x 650 mm (43.3 x 23.6 x 25.6 in) |
| Table size | 1,300 x 600 mm (51.2 x 23.6 in) |
| Max table load | 1,200 kg (2,646 lb) |
| Spindle taper | BT50 (#50) |
| Spindle speed | 8,000 rpm standard, 10,000 rpm optional |
| Spindle motor power | 22 kW (29.5 hp) continuous |
| Spindle torque | 220 Nm (162 lb-ft) |
| Rapid traverse (X/Y/Z) | 32 m/min (1,260 ipm) |
| Tool capacity | 40 stations, chain-type magazine |
| Tool-to-tool change time | 2.5 sec |
| Positioning accuracy | ±0.006 mm (0.00024 in) full travel |
| Repeatability | ±0.004 mm (0.00016 in) |
| Control | Kaizora Nexa 5 control |
| Machine weight | 9,200 kg (20,282 lb) |
- 22 kW BT50 spindle for heavy roughing in steel and cast iron
- 1,200 kg table load rating for oversized parts and fixtures
- 40-station chain-type tool magazine
- Reinforced box-way construction on all three axes
- Kaizora Nexa 5 control with adaptive feed-rate control
- Thermal growth compensation on spindle and column
- Twin-screen operator station with production dashboard
- Heavy-duty chip conveyor standard
- 10,000 rpm spindle upgrade for aluminum-heavy work
- 4th-axis rotary table interface, heavy-duty rated
- High-pressure through-spindle coolant, 70 bar
- 60-station tool magazine upgrade
- In-process gauging and automatic work probing
- Mold base and die-set machining
- Heavy fixture and jig manufacturing
- Large structural component machining in steel and cast iron
- Oil & gas and heavy-equipment component work
- Multi-operation parts needing both roughing and finishing
FAQ
KV-1100 Questions
Answers to common questions about the KV-1100.
A standard reinforced shop floor rated for the machine's 9,200 kg weight is sufficient for most sites; our install team reviews your floor plan and access route during the site survey before delivery.
Yes — the BT50 spindle is set up for heavy metal removal, and the same ±0.006 mm positioning accuracy carries through to finish passes, so many customers do both on this one machine.
Typically 12-16 weeks build-to-order given the larger casting and BT50 spindle package; we'll confirm your exact ship date once the quote is finalized.
Yes, Tollaston's Vaughan parts warehouse carries common BT50 holders and can special-order less common tooling with next-day availability from our suppliers.
