Tollaston Machinery · Authorized dealer
Authorized Ferroniq dealer in Canada and the US
Ferroniq press brakes and panel benders, demonstrated at our Tech Centre and supported coast to coast.
3
Models we supply
1994
In business since
Vaughan, ON
Parts and service
Ferroniq builds press brakes and panel benders, and Tollaston is an authorized dealer across Canada and the US. The line is European-engineered and suits fabricators bending everything from job-shop parts to long panels and high-volume boxes and trays. We carry the FE-135 Servo, FH-320 Tandem and FP-2500 Panel, all sharing the Ferroniq Arc 19 control. Every purchase includes a real test on your own material or parts at our Vaughan Tech Centre, applications engineering from your first quote through your first production run, Ferroniq parts stocked in our Vaughan warehouse, and factory-trained service technicians across Canada and the US.
The lineup
Ferroniq machines we carry
Grouped by what they do. Every one of these is quoted, installed, and serviced by our own team.
Press Brakes & Panel Folders
See all Press Brakes & Panel Folders at Tollaston
Servo-electric press brake

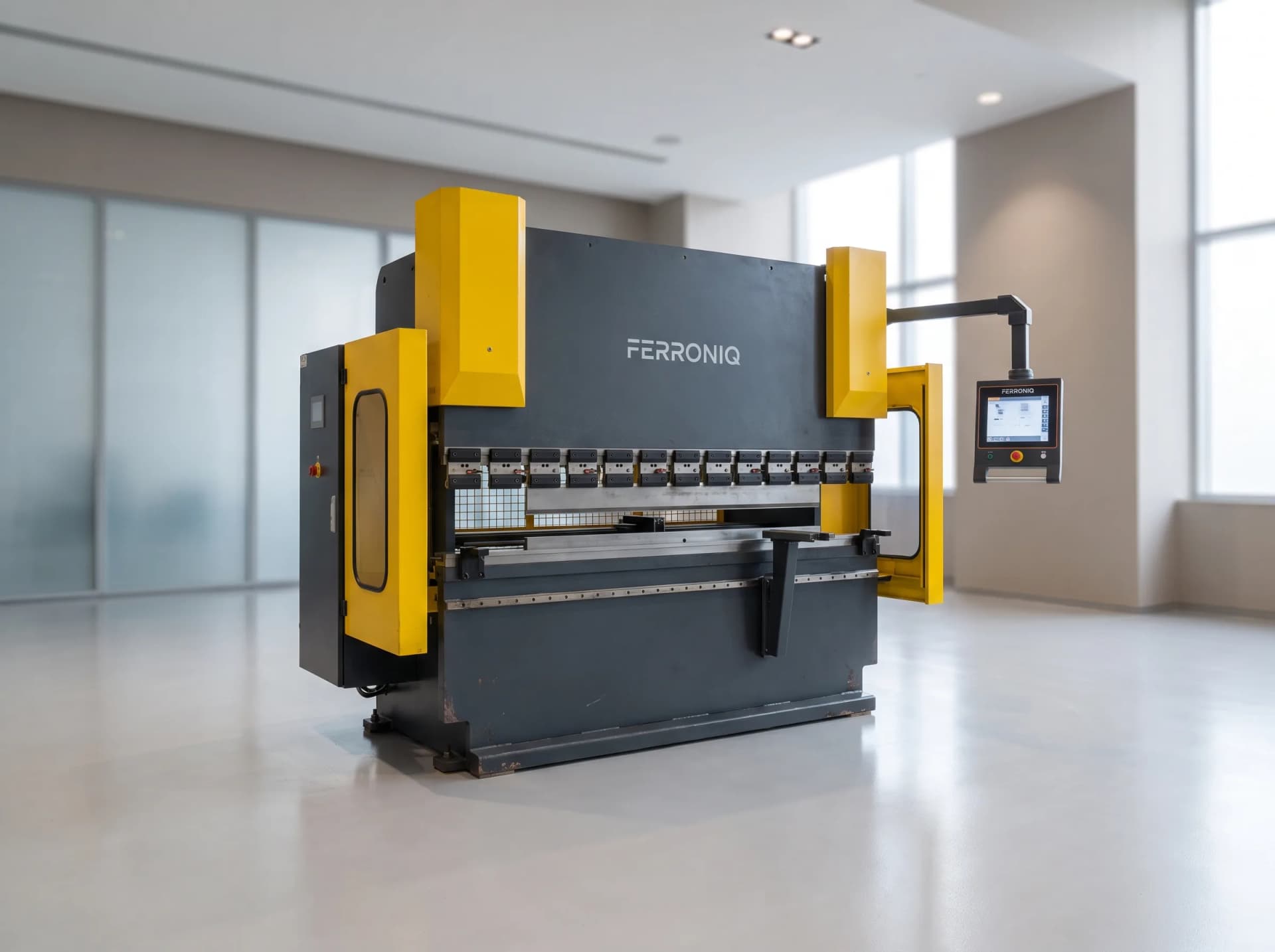

FE-135 Servo
The FE-135 Servo replaces a hydraulic power pack with a servo-electric drive, so it draws power only during the bend itself, runs noticeably quieter, and needs no hydraulic oil to maintain. Rated at 135 US tons over a 3000 mm (10') bending length, it holds bend-to-bend repeatability tighter than a comparable hydraulic brake and starts up ready to bend with no oil warm-up cycle. A 4-axis CNC back gauge and the Ferroniq Arc 19 touchscreen control handle multi-bend part programs from a graphical sequence editor. Tollaston sets up and levels the brake, programs your first parts, and trains your operators on tooling and bend-sequence setup.
- Tonnage
- 135 US tons (1,200 kN)
- Bending length
- 3000 mm (10')
- Stroke
- 250 mm (9.8")
- Daylight (open height)
- 420 mm (16.5")
Hydraulic press brake

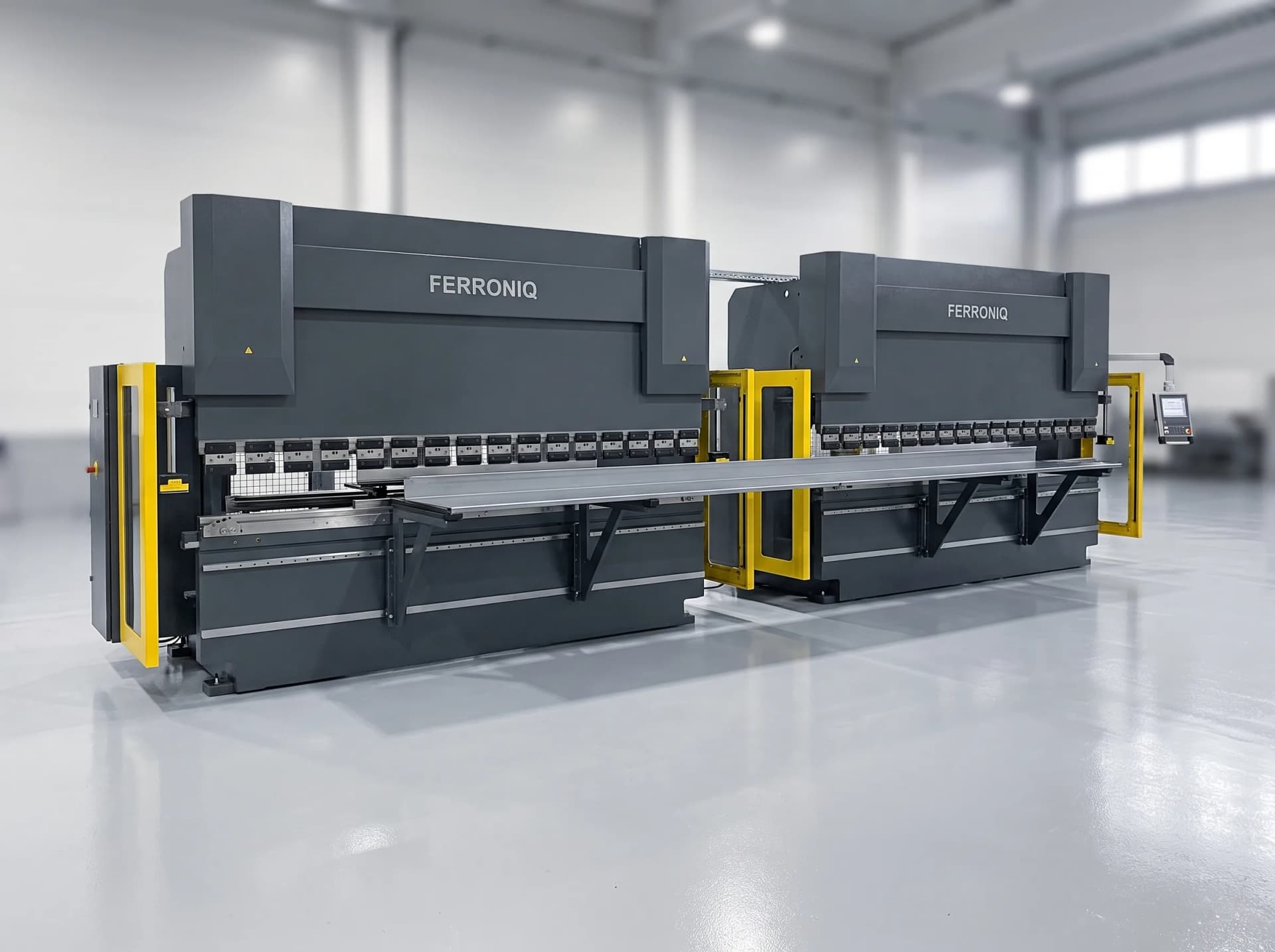

FH-320 Tandem
The FH-320 Tandem is Ferroniq's heavy hydraulic press brake, rated at 320 US tons over a 6000 mm (20') bending length and built from the ground up to synchronize with a second FH-320 for tandem bends beyond any single brake's length. Twin synchronized hydraulic cylinders and a 6-axis CNC back gauge (X, R, Z1, Z2, X1, X2) hold position across the full bed, and automatic CNC crowning keeps the bend angle consistent end to end even on thin material. The Ferroniq Arc 19 touchscreen control programs bend sequences and tandem synchronization from one screen. Tollaston installs and levels the brake, runs a test bend on your own material, and trains your operators on tandem setup and tooling changeover.
- Tonnage
- 320 US tons (2,850 kN)
- Bending length
- 6000 mm (20')
- Tandem bending length
- Up to 12,000 mm (40') with a second FH-320
- Stroke
- 400 mm (15.7")
CNC panel folder

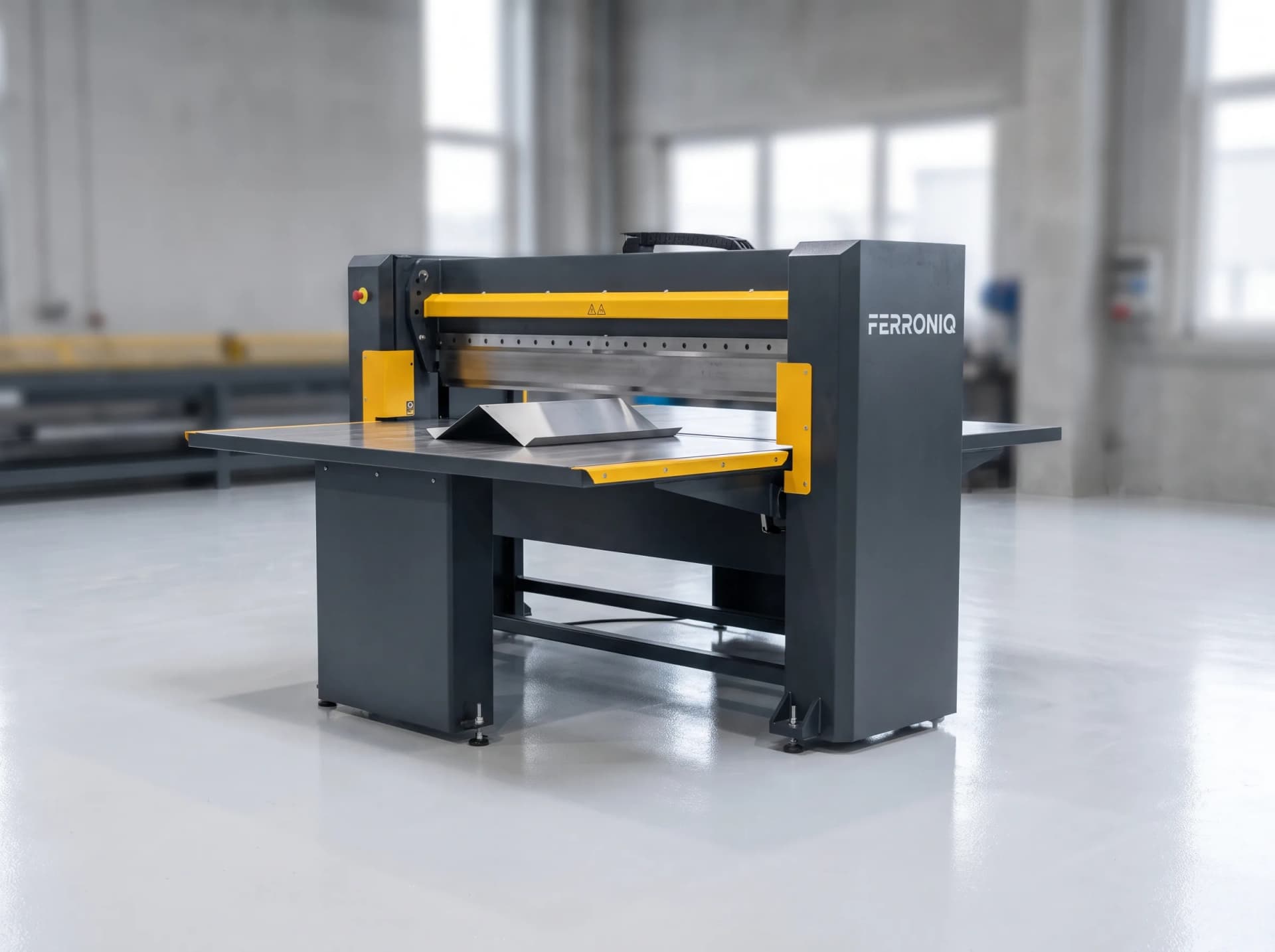

FP-2500 Panel
The FP-2500 Panel automates the up-and-down bending that would otherwise take a press brake and a second set of hands. A blade-and-beam bending head folds sheet up to 2500 x 1250 mm (98" x 49") and 3 mm (0.12") mild steel — 2.5 mm (0.1") stainless — while the sheet stays flat on the table, so one operator loads and programs box, tray and enclosure parts with every bend angle and sequence stored as a part program. The Ferroniq Arc 19 touchscreen control calls up to 200 stored programs and drives the motorized back gauge and blade positioning automatically between bends. Tollaston installs, programs your first parts library, and trains your team on the workflow.
- Max sheet size
- 2500 x 1250 mm (98" x 49")
- Max thickness, mild steel
- 3 mm (0.12")
- Max thickness, stainless steel
- 2.5 mm (0.1")
- Max thickness, aluminum
- 4 mm (0.16")
Why us
Why buy Ferroniq from Tollaston Machinery
Proven at the Tech Centre
Every Ferroniq quote comes with a real test on your own material or parts at our Vaughan Tech Centre, not a catalogue cycle time.
Applications engineering included
Our applications engineers build your process, program your first parts and train your team on every Ferroniq machine we sell.
Parts stocked in Vaughan
Common Ferroniq spindle, tooling and electrical components are on our own shelves, not on a boat from overseas.
Coast-to-coast service
Factory-trained technicians cover installation, preventive maintenance and emergency calls on Ferroniq equipment across Canada and the US.
FAQ
Ferroniq at Tollaston Machinery: common questions
Answers to common questions about our ferroniq products.
Yes. We are an authorized Ferroniq dealer across Canada and the US. We quote the machines, install and commission them, train your team, and service them afterward with our own factory-trained technicians.
We carry the FE-135 Servo, FH-320 Tandem and FP-2500 Panel. The current lineup and specifications are listed on this page.
Yes. We service Ferroniq equipment whether or not we supplied it. Send us the model and we will tell you what our technicians can cover and what parts we have on the shelf.
We hold common Ferroniq spare parts and consumables in our Vaughan warehouse. Anything not on the shelf, we order directly and give you a lead time before you commit.
Request a quote from this page or call your local branch. We'll ask about your parts, material and volume before quoting, so the machine matches the work rather than the other way around.
Not sure which Ferroniq machine fits?
Ask our assistant about material, thickness, and volume. It knows the lineup and what we stock.
