Press Brakes & Panel Folders

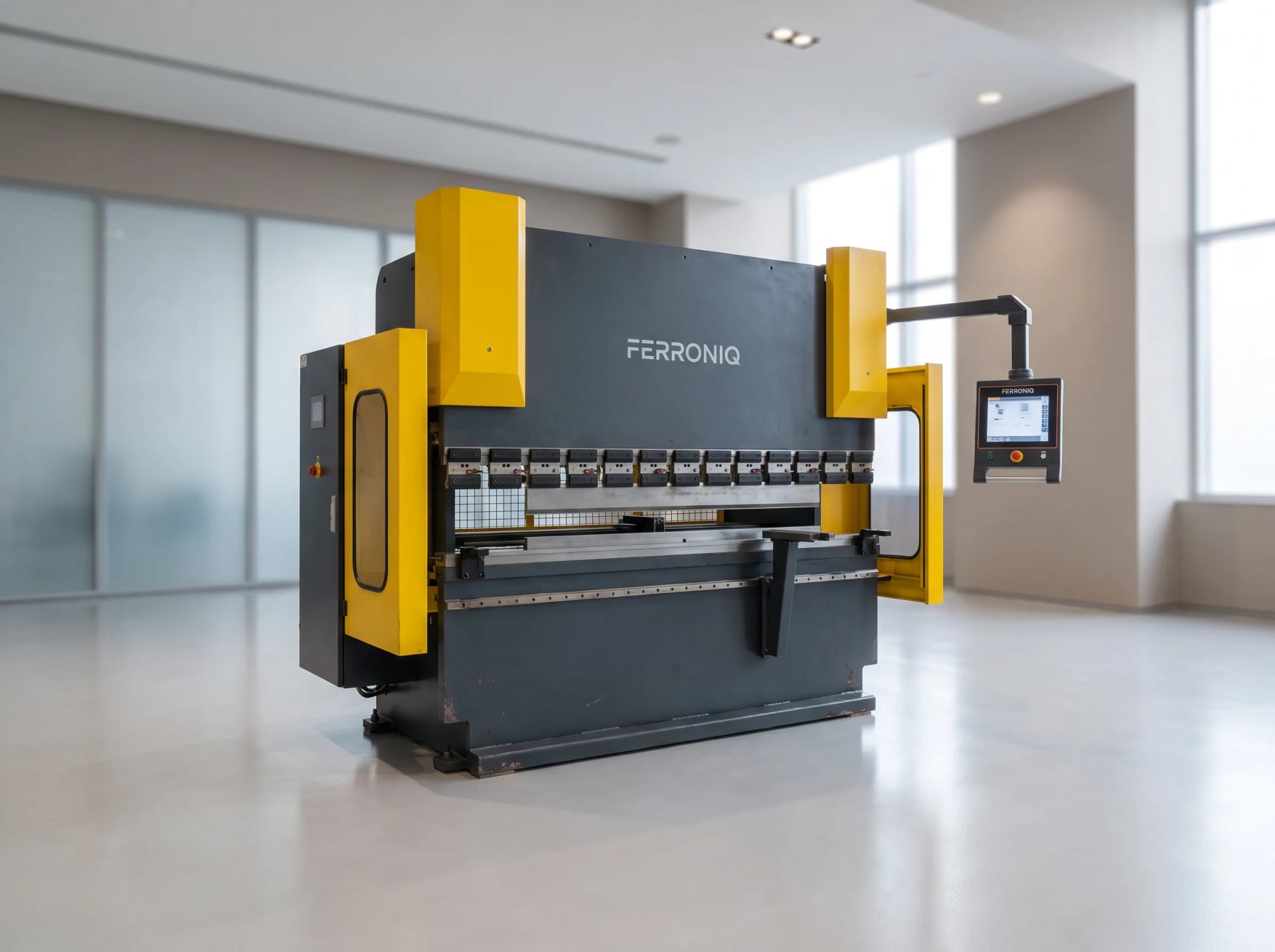

FE-135 Servo
by Ferroniq
135-ton servo-electric press brake with fast, quiet, energy-efficient bending for job shops.
135 US tons (1,200 kN)
Tonnage
3000 mm (10')
Bending length
250 mm (9.8")
Stroke
Not sure if the FE-135 Servo is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Job shops wanting hydraulic-free maintenance
- Shops bending mixed short-run parts all day
- Fabricators prioritizing repeatability and low noise
Tonnage
135 US tons (1,200 kN)
Bending length
3000 mm (10')
Stroke
250 mm (9.8")
Daylight (open height)
420 mm (16.5")
Key Features
FE-135 Servo Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance
- Servo-electric drive with no hydraulic oil to maintain
- 4-axis CNC back gauge with programmable stops
- Fast approach speed with no oil warm-up cycle
Ease of Operation
- Ferroniq Arc 19 touchscreen with graphical bend sequencing
- Programmable multi-bend part library
Built-In Extras
- Quiet operation suited to shared shop floors
- Quick-change tooling clamps
Full Specifications
Ferroniq FE-135 Servo Technical Details
Complete specifications, standard features, and optional upgrades.
- Tonnage
- 135 US tons (1,200 kN)
- Bending length
- 3000 mm (10')
- Stroke
- 250 mm (9.8")
- Daylight (open height)
- 420 mm (16.5")
- Throat depth
- 350 mm (13.8")
- Back-gauge axes
- X, R, Z1, Z2 (4-axis CNC)
- Crowning
- Manual mechanical crowning, motorized upgrade available
- Approach/return speed
- 220 mm/s (8.7 in/s)
- Bending speed
- 10 mm/s (0.39 in/s) under load
- Drive type
- Servo-electric, no hydraulic power pack
- Control
- Ferroniq Arc 19 touchscreen control
- Power requirement
- 600V/3-phase, 60A service
| Tonnage | 135 US tons (1,200 kN) |
| Bending length | 3000 mm (10') |
| Stroke | 250 mm (9.8") |
| Daylight (open height) | 420 mm (16.5") |
| Throat depth | 350 mm (13.8") |
| Back-gauge axes | X, R, Z1, Z2 (4-axis CNC) |
| Crowning | Manual mechanical crowning, motorized upgrade available |
| Approach/return speed | 220 mm/s (8.7 in/s) |
| Bending speed | 10 mm/s (0.39 in/s) under load |
| Drive type | Servo-electric, no hydraulic power pack |
| Control | Ferroniq Arc 19 touchscreen control |
| Power requirement | 600V/3-phase, 60A service |
- Servo-electric drive with no hydraulic oil to maintain
- 4-axis CNC back gauge with programmable stops
- Ferroniq Arc 19 touchscreen with graphical bend sequencing
- Fast approach speed with no oil warm-up cycle
- Quiet operation suited to shared shop floors
- Quick-change tooling clamps
- Programmable multi-bend part library
- Motorized CNC crowning upgrade
- Laser bend-angle measurement package
- Sheet-following back-gauge support arms
- Offline bend-simulation software licence
- Sheet metal enclosures and brackets
- HVAC component bending
- Electrical cabinet fabrication
- General job-shop sheet metal work
FAQ
FE-135 Servo Questions
Answers to common questions about the FE-135 Servo.
Typically 10-12 weeks from order; we confirm the exact date at order.
A 600V/3-phase, 60A service — no compressed air or hydraulic oil system required.
Yes — lease and term financing structured around your monthly bending volume.
Base machine, standard tooling set, Ferroniq Arc 19 control, rigging and installation, and operator training.
