Press Brakes & Panel Folders

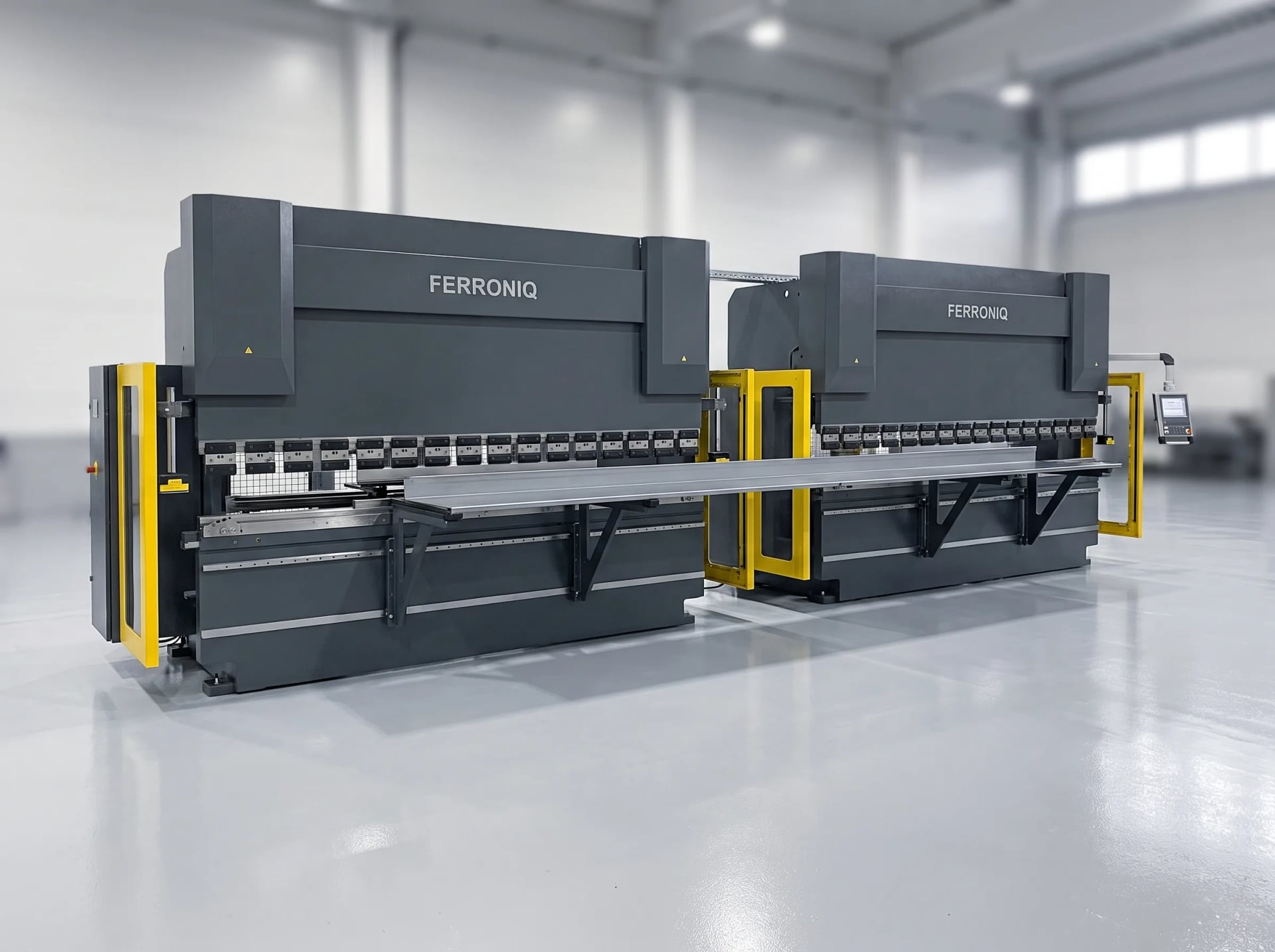

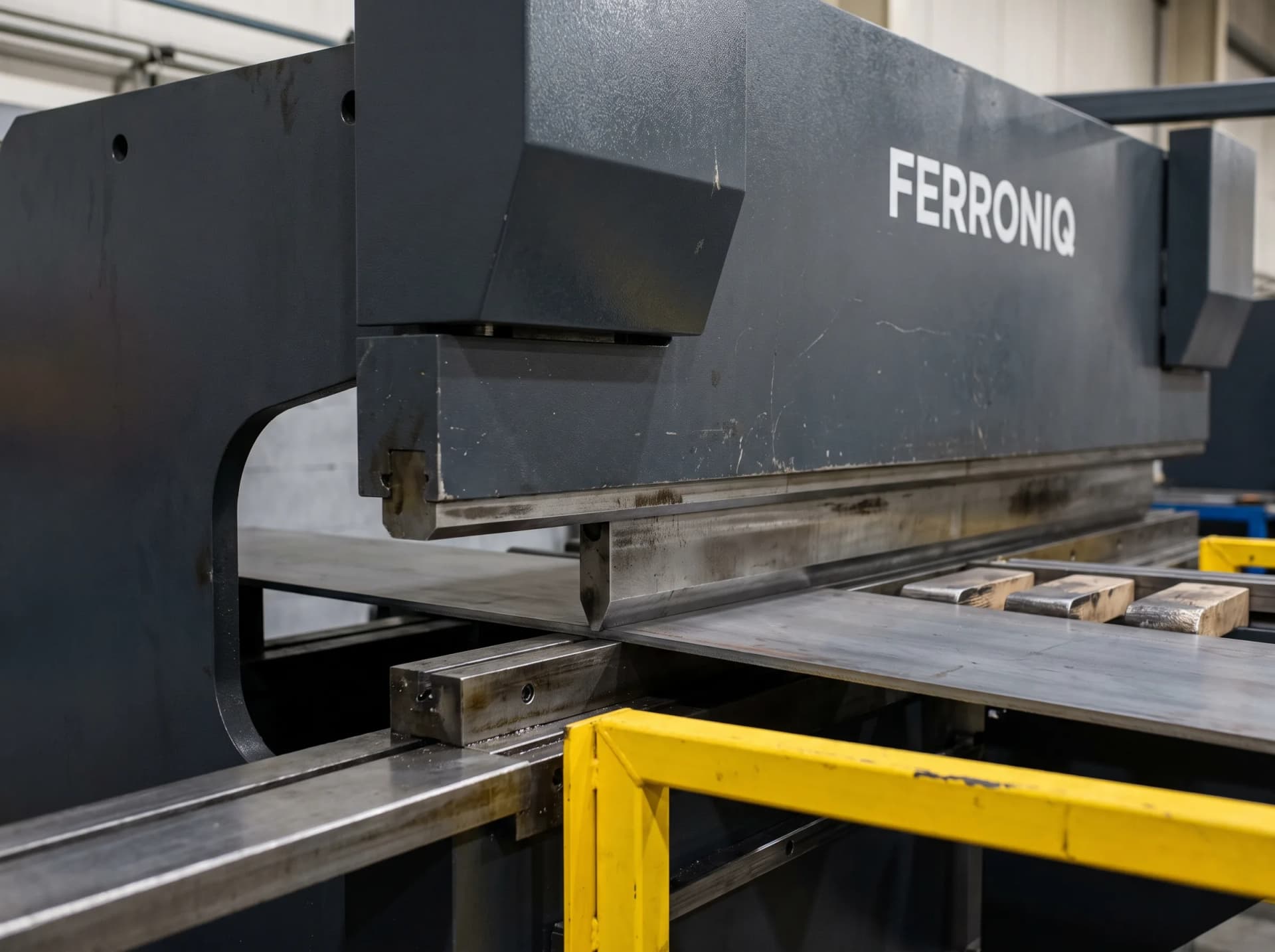

FH-320 Tandem
by Ferroniq
320-ton hydraulic press brake built for tandem operation on long panels and heavy plate.
320 US tons (2,850 kN)
Tonnage
6000 mm (20')
Bending length
Up to 12,000 mm (40') with a second FH-320
Tandem bending length
Not sure if the FH-320 Tandem is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Fabricators bending panels longer than one brake bed
- Heavy-gauge structural and equipment work
- Shops standardizing on Ferroniq tooling across brakes
Tonnage
320 US tons (2,850 kN)
Bending length
6000 mm (20')
Tandem bending length
Up to 12,000 mm (40') with a second FH-320
Stroke
400 mm (15.7")
Key Features
FH-320 Tandem Features
Standard features that set this machine apart in demanding manufacturing environments.
Ease of Operation
- Automatic CNC hydraulic crowning table
- Ferroniq Arc 19 touchscreen with graphical bend sequencing
- Programmable multi-bend part library
Built-In Extras
- Twin synchronized hydraulic cylinders for tandem bending
- Quick-change tooling clamps
- 6-axis CNC back gauge with programmable stops
- Safety light curtains front and rear
- Laser bend-angle measurement option at the ram
Full Specifications
Ferroniq FH-320 Tandem Technical Details
Complete specifications, standard features, and optional upgrades.
- Tonnage
- 320 US tons (2,850 kN)
- Bending length
- 6000 mm (20')
- Tandem bending length
- Up to 12,000 mm (40') with a second FH-320
- Stroke
- 400 mm (15.7")
- Daylight (open height)
- 600 mm (23.6")
- Throat depth
- 500 mm (19.7")
- Back-gauge axes
- X, R, Z1, Z2, X1, X2 (6-axis CNC)
- Crowning
- Automatic CNC hydraulic crowning table
- Approach/return speed
- 200 mm/s (7.9 in/s) approach, 180 mm/s return
- Bending speed
- 12 mm/s (0.47 in/s) under load
- Control
- Ferroniq Arc 19 touchscreen control
- Power requirement
- 600V/3-phase, 100A service
| Tonnage | 320 US tons (2,850 kN) |
| Bending length | 6000 mm (20') |
| Tandem bending length | Up to 12,000 mm (40') with a second FH-320 |
| Stroke | 400 mm (15.7") |
| Daylight (open height) | 600 mm (23.6") |
| Throat depth | 500 mm (19.7") |
| Back-gauge axes | X, R, Z1, Z2, X1, X2 (6-axis CNC) |
| Crowning | Automatic CNC hydraulic crowning table |
| Approach/return speed | 200 mm/s (7.9 in/s) approach, 180 mm/s return |
| Bending speed | 12 mm/s (0.47 in/s) under load |
| Control | Ferroniq Arc 19 touchscreen control |
| Power requirement | 600V/3-phase, 100A service |
- Twin synchronized hydraulic cylinders for tandem bending
- 6-axis CNC back gauge with programmable stops
- Automatic CNC hydraulic crowning table
- Ferroniq Arc 19 touchscreen with graphical bend sequencing
- Laser bend-angle measurement option at the ram
- Quick-change tooling clamps
- Programmable multi-bend part library
- Safety light curtains front and rear
- Second FH-320 unit for true tandem operation
- Offline bend-simulation software licence
- Sheet-following back-gauge support arms
- Laser bend-angle measurement package
- Extended tooling package for specialty profiles
- Long structural panel and cladding bends
- Heavy equipment chassis components
- Storage tank and pressure vessel heads
- Custom architectural metalwork
FAQ
FH-320 Tandem Questions
Answers to common questions about the FH-320 Tandem.
Typically 14-16 weeks from order for a single unit; ordering a tandem pair together shortens the combined install versus staggering two orders.
A 600V/3-phase, 100A service per unit. We confirm exact service sizing during the site survey.
The FH-320 weighs roughly 12,000 kg. A level, standard-loading shop floor is sufficient; we coordinate rigging as part of installation.
Base machine, standard tooling set, Ferroniq Arc 19 control, rigging and installation, tandem synchronization setup if ordered as a pair, and operator training.
