Press Brakes & Panel Folders

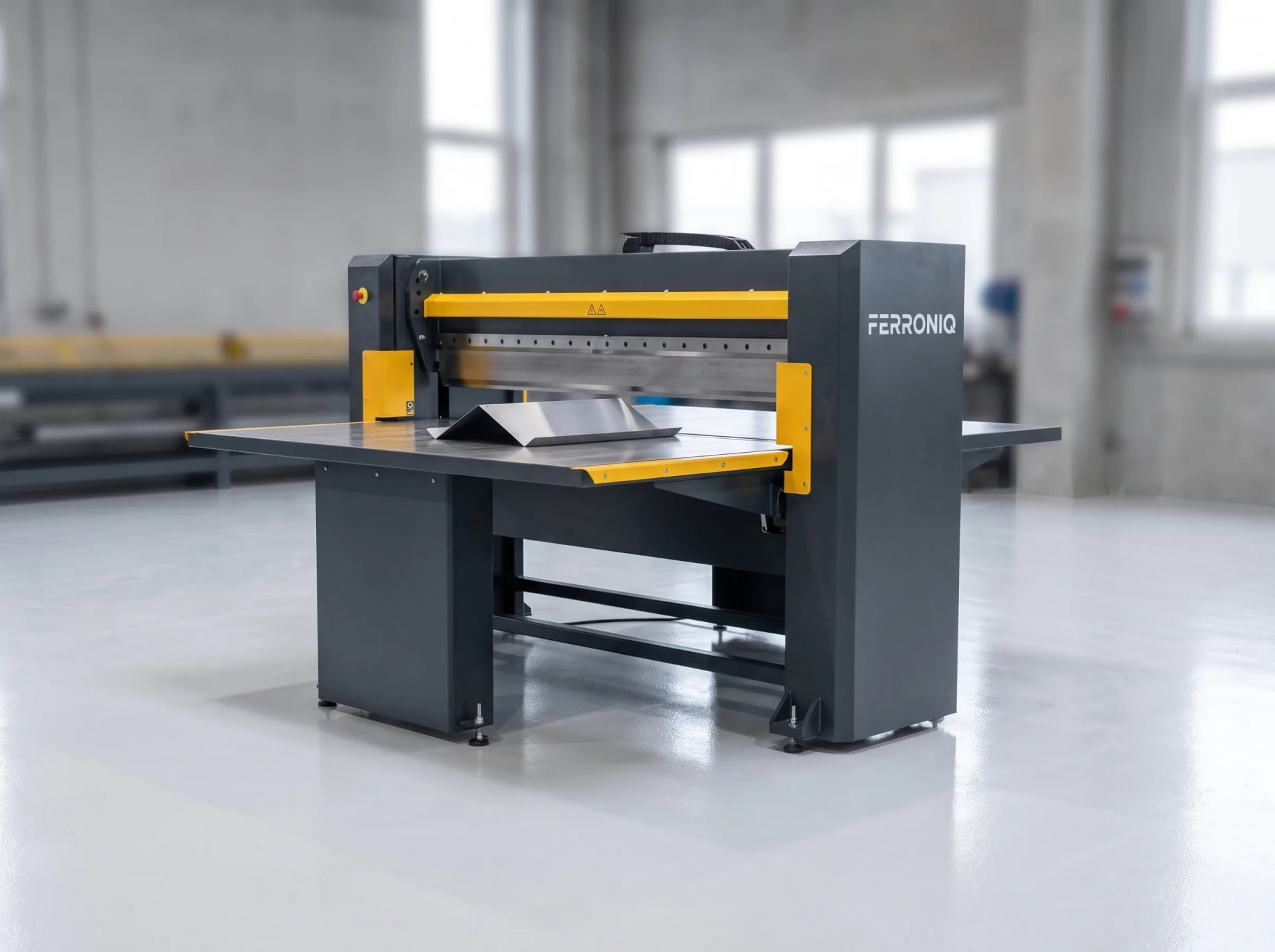

FP-2500 Panel
by Ferroniq
Automated CNC panel folder for fast, repeatable up-and-down bends on light-gauge sheet.
2500 x 1250 mm (98" x 49")
Max sheet size
3 mm (0.12")
Max thickness, mild steel
2.5 mm (0.1")
Max thickness, stainless steel
Not sure if the FP-2500 Panel is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Shops running high volumes of light-gauge boxes and trays
- Fabricators bending pre-painted or pre-finished sheet
- Job shops wanting one-operator bending
Max sheet size
2500 x 1250 mm (98" x 49")
Max thickness, mild steel
3 mm (0.12")
Max thickness, stainless steel
2.5 mm (0.1")
Max thickness, aluminum
4 mm (0.16")
Key Features
FP-2500 Panel Features
Standard features that set this machine apart in demanding manufacturing environments.
Ease of Operation
- Ferroniq Arc 19 touchscreen with 200-program storage
- Single-operator loading and programming
- Automatic up and down bend sequencing
Built-In Extras
- Quick-change blade sets for radius and hem bends
- Scratch-free sheet handling for pre-finished material
- CNC motorized back gauge and blade positioning
- Blade-and-beam bending head, sheet stays flat on the table
Full Specifications
Ferroniq FP-2500 Panel Technical Details
Complete specifications, standard features, and optional upgrades.
- Max sheet size
- 2500 x 1250 mm (98" x 49")
- Max thickness, mild steel
- 3 mm (0.12")
- Max thickness, stainless steel
- 2.5 mm (0.1")
- Max thickness, aluminum
- 4 mm (0.16")
- Blade length
- 2500 mm (98")
- Bend angle range
- 0° to 135° up and down
- Bending speed
- Up to 12 bends/minute on repeat cycles
- Stored part programs
- 200
- Back-gauge positioning
- CNC motorized, ±0.1 mm (0.004") repeatability
- Control
- Ferroniq Arc 19 touchscreen control
- Power requirement
- 600V/3-phase, 40A service
- Footprint
- 4.2 x 3.0 m (14' x 10')
| Max sheet size | 2500 x 1250 mm (98" x 49") |
| Max thickness, mild steel | 3 mm (0.12") |
| Max thickness, stainless steel | 2.5 mm (0.1") |
| Max thickness, aluminum | 4 mm (0.16") |
| Blade length | 2500 mm (98") |
| Bend angle range | 0° to 135° up and down |
| Bending speed | Up to 12 bends/minute on repeat cycles |
| Stored part programs | 200 |
| Back-gauge positioning | CNC motorized, ±0.1 mm (0.004") repeatability |
| Control | Ferroniq Arc 19 touchscreen control |
| Power requirement | 600V/3-phase, 40A service |
| Footprint | 4.2 x 3.0 m (14' x 10') |
- Blade-and-beam bending head, sheet stays flat on the table
- CNC motorized back gauge and blade positioning
- Ferroniq Arc 19 touchscreen with 200-program storage
- Single-operator loading and programming
- Automatic up and down bend sequencing
- Quick-change blade sets for radius and hem bends
- Scratch-free sheet handling for pre-finished material
- Motorized sheet-loading table
- Radius-blade tooling package
- Offline part-programming software licence
- Automatic part-unloading conveyor
- Enclosure and electrical cabinet fabrication
- HVAC duct and fitting components
- Appliance and equipment panel forming
- Pre-finished architectural panel bending
FAQ
FP-2500 Panel Questions
Answers to common questions about the FP-2500 Panel.
Typically 12-14 weeks from order; we confirm the exact date at order.
A 600V/3-phase, 40A service — no hydraulic oil system to maintain.
Yes — on-site programming training is included, and we build your first part library with you during commissioning.
Base machine, standard blade set, Ferroniq Arc 19 control, rigging and installation, and operator training.
