Stone CNC Centres

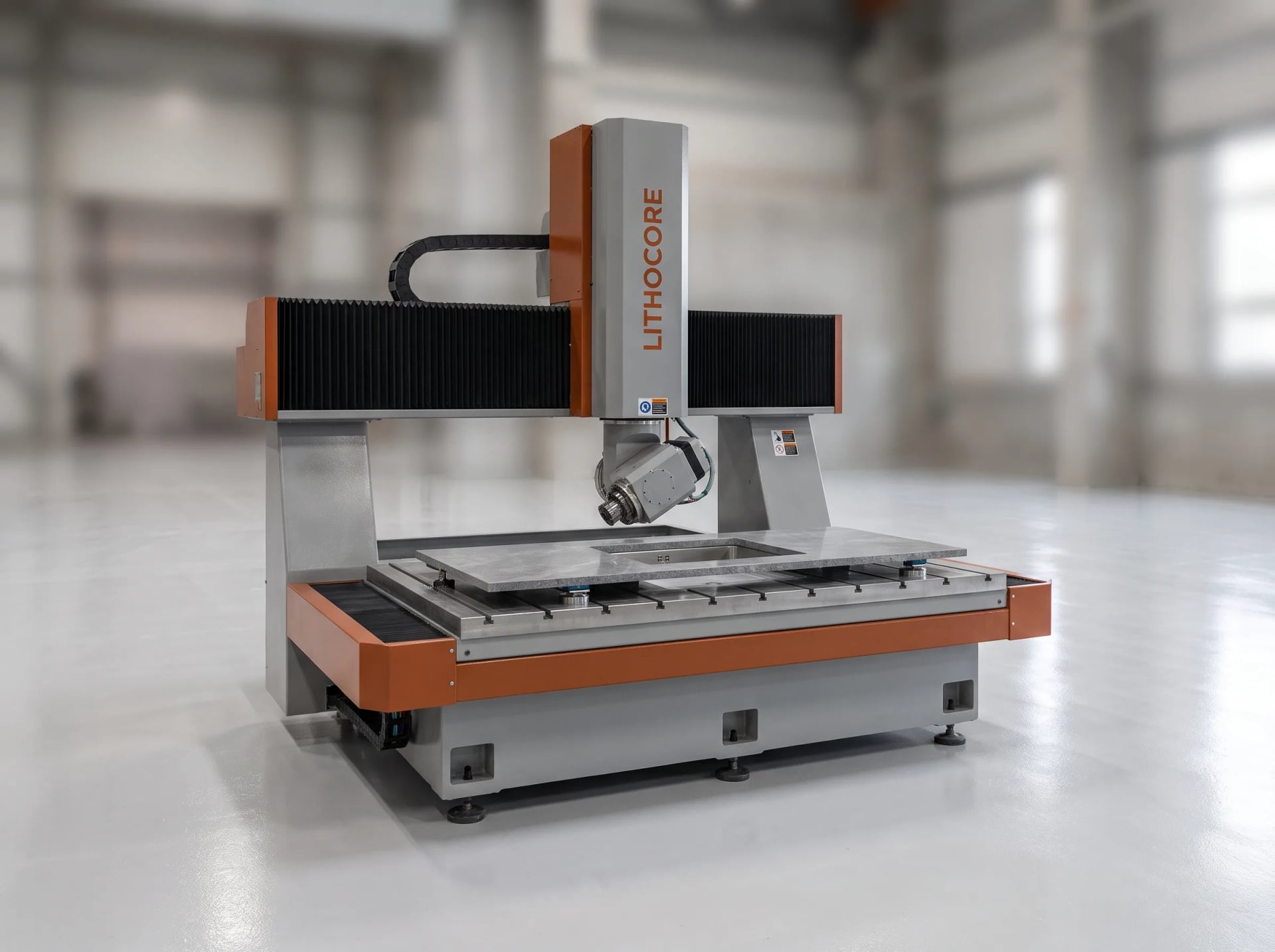

LC-4 Profiler
by Lithocore
4-axis stone CNC centre for sink cut-outs, edge profiling and polishing in one setup.
3200 / 1800 / 500 mm
Axis travel (X/Y/Z)
Continuous rotary spindle head, 0 - 360°
4th axis
15 kW (20 HP), 6,000 rpm
Spindle power
Not sure if the LC-4 Profiler is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Countertop shops adding in-house edge finishing
- Shops eliminating hand-polishing labour
- Fabricators standardizing edge profiles across jobs
Axis travel (X/Y/Z)
3200 / 1800 / 500 mm
4th axis
Continuous rotary spindle head, 0 - 360°
Spindle power
15 kW (20 HP), 6,000 rpm
Tool magazine
12-position automatic
Key Features
LC-4 Profiler Features
Standard features that set this machine apart in demanding manufacturing environments.
Ease of Operation
- 12-position automatic tool changer
- Lithocore Vein control with edge-profile library
- Automatic sink cut-out templates for common basin models
Safety & Reliability
- Combination vacuum and mechanical clamping table
- Camera-assisted part registration
Built-In Extras
- Automatic 6-step polishing spindle
Full Specifications
Lithocore LC-4 Profiler Technical Details
Complete specifications, standard features, and optional upgrades.
- Axis travel (X/Y/Z)
- 3200 / 1800 / 500 mm
- 4th axis
- Continuous rotary spindle head, 0 - 360°
- Spindle power
- 15 kW (20 HP), 6,000 rpm
- Tool magazine
- 12-position automatic
- Polishing tooling
- 6-step automatic polishing spindle, resin/diamond pads
- Positioning accuracy
- ±0.1 mm (0.004")
- Table
- Combination vacuum and mechanical clamp
- Water system
- Recirculating, 800 L tank
- Control
- Lithocore Vein control, 19" touchscreen
- Power requirement
- 400V/3-phase, 63A
- Footprint
- 6.5 x 4.0 m (21' x 13')
| Axis travel (X/Y/Z) | 3200 / 1800 / 500 mm |
| 4th axis | Continuous rotary spindle head, 0 - 360° |
| Spindle power | 15 kW (20 HP), 6,000 rpm |
| Tool magazine | 12-position automatic |
| Polishing tooling | 6-step automatic polishing spindle, resin/diamond pads |
| Positioning accuracy | ±0.1 mm (0.004") |
| Table | Combination vacuum and mechanical clamp |
| Water system | Recirculating, 800 L tank |
| Control | Lithocore Vein control, 19" touchscreen |
| Power requirement | 400V/3-phase, 63A |
| Footprint | 6.5 x 4.0 m (21' x 13') |
- 12-position automatic tool changer
- Automatic 6-step polishing spindle
- Combination vacuum and mechanical clamping table
- Lithocore Vein control with edge-profile library
- Automatic sink cut-out templates for common basin models
- Camera-assisted part registration
- Additional polishing head for higher throughput
- Extended Z-travel for thick slabs
- Automatic slab loading arm
- Kitchen and vanity sink cut-outs
- Edge profiling (bullnose, ogee, bevel)
- Backsplash and tile-edge polishing
- Countertop template digitizing and reproduction
FAQ
LC-4 Profiler Questions
Answers to common questions about the LC-4 Profiler.
Yes — the Lithocore Vein control ships with templates for common basin models, and our applications engineers add any custom templates your jobs need during commissioning.
Yes — the combination table adds mechanical clamping for slabs with rough backs, cut-outs or edges that would leak a pure vacuum hold.
A 400V/3-phase, 63A service, plus a water supply for the recirculating tank.
The machining centre, 12-position tool changer, polishing spindle, Lithocore Vein control, rigging and installation, and operator training.
