2 Models
Profiler to large-format Titan
±110°
Swivel head tilt on the Titan
8-Step
Automatic polishing sequence
Not sure which stone cnc centres is right for you?
Our AI can help you compare machines, find parts, and explore your options.
Advantages
Why Choose Stone CNC Centres?
One clamping, finished part
Cut-outs, edge profiles and polishing run in a single program instead of moving the slab between machines.
Proven on your slab
We run your sink templates and edge profiles at the Tech Centre before the machine ships.
Coast-to-coast service
Tooling, polishing pads and technicians across Canada and the US keep you running.
Templates and profiles ready to run
Sink cut-out templates and edge-profile libraries come pre-loaded on the Lithocore Vein control.
Featured

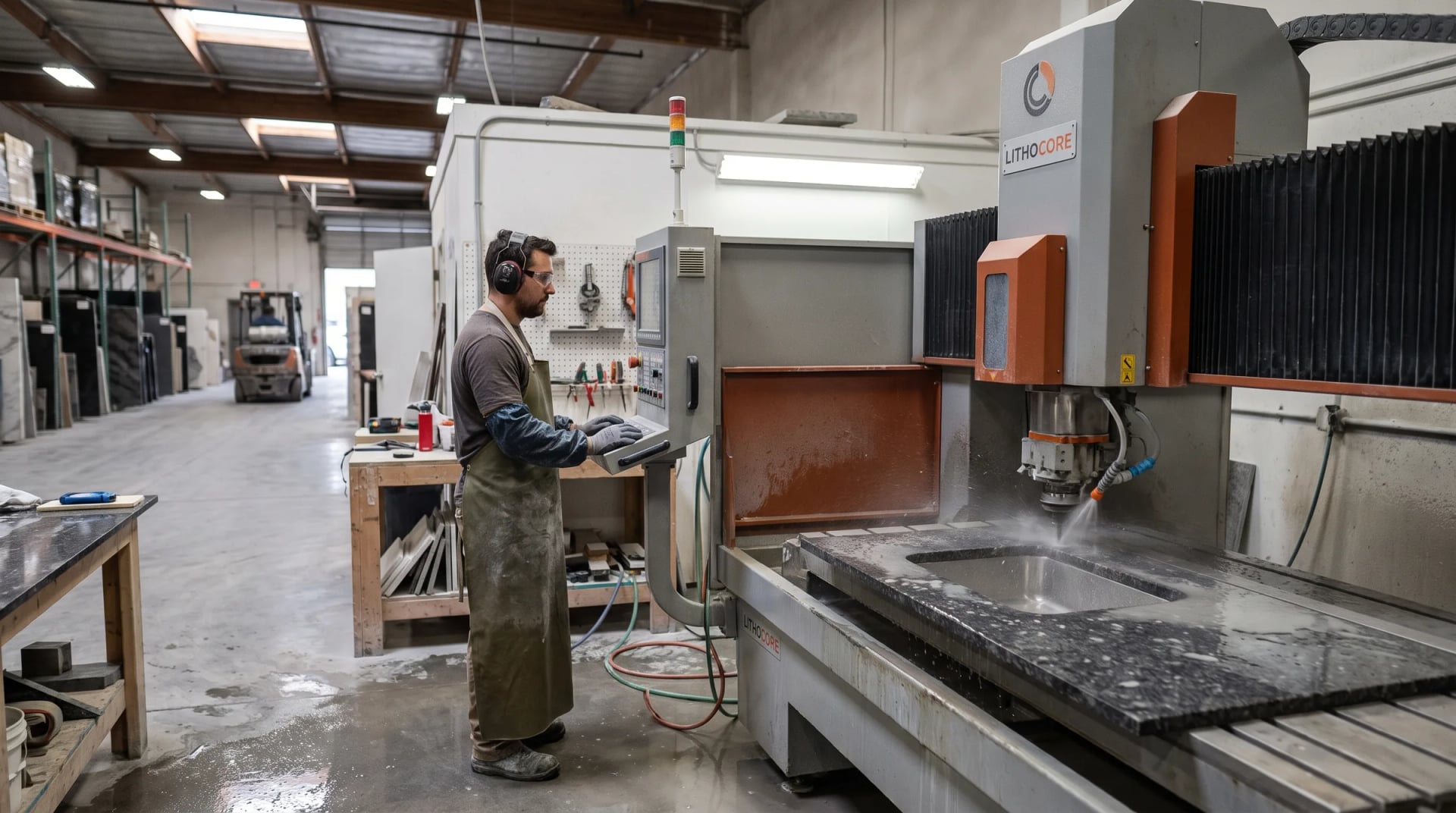

LC-4 Profiler
4-axis stone CNC centre for sink cut-outs, edge profiling and polishing in one setup.
Lithocore LC-4 Profiler
Axis travel (X/Y/Z)
3200 / 1800 / 500 mm
4th axis
Continuous rotary spindle head, 0 - 360°
Spindle power
15 kW (20 HP), 6,000 rpm
Tool magazine
12-position automatic
Our Machines
The Complete Stone CNC Centres Lineup
Each system is engineered for specific applications. Compare specs to find the right fit.
5-axis large-format stone CNC machining centre
LC5-4500 Titan
The LC5-4500 Titan scales up the Profiler's edge-to-polish workflow to architectural stone and monument work, where slabs run larger and details run deeper. A swivel head tilts ±110° on a continuous rotary axis, reaching the compound angles that relief carving and shaped monument faces need without hand-finishing. The sectional vacuum-and-mechanical table extends to handle oversized slate and stone panels that would overhang a standard bed, and a 16-position tool changer carries both roughing bits and the 8-step automatic polishing spindle through one program. The Lithocore Vein control's relief-carving toolpaths turn a 3D model directly into a carved stone surface. Tollaston's applications engineers program and prove your first large-format or carved job at the Vaughan Tech Centre before the machine ships.
- Axis travel (X/Y/Z)
- 4500 / 2200 / 700 mm
- 5th axis
- Continuous rotary + swivel head, ±110° tilt
- Spindle power
- 22 kW (30 HP), 6,000 rpm
- Tool magazine
- 16-position automatic

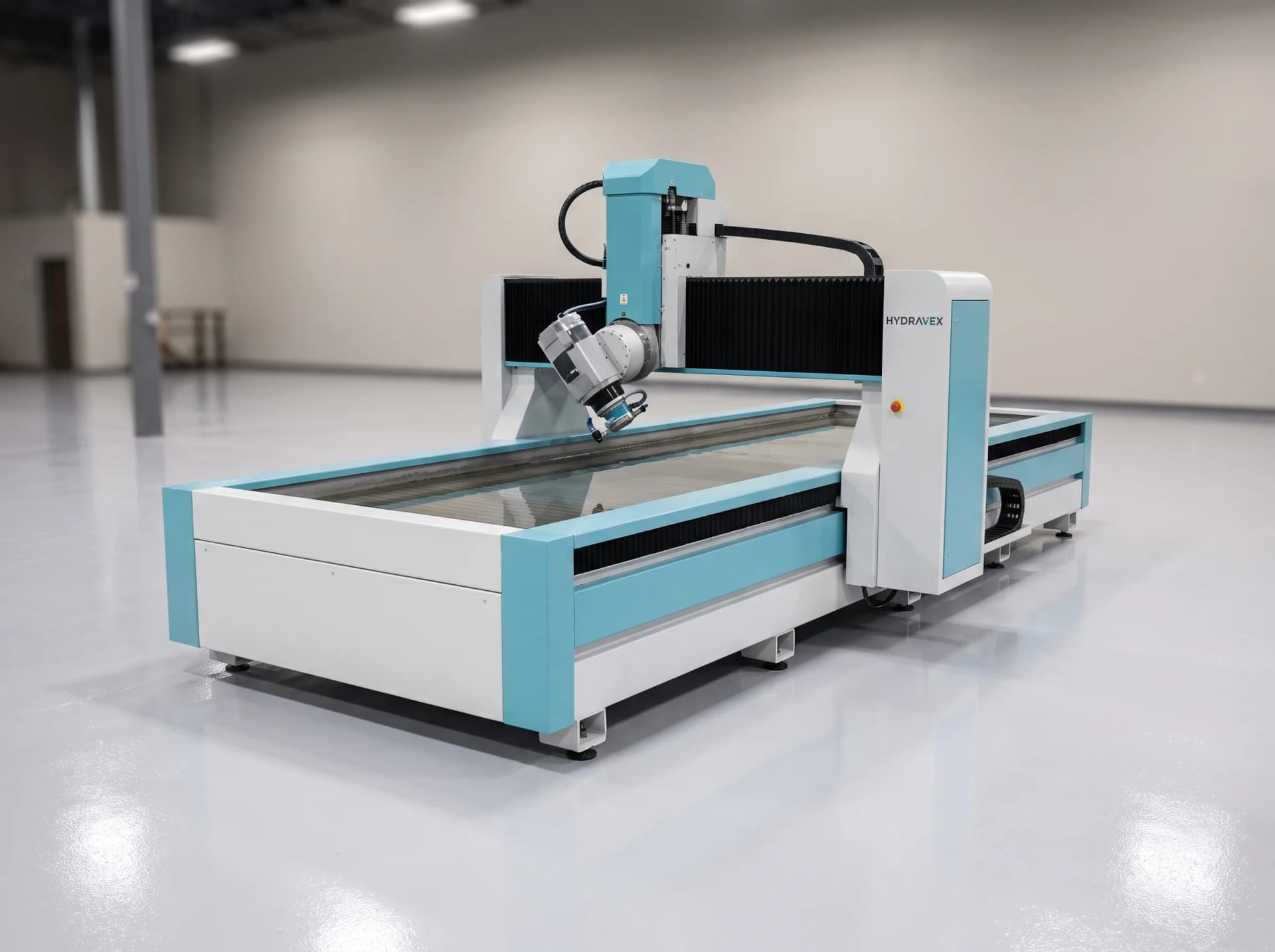

5-axis waterjet cutting system
5-Axis Waterjet (also cuts stone)
The HX5-3060 5-Axis adds an articulating wrist to Hydravex's waterjet platform, so the cutting head tilts through the kerf and cancels the natural taper a straight jet leaves on thicker material — square edges on parts that would otherwise need a secondary finishing pass. A 90,000 psi direct-drive intensifier pump feeds a single head over a 3000 x 6000 mm (10' x 20') tank bed, cutting metal, stone, glass, tile and composites with the same setup. Because it cuts stone as cleanly as metal, Tollaston also lists this machine under Stone CNC Centres for stone fabricators. The Hydravex FlowLogic control manages taper compensation automatically from the part's material and thickness. Tollaston runs a test cut on your own material, sets up abrasive supply, and trains your programmers.
- Cutting envelope
- 3000 x 6000 mm (10' x 20')
- Pump pressure
- 90,000 psi (6,200 bar) direct-drive intensifier pump
- Cutting head axes
- 5-axis with articulating wrist, ±60° taper compensation
- Max Z-axis travel
- 300 mm (11.8")
Brands
The Stone CNC Centres lines we carry
Every machine above is supported by our own team across Canada and the US. Explore the full lineup from each manufacturer.
Side by Side
Compare Systems
See how each platform stacks up across the specs that matter most.
LC-4 ProfilerFeatured
- Best for
- Countertop sink cut-outs and edge profiles
- Axis configuration
- 4-axis
- Tool magazine
- 12-position
- Polishing tooling
- 6-step automatic spindle
- Table travel (X)
- 3200 mm
LC5-4500 Titan
- Best for
- Architectural stone, monuments and slate
- Axis configuration
- 5-axis, ±110° swivel head
- Tool magazine
- 16-position
- Polishing tooling
- 8-step automatic spindle
- Table travel (X)
- 4500 mm, sectional
5-Axis Waterjet (also cuts stone)
- Best for
- —
- Axis configuration
- —
- Tool magazine
- —
- Polishing tooling
- —
- Table travel (X)
- —
| Specification | LC-4 ProfilerFeatured | LC5-4500 Titan | 5-Axis Waterjet (also cuts stone) |
|---|---|---|---|
| Best for | Countertop sink cut-outs and edge profiles | Architectural stone, monuments and slate | — |
| Axis configuration | 4-axis | 5-axis, ±110° swivel head | — |
| Tool magazine | 12-position | 16-position | — |
| Polishing tooling | 6-step automatic spindle | 8-step automatic spindle | — |
| Table travel (X) | 3200 mm | 4500 mm, sectional | — |
Applications
Industries We Serve
Stone CNC Centres systems are trusted across diverse industries and production environments.
FAQ
Stone CNC Centres Questions
Answers to common questions about our stone cnc centres products.
Countertop fabricators doing sink cut-outs, edge profiles and polishing on standard slab sizes fit the LC-4 Profiler; architectural stone, monument and large-format slate work needs the 5-axis reach and sectional table of the LC5-4500 Titan.
Our Hydravex HX5-3060 5-Axis waterjet cuts stone clean enough for countertop and architectural work, so shops comparing a Lithocore machining centre against a waterjet-capable option can see both here.
The LC-4 Profiler runs on 400V/3-phase, 63A; the LC5-4500 Titan needs 125A given its larger spindle and table. Both need a water supply sized during the site survey.
Yes — on-site training covers the Lithocore Vein control's tool library, sink templates and edge profiles, plus a test job on your own slab.
We arrange lease and term financing through our equipment finance partners.
