Stone CNC Centres

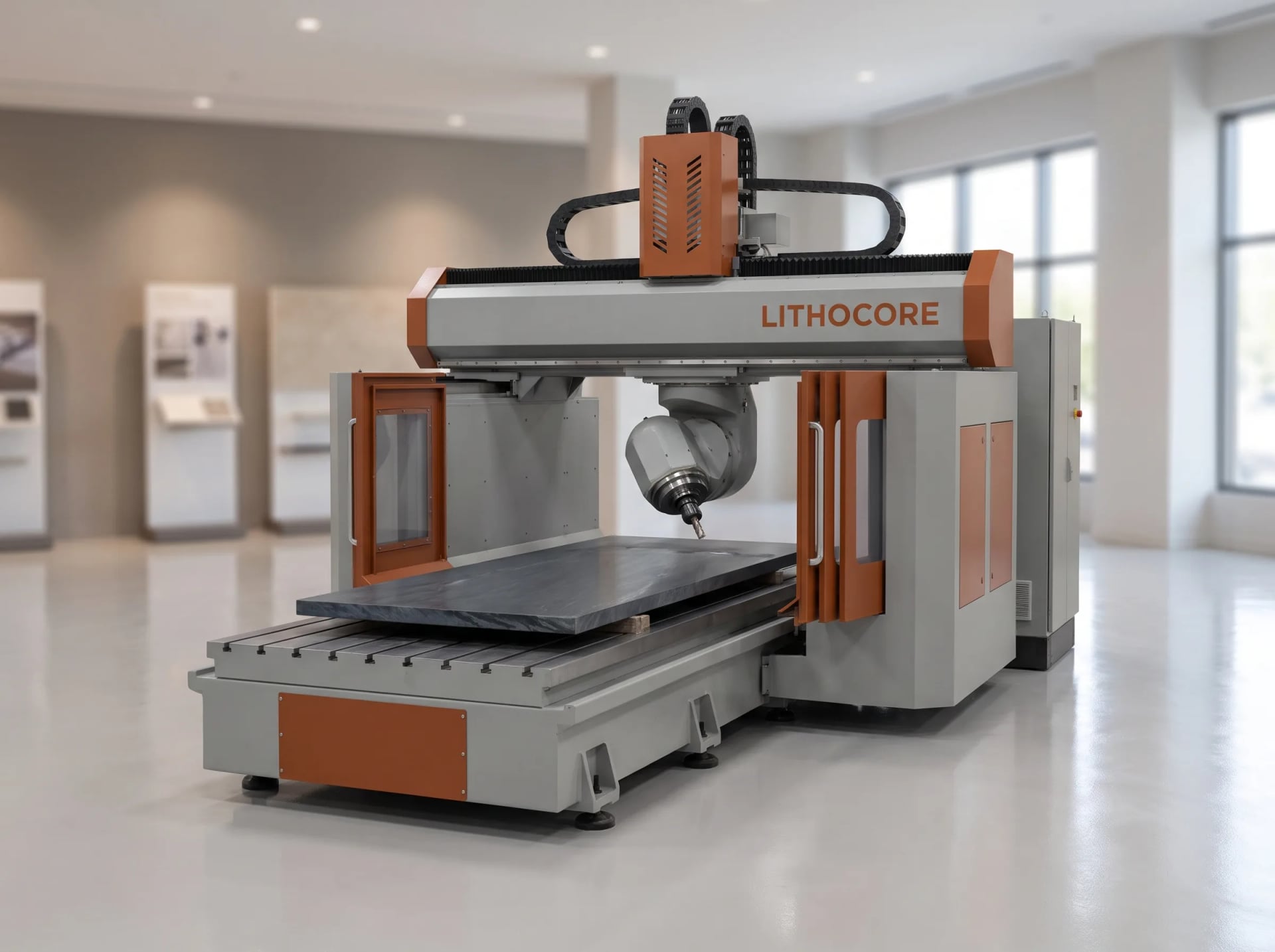

LC5-4500 Titan
by Lithocore
5-axis large-format stone CNC centre for architectural stone, monuments and slate work.
4500 / 2200 / 700 mm
Axis travel (X/Y/Z)
Continuous rotary + swivel head, ±110° tilt
5th axis
22 kW (30 HP), 6,000 rpm
Spindle power
Not sure if the LC5-4500 Titan is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Monument makers moving from hand tools to CNC
- Architectural stone fabricators
- Shops running large-format slate or granite work
Axis travel (X/Y/Z)
4500 / 2200 / 700 mm
5th axis
Continuous rotary + swivel head, ±110° tilt
Spindle power
22 kW (30 HP), 6,000 rpm
Tool magazine
16-position automatic
Key Features
LC5-4500 Titan Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance

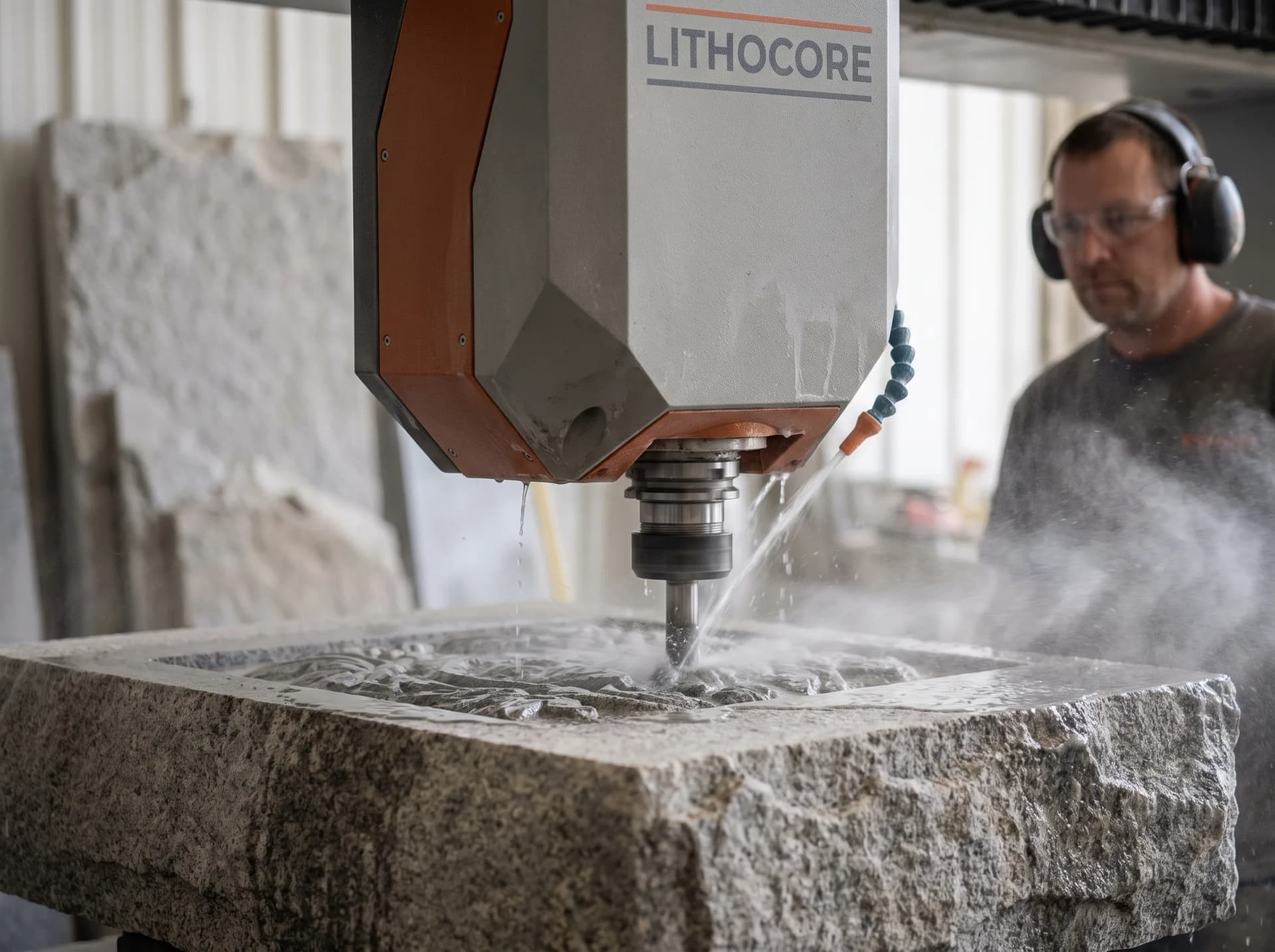

- 5-axis swivel head for compound-angle carving
- 8-step automatic polishing spindle
Ease of Operation
- 16-position automatic tool changer
- Lithocore Vein control with relief-carving toolpaths
- Automatic slab measurement and nesting
Safety & Reliability
- Sectional vacuum/mechanical table for oversized slate and stone
- Camera-assisted part registration
Full Specifications
Lithocore LC5-4500 Titan Technical Details
Complete specifications, standard features, and optional upgrades.
- Axis travel (X/Y/Z)
- 4500 / 2200 / 700 mm
- 5th axis
- Continuous rotary + swivel head, ±110° tilt
- Spindle power
- 22 kW (30 HP), 6,000 rpm
- Tool magazine
- 16-position automatic
- Polishing tooling
- 8-step automatic polishing spindle
- Positioning accuracy
- ±0.08 mm (0.003")
- Table
- Sectional vacuum and mechanical clamp for oversized slabs
- Water system
- Recirculating, 1,500 L tank
- Control
- Lithocore Vein control with 5-axis toolpaths
- Power requirement
- 400V/3-phase, 125A
- Footprint
- 8.5 x 5.5 m (28' x 18')
| Axis travel (X/Y/Z) | 4500 / 2200 / 700 mm |
| 5th axis | Continuous rotary + swivel head, ±110° tilt |
| Spindle power | 22 kW (30 HP), 6,000 rpm |
| Tool magazine | 16-position automatic |
| Polishing tooling | 8-step automatic polishing spindle |
| Positioning accuracy | ±0.08 mm (0.003") |
| Table | Sectional vacuum and mechanical clamp for oversized slabs |
| Water system | Recirculating, 1,500 L tank |
| Control | Lithocore Vein control with 5-axis toolpaths |
| Power requirement | 400V/3-phase, 125A |
| Footprint | 8.5 x 5.5 m (28' x 18') |
- 5-axis swivel head for compound-angle carving
- 16-position automatic tool changer
- 8-step automatic polishing spindle
- Sectional vacuum/mechanical table for oversized slate and stone
- Lithocore Vein control with relief-carving toolpaths
- Automatic slab measurement and nesting
- Camera-assisted part registration
- Extended table length for monument slabs
- Additional polishing head
- Automatic slab loading conveyor
- Architectural stone cladding and carved elements
- Monument and memorial engraving and shaping
- Slate roofing and flooring components
- Large-format countertop and vanity slabs
FAQ
LC5-4500 Titan Questions
Answers to common questions about the LC5-4500 Titan.
Yes — the Lithocore Vein control's relief-carving toolpaths take a 3D model and machine it directly into a stone surface, which our applications engineers program and prove on your own material before delivery.
The table extends beyond standard bridge-saw bed sizes for oversized slate and architectural panels — exact capacity depends on your table configuration, which we size to your typical jobs.
A 400V/3-phase, 125A service, plus a water supply for the recirculating tank sized during the site survey.
The machining centre, 16-position tool changer, polishing spindle, Lithocore Vein control, rigging and installation, and operator training.
