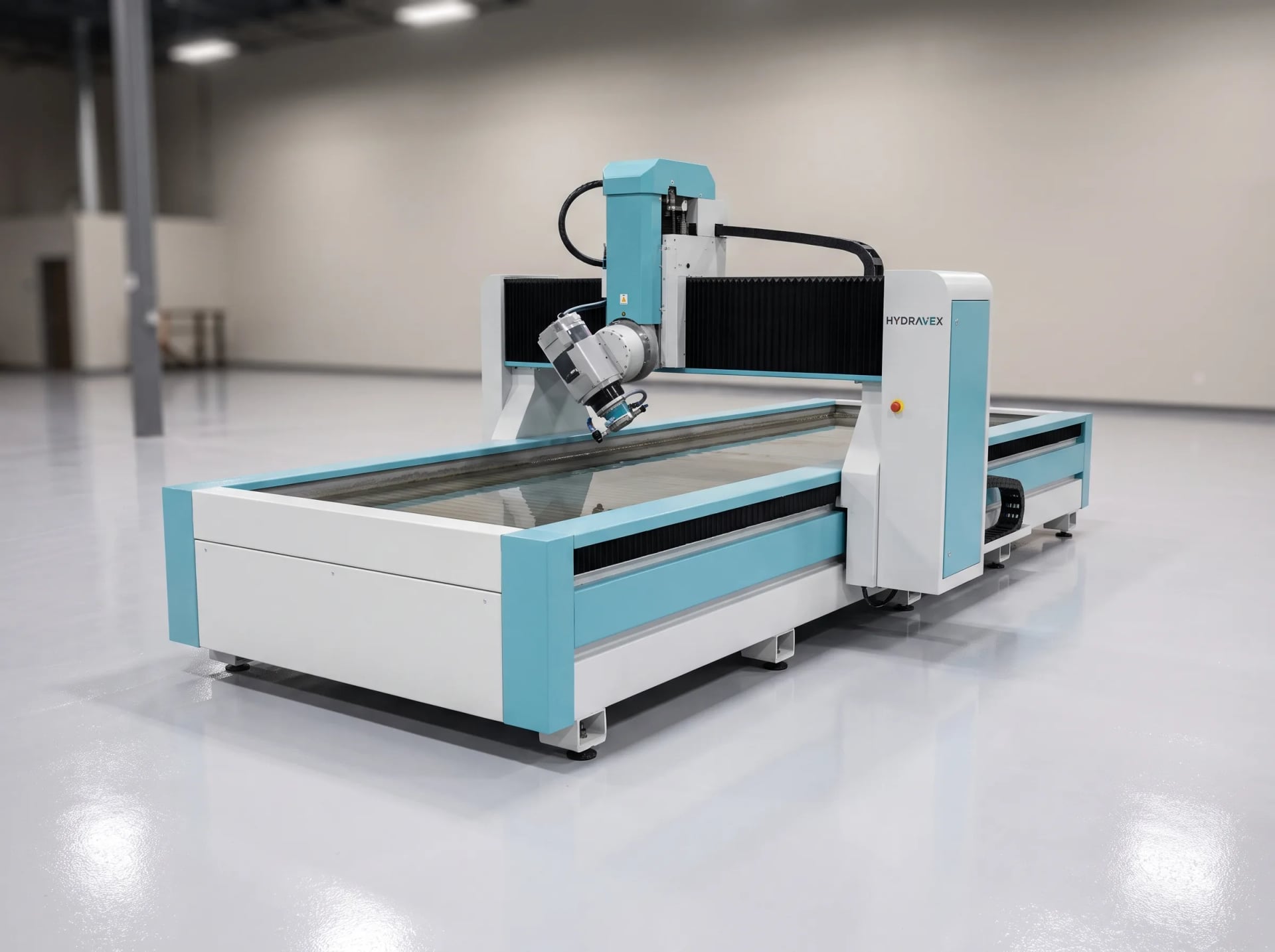

5-Axis Waterjet (also cuts stone)
by Hydravex
5-axis waterjet with taper-free cutting across metal, stone, glass and composite materials.
3000 x 6000 mm (10' x 20')
Cutting envelope
90,000 psi (6,200 bar) direct-drive intensifier pump
Pump pressure

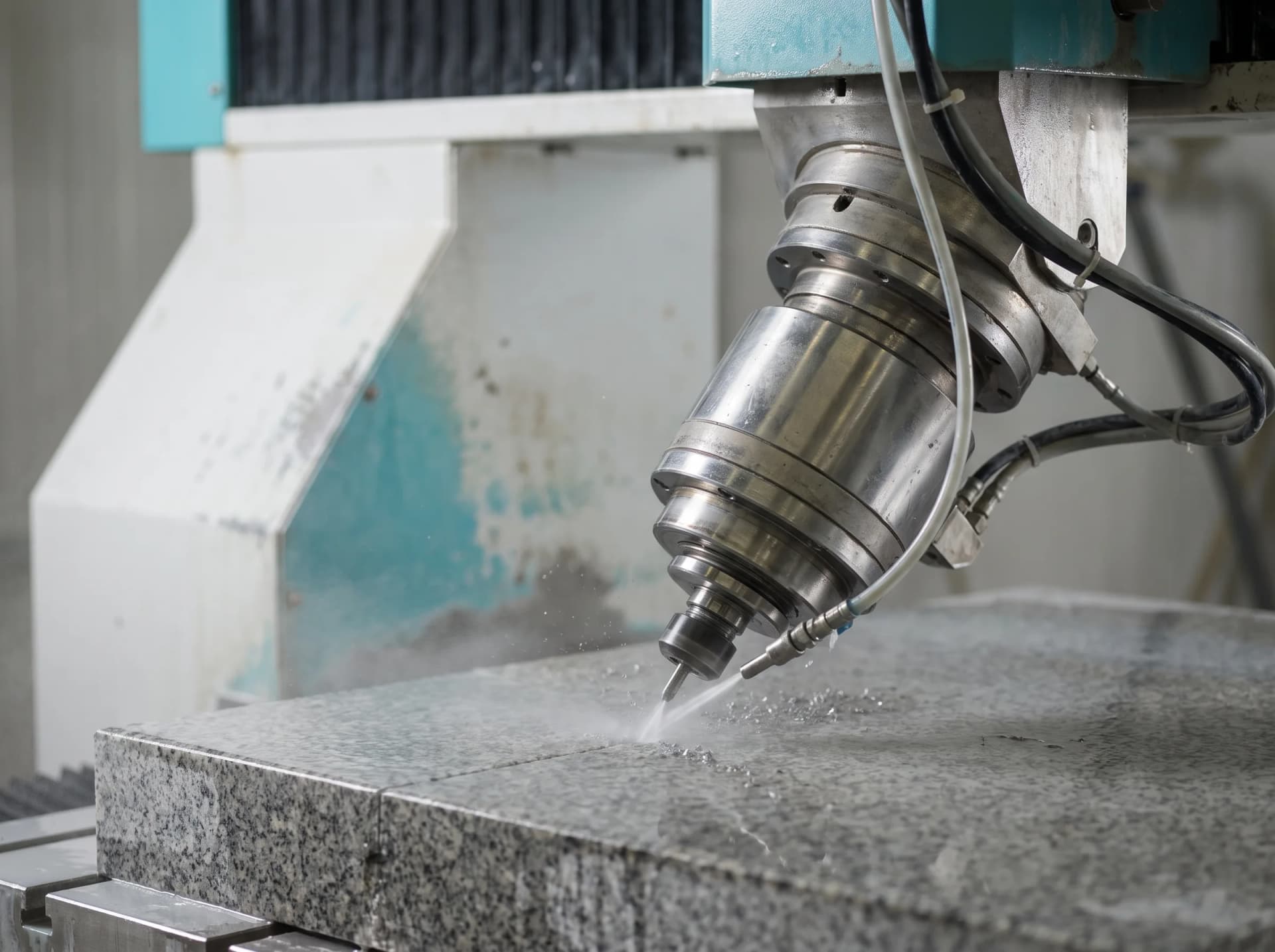

5-axis with articulating wrist, ±60° taper compensation
Cutting head axes
Not sure if the 5-Axis Waterjet (also cuts stone) is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Shops needing taper-free edges on thick material
- Fabricators cutting more than one material class
- Stone shops adding metal and glass capability
Cutting envelope
3000 x 6000 mm (10' x 20')
Pump pressure
90,000 psi (6,200 bar) direct-drive intensifier pump
Cutting head axes
5-axis with articulating wrist, ±60° taper compensation
Max Z-axis travel
300 mm (11.8")
Key Features
5-Axis Waterjet (also cuts stone) Features
Standard features that set this machine apart in demanding manufacturing environments.
Ease of Operation
- Hydravex FlowLogic control with material-based cut recipes
- Automatic abrasive metering and shutoff
- Remote diagnostics and cut-recipe updates
Cutting Capability
- Direct-drive intensifier pump for stable high pressure
- Slatted stainless tank with adjustable material supports
- Multi-material cutting: metal, stone, glass, tile, composites
Built-In Extras
- 5-axis articulating head with automatic taper compensation
Full Specifications
Hydravex HX5-3060 5-Axis Technical Details
Complete specifications, standard features, and optional upgrades.
- Cutting envelope
- 3000 x 6000 mm (10' x 20')
- Pump pressure
- 90,000 psi (6,200 bar) direct-drive intensifier pump
- Cutting head axes
- 5-axis with articulating wrist, ±60° taper compensation
- Max Z-axis travel
- 300 mm (11.8")
- Positioning accuracy
- ±0.05 mm (0.002")
- Max cut thickness, mild steel
- 150 mm (6")
- Max cut thickness, stone/granite
- 100 mm (4")
- Max positioning speed
- 25 m/min (984 in/min)
- Abrasive feed rate
- 0.2 - 0.5 kg/min, garnet #80
- Control
- Hydravex FlowLogic control, 21" touchscreen
- Tank bed
- Slatted stainless tank with material supports
- Power requirement
- 600V/3-phase, 100A service
- Footprint
- 10.5 x 7 m (34' x 23')
| Cutting envelope | 3000 x 6000 mm (10' x 20') |
| Pump pressure | 90,000 psi (6,200 bar) direct-drive intensifier pump |
| Cutting head axes | 5-axis with articulating wrist, ±60° taper compensation |
| Max Z-axis travel | 300 mm (11.8") |
| Positioning accuracy | ±0.05 mm (0.002") |
| Max cut thickness, mild steel | 150 mm (6") |
| Max cut thickness, stone/granite | 100 mm (4") |
| Max positioning speed | 25 m/min (984 in/min) |
| Abrasive feed rate | 0.2 - 0.5 kg/min, garnet #80 |
| Control | Hydravex FlowLogic control, 21" touchscreen |
| Tank bed | Slatted stainless tank with material supports |
| Power requirement | 600V/3-phase, 100A service |
| Footprint | 10.5 x 7 m (34' x 23') |
- 5-axis articulating head with automatic taper compensation
- Hydravex FlowLogic control with material-based cut recipes
- Direct-drive intensifier pump for stable high pressure
- Slatted stainless tank with adjustable material supports
- Automatic abrasive metering and shutoff
- Multi-material cutting: metal, stone, glass, tile, composites
- Remote diagnostics and cut-recipe updates
- Second cutting head for dual-part production
- Automatic garnet recycling system
- Rotary axis for round parts and pipe
- Remote monitoring package
- Structural and precision metal parts
- Stone and tile fabrication
- Glass and laminated composite cutting
- Aerospace and heavy-gauge gasket materials
FAQ
5-Axis Waterjet (also cuts stone) Questions
Answers to common questions about the 5-Axis Waterjet (also cuts stone).
Typically 12-14 weeks from order given the 5-axis head; we confirm the exact date at order.
A 600V/3-phase, 100A service and a steady water supply for the intensifier pump and tank; we confirm exact water quality and volume requirements during the site survey.
Budget for #80 garnet abrasive consumption based on your cutting hours and material — our applications engineers estimate a monthly abrasive budget from your typical parts mix.
Base machine, tank bed, Hydravex FlowLogic control, rigging and installation, cut-quality commissioning on your material, and operator/programmer training.
