5-Axis Machining Centres

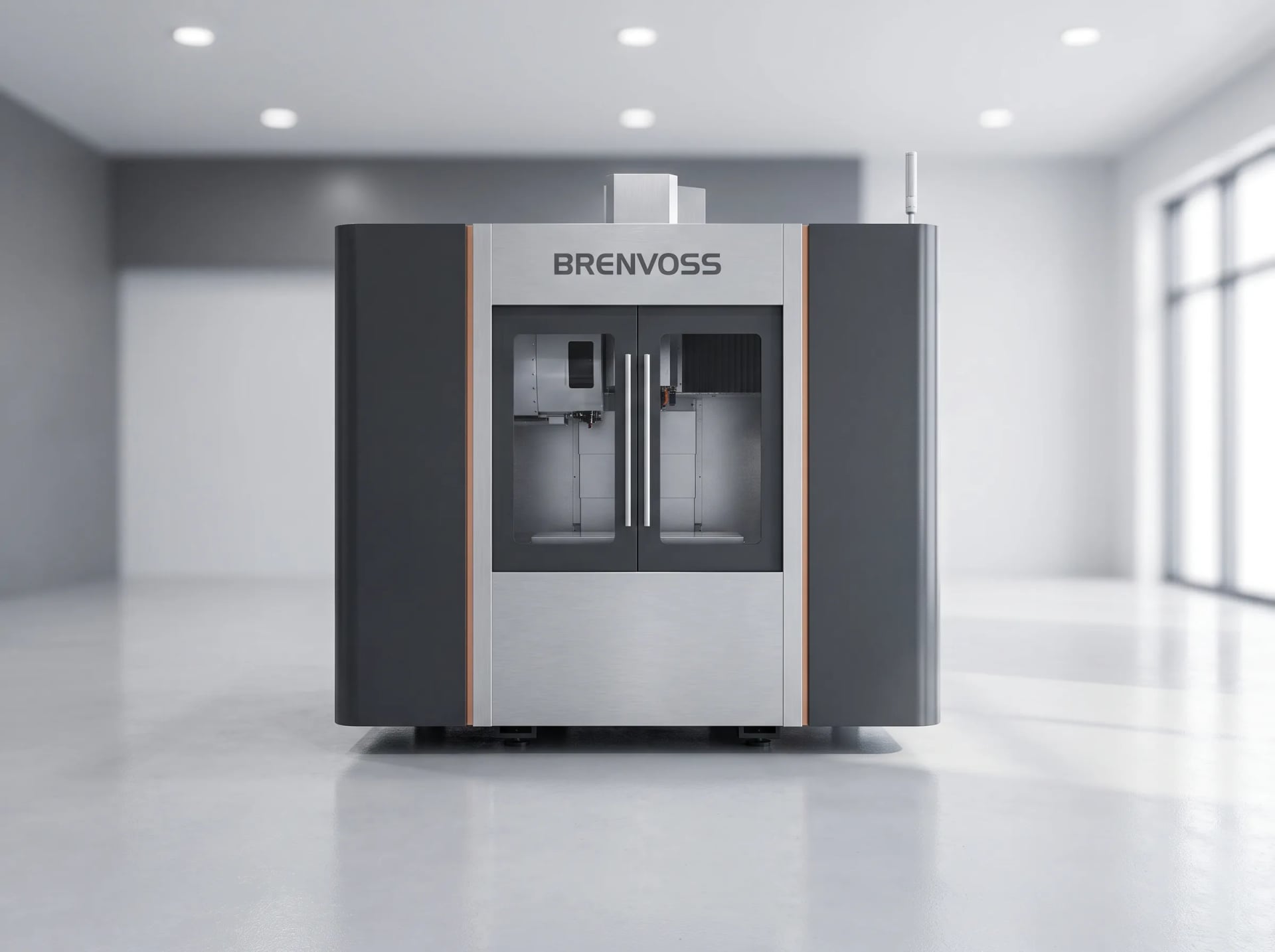

BX5-1000
by Brenvoss
Large-envelope Brenvoss 5-axis centre for big aerospace structures and heavy tooling.
1,000 mm (39.4 in)
Trunnion table diameter
-30° to +110°
A-axis tilt
360° continuous
C-axis rotation
Not sure if the BX5-1000 is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Shops whose parts have outgrown a 650 mm trunnion table
- Large aerospace structural and airframe manufacturers
- Heavy mold and die shops needing 5-axis reach
- Operations that need HSK-A100 torque on complex geometry
Trunnion table diameter
1,000 mm (39.4 in)
A-axis tilt
-30° to +110°
C-axis rotation
360° continuous
Max table load
800 kg (1,764 lb)
Key Features
BX5-1000 Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance
- HSK-A100 spindle with 200 Nm torque for heavy 5-axis metal removal
- Continuous C-axis, -30° to +110° A-axis tilt
- Absolute linear scales on all linear axes
- Thermal compensation across spindle, trunnion and column
Ease of Operation
- 1,000 mm trunnion table, 800 kg load rating
- Brenvoss Vantis 5X control with collision simulation and TCP control
Built-In Extras
- 40-station tool magazine
- Reinforced trunnion drive for large, heavy workpieces
Full Specifications
Brenvoss BX5-1000 Technical Details
Complete specifications, standard features, and optional upgrades.
- Trunnion table diameter
- 1,000 mm (39.4 in)
- A-axis tilt
- -30° to +110°
- C-axis rotation
- 360° continuous
- Max table load
- 800 kg (1,764 lb)
- X / Y / Z travel
- 1,050 x 900 x 700 mm (41.3 x 35.4 x 27.6 in)
- Spindle taper
- HSK-A100
- Spindle speed
- 10,000 rpm
- Spindle motor power
- 26 kW (35 hp)
- Spindle torque
- 200 Nm (147 lb-ft)
- Rapid traverse
- 40 m/min (1,575 ipm)
- Tool capacity
- 40 stations
- Positioning accuracy
- ±0.006 mm (0.00024 in)
- Repeatability
- ±0.004 mm (0.00016 in)
- Control
- Brenvoss Vantis 5X control
| Trunnion table diameter | 1,000 mm (39.4 in) |
| A-axis tilt | -30° to +110° |
| C-axis rotation | 360° continuous |
| Max table load | 800 kg (1,764 lb) |
| X / Y / Z travel | 1,050 x 900 x 700 mm (41.3 x 35.4 x 27.6 in) |
| Spindle taper | HSK-A100 |
| Spindle speed | 10,000 rpm |
| Spindle motor power | 26 kW (35 hp) |
| Spindle torque | 200 Nm (147 lb-ft) |
| Rapid traverse | 40 m/min (1,575 ipm) |
| Tool capacity | 40 stations |
| Positioning accuracy | ±0.006 mm (0.00024 in) |
| Repeatability | ±0.004 mm (0.00016 in) |
| Control | Brenvoss Vantis 5X control |
- 1,000 mm trunnion table, 800 kg load rating
- HSK-A100 spindle with 200 Nm torque for heavy 5-axis metal removal
- Continuous C-axis, -30° to +110° A-axis tilt
- Brenvoss Vantis 5X control with collision simulation and TCP control
- Absolute linear scales on all linear axes
- 40-station tool magazine
- Reinforced trunnion drive for large, heavy workpieces
- Thermal compensation across spindle, trunnion and column
- Automatic 5-axis tool and work probing
- 60-station extended tool magazine
- High-pressure through-spindle coolant, 70 bar
- Heavy-duty trunnion clamp upgrade for titanium structural work
- Large aerospace structural components and airframe parts
- Big impeller housings and turbine casings
- Heavy mold and die tooling requiring 5-axis finishing
- Large complex parts needing every face machined in one setup
FAQ
BX5-1000 Questions
Answers to common questions about the BX5-1000.
A standard reinforced shop floor handles the machine's weight for most installations; our team reviews your floor plan, crane or rigger access, and utility runs during the site survey.
Typically 16-18 weeks build-to-order given the larger trunnion casting and HSK-A100 spindle package; we confirm your exact ship date at quote finalization.
Yes — the 26 kW spindle and 200 Nm of torque are sized for heavy roughing, and the same trunnion holds its ±0.006 mm positioning accuracy through finish passes, so many customers run both operations on one machine.
The Vantis 5X control and programming approach are identical across the Brenvoss line, so training focuses mainly on the larger workholding and heavier-part handling specific to the BX5-1000.
